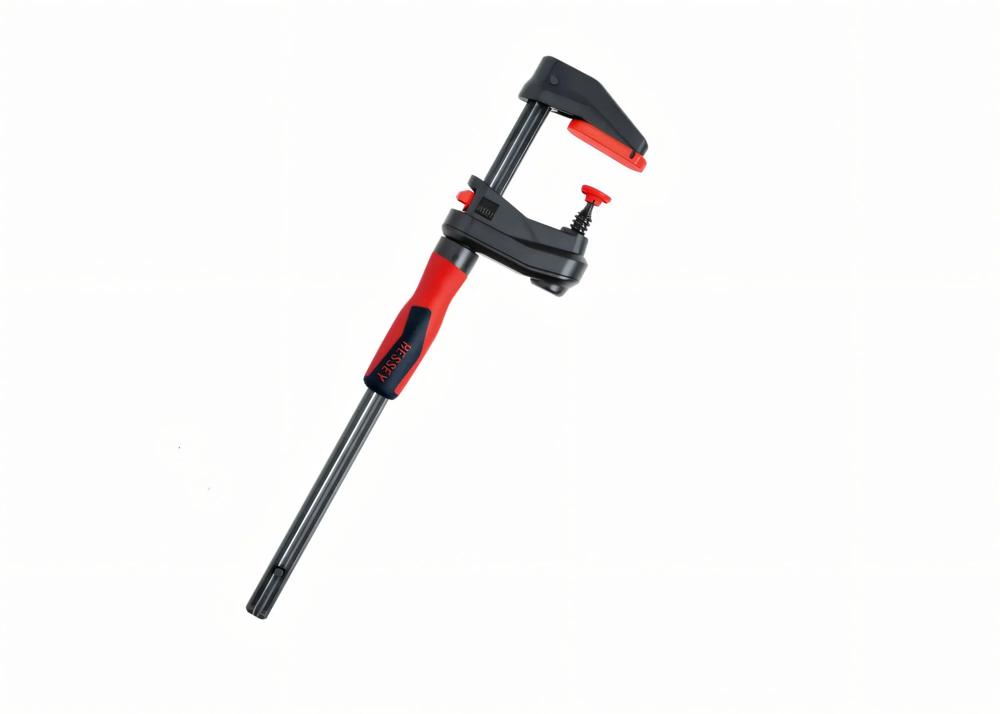

Bessey Transmission clamp GearKlamp GK15

Uniquely compact in design Span: 150 mm | Projection: 60 mm | Rail: 25 x 12 mm

Shipping within 24 hours (working days)

28,70 €

25,12 €

incl. VAT / excl. shipping costs

Brand:BESSEY
Article no.:BE-GK15
Weight:0.365kg

BESSEY GEARKLAMP

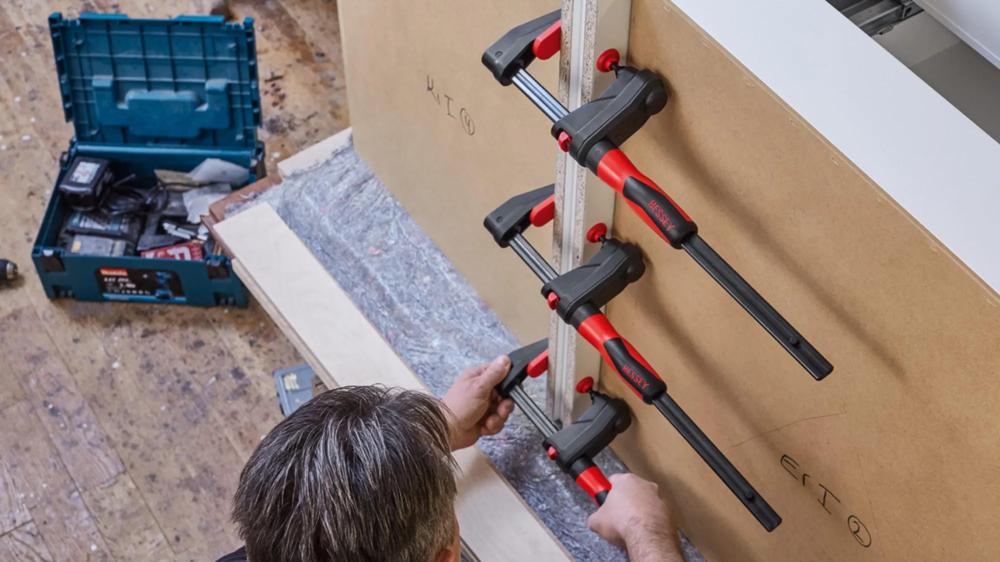

With the new gear clamp, clamping work is possible even in the tightest of spaces.

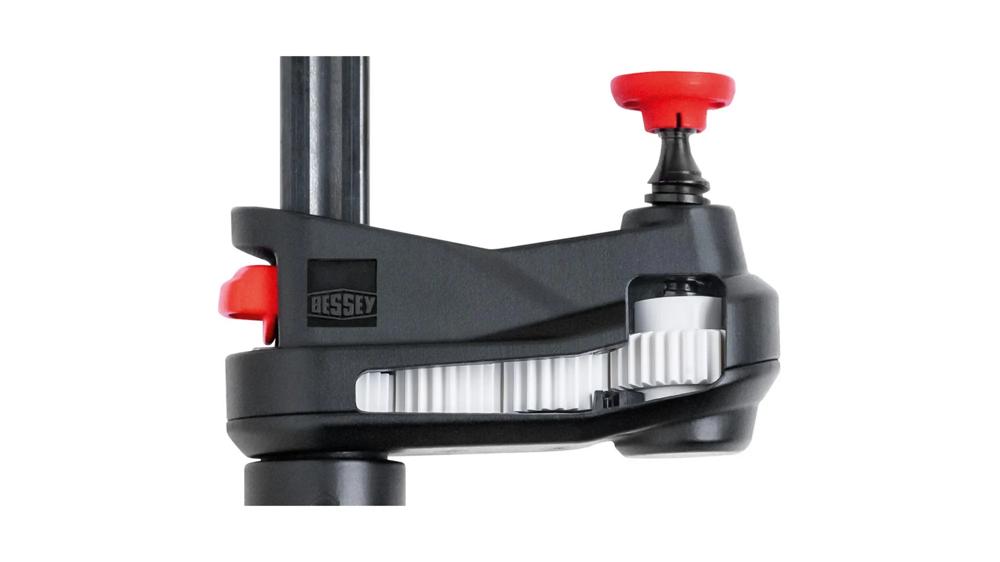

This is made possible because the spindle has been separated from the handle and placed around the rail. From there, the clamping force is transmitted to the spindle with every turn via a mechanism concealed in the sliding bracket. Compared to classic screw clamps or one-handed clamps, the geared clamp is much more compact.

Technical Data

Clamping width: 150 mm
throat depth: 60 mm
Rail: 25 x 12 mm
Weight: 0,62 kg
Clamping force: up to 2000 N

Properties & Advantages

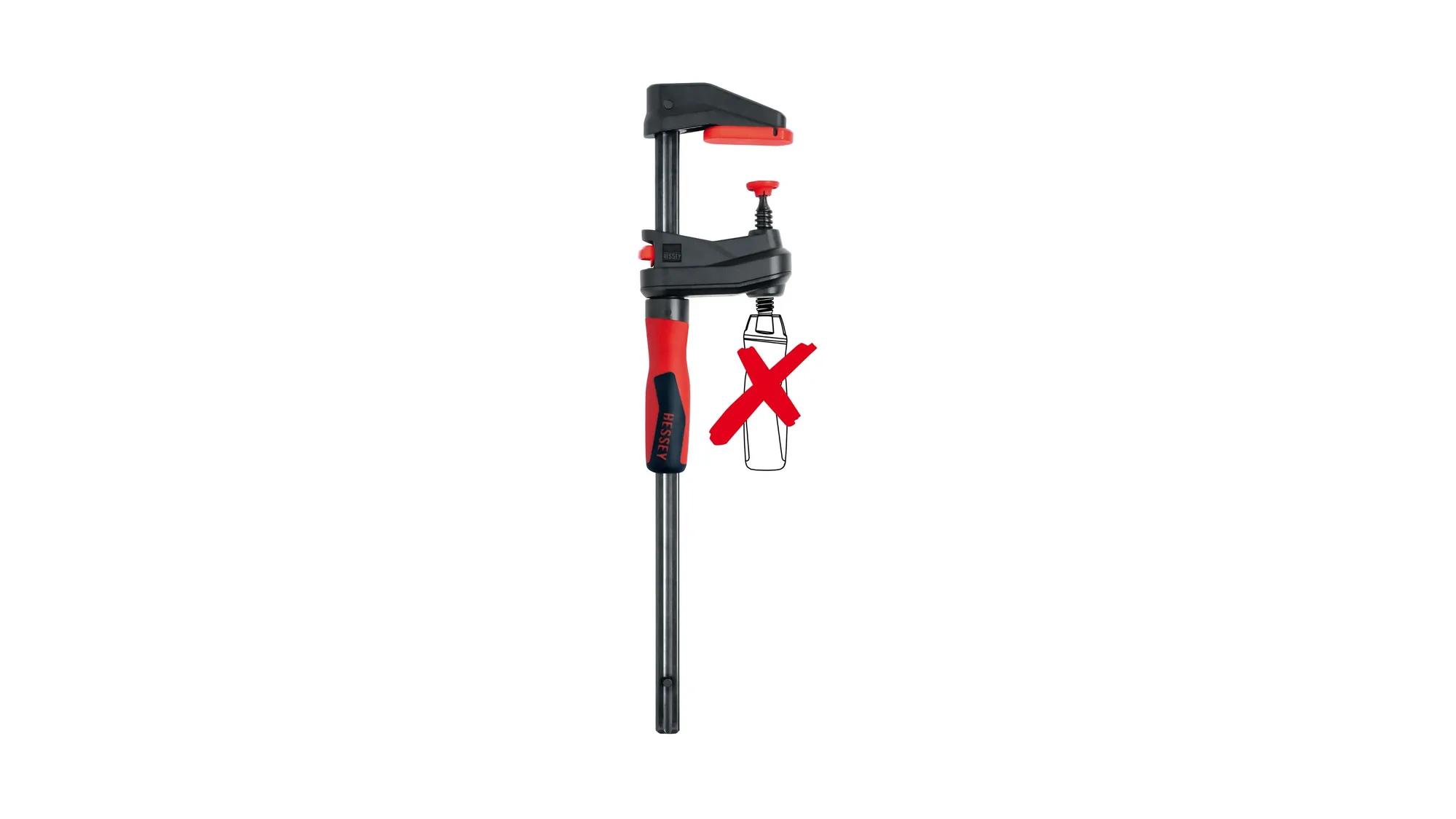

No interfering tool components in the working area
Ergonomic handling guaranteed in every clamping situation

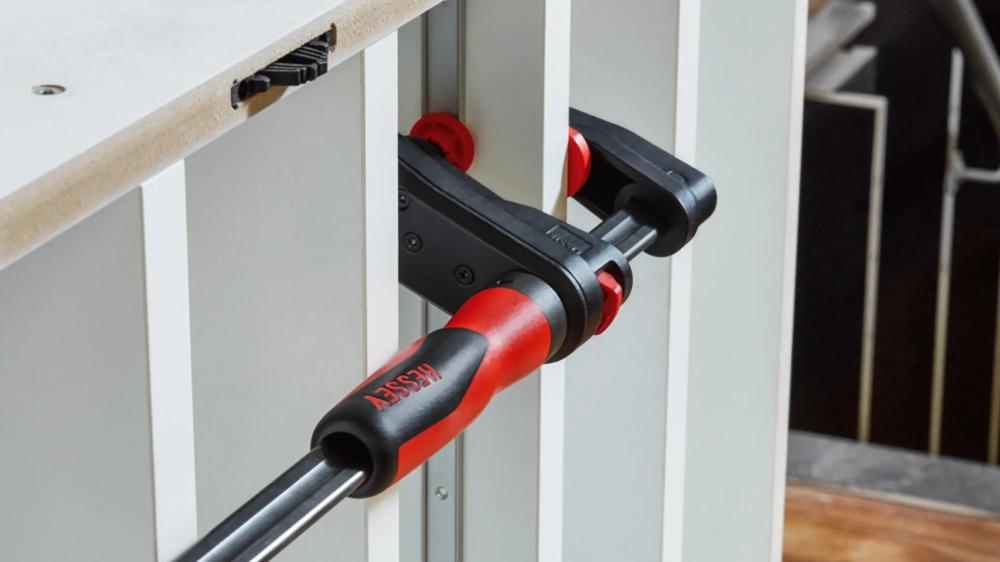

Enormously flexible and can be used in the tightest of spaces
2-component plastic handle for safe handling

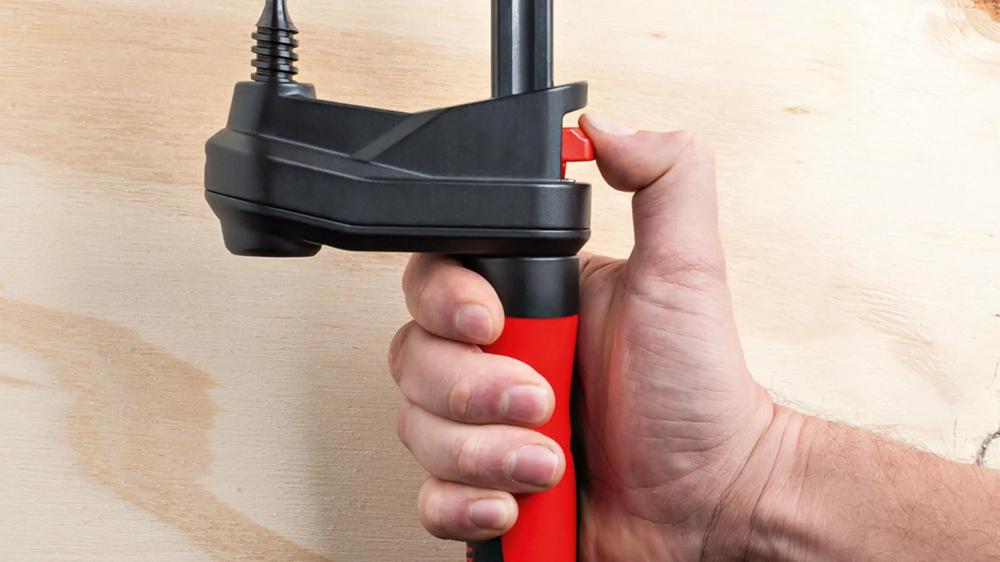

Quick-slide button for fast adjustment of the sliding clamp

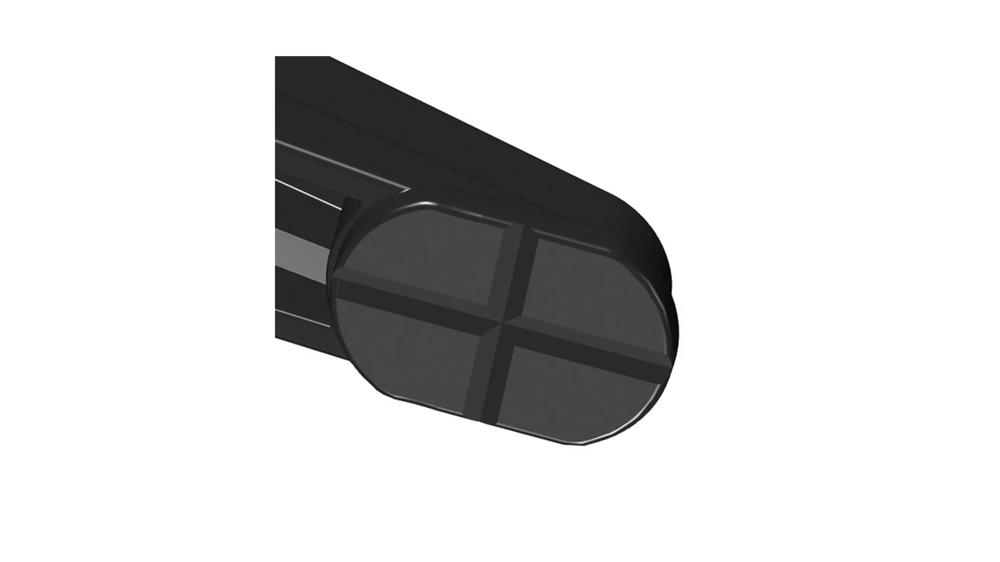

Swivelling pressure plate for perfect adaptation to the workpiece
Plastic housing of the sliding arm protects the drive mechanism from dust and chips
