Chamfer Bit D: 25mm R:8mm

Chamfer bit | D25 | H40.3 | h8 | A8

Delivery time 2-3 days

38,08 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-40-90408P
Weight:0.11kg

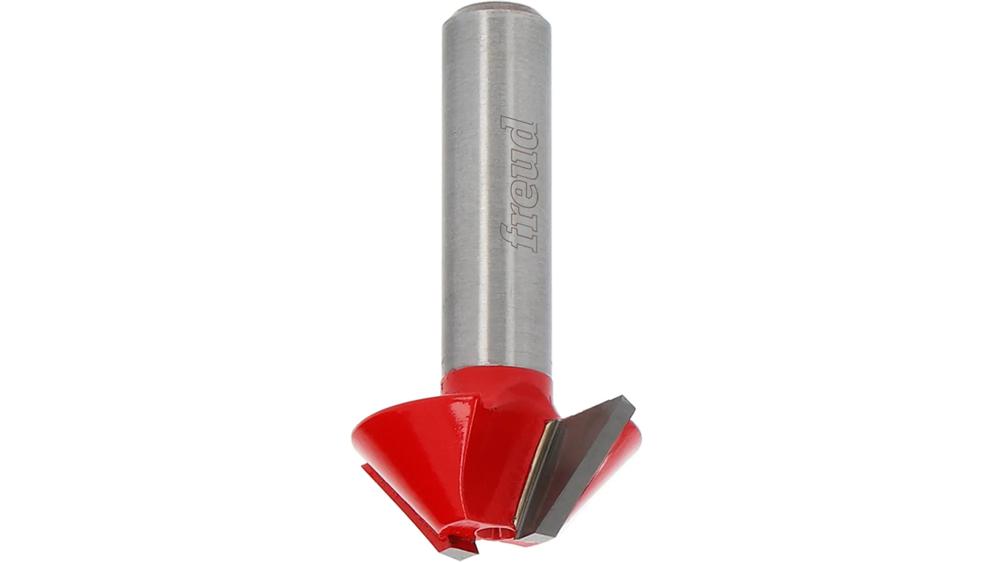

Freud Chamfer Bit D: 25mm R:8mm

Chamfer bit D25, H40.3, h8, A8

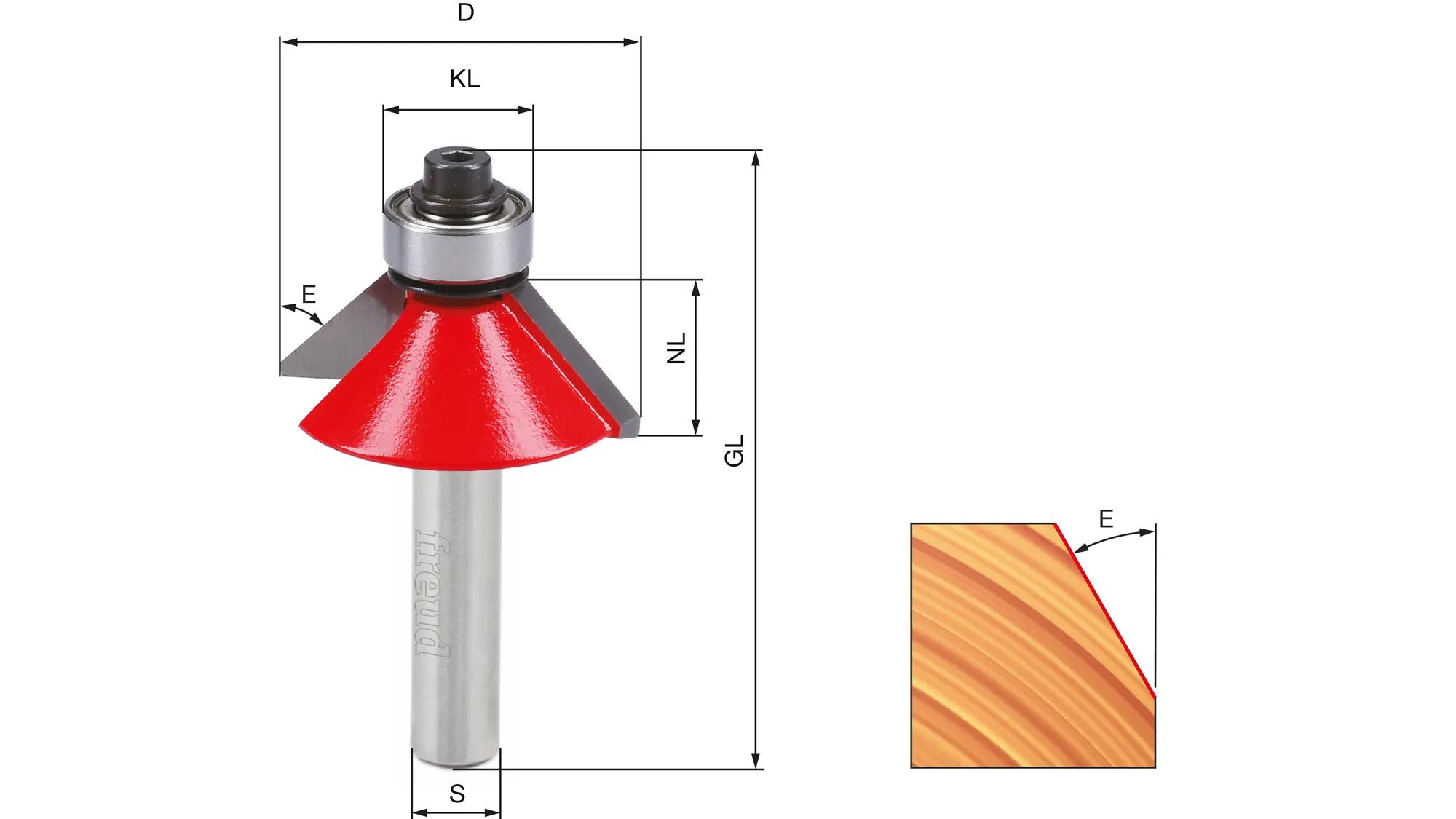

Technical Data

Diameter (D mm): 25

Cutting Length (h mm): 8

Overall Length (H mm): 40,3

Shank (A mm): 8

R1 Radius: -

R2 Radius: -

R3 Radius: -

Bearing (C mm): -

Teeth: 2

Angle (°): 45°

Max RPM 1/min: 24000

Properties & Advantages

Applications:
Easing edges, chamfer bits create a uniform
chamfer on the edge of any workpiece.

Machines:
Hand-held routers, table routers and CNC
machines.
Bits with ball bearing are not recommended to
be used on CNC machines.

Materials:
Softwood, hardwood, plywood and wood
based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
