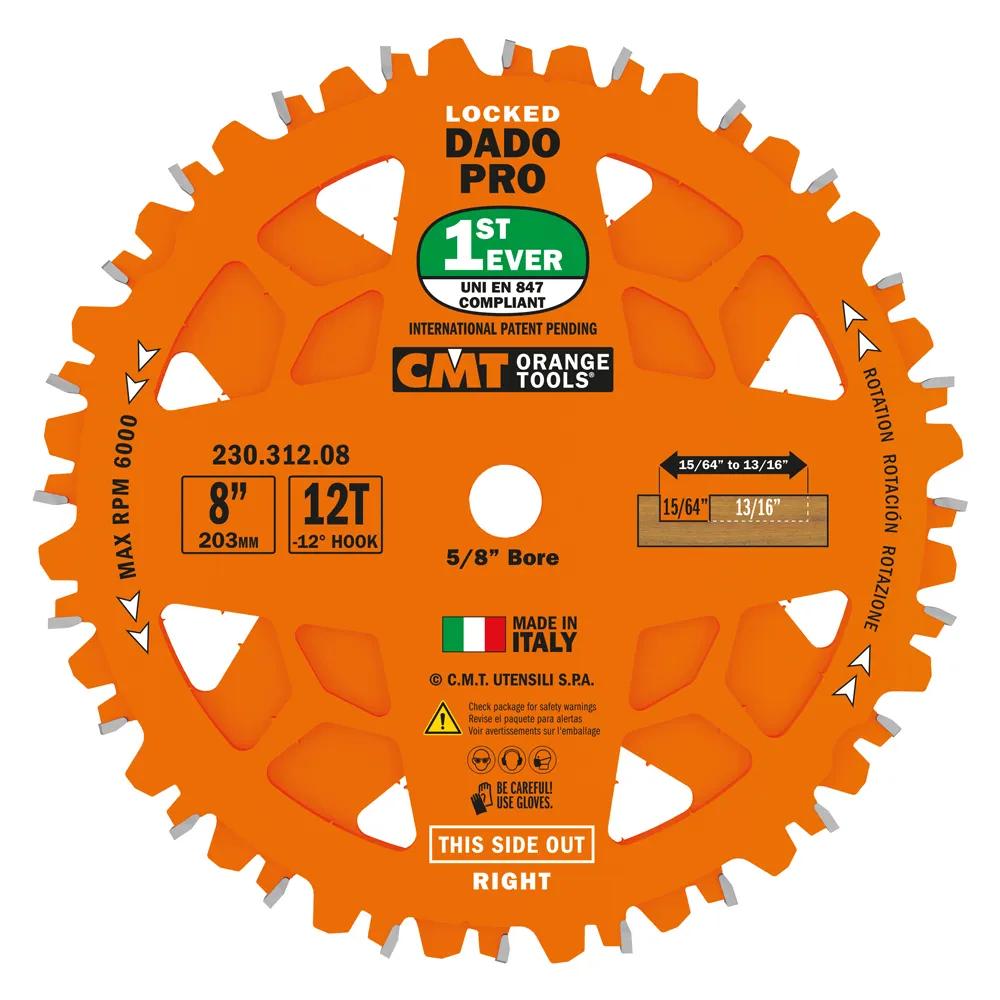

CMT Grooving Saw Blade Set DADO PRO - D203x6,2-20 d15,87 Z12 HW
CMT Grooving Saw Blade Set DADO PRO - D203x6,2-20 d15,87 Z12 HW
For the production of grooves with a flat base | D 203 x 6,2-20mm | d15,87 mm | Z12 HW | Suitable for the Laguna Fusion and the DeWalt 7492-QS table saws
Robustly built table saw for workshop and assembly | Rack and pinion guided fence | 77mm cutting depth | Effective extraction | At present shipping is only possible to the EU, Switzerland and Norway
Compact, excellently equipped table saw | Pivoting saw blade | Cleanly processed | NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY
Shipping within 24 hours (working days)
1.595,00 €
1.459,90 €
incl. VAT
Art.-Nr: I-151-FUSION1
4 Products
Technical Data
Diameter: 203 mm
Number of teeth: 12
Bore diameter: 15,87 mm (5/8")
Cutting width 6.2 - 20 mm
Cutting angle: -12°
Properties & Advantages
For flat bottom grooves and virtually splinter-free cuts in solid wood, laminates, melamines and veneer plywood.
The top layer Orange Shield Coating serves for excellent heat dissipation, prevents sticking of the material and protects the disc against corrosion.

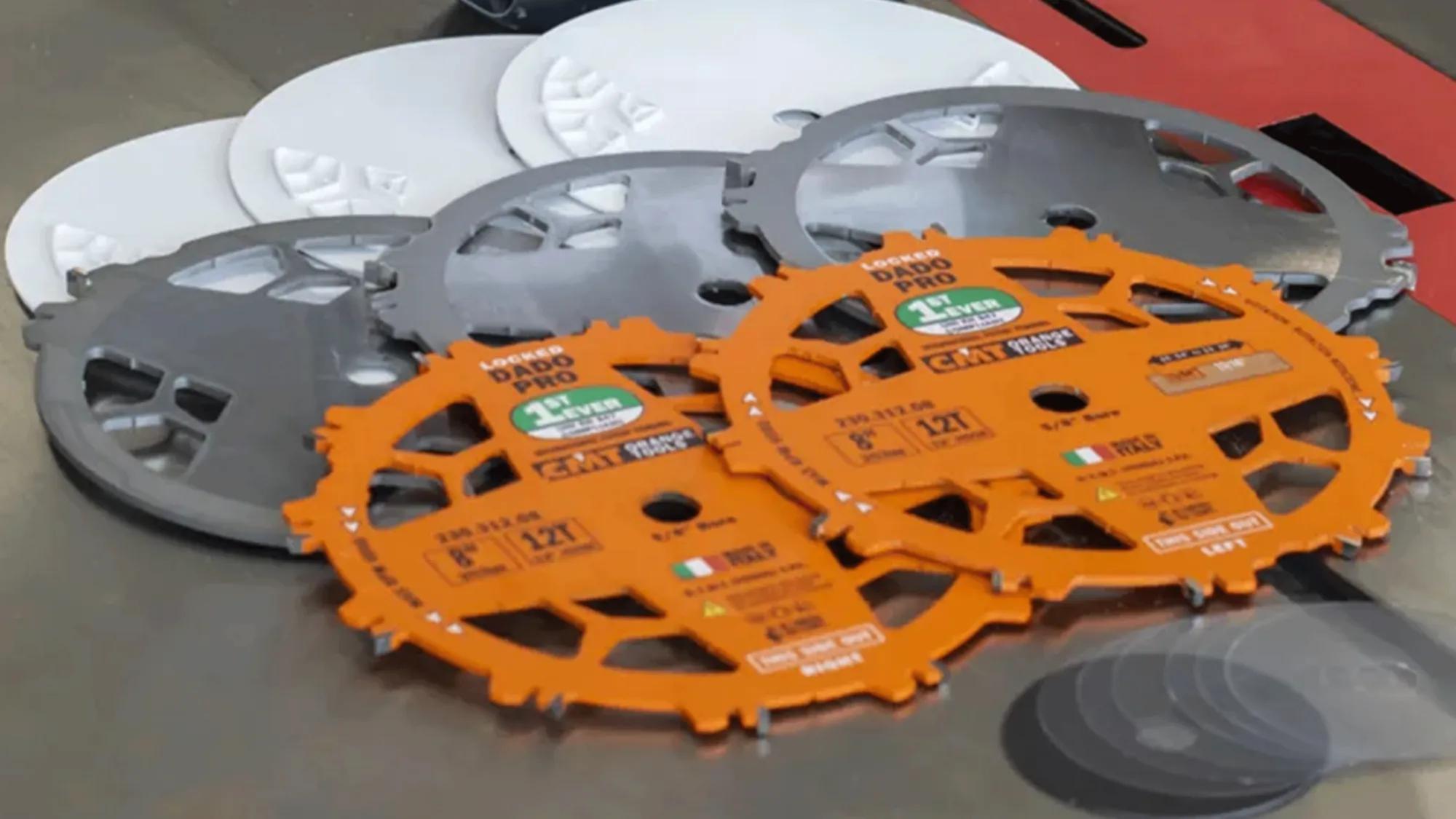

The set includes spacer rings (plastic and magnetic) and a set of washers with locks and adjustable width after 1 mm.
The DADO set complies with the UNI EN847 standard - the individual washers never come into common contact thanks to the unique design .
The exact width of the groove can be adjusted for all settings using spacer rings (0.1 - 0.5 mm), which you can place between the discs and the compensating disc with the fasteners.
For solid wood, laminate, MDF, veneer wood.

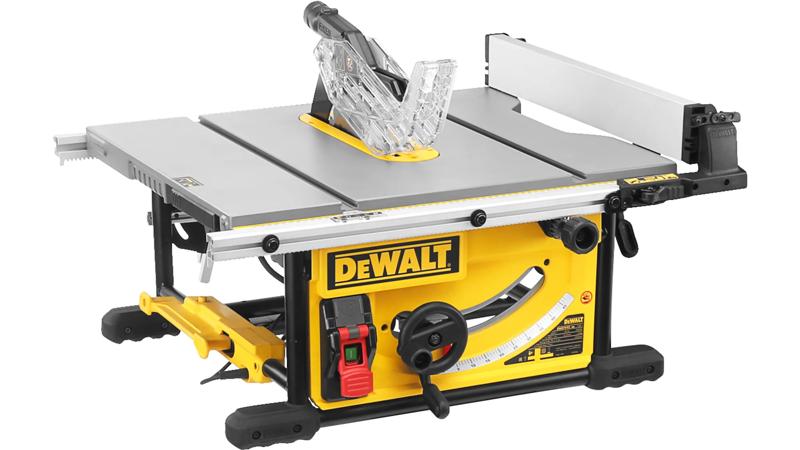

Suitable for the Laguna Fusion table saws and the DeWalt 7492-QS
