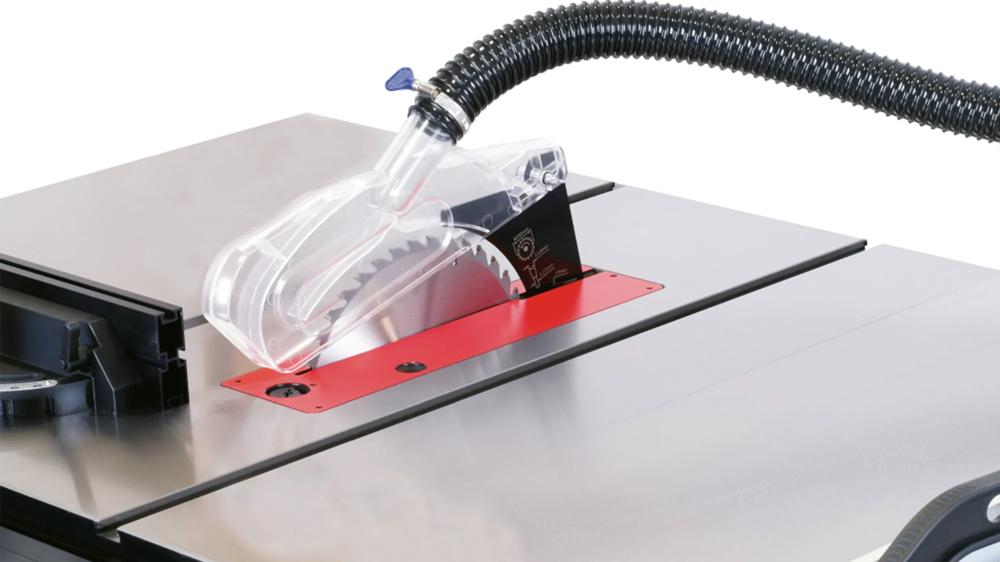

tischkreissaege-laguna-i-151-fusion3dro-05

tischkreissaege-laguna-i-151-fusion3dro-06

tischkreissaege-laguna-i-151-fusion3dro-07

LAGUNA table saw Fusion 3

Excellent equipped table saw | Pivoting saw blade with digital display | 2200 W | NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY

Shipping within 24 hours (working days)

3.159,13 €

2.899,90 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:Laguna
Article no.:I-151-FUSION3DRO
Weight:193.4kg

LAGUNA table saw Fusion 3

LAGUNA table saw Fusion 3

Excellent equipped table saw | Pivoting saw blade with digital display | 2200 W | NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY

Shipping within 24 hours (working days)

3.159,13 €

2.899,90 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:Laguna
Article no.:I-151-FUSION3DRO
Weight:193.4kg

LAGUNA table saw Fusion 3

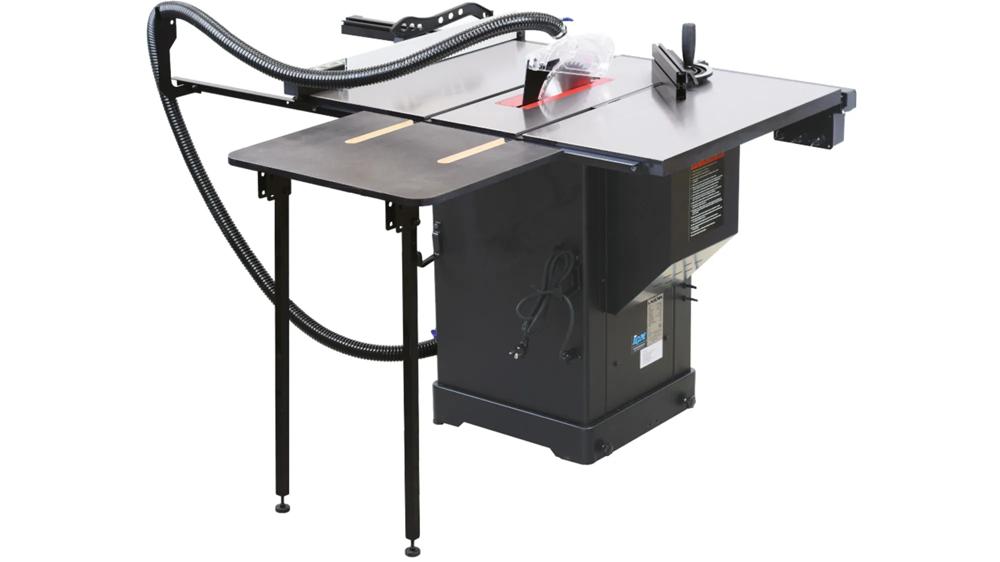

Stationary table saw with large cast iron work table and table extension for all common sawing operations including panels.

Compatible accessories

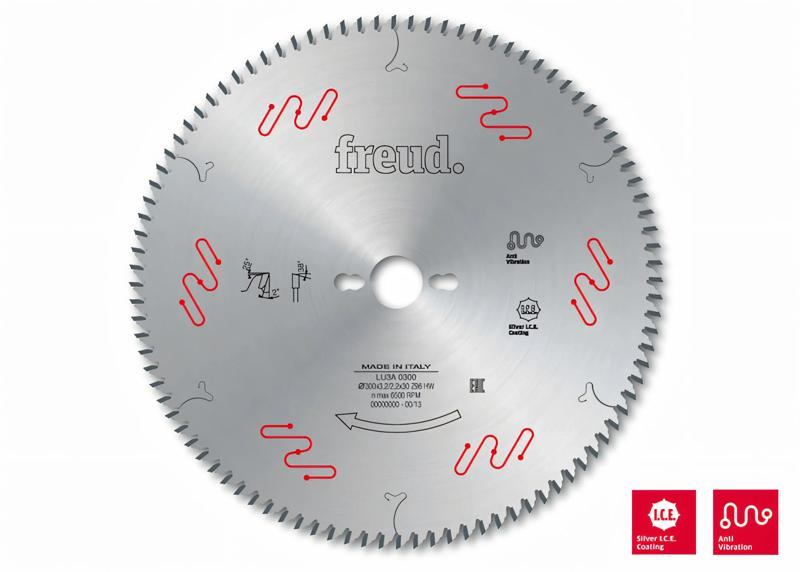

Circular saw blade HM 250 x 3.2/2.2 x 30 mm, Z=80

Circular saw blade HM - tear-free cut without scorer - also in panels coated on both sides | for cross-sections - extremely fine cut quality | 250 x 3,2/2,2 x 30mm, Z=80 WZ neg.

Shipping within 24 hours (working days)

100,90 €

incl. VAT

Art.-Nr: FR-LU3A-0200

tischkreissaege-tischerweiterung-laguna-i-151-fusion52-01

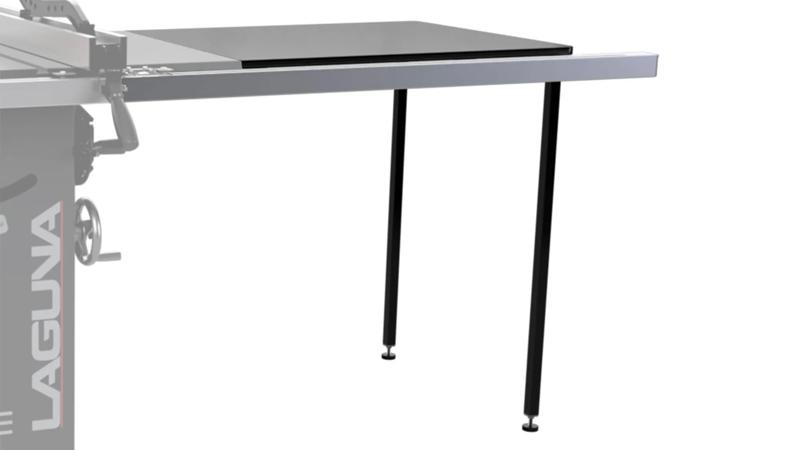

Table extension for LAGUNA table saws

Increases the rip capacity to 1320 mm

Shipping within 24 hours (working days)

339,83 €

incl. VAT

Art.-Nr: I-151-FUSION52

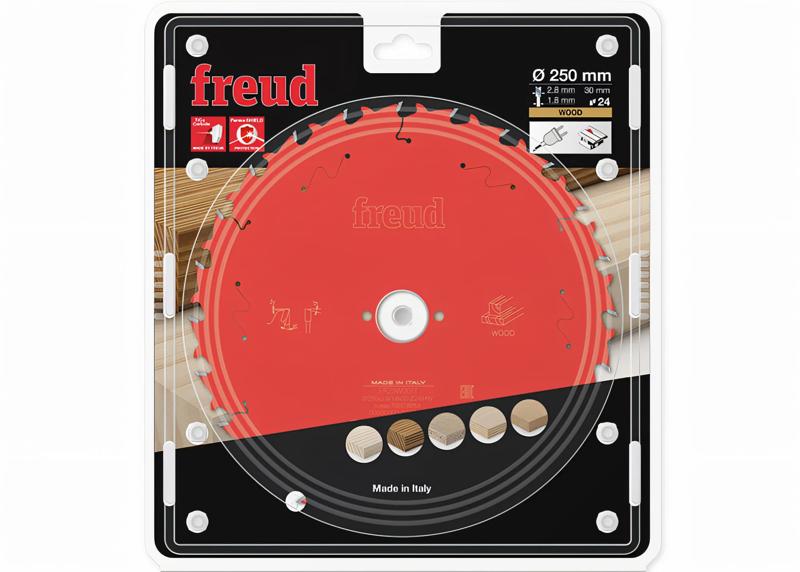

Circular saw blade HM 250 x 2.8/1.8 x 30 mm, Z=24

Wood | rip cuts | alternate tooth

Shipping within 24 hours (working days)

43,90 €

incl. VAT

Art.-Nr: FR-FR23W001T

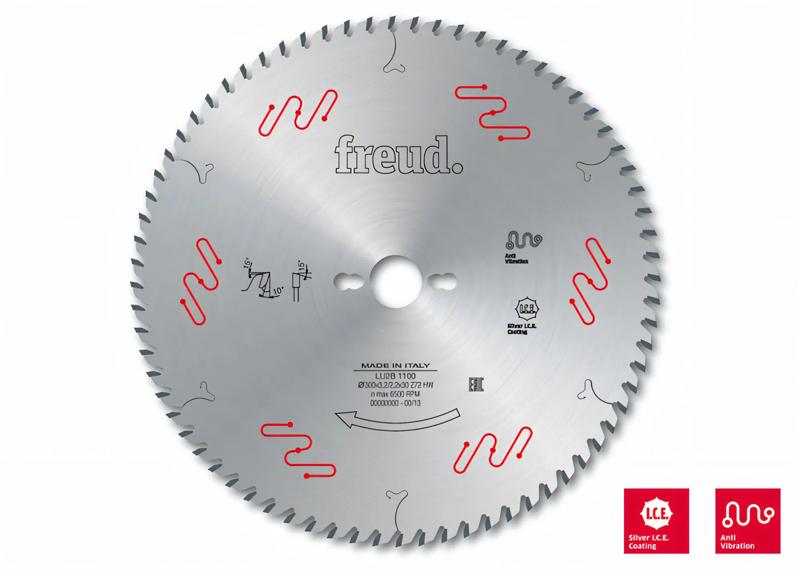

Circular saw blade HM 250 x 3.2/2.2 x 30 mm, Z=48

Circular saw blade HM - special for rip & cross cut - also in exotic hardwood | for rip and cross cuts - medium cutting quality | 250 x 3,2/2,2 x 30mm, Z=48 WZ

Shipping within 24 hours (working days)

66,90 €

incl. VAT

Art.-Nr: FR-LU2B-0500

fraestisch-winkelanschlag-inkl-fuehrungsschiene-sauter-set-mgc10-13-01

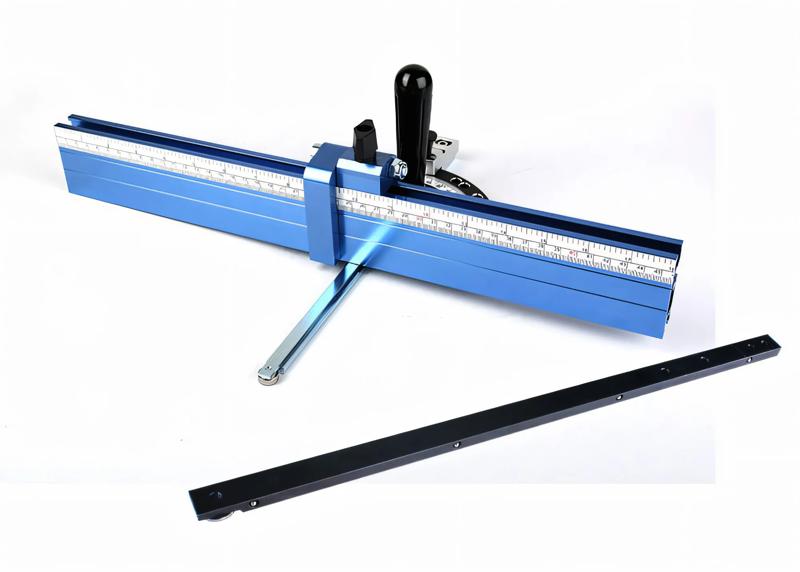

sauter Mitre Gauge inc. 3/4" Guide Rail

Gauge with additional guide rail 3/4" (19.05 mm) | Length of stop rail: 458 mm

Shipping within 24 hours (working days)

135,07 €

incl. VAT

Art.-Nr: SET-MGC10-13

tischkreissaege-dado-einsatz-laguna-i-151-fusiondado-01

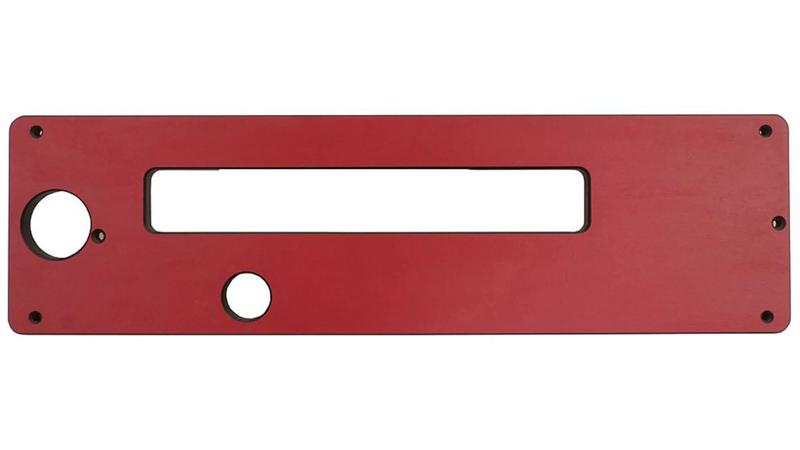

DADO throat plate for LAGUNA Fusion table saws

Made of phenolic resin

Shipping within 24 hours (working days)

75,81 €

incl. VAT

Art.-Nr: I-151-FUSIONDADO

reinigungsset-saegeblaetter-fraeser-microjig-mj-bc-81012-01

Microjig Blade and Bit Cleaning System

The fastest way to clean your saw blades and router bits | Robust | Practical | Easy to use

Shipping within 24 hours (working days)

123,90 €

incl. VAT

Art.-Nr: MJ-BC-81012

tischkreissaege-nullspalteinlage-laguna-i-151-fusiontp-01

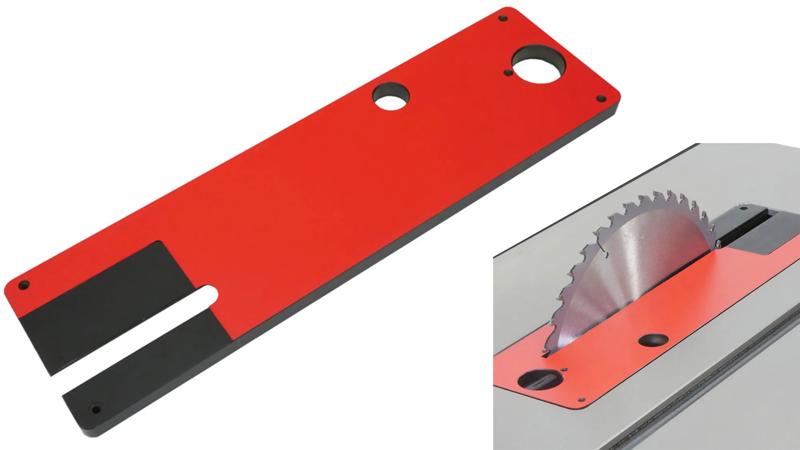

Zero clerance plate for LAGUNA Fusion table saws

Made of phenolic resin

Shipping within 24 hours (working days)

81,38 €

incl. VAT

Art.-Nr: I-151-FUSIONTP

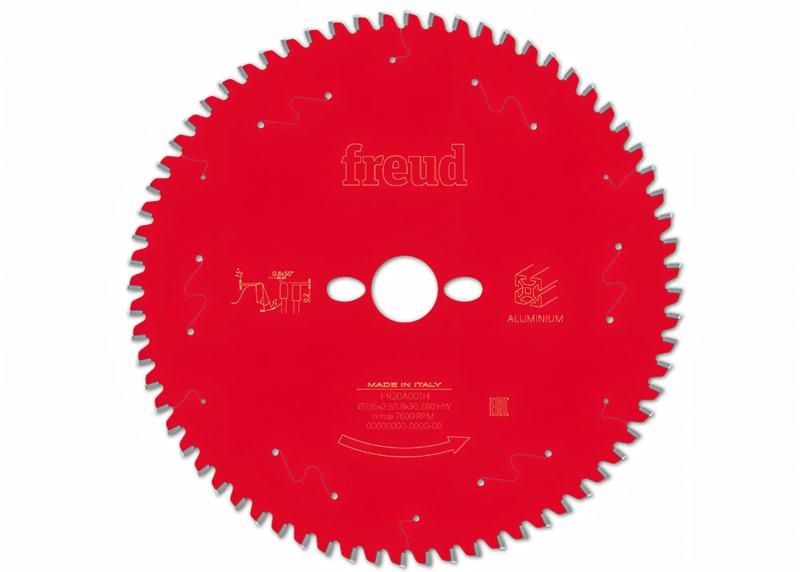

Circular saw blade HM 250 x 2.8/2.0 x 30 mm, Z=68

Non-ferrous metals | plastic | trapezoidal flat tooth

Shipping within 24 hours (working days)

79,90 €

incl. VAT

Art.-Nr: FR-FR23A001T

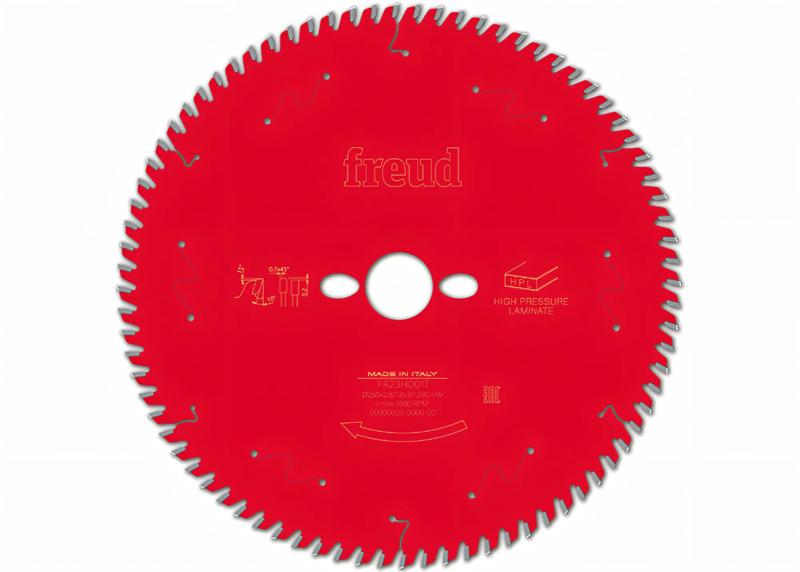

Circular saw blade HM 250 x 2.8/1.8 x 30 mm, Z=80

HPL | solid surface material | trapezoidal flat tooth

Shipping within 24 hours (working days)

93,90 €

incl. VAT

Art.-Nr: FR-FR23H001T

tischkreissaege-spaltkeil-laguna-i-151-fusion3-27-01

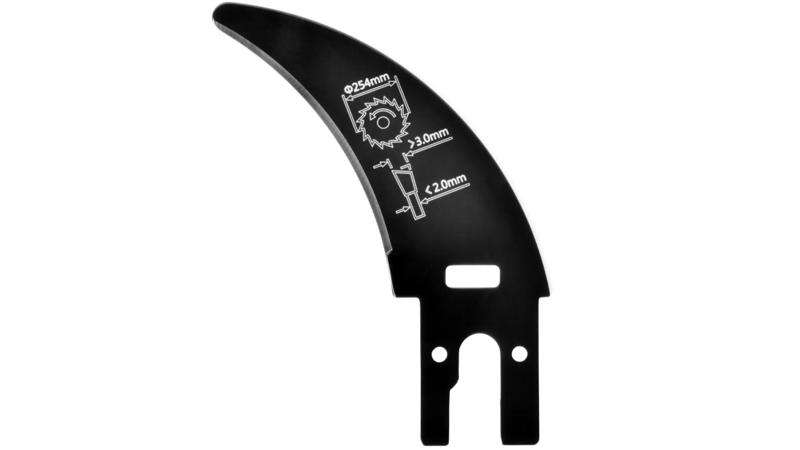

Riving knife for non-through cuts

For Laguna Fusion table saws

Shipping within 24 hours (working days)

34,16 €

incl. VAT

Art.-Nr: I-151-FUSION3-27

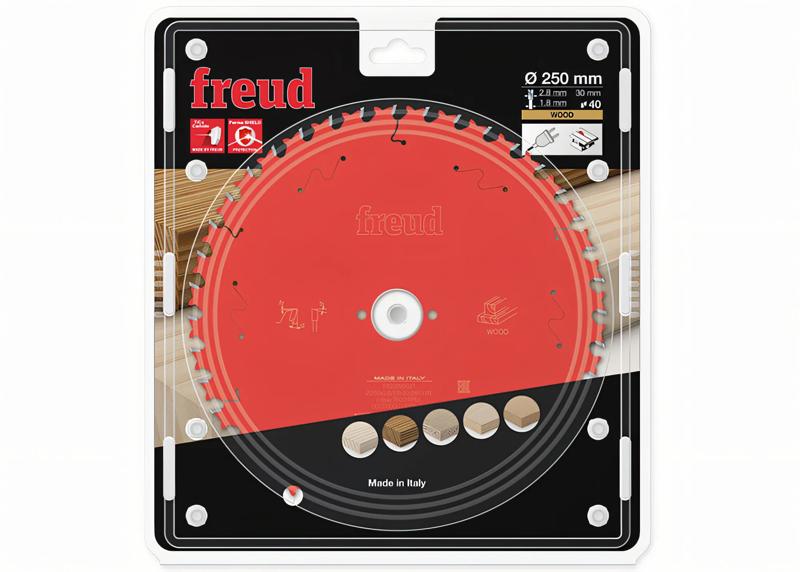

Circular saw blade HM 250 x 2.8/1.8 x 30 mm, Z=40

Wood | rip cuts | alternate tooth

Shipping within 24 hours (working days)

57,90 €

incl. VAT

Art.-Nr: FR-FR23W002T

12 Products

Technical Data

Power Output (230V) F-type plug: 2200 W
Recommended circuit breaker: 16A, characteristic C (16/1/C)
Blade Dia x Bore: 250 x 30 mm
Speed: 3800 rpm
Blade Tilt: 0–45°
Max. Depth of Cut at 45°: 56 mm
Max. Depth of Cut at 90°: 79 mm
Rip Capacity: 914 mm
Dust Extraction Outlet: 100 mm
Table Size: 1118 mm 792 mm
T-Slot Dimensions W x H: 24,3 mm (19 mm), x 4,2 (10,7)
Dimensions (L x W x Th.): 1663 mm x 1575 mm x 1081 mm
Weight: 157 kg
Comes partially assembled in a transport crate. Assembly time is approximately 1 hour.

Properties & Advantages

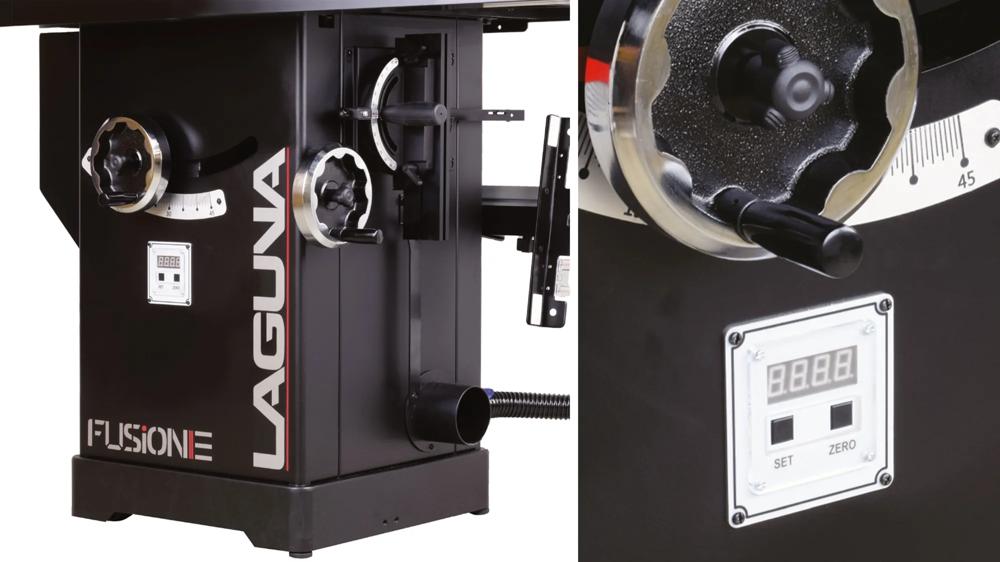

Digital saw blade angle indicator built into the saw body.
Robust cast-iron trunnion.
Can be used with CMT Grooving Saw Blade Set DADO with a clamping hole of 15,87 mm (5/8“).
Innovative mitre fence with extra precise sliding.
Two T-slots on the side of the blade.

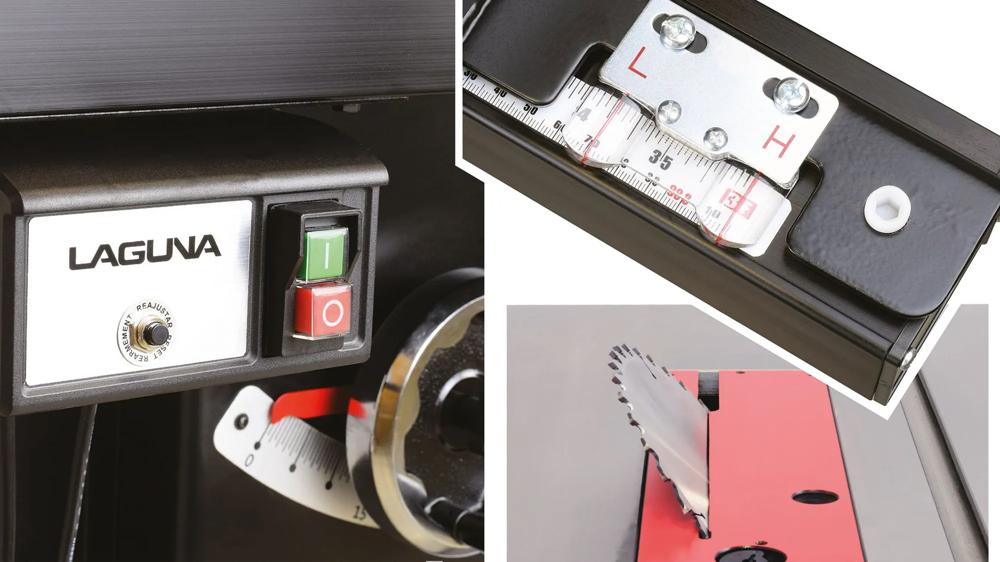

Smooth and easy control of the blade height and tilt.
Lever for a quick blade swap.
Adjustable control panel.
Quick clamping riving knife.
Integrated wheel for simple mobility.
Includes rear table.
Storage around the cabinet of the saw allows clever storing of the rip fence, mitre fence or feeder.

Laguna Fusion table saws

Discover now

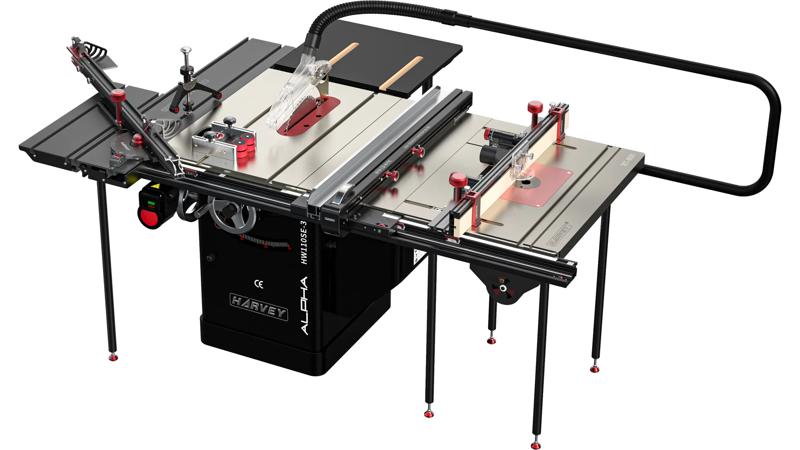

The Ultimate Workstation Harvey ALPHA HW110SE-36 table saw
Circular table saw ALPHA HW110SE-36 | COMPASS ST-1500 Sliding table | COMPASS RT-800 Stainless steel router table top | NOT FOR SALE OUTSIDE THE EU, SWITZERLAND AND NORWAY
Shipping within 24 hours (working days)
10.262,73 €
9.954,85 €
incl. VAT
Art.-Nr: SET-HAR-804133
Sliding table saw Holzprofi Maker PS315/2000F Groove
3.8kW / 400V | scoring unit | 2000mm sliding carriage | NOT FOR SALE OUTSIDE EUROPE
Shipping within 24 hours (working days)
3.262,59 €
incl. VAT
Art.-Nr: HP-M2-PS315F-2000
Professional sliding table saw Holzprofi Maker PS250N-230V
2.2kW / 230V | saw blade diameter 250 mm | sliding table saw | NOT FOR SALE OUTSIDE EUROPE
Shipping within 24 hours (working days)
1.973,41 €
incl. VAT
Art.-Nr: HP-M2-PS250N-230V

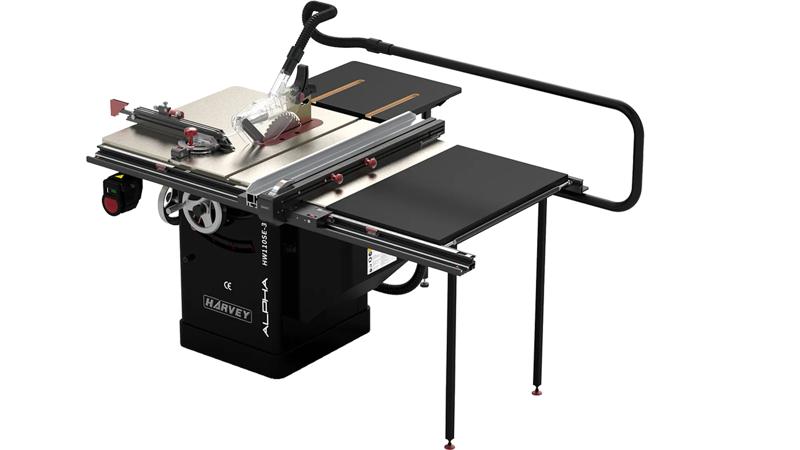

Harvey ALPHA HW110SE-36 table saw
