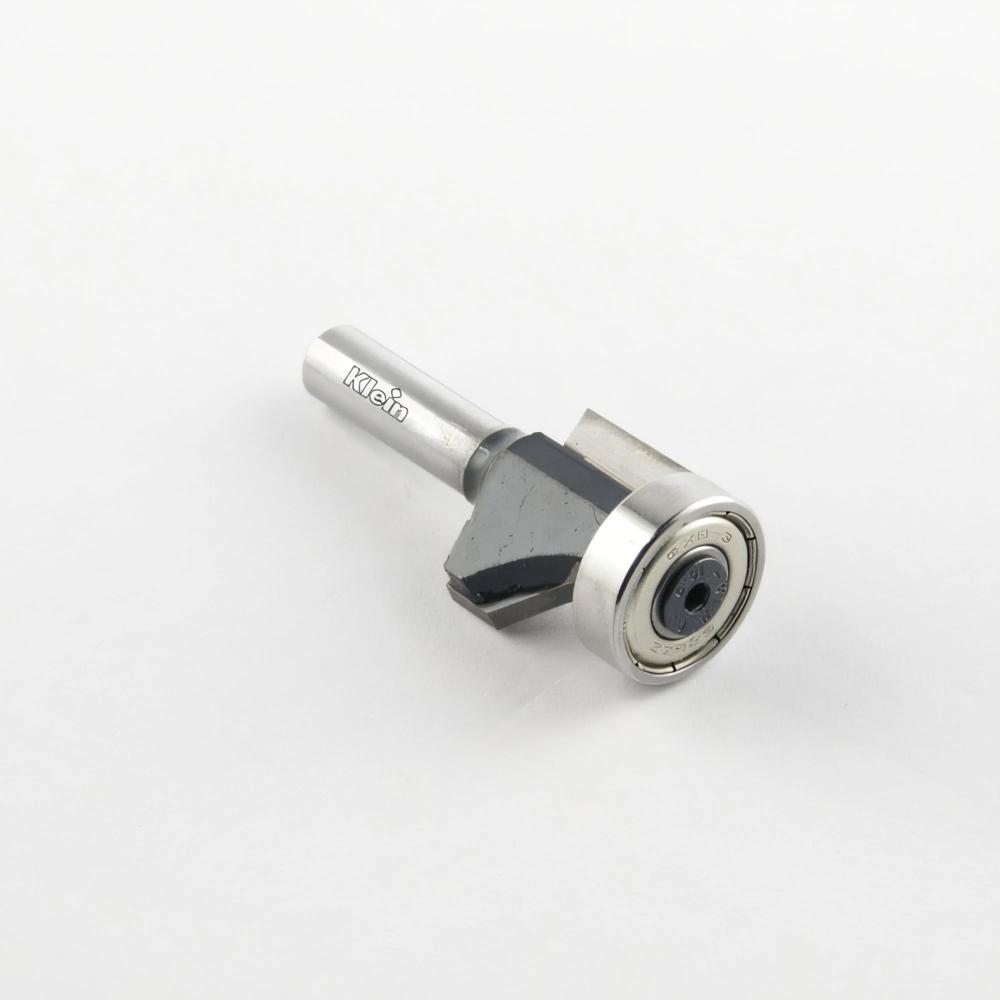

Fase-Trimming Router Cutter HW (HM) with thrust bearing Z2

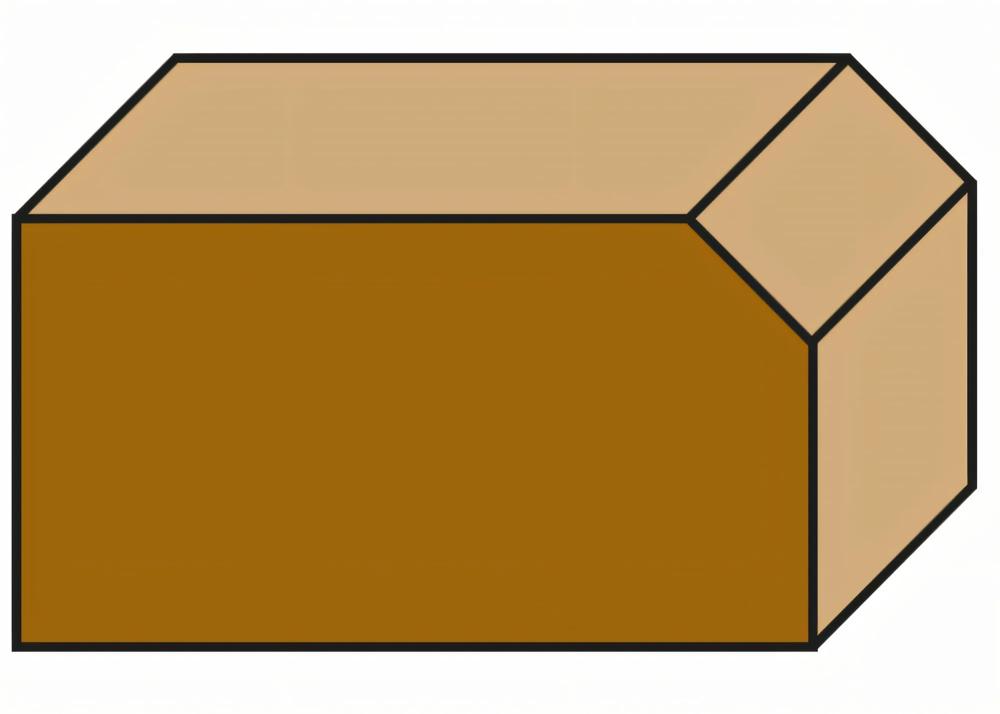

The Fase-Trimming Router CutterHW (HM) with thrust bearing Z=2 has two different brazed-on carbide cutting edges and ball bearings, which are used for formatting and simultaneous chamfering of edges can.

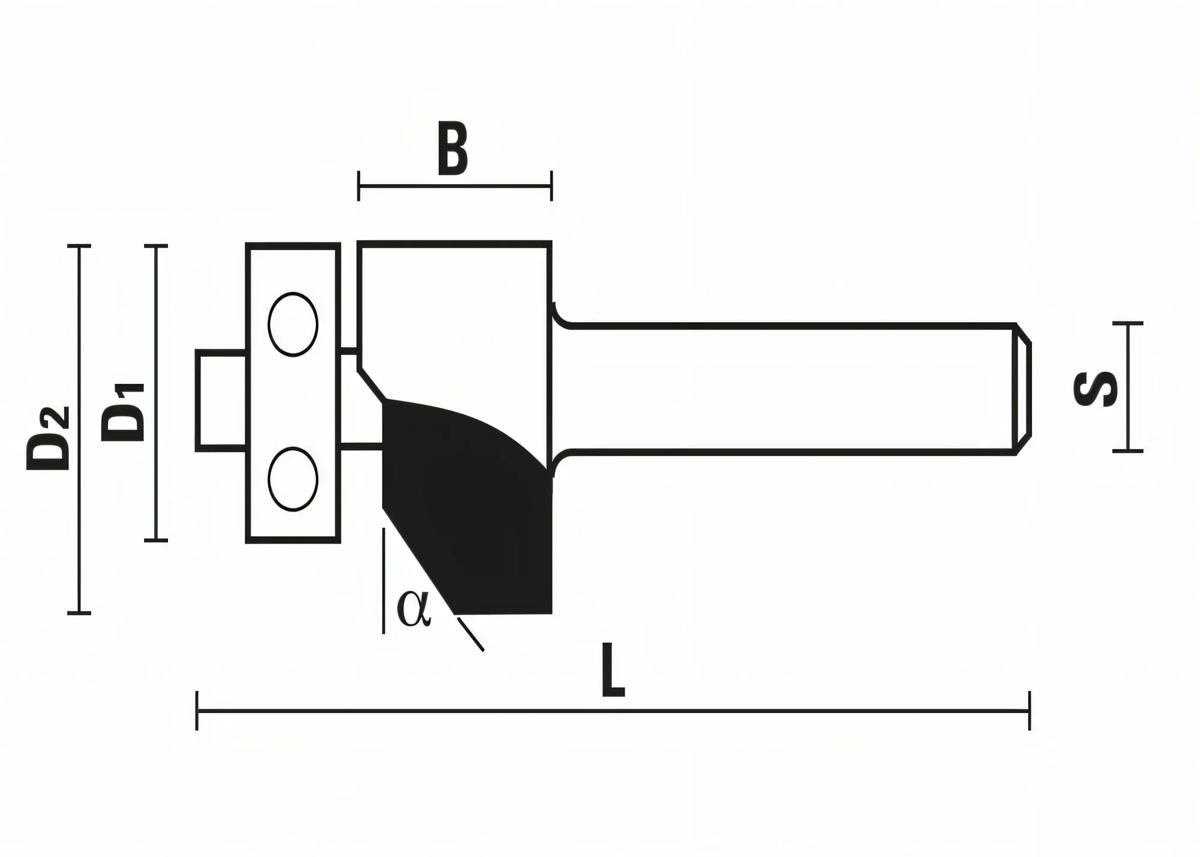

Technical Data
D1: 19 mm
D2: 26 mm
B: 15 mm
E: 0°/45°
L: 53 mm
S: 8 mm
Properties & Advantages
For hard and soft woods
For polastics (acrylic, polypropylene, and polycarbonate)
For laminates (HPL, Trespa...)
For veneered board materials (chipboard, fibreboard, plywood)
