Each year, nearly 4,000 people suffer injuries from circular saws—equivalent to 16 incidents every working day. Of these, around 26% result in severe injuries that may even qualify for accident pensions, according to the German Social Accident Insurance (DGUV) statistics from the 2017 Workplace Accident Report. The new TKS 80 table saw significantly reduces the risk of serious cutting injuries. While you focus on your craftsmanship, we safeguard what’s irreplaceable – your fingers.
Technical Data
Power consumption - 2 200 W
Idle engine speed - 1700 - 3500 min⁻¹
Saw blade diameter - 254.00 mm
Cutting height 90°/45° - 80/56 mm
Inclination - -2 / 47 °
Table dimensions - 690 x 580 mm
Table height, legs folded away - 385.00 mm
Table height, legs unfolded - 900.00 mm
Dust extraction connection diameter - 27/36 mm
Cable length - 4.00 m
Product weight without accessories - 38.40 kg
Drive type - 230 Mains
Properties & Advantages

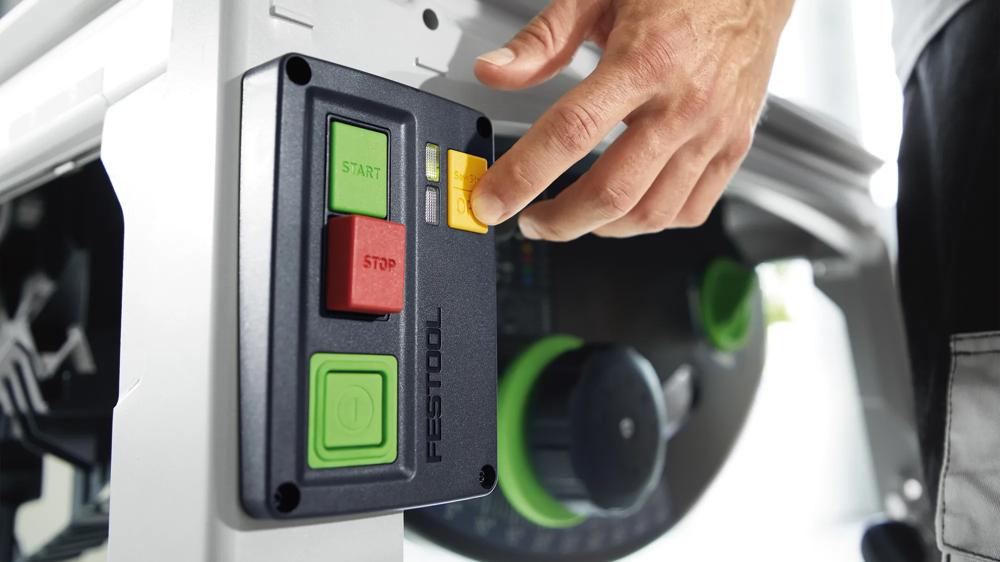

Improved safety: Less risk for your fingers - The responsive sensor on the integrated SawStop AIM technology provides increased safety when sawing in non conductive materials.SawStop AIM technology can also be deactivated if necessary
Flexible: 80mm cutting height, extendable work surface, stopper and angle stop enable flexible work, even with large workpieces
Splinter free cuts: Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left

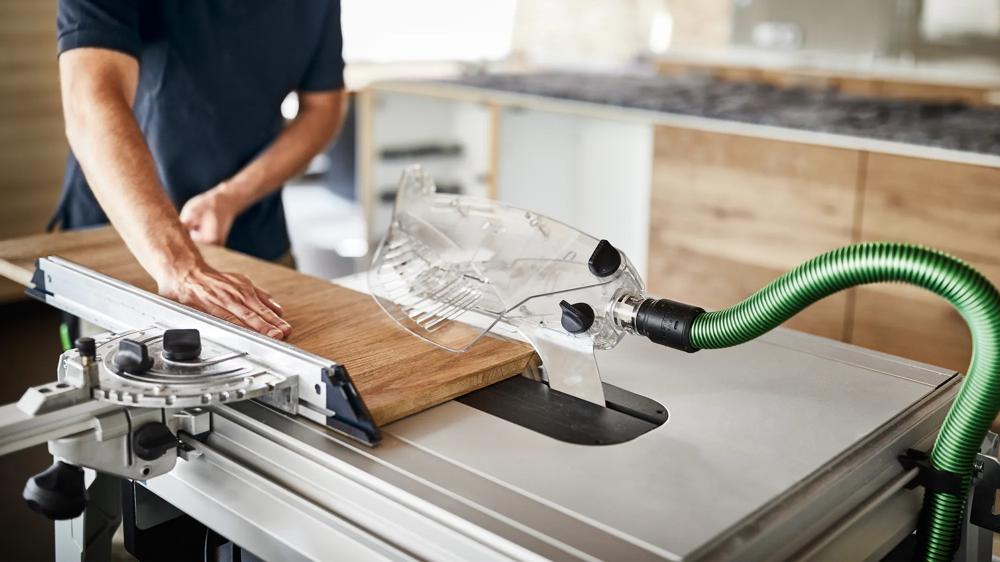

Protects your health: Dust extraction attachment with CLEANTEC extraction sleeve for dust free work and a free view of the workpiece
Space saving: Tool garage attached on the side provides optimal storage space for saw blades, cartridges and push sticks
Cross cuts up to a width of 840 mm with sliding table, at a cutting depth of 20 mm
Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
Tilting saw blade for angled cuts between -2° and 47°
We recomend purchasing a reserve SawStop cartridge and saw blade. If the SawStop is activated the saw blade and cartridge need to be replaced before the saw can be used. The replacements can be simply stored in the garage on the saw itself
