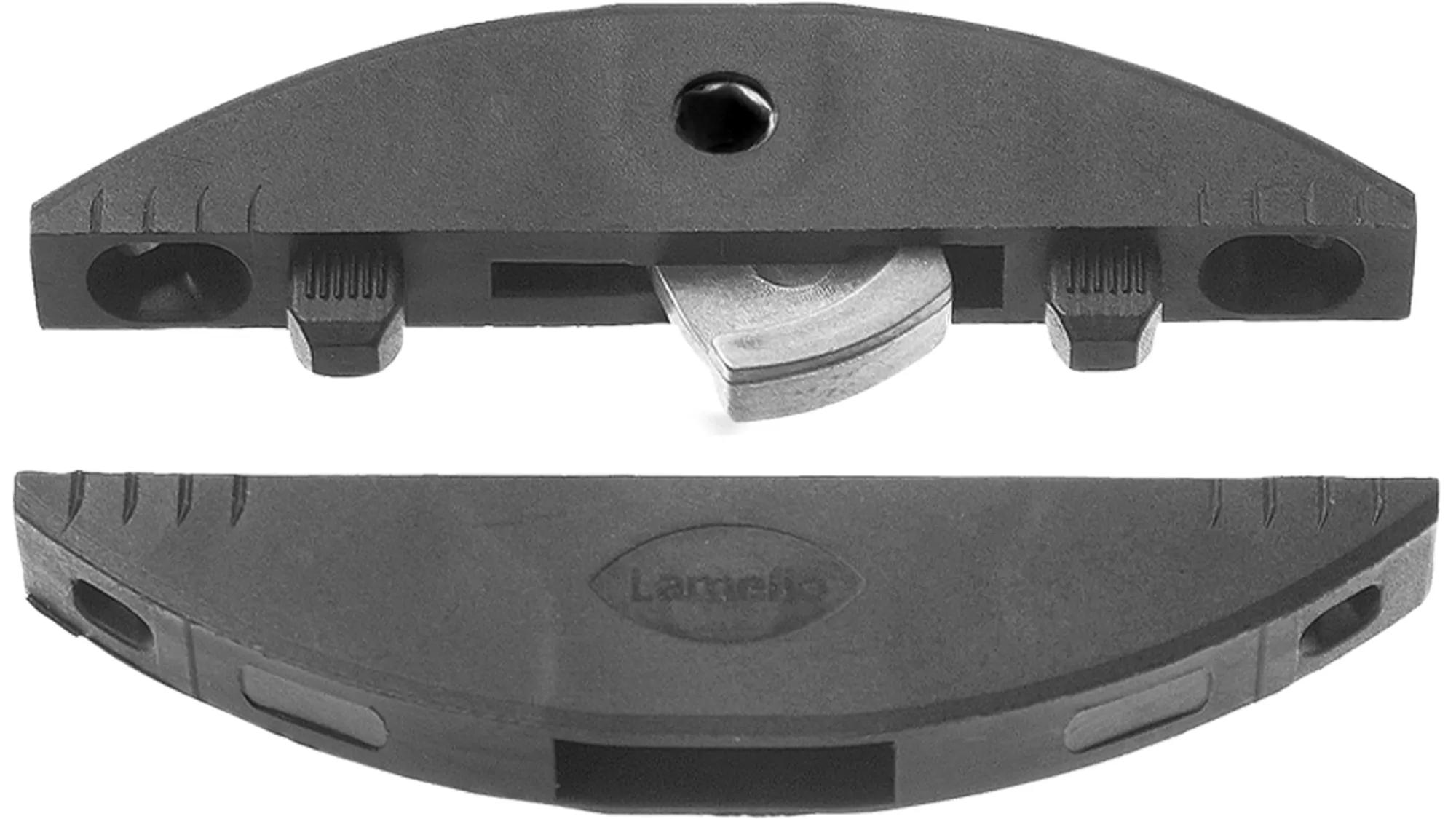

Lamello Clamex S-18, 18 pairs, incl. marking jig and screws

Clamex S-18, 18 pairs, incl. marking jig and screws

Shipping within 24 hours (working days)
54,20 €
incl. VAT / excl. shipping costs
1
  • Brand:Lamello
  • Article no.:LA-145231
  • Weight:0.38kg

Lamello Clamex S-18, 18 pairs, incl. marking jig and screws

Detachable, flexible and simple. Installation in an 8 mm groove with screws

Clamex S-18 is a detachable connector. It is inserted into an 8 mm wide groove and held in place with screws. Through the minimalist 6 mm access hole, Clamex S-18 is firmly connected and disconnected using a lever. Clamex S-18 can be used with any Lamello biscuit joiner, allows aesthetic joints at all angles and is ideal for permanently joined or detachable mitres. Clamex S-18 is used in mitre joints from 19 mm material thickness and in butt joints from 15 mm.

Technical Data

  • Installation tolerance longitudinal: ± 1
  • Installation tolerance radial: ± 0
  • Minimum material thickness for surface cuts: 16
  • Minimum material thickness for edge cuts: 12
  • Minimum material thickness for centre panel: 29
  • Minimum material thickness for angle bisector: 16
  • Minimum workpiece width: 75
  • Self-clamping: Yes
  • Invisible: No
  • Detachable: Yes
set-clamex-anreisslehre-schrauben-lamello-la-145231-01

Properties & Advantages

  • Connects and clamps
  • Aesthetic
  • Versatile
  • Stackable
  • High clamping force
