Lock Mitre Bit 45° D: 70mm R:29,5mm

Lock mitre bit | D70 | H67.5 | h29.5 | A12

Shipping within 24 hours (working days)

113,05 €

96,09 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-99-03412P
Weight:0.11kg

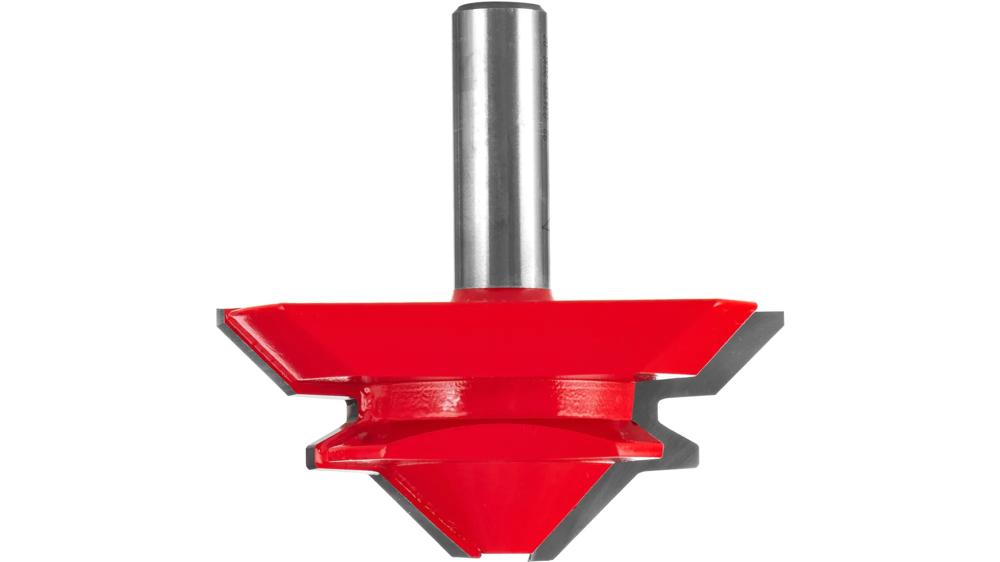

Freud Lock Mitre Bit 45° D: 70mm R:29,5mm

Lock mitre bit, D70, H67.5, h29.5, A12

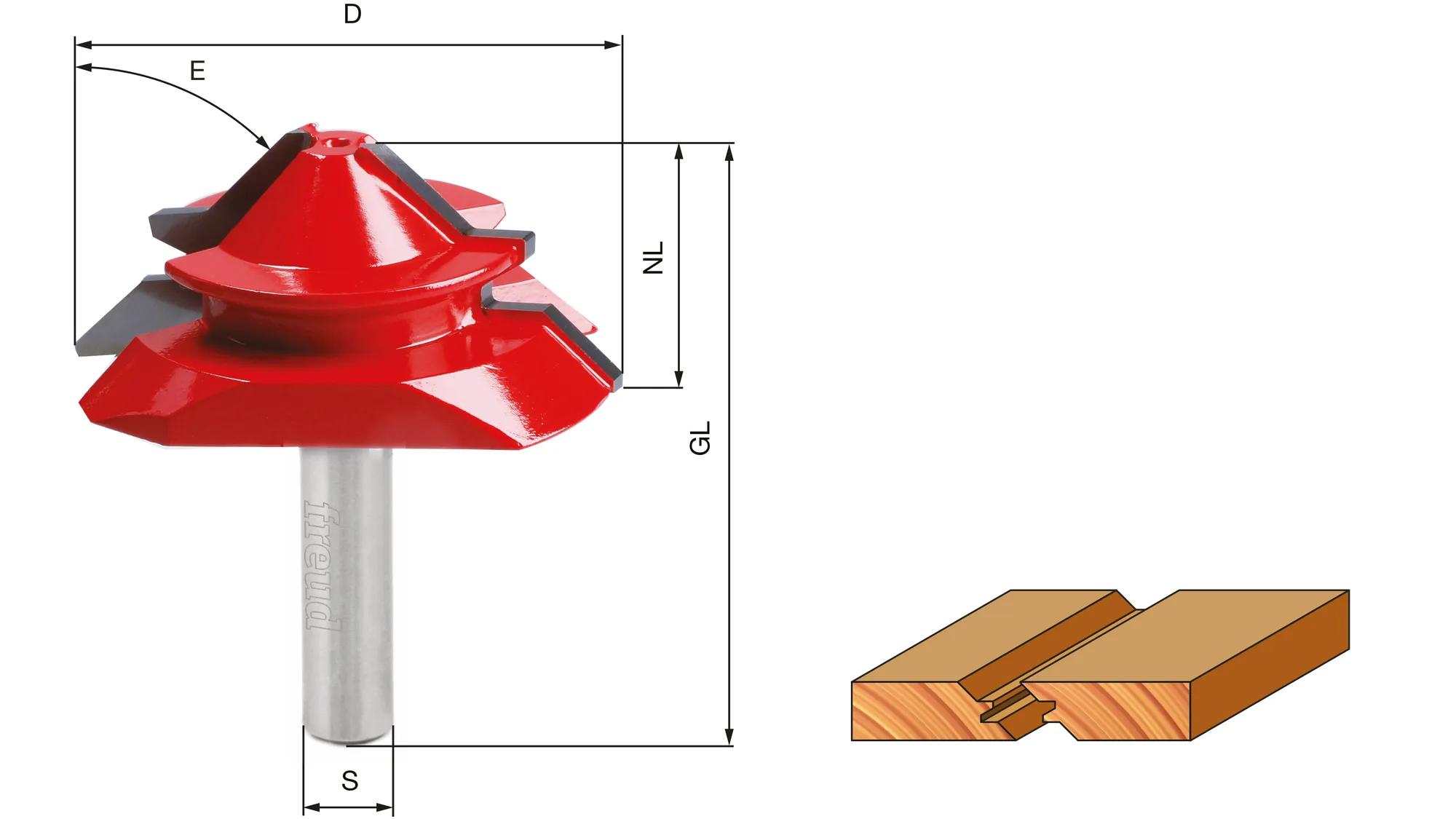

Technical Data

Diameter (D mm): 70Cutting Length (h mm): 29,5Overall Length (H mm): 67,5Shank (A mm): 12R1 Radius: -R2 Radius: -R3 Radius: -Bearing (C mm): - Teeth: 2Angle (°): 45°Max RPM 1/min: 12000

Properties & Advantages

Applications:
Create remarkably strong interlocking joints.Machines:

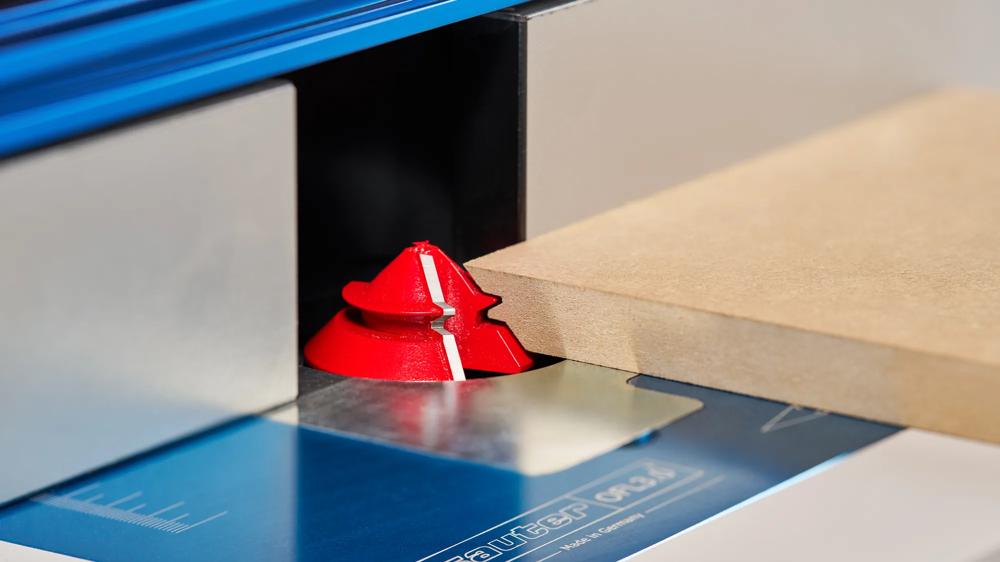

Table routers and CNC machines.Materials:
Softwood, hardwood, plywood and wood based panels.Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.

Similar products

gehrungsfraeser-verleimfraeser-d55-s12-45-freud-fr-99-03512p-01

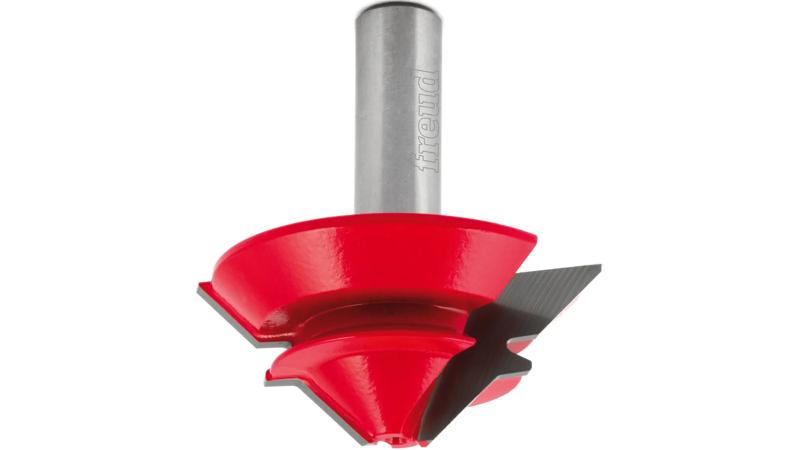

Lock Mitre Bit 45° D: 55mm R:23mm
