Milescraft EuroHingeJig

Concealed Hinge Jig Makes Cabinet Door Installation Easy.

Delivery time 2-3 days

29,99 €

incl. VAT / excl. shipping costs

Brand:Milescraft
Article no.:M-1342
Weight:0.43kg

Drilling template for creating hinges

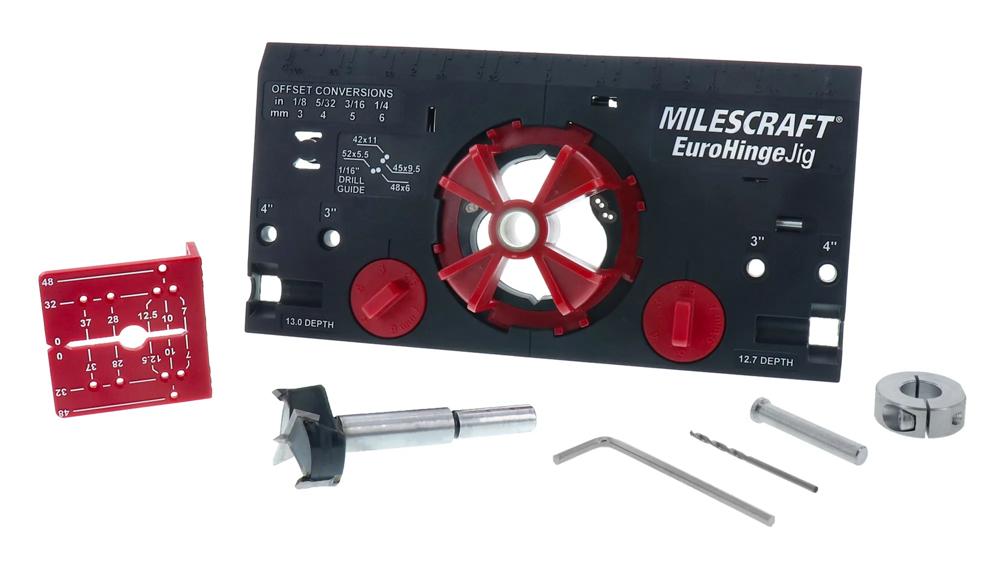

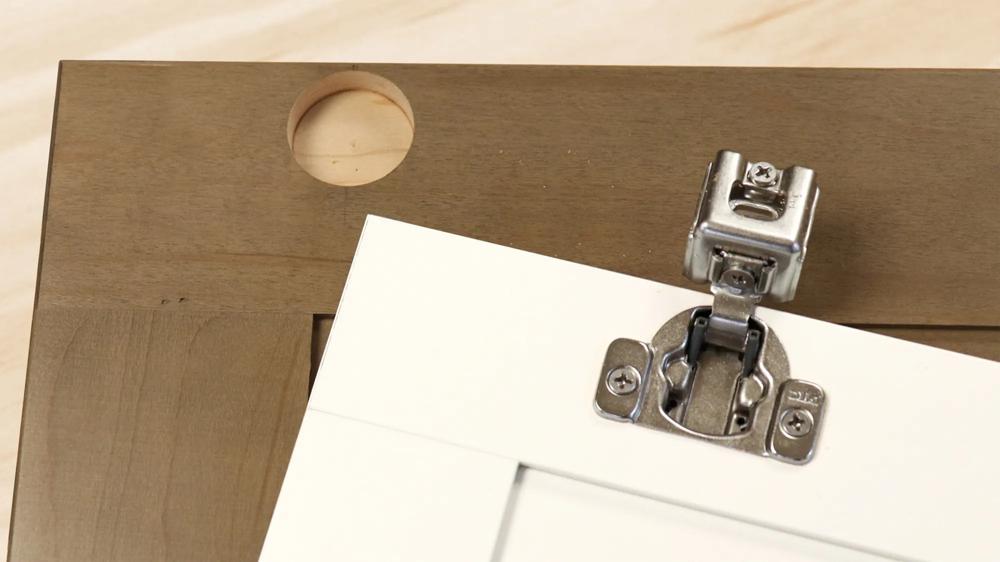

The Milescraft® EuroHingeJig™ takes the guesswork out of installing European style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

Technical Data

Edge distances: 2.5/3/4/5/6/7 mm
Drill bit Ø: 35 mm
Depth stop: 3/8"
Positioning pin: 3", 4"
Shank Ø: 3/8" round
Depth adjustment: 12.7 mm and 13 mm

Properties & Advantages

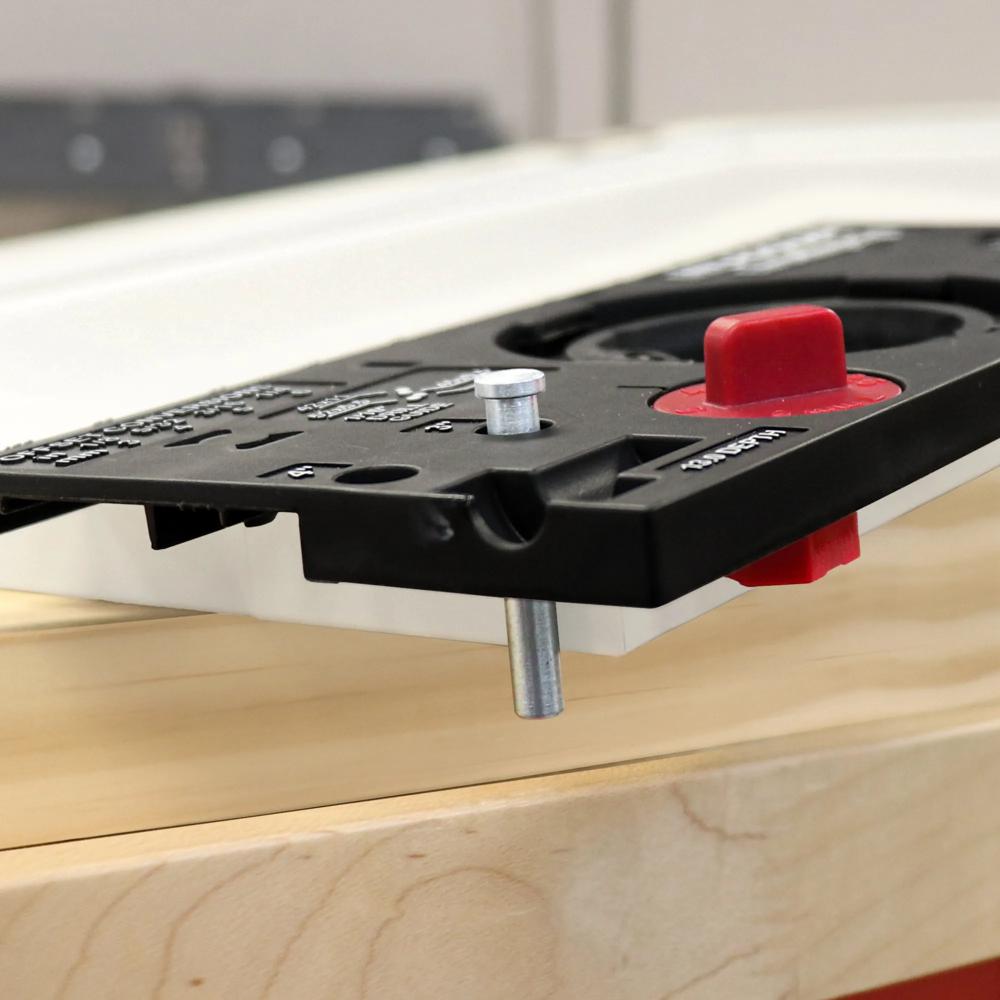

Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom.

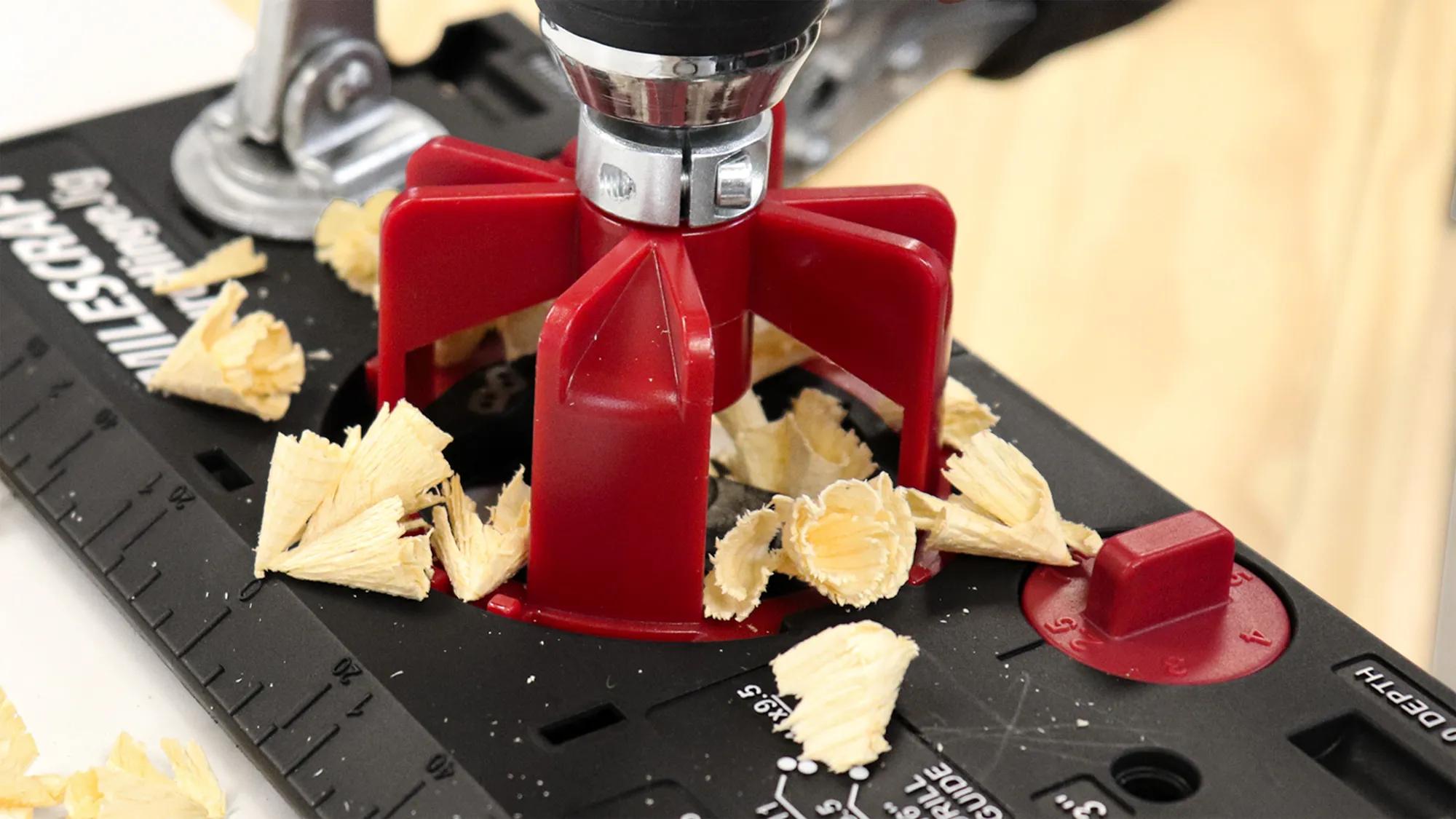

The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole.
Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true.
Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures.
The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame.
