Mitre Saw DeWalt DWS727 + Z80 Saw Blade

Cutting depth limitation | Saw blade: Ø250mm | Double extension | XPS cutting line display | Free Saw Blade

Delivery time 2-3 days

833,99 €

799,00 €

incl. VAT / excl. shipping costs

Bulky GoodsItem is oversized / overweight and will be shipped as bulky goods.

Brand:DeWALT
Article no.:SET-DWS727-KSB
Weight:31.25kg

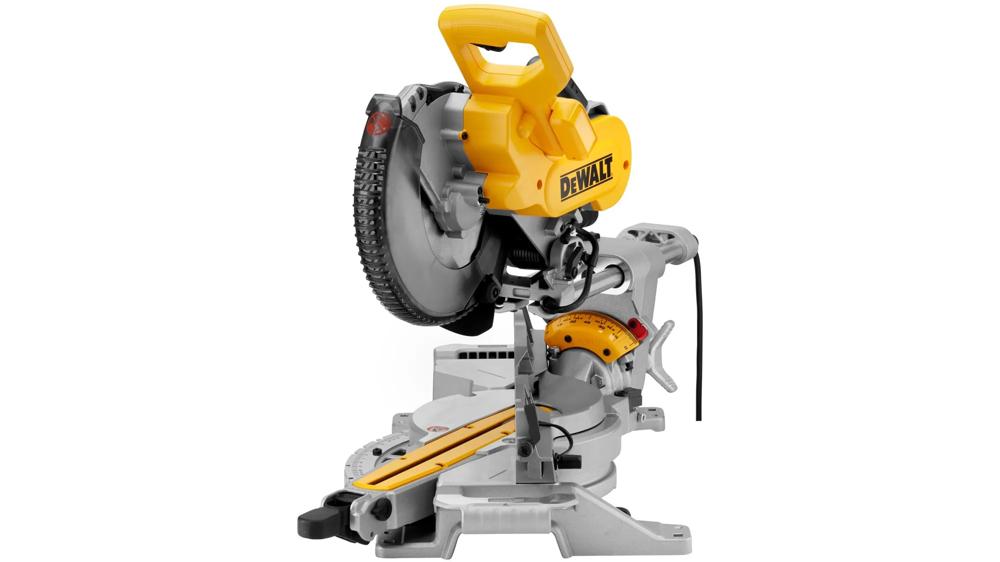

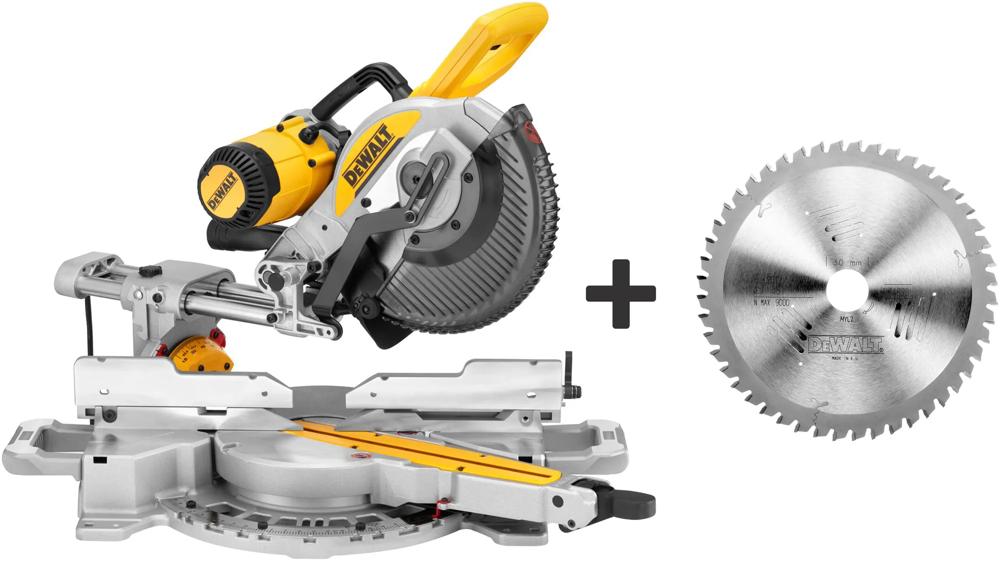

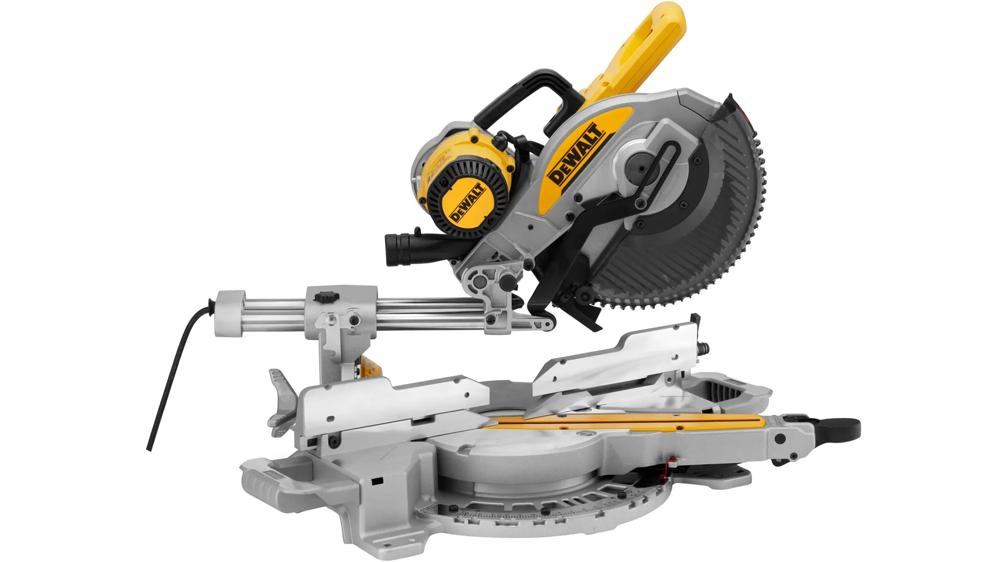

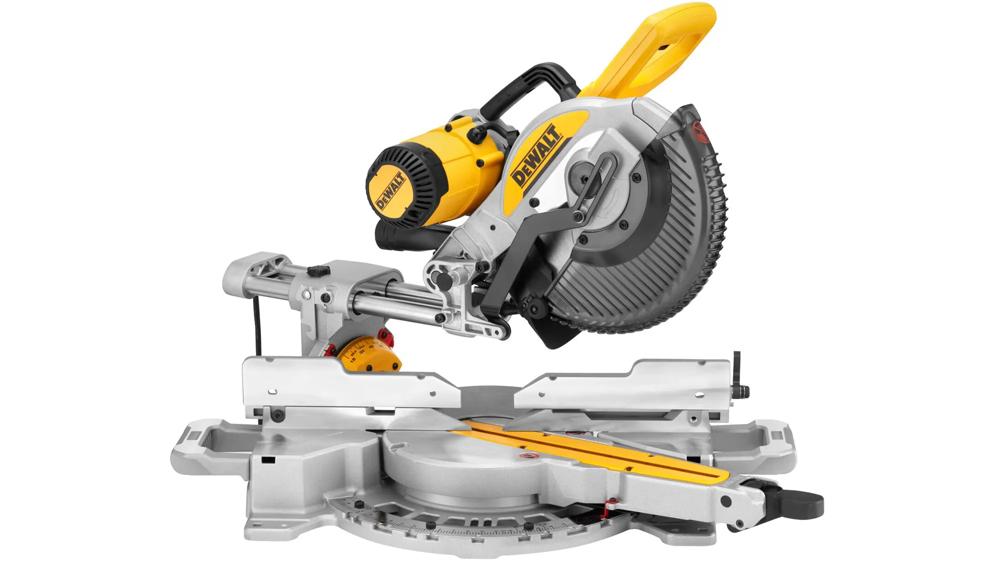

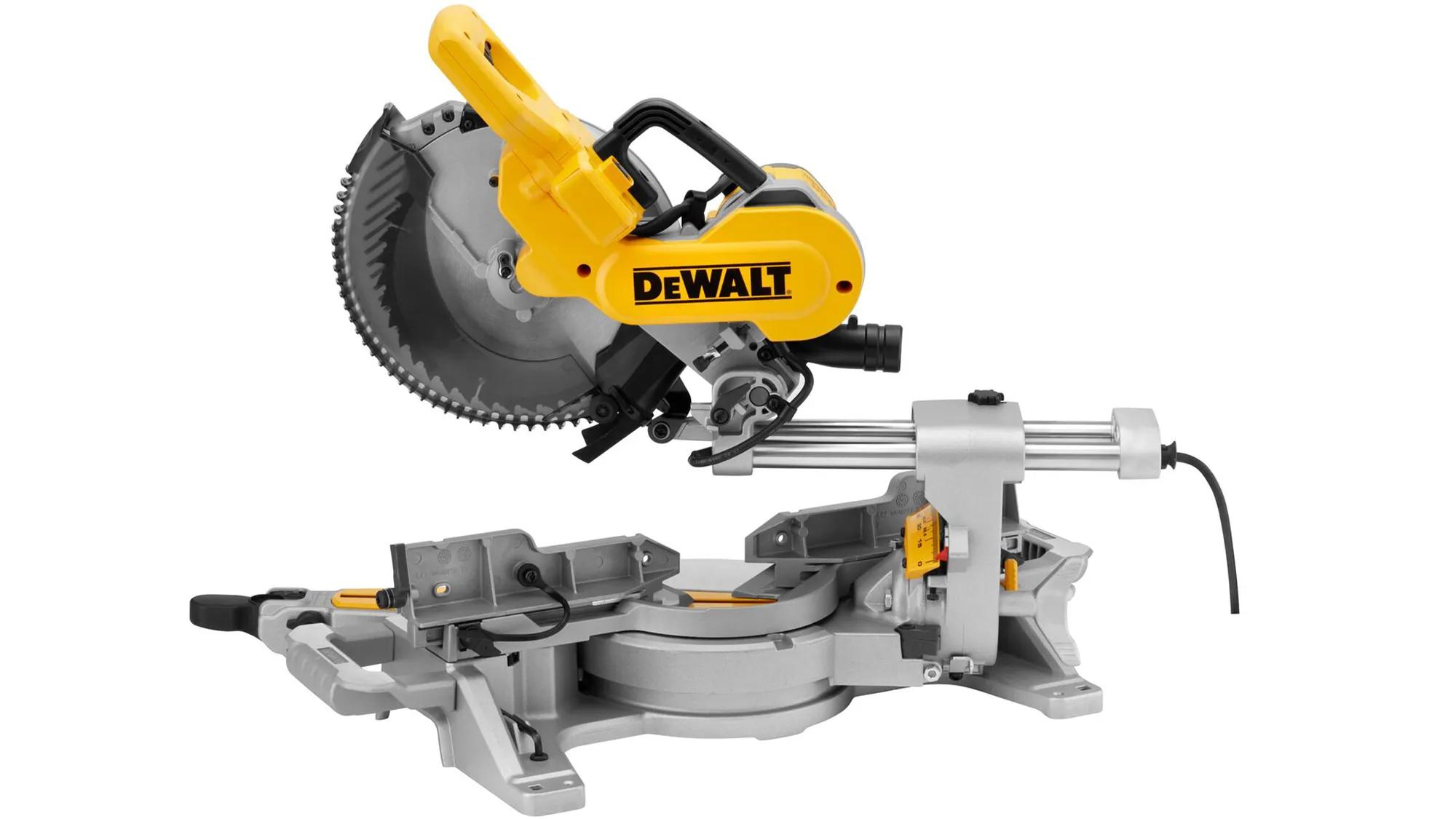

DeWalt Mitre Saw DWS727 + Saw Blade EXTREME 250x30mm, TFZ80

Optimum mitre saw for assembly from DeWalt: compact dimensions and low weight.

Engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees, the 1675 watt motor also offers a maximum cutting capacity of 305 x 77mm. Other features include XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and machined side handles for increased portability on site.

Similar products

set-kappsaege-dewalt-set-dws780kit-ksb-01

DeWalt DWS780 mitre saw with base frame+ Extra Blade

Cutting station | Saw blade: Ø305mm | Loadable | Speed control | Free Z96 Saw Blade

Delivery time 2-3 days

1.193,99 €

1.039,00 €

incl. VAT

Art.-Nr: SET-DWS780KIT-KSB

DeWalt Mitre saw DWS777 + saw blade Z48

Compact, lightweight and powerful 1800W | Saw blade: Ø216mm | XPS cutting line indicator | FREE saw blade

Delivery time 2-3 days

410,99 €

379,90 €

incl. VAT

Art.-Nr: SET-DWS777-KSB

2 Products

Technical Data

Blade Bore - 30 mm
Blade Speed - 4000 rpm
Max. Cutting Capacity (90°/90°) - 305 x 77 mm
Max. Cutting Capacity (45°/45°) - 210 x 50 mm
Max. Cutting Capacity (45°/90°) - 210 x 77 mm
Max. Cutting Capacity (90°/45°) - 305 X 50 mm
Max. Depth of Cut - 150 x 28 mm
Saw Blade Thickness - 2.5 mm
Product Width - 480 mm
No Load Speed (RPM) - 4000
Product Height - 460 mm
Product Weight - 22 Kg
Blade Diameter - 250 mm
Power Source - Corded
Power Input - 1675 W
Product Length - 770 mm

Properties & Advantages

DeWalt saw with two saw blades: one for all cutting jobs, TFZ80 for fine cuts.
Large Dual Sliding Fence: Provides maximum support in large material cuts at any angle or combination of angles
Compact & Lightweight: Application focussed cut capacities, with a lightweight compact design for easy transport around the jobsite
XPS Shadowline: Provides fast accurate alignment of the blade with no adjustment required
Stainless Steel Detent Plate: Robust and easy to recalibrate, with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees
Cam Lock Mitre Control: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right
Double Bevel: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
Airlock Dust Port: Air Lock compatible dust extraction for simple connection
Depth Stop: Allows the adjustment of the cutting depth for grooving and rebating applications
Machined Base & Fence: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
