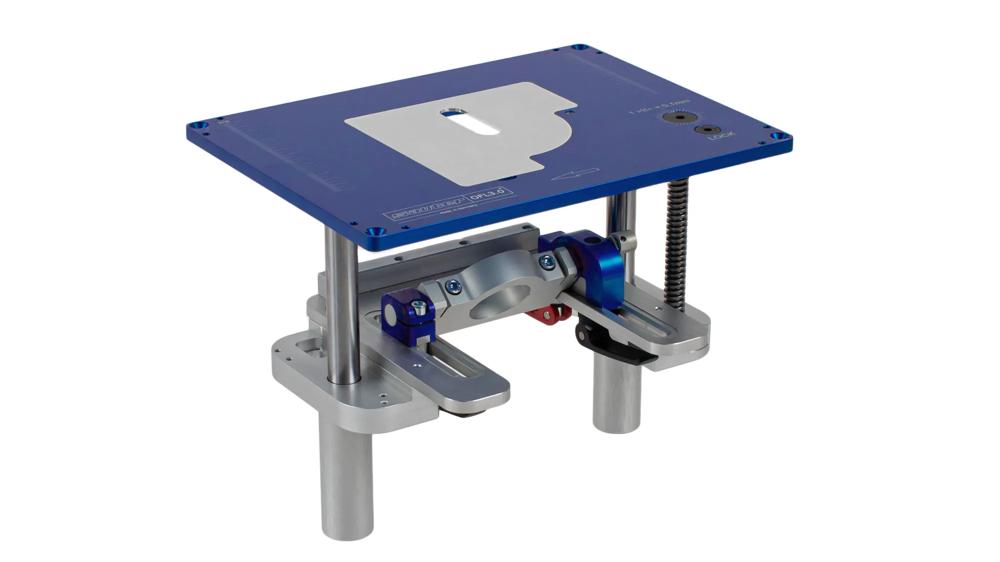

Pivoting Router Lift OFL3.0

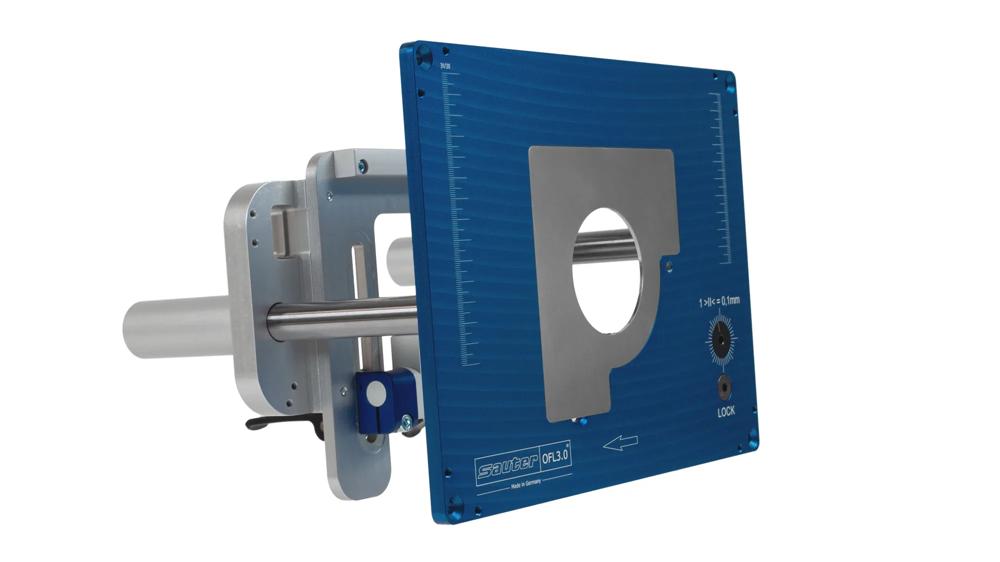

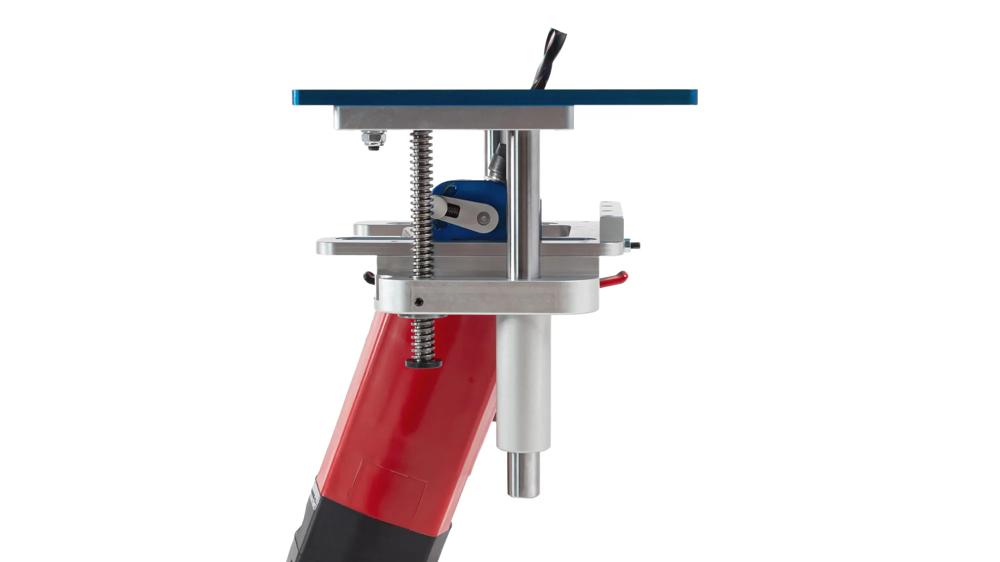

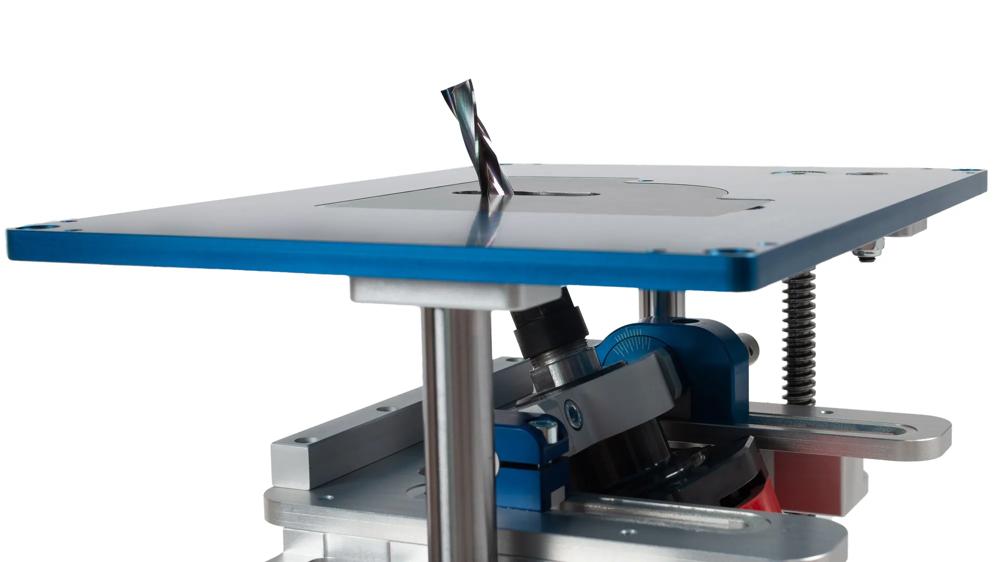

Mechanical router lift OFL3.0 | pivots from -5° to 50° | for router motors with neck Ø 43 mm | exact fine height adjustment & magnetic reduction plates

Shipping within 24 hours (working days)

709,49 €

638,54 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SA-OFL3.0
Weight:6.92kg

Technical Data

Dimension insert plate: 306 x 229 x 9 mm
Corner radius of insert plate: 6 mm
Height adjustment per rotation: 4 mm
Max. Adjustment travel: 101 mm
Height router lift (max. extended): 240mm
Max. Router bit diameter: 55 mm
Weight: approx. 5 kg

Properties & Advantages

Quality from Germany
Solid construction of high quality aluminium and steel.

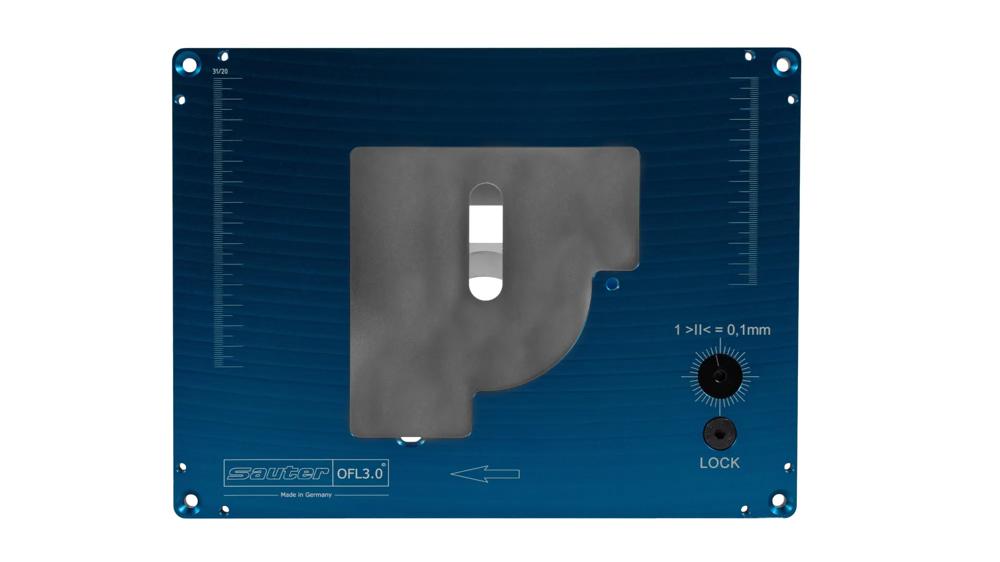

Fine height adjustment to 1/10mm
Extreamle precise fine height adjustment, with exact scaling an effective spindle lock, conveniently operated via Allen screw.
Smooth-running columns
Enable a stepless and exact fine height adjustment.
Fits in (almost) every router table
Robust, anodised aluminium insert plate in the familiar outline dimensions of 306 x 229 mm and thus interchangeable with our previous insert plates (e.g. FO-RTS2 or T-RTI-PLATE).
Compatible to common router motors
The OFL3.0 is compatible with a wide range of commercially available motors with 43 mm Euro-neck. All models can be found below.

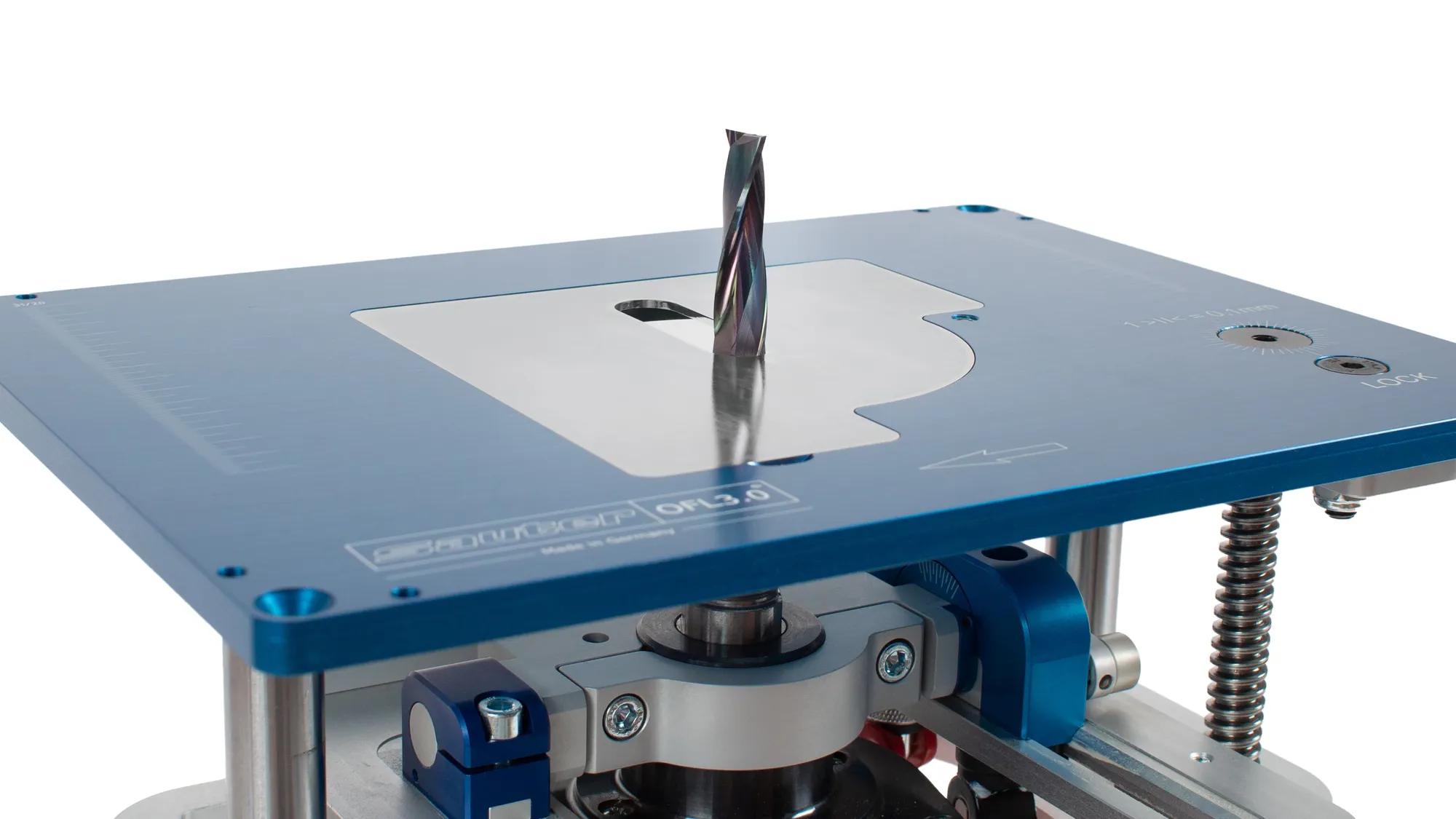

The magnetic reduction plates offer more choice and control in choosing the right hole size. Perfectly adapted to the size of the router cutter - especially for small workpieces,"snagging and getting stuck" on the edge of the hole eliminated!
Routing also without rip fence
2 drill holes for the fence pin allow you to free rout round workpieces without rip fence.
Absolutely flat
Easy levelling of the OFL3.0 by levelling screws in the insert plate. Optionally a frame for a permanent level adjustment can be purchased.
No drilling necessary
Mounting holes (countersunk) for quick installation are already pre-drilled.
Lasered scaling
Millimeter scaling on the surface for exact alignment of the rip fence.

Additional recessed grip for easy changing of the reduction plates.
Magnets for mounting additional accessories are distributed over the entire reduction plate.
