Levelling frame for insert plates

for levelling of mounting plates and OFLs | For alignment in router table- especially with softer table top material

Shipping within 24 hours (working days)

21,57 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SA-99600006
Weight:0.094kg

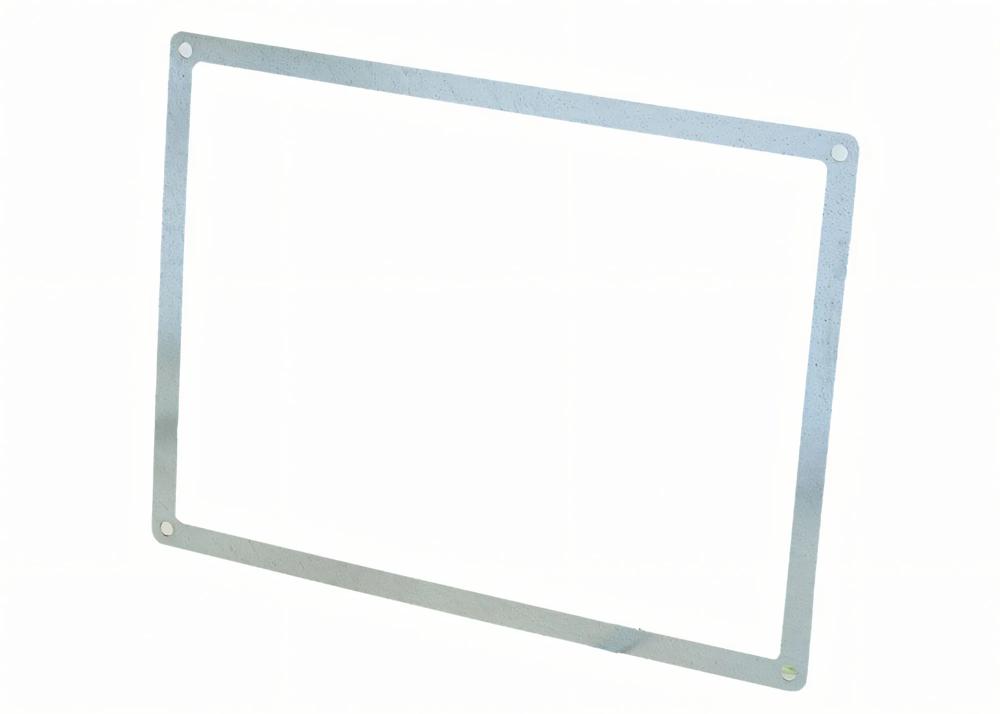

Levelling frame for mounting plates in Router Table

Levelling frame developed for the installation of sauter ELP insert panels and OFL router lifts

Dimensions of the frame:

Outside: 305 x 228 mm
Interior: 280 x 204 mm
Thickness: 1 mm
Radius: 6 mm

The sheet steel frame is inserted into the rebate of the table cut-out for the mounting plate/inlay plate or the router lift. This prevents the levelling screws,( included with the delivery of the EPL/OFL inserts) from sinking into the router table over time, thus insuring a perfectly level surface. This optional extra is not a must, but, especially in the long run, the solution for the professional router table.
