Planer Holzprofi Maker ADM310G Spiral shaft 400V

400V | spiral shaft | 300mm planing width | NOT FOR SALE OUTSIDE EUROPE

Not available at the moment

2.469,25 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:Holzprofi
Article no.:HP-M1-ADM310G-SPIRAL
Weight:208kg

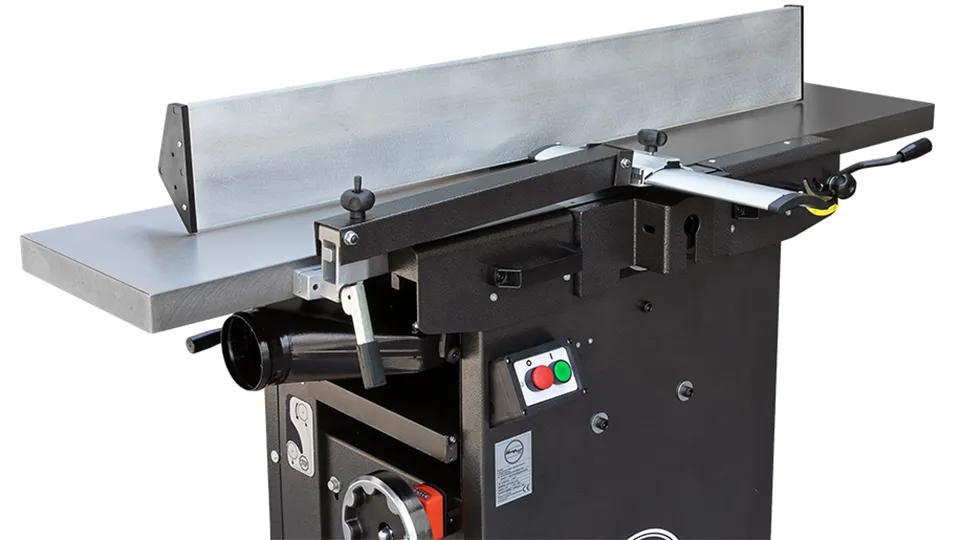

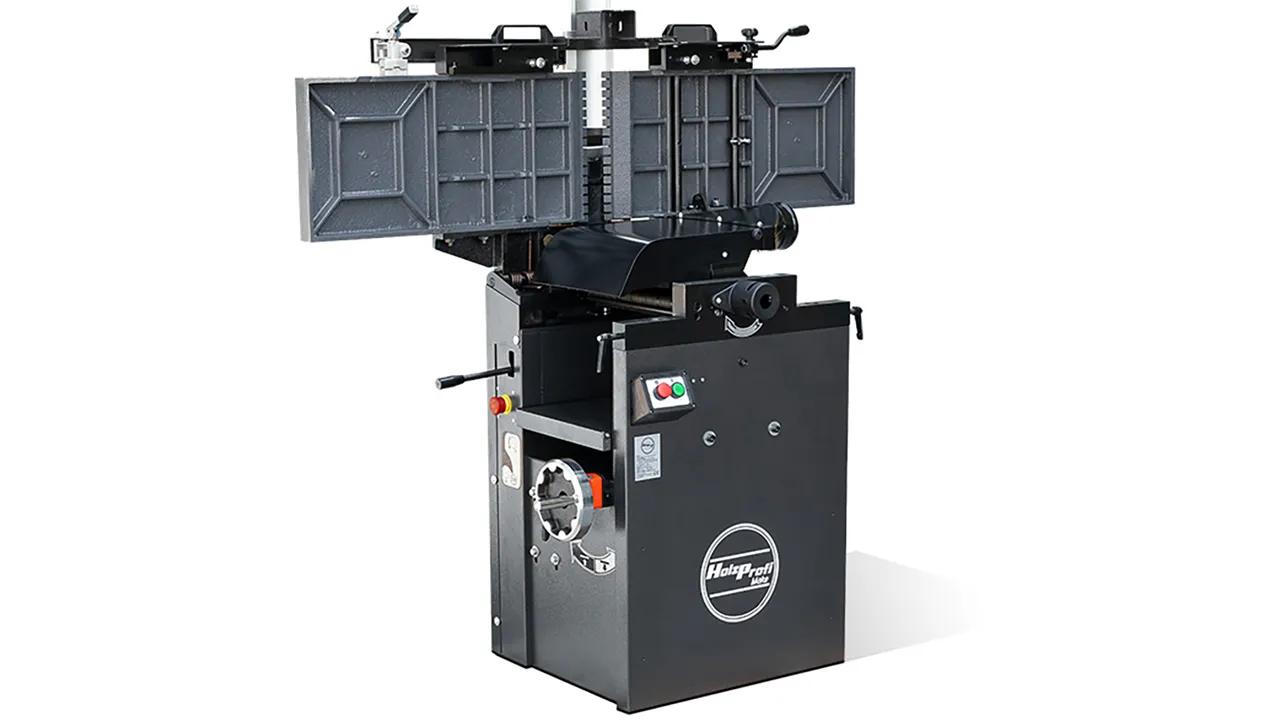

Planer Holzprofi Maker ADM310G spiral shaft 400V

The new levelling thickness planer from Holzprofi Maker impresses above all with its solid construction and high level of user-friendliness.Spiral planer shaft, cast iron tables, mechanical digital display, swivelling aluminium fence, switchable feed, noise-reduced, very good bearings, motor protection, motor brake, zero-voltage release, CE-compliant.

Great alternatives

hobelmaschine-spiralwelle-400v-holzprofi-hp-m1-adm410spiral-01

Planer Holzprofi Maker ADM410 spiral shaft 400V

400V | spiral shaft | 400mm planing width | NOT FOR SALE OUTSIDE EUROPE

Delivery time 2-3 days

4.452,59 €

incl. VAT

Art.-Nr: HP-M1-ADM410SPIRAL

1 Products

Technical Data

Motor power output S6: 3.8 kW (3 kW-S1)
Planing knives: 56, 4 turns
Knife dimensions: 15 x 15 x 2.5 mm
Shaft diameter: 75 mm
Planing width: 300 mm
Planer table length: 1400 mm
Passage height: 240 mm
Feed speed: 6 m/min
Suction diameter: 100 mm

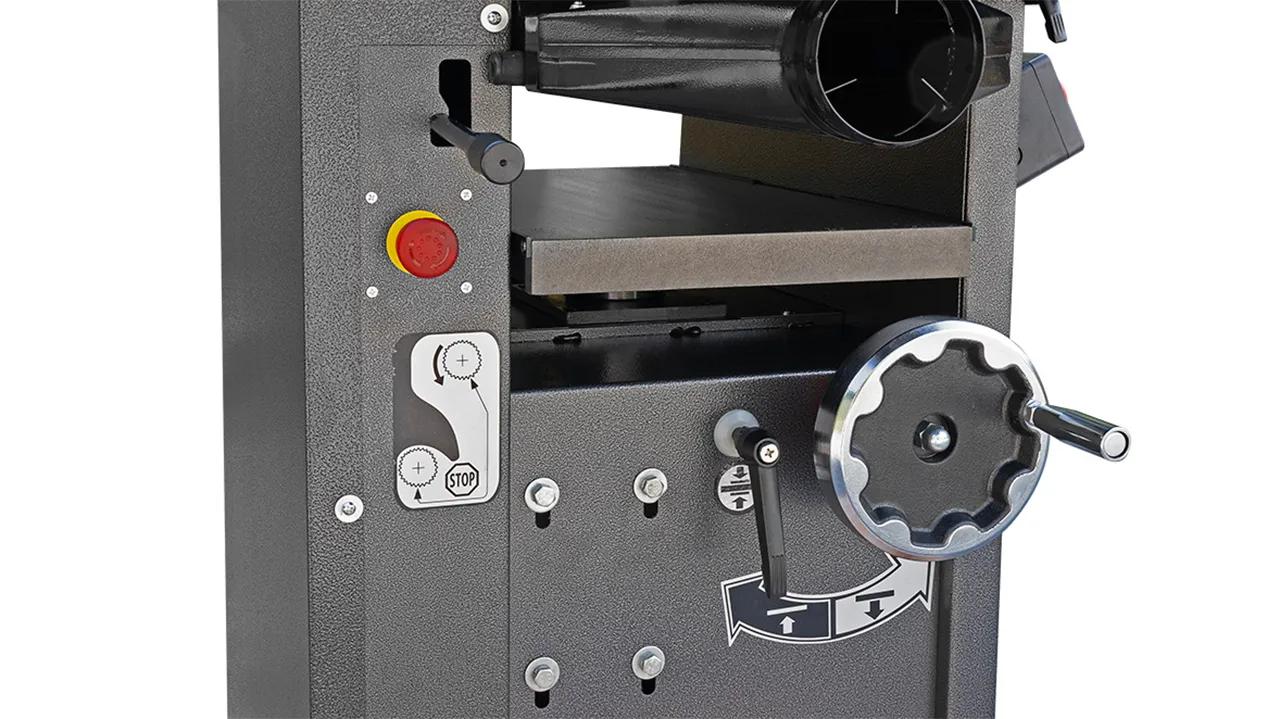

Thicknessing table: 310 x 600 mm
Voltage: 400 V
Max. chip removal (depending on board width and type of wood): 3-5 mm
Weight: approx. 208 kg

Properties & Advantages

Spiral planing shaft: The four-row spiral planing shaft with angled blades enables a pulling cut, which ensures excellent surface quality.
Cast iron tables: The robust cast iron tables offer stability and precision during planing.
Mechanical digital display: Enables exact settings for precise work results.

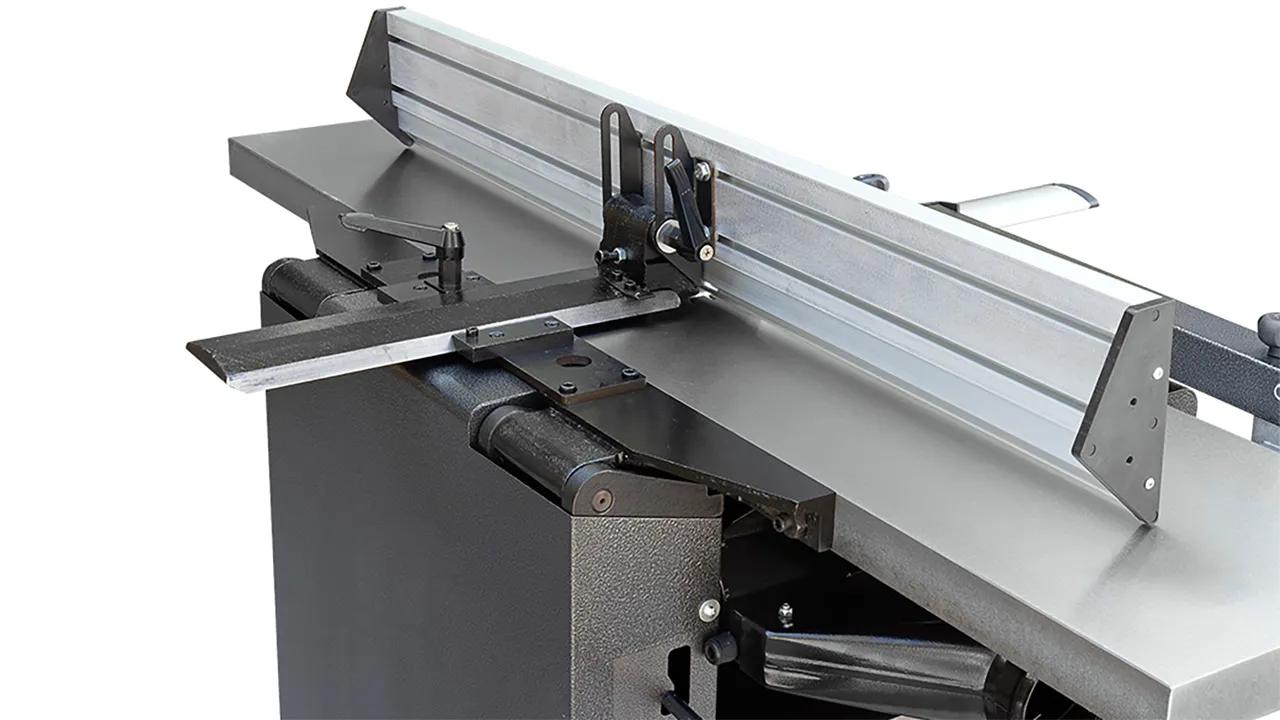

Swivelling aluminium fence: Offers flexibility at different working angles and supports precise dressing.
Switchable feed: Allows the feed speed to be adapted to different types of wood and requirements.
Noise reduction: The machine is designed for quiet operation, which increases working comfort.

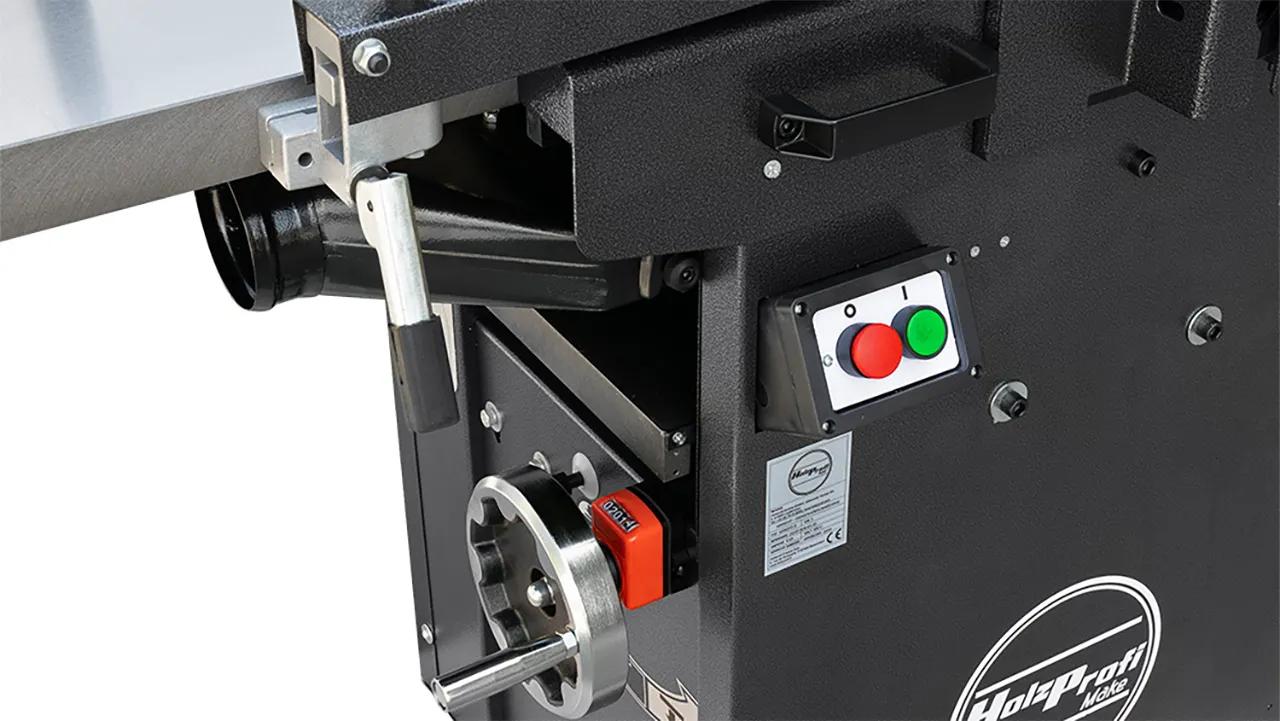

Safety features: Equipped with motor protection, motor brake and zero voltage release for safe working.

These features make the ADM310G an excellent choice for precise and efficient planing work in professional woodworking.

Thickness Planer - Surface Planer

Discover now

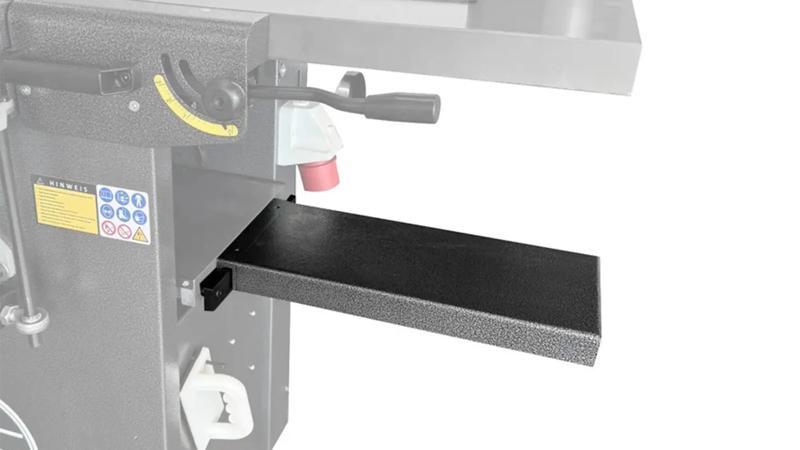

Table extension set for M1-ADM310 planer
Compatibility: Holzprofi Maker ADM310 planer
Delivery time 2-3 days
83,30 €
incl. VAT
Art.-Nr: HP-M1-ADM310-TV

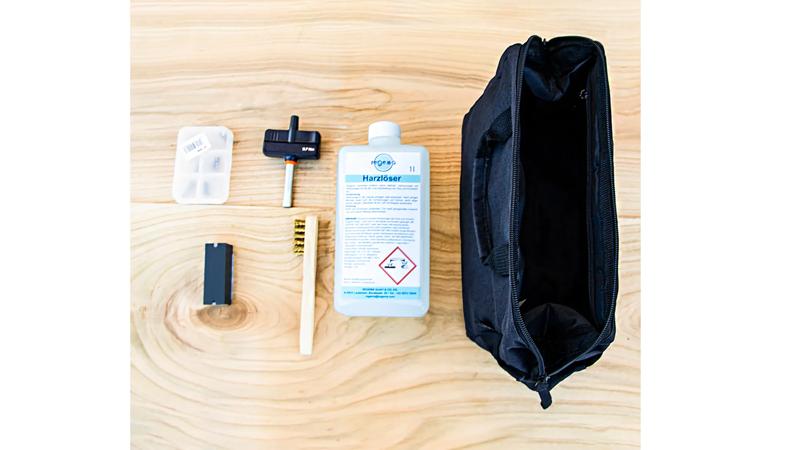

Holzprofi Maker service set for spiral planer shaft
