Raised panel Bit with back Cutter D: 89mm R:25mm

Raised panel bit | D89 | H75 | h25 | A12

Delivery time 2-3 days

166,60 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-99-56912P
Weight:0.11kg

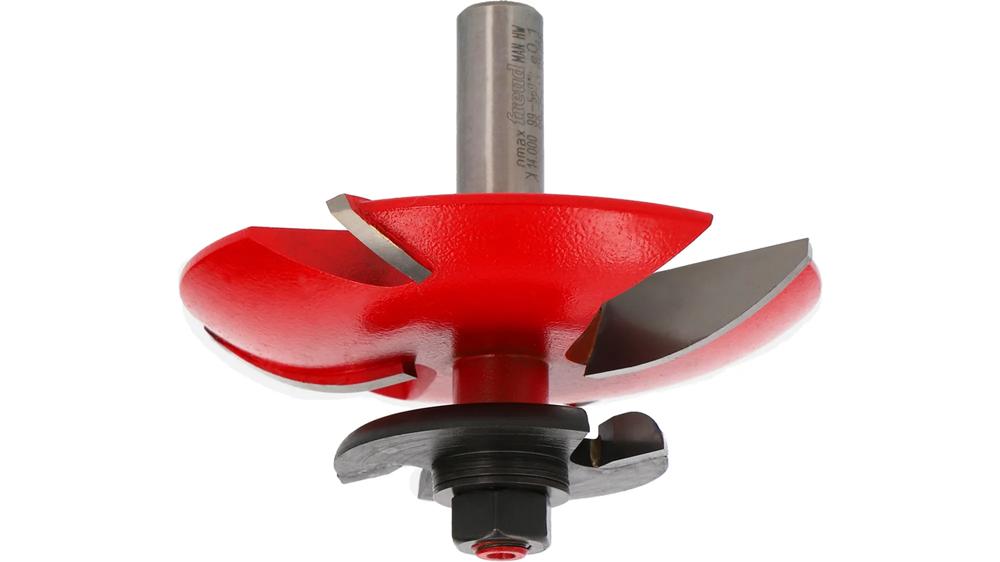

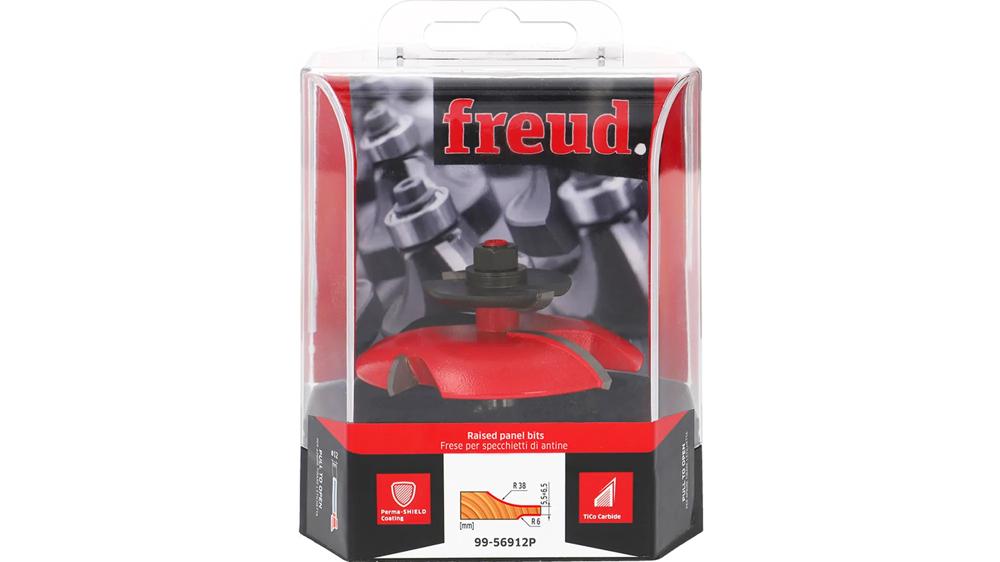

Freud Raised panel Bit with back Cutter D: 89mm R:25mm

Raised panel bit , D89, H75, h25, A12

Technical Data

Diameter (D mm): 89

Cutting Length (h mm): 25

Overall Length (H mm): 75

Shank (A mm): 12

R1 Radius: 38

R2 Radius: 6

R3 Radius: -

Bearing (C mm): -

Teeth: 2

Angle (°): -

Max RPM 1/min: 14000

Properties & Advantages

Applications:
Create beautiful raised panels for cabinet doors or wall panelling. These raised panel bits include a backcutter that routs a rabbet on the back of the door panel.

Machines:
Table routers.

Materials:
Softwood, hardwood, plywood and wood based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
