sauter FML-BR Router Table Set - Red Edition

Dust-free router table with high-end components | FML-BR router lift in red | Suhner router motor | Harvey router fence | HPL router table top

Delivery time 2-3 days

2.599,00 €

incl. VAT / excl. shipping costs

Bulky GoodsItem is oversized / overweight and will be shipped as bulky goods.

Brand:sauter
Article no.:SET-FT-BR-RED
Weight:55.088kg

sauter FML-BR Router Table Set - Red Edition

Convincing in quality, pleasing in design.

As is well known, the eye eats with you. With this router table, not only do the components fit together perfectly from a technical point of view. No, with this router table, the eye is immediately drawn to the composition of the red and black elements: black router table top, red router lift with black crank handle, black router fence with red controls. Besides, the components are among the best we offer in terms of quality and performance. See for yourself!

Technical Data

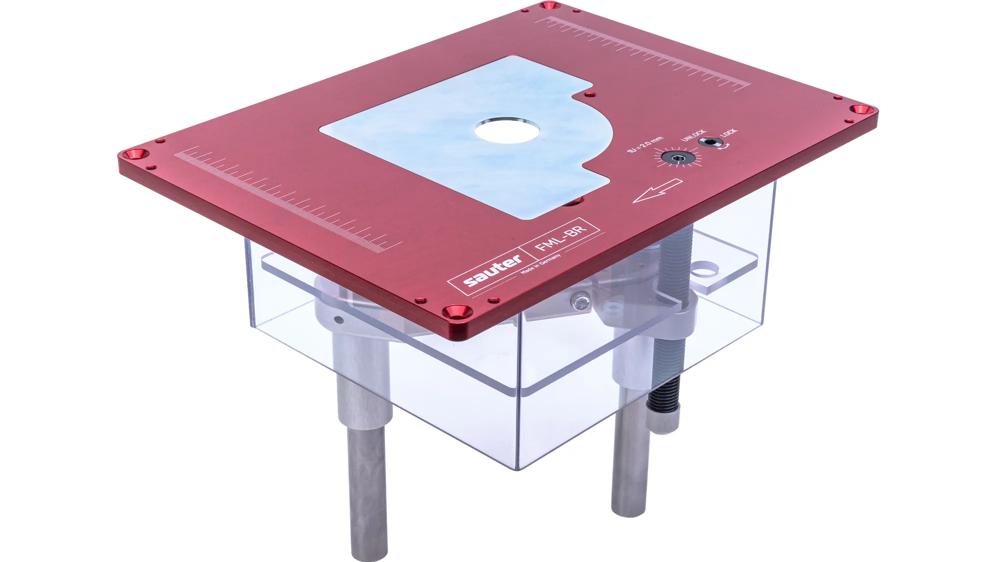

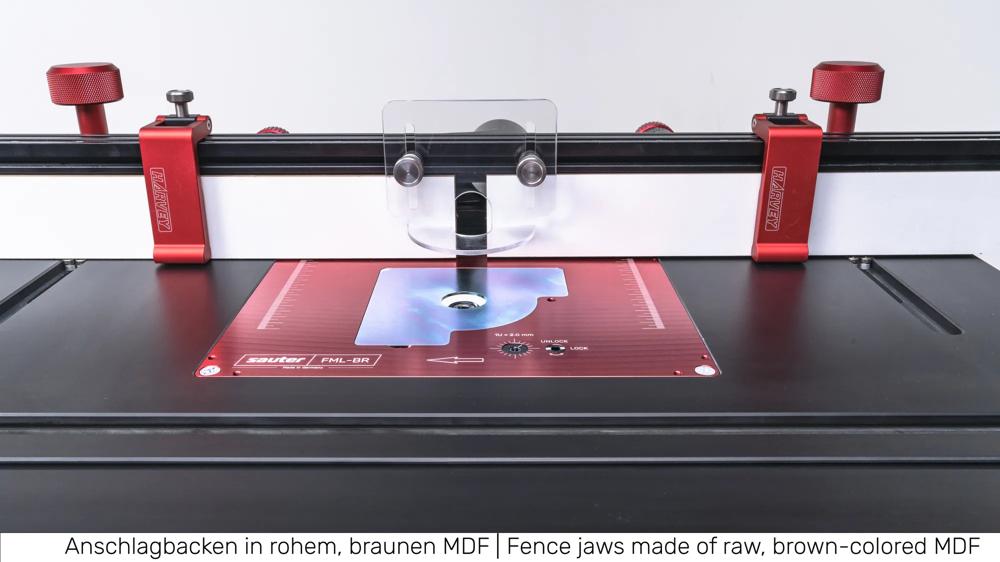

Router lift FML-BR in red design:
- Max. Router bit-Ø: 86 mm
- Ø Cutter opening: 98 mm
- Travel: 100 mm
- Height adjustment from above with hexagon socket (5 mm)
- Adjustment travel per revolution: 2 mm
- Spindle locking from above with hexagon socket (5 mm)
- Dimensions of insert plate: 306 x 229 x 9 mm
- Corner radius of insertion plate: R6
- Dimensions (LxWxH): 306 x 229 x 213 mm
- Weight: approx. 4.0 kg
- Ø Extraction nozzle Ø (inside/outside): 22/25 mm
- Red anodised
Suhner router motor UAK30RF SPZ12
- Power input: 1,530 watts
- Speed infinitely variable: 3,500 - 30,000 rpm
- Torque: 0.4 Nm
- Voltage: 230 volts / 50 Hz
- Max. Router bit Ø: 55 mm
- Sound pressure level: 86 dB, K = 3 dB (values correspond to the sound pressure level at maximum rotational speed)
- incl. collet: 8 mm

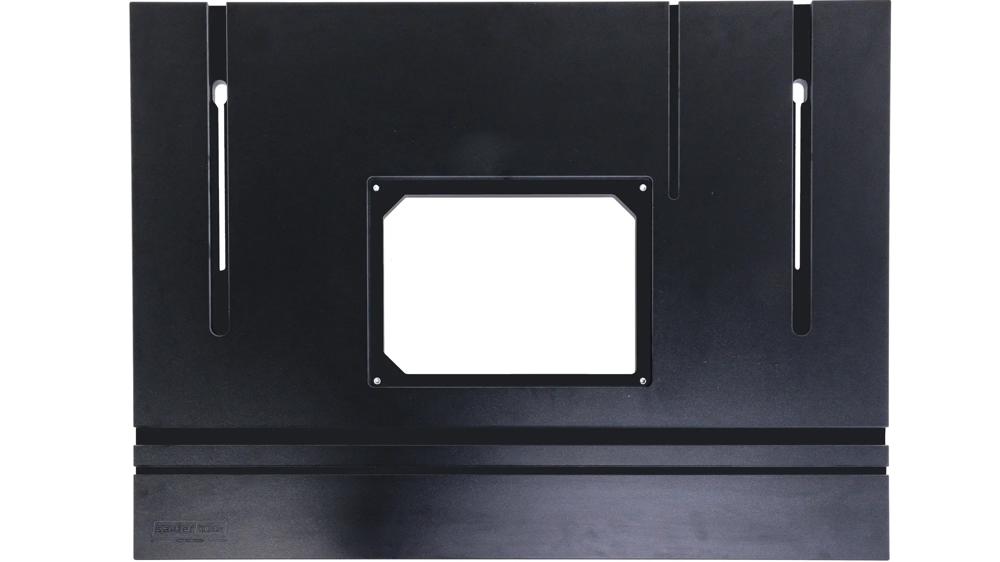

Router table top HPL compact:
- Dimensions router table top: 816 x 610 x 20 mm
- Material: RESOPAL® laminate (HPL) according to EN 438 and ISO 4586.
- Milled-out dimensions: 306 x 229 x 9 mm - including threaded inserts for fastening.
- Colour: Black
- Care & Cleaning: The surface can be cleaned with mild soap solutions. Stubborn dirt is usually removed using solvents. Abrasive cleaning aids (e.g. scouring powder) should be avoided.
- Weight: 12 kg

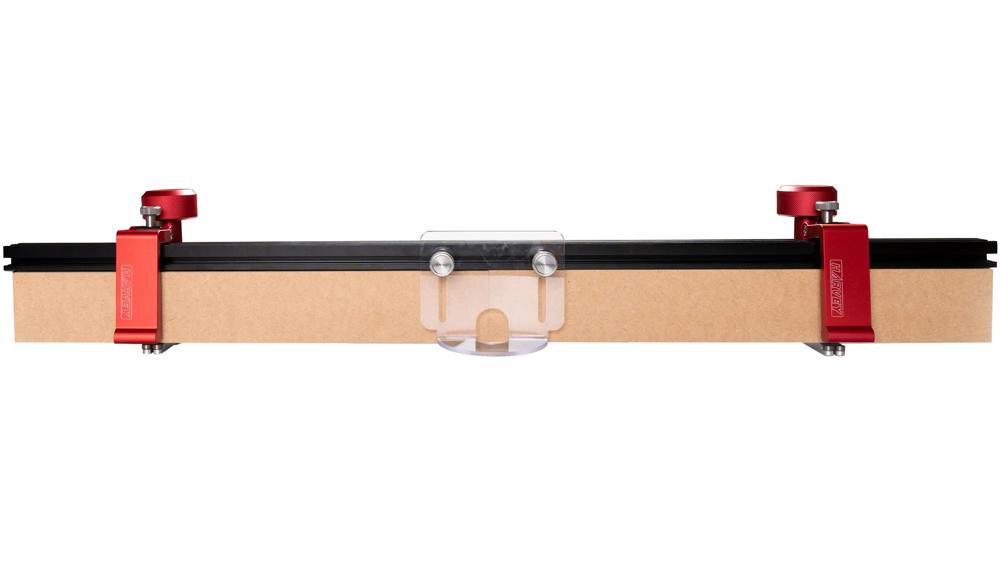

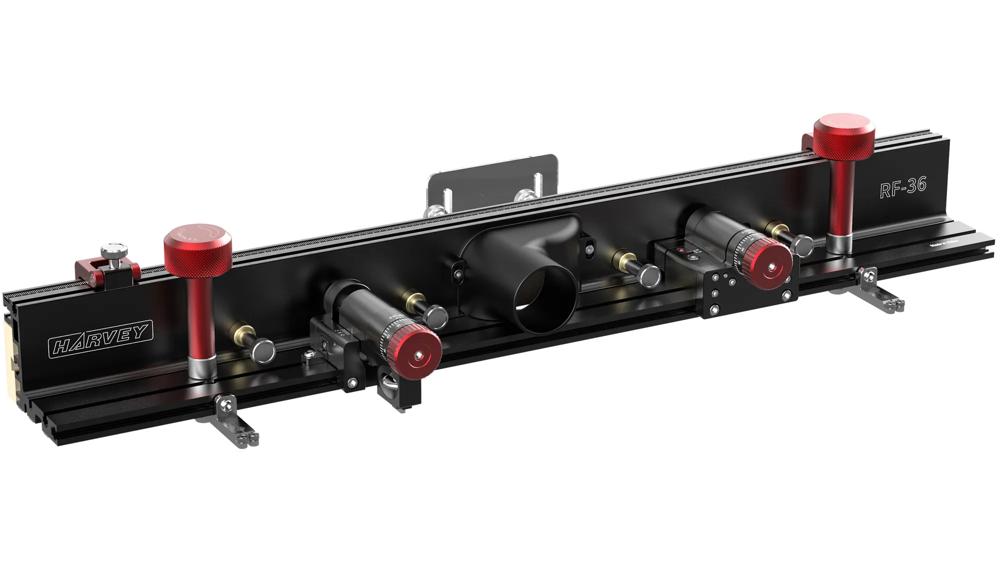

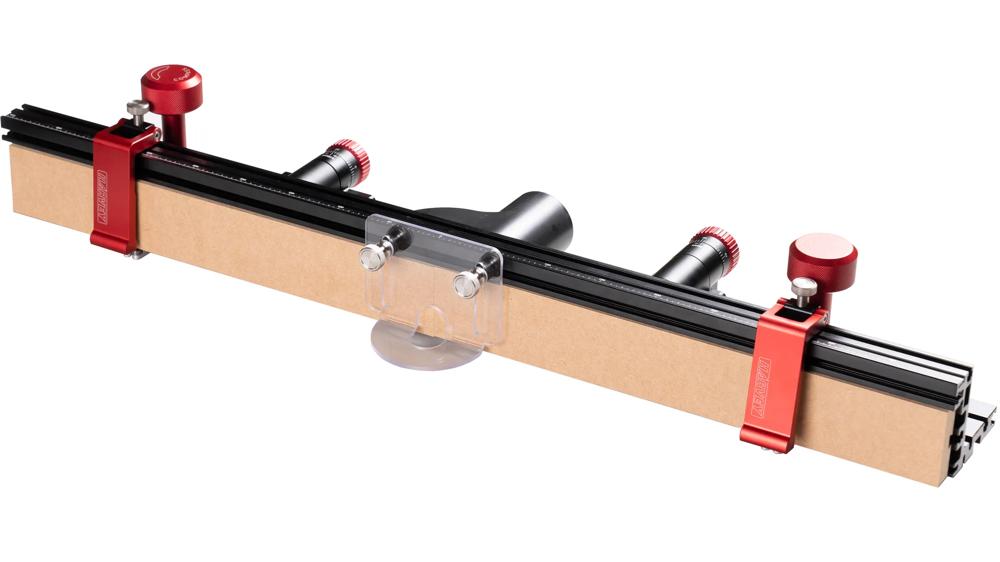

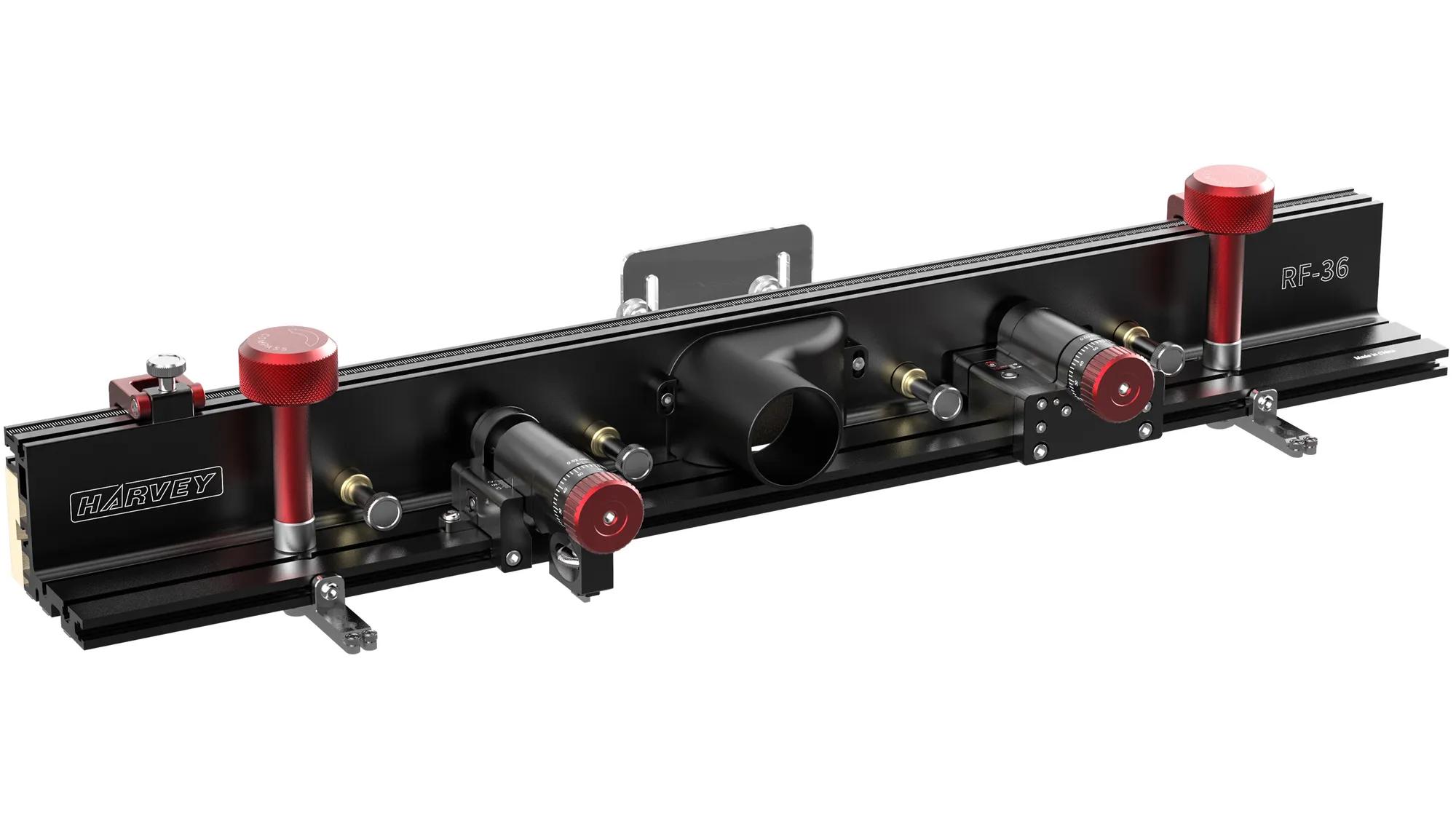

Harvey milling fence:
- Dimensions fence: 915 x 113.5 x 91 mm
- Dimensions of fence jaws: 450 x 67 mm
- .Max. Adjustment travel fence jaws: 178 mm
- Fine adjustment travel of fence: 12.7 mm
- Fine adjustment travel of take-off jaw: 6.35 mm.
- Scaling: metric
- Fine adjustment Stop: 0.02 mm (1 turn corresponds to 1 mm adjustment travel)
- Fine adjustment Absorption jaw: 0.02 mm (1 turn corresponds to 1 mm adjustment travel)
- Ø External extraction nozzle Ø: 63.5 mm
- Ø Inner extraction nozzle Ø: 57.5 mm

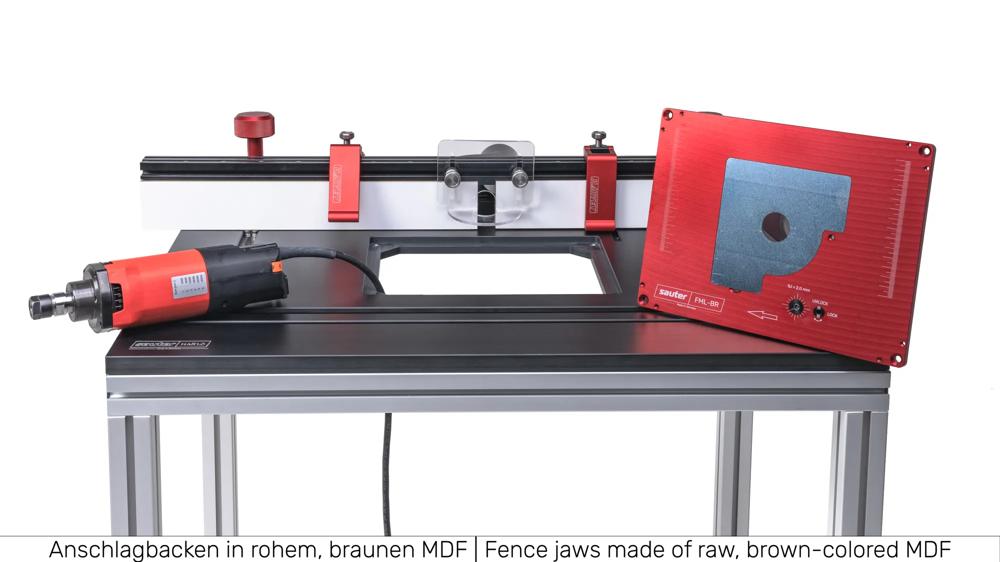

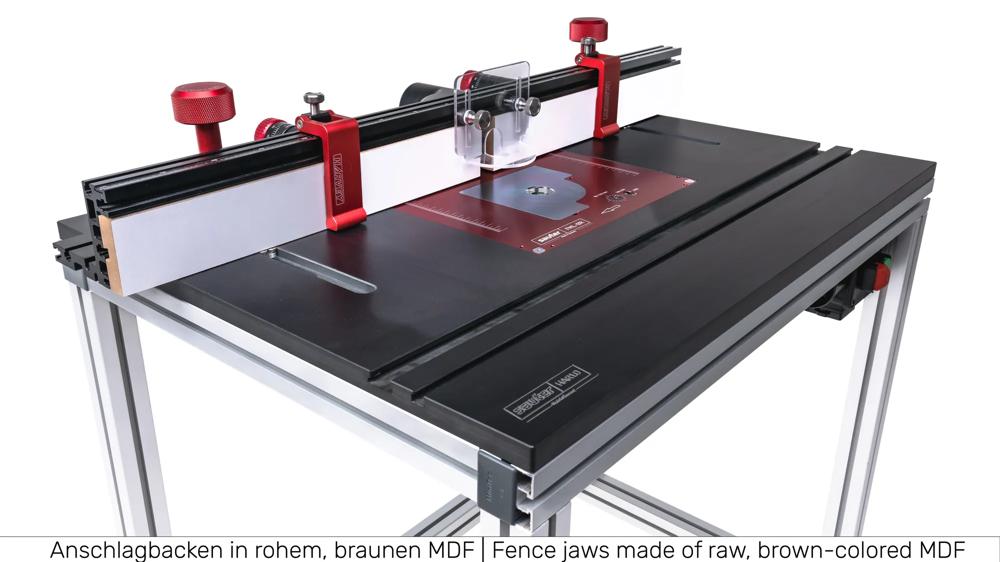

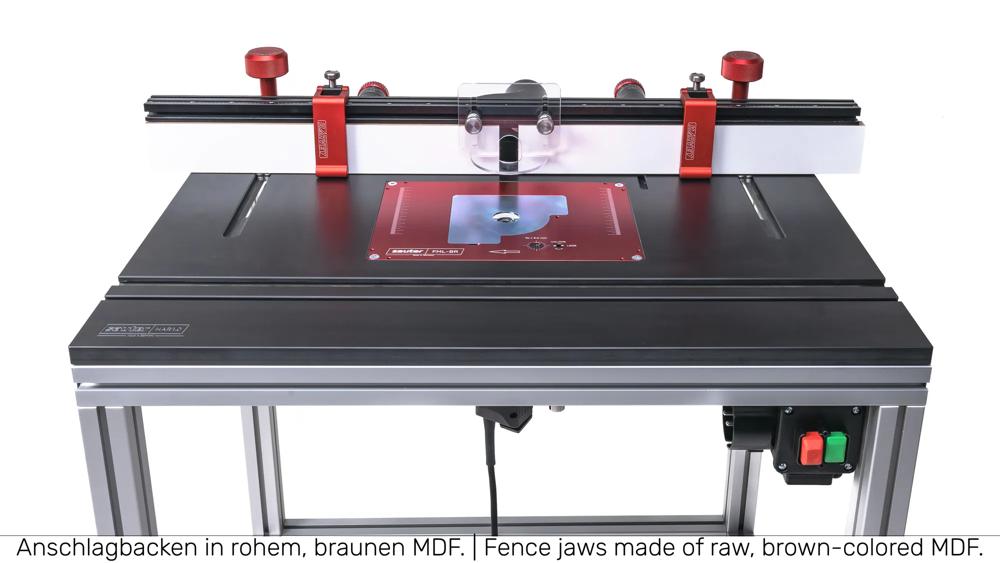

- Both stop jaws are delivered in raw MDF (brown).
Underframe UG1.0:
- Size: 816 x 610 x 880 mm
- Height without adjustable feet: 835 mm
- Profile: 45 x 45 mm
- All four sides grooved
- Very high load capacity
- Anodised surface for better gliding properties and a more beautiful appearance.

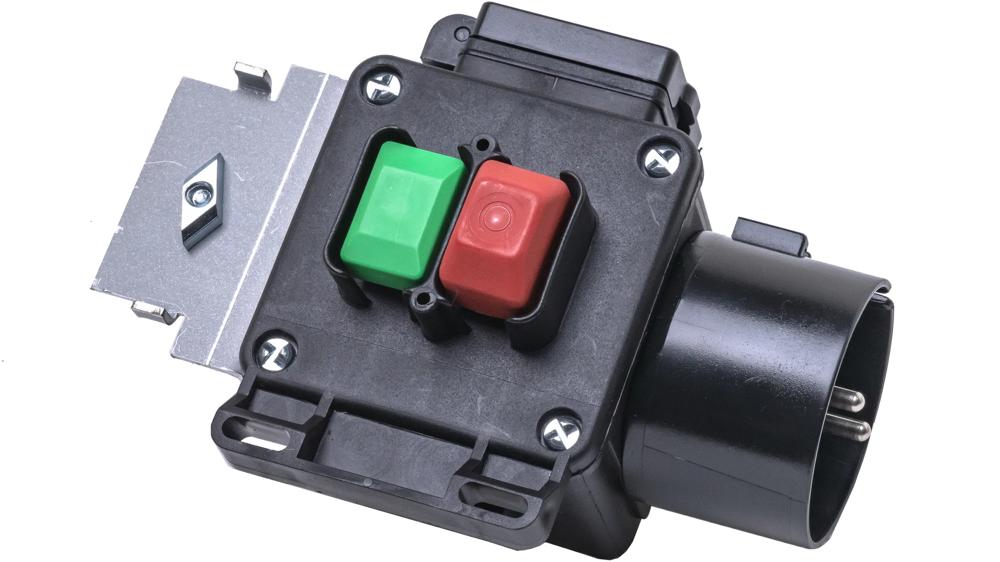

Safety switch:
- Protection class: IP44
- Operating current IE: 13.5 A/250 V
- Universal control voltage UC: 230 V/50 Hz
- Use category AC3: 3 kW

Properties & Advantages

Dust-free router table with red router lift FML-BR and integrated extraction connection.
Very high-quality router table components from sauter, Harvey and Suhner.
Tuned in technology and design.
