Sauter insert plate ELP2.0-B with reduction plates

Premium inlay plate made of aluminium - Made in Germany | pre-drilled for BOSCH GOF1250, 1600, GMF1600 & POF1200, 1400 | Dimensions: 306 x 229 x 9 mm

Shipping within 24 hours (working days)

150,99 €

135,89 €

incl. VAT / excl. shipping costs

1

Brand:sauter
Article no.:SA-ELP2.0-B
Weight:2.145kg

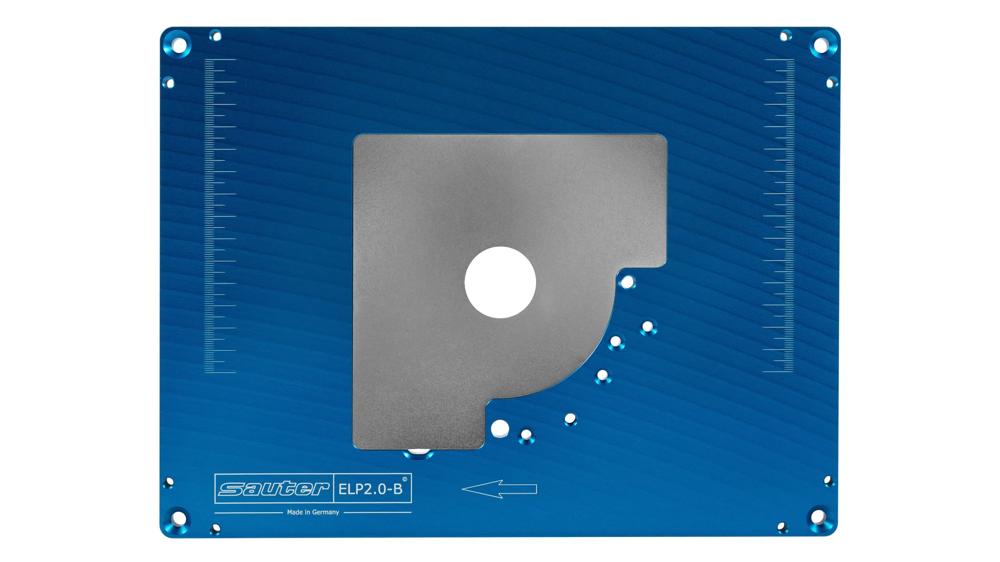

Premium insert plate with magnetic reduction plates from sauter

Absolutely high-quality and made of robust aluminium.Already pre-drilled for many Bosch routers

You may also like

fraestischplatte-hpl-multiplex-1020x610mm-sauter-sa-hpl3.0-01

sauter Router Tabletop HPL 1020 x 610 mm

HPL 3.0 for router lifts and insert plates | Made of robust HPL coated plywood with sauter aluminium profile rails | Dimensions: 1020 x 610 x 28 mm

Shipping within 24 hours (working days)

333,94 €

incl. VAT

Art.-Nr: SA-HPL3.0

fraestischplatte-siebdruck-multiplex-sauter-sa-ftp1.0-01

sauter Router Tabletop Plywood 816 x 610 mm

FTP 1.0- for sauter router lifts and insert plates | made of robust screen printed material with sauter aluminium profile rails | Dimensions: 816 x 610 x 28 mm

Shipping within 24 hours (working days)

199,90 €

incl. VAT

Art.-Nr: SA-FTP1.0

fraestischplatte-hpl-multiplex-816x610mm-sauter-sa-hpl1.0-01

sauter Router Tabletop HPL 816 x 610 mm

HPL 1.0 for router lifts and insert plates | Made of robust HPL coated plywood with sauter aluminium profile rails | Dimensions: 816 x 610 x 28 mm

Shipping within 24 hours (working days)

283,18 €

incl. VAT

Art.-Nr: SA-HPL1.0

universeller-fraestischanschlag-sauter-fo-bsf5-01

Universal Router Fence BSF

suitable for all variants of sauter Router Table FTP / HPL | Length: 710 to 770 mm

Shipping within 24 hours (working days)

143,00 €

incl. VAT

Art.-Nr: FO-BSF5

4 Products

Technical Data

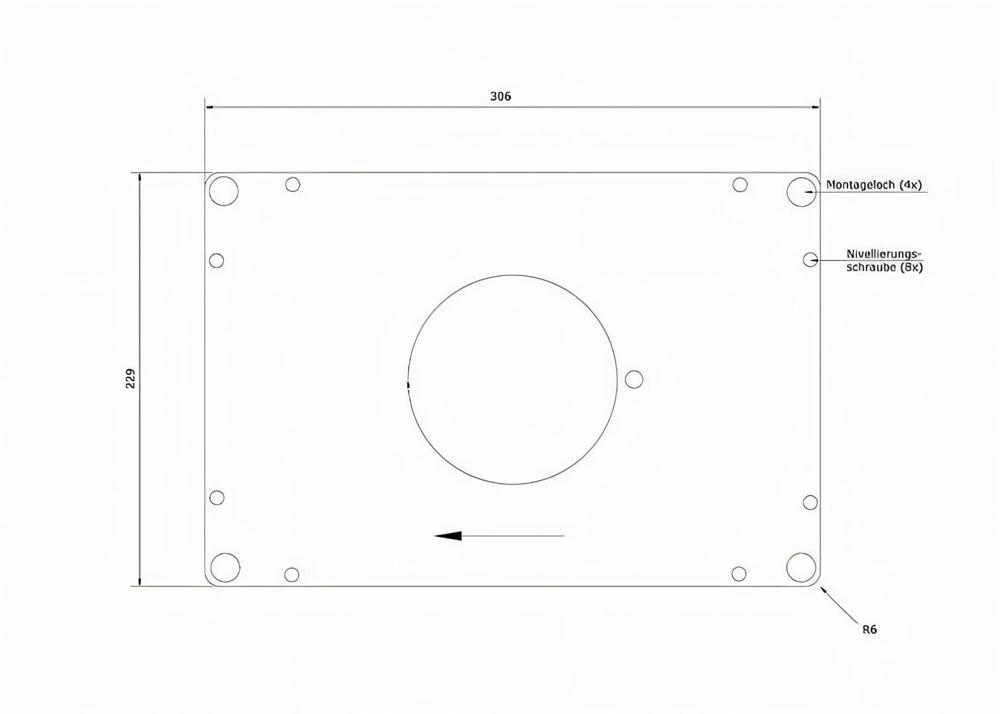

Dimensions: 306 x 229 x 9 mm.
Corner radius: 6 mm
Ø cutter openings: 32 and 68 mm (further diameters up to 98 mm separately extendable).

fraestisch-einlegeplatte-inkl-reduzierplatten-fuer-bosch-sauter-sa-elp2.0-b-02

Properties & Advantages

Quality Made in Germany!
Full aluminium with 9 mm thickness for ultimate stability, robustness and flatness
The perfect insert plate with magnetic reduction plates.

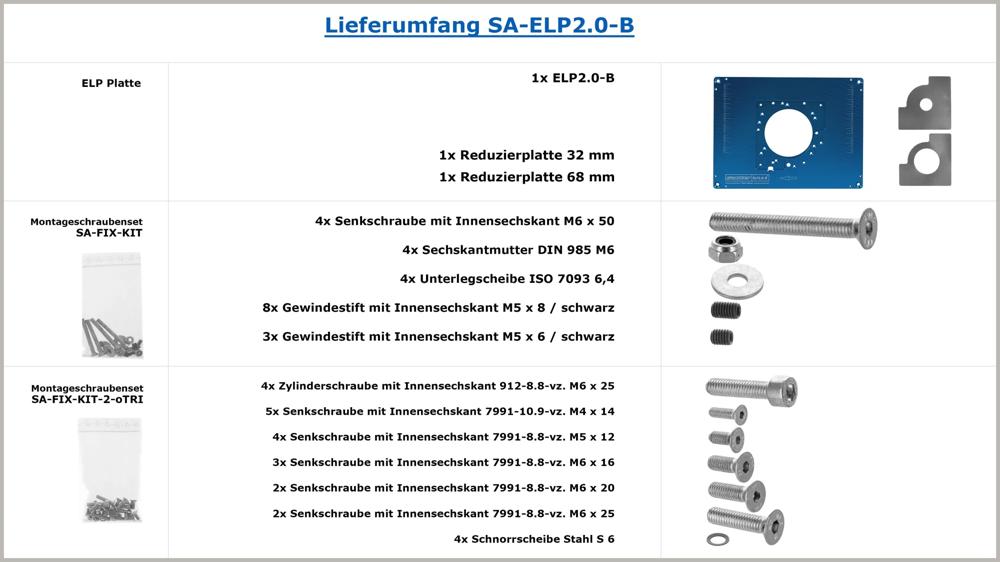

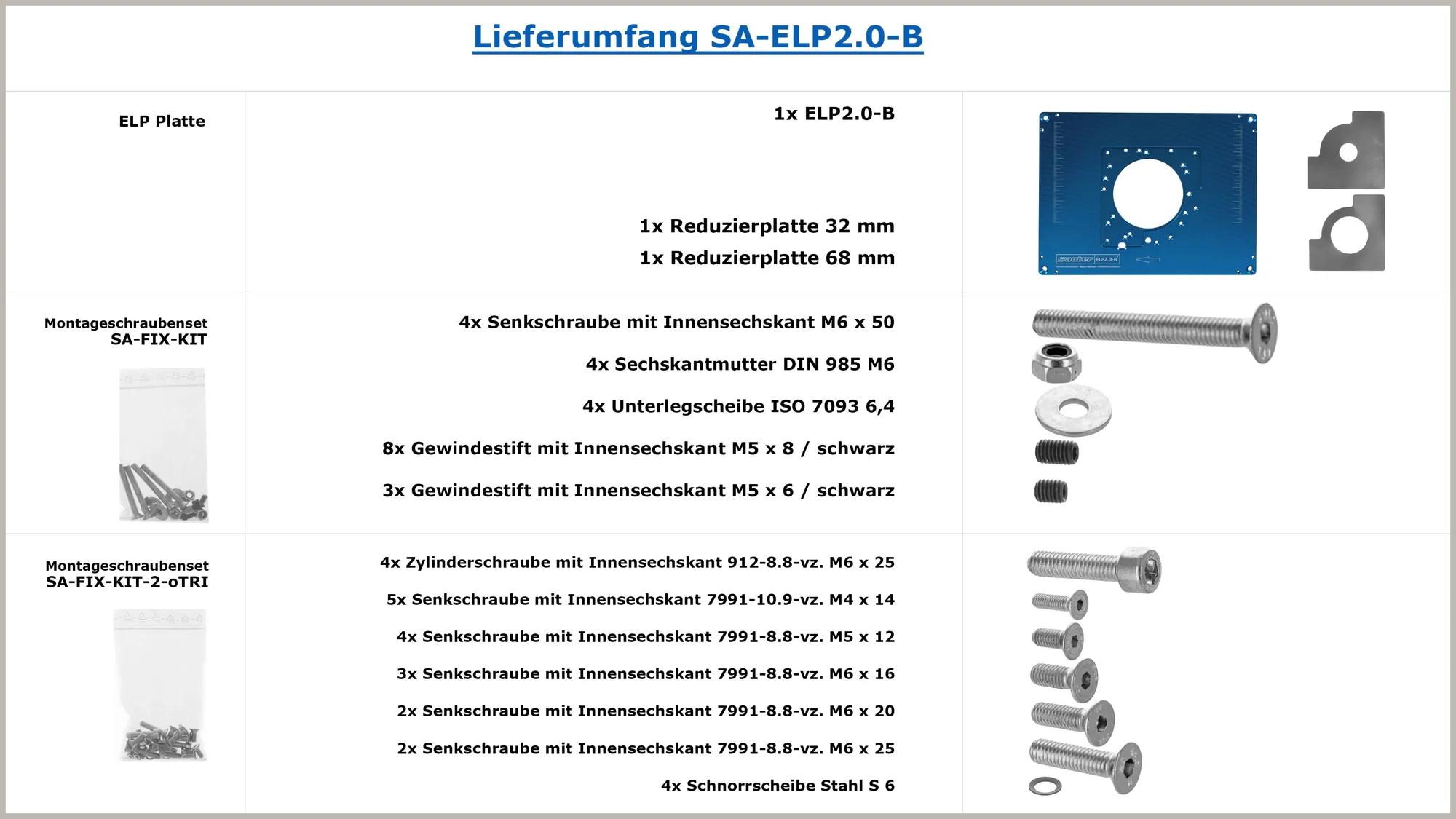

Including 2 high-quality reduction plates made of galvanized, 2 mm thick steel with Ø cutter opening 32 and 68 mm.
Includes hole for free-routing pin (to be purchased separately) for working with curved workpieces.
Maximum Ø cutter opening: 98 mm (Reduction plate art. no. SA-ELP2.0-98).

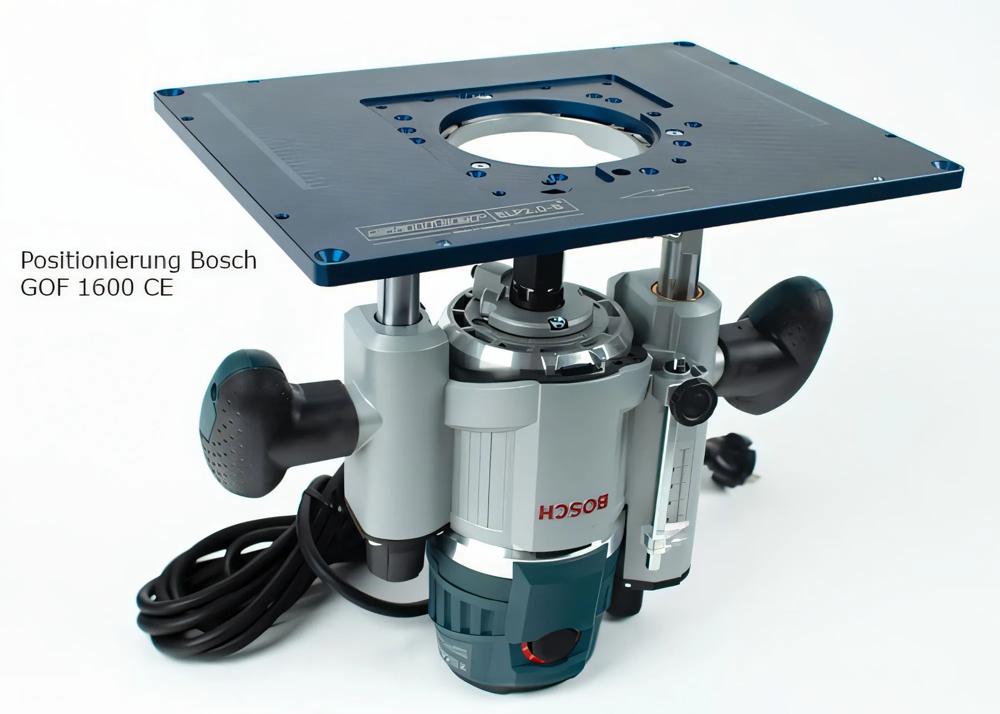

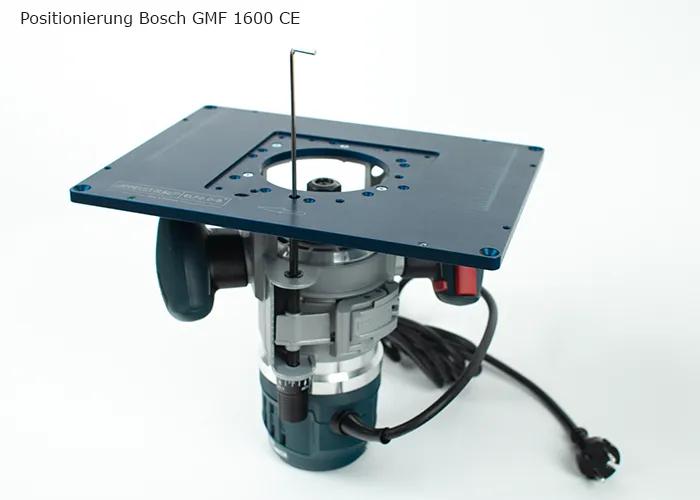

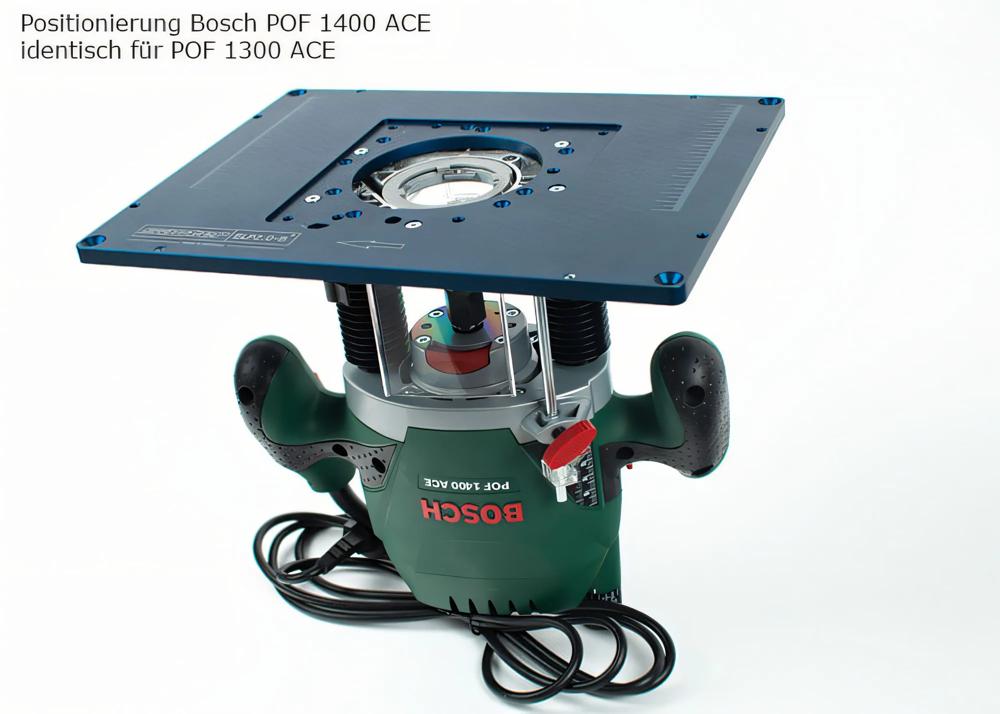

Pilot holes fit Bosch GOF 1250 CE/LCE, GOF 1600 CE (GKF 1600), GMF 1600 CE, POF 1300 ACE and POF 1400 ACE*. Note: POF1400ACE models manufactured from approx. 6/2020 onwards have only 3 mounting holes (instead of 5).
Scale for exact positioning of the rip fence.
Fixing holes for mounting on the router table pre-drilled
Levelling screws for exact adjustment router table
Inlet for reducing plates slightly chamfered for a perfect transition
