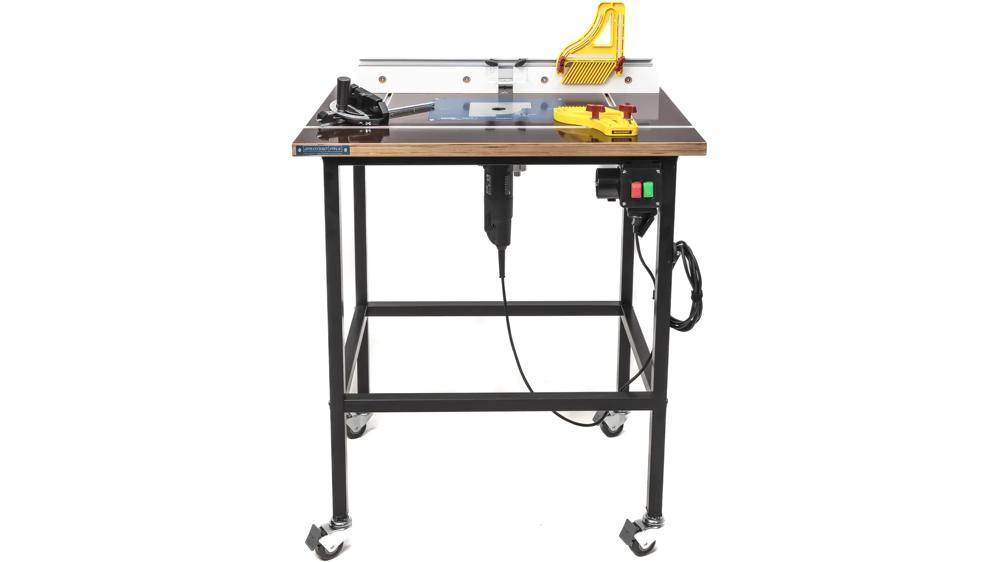

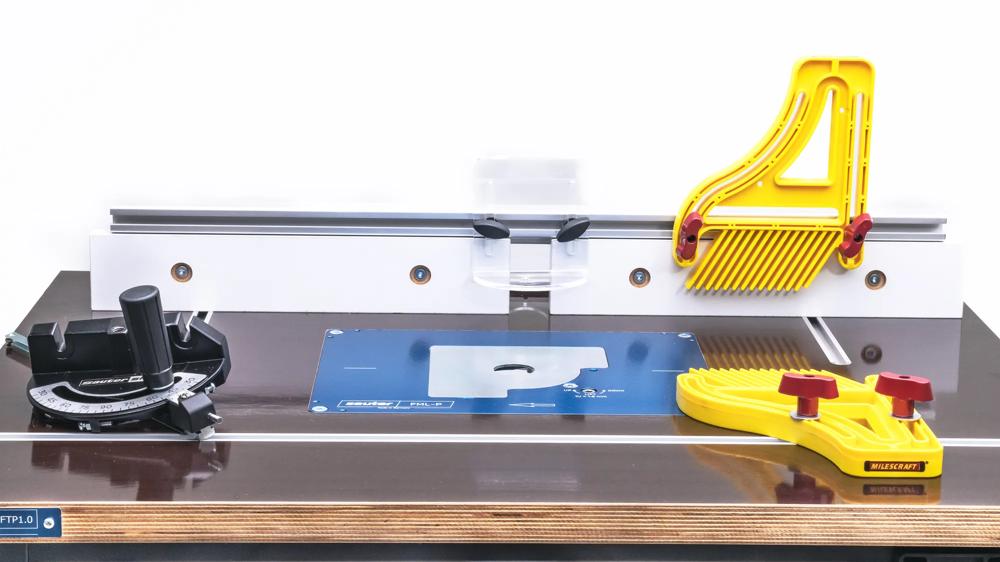

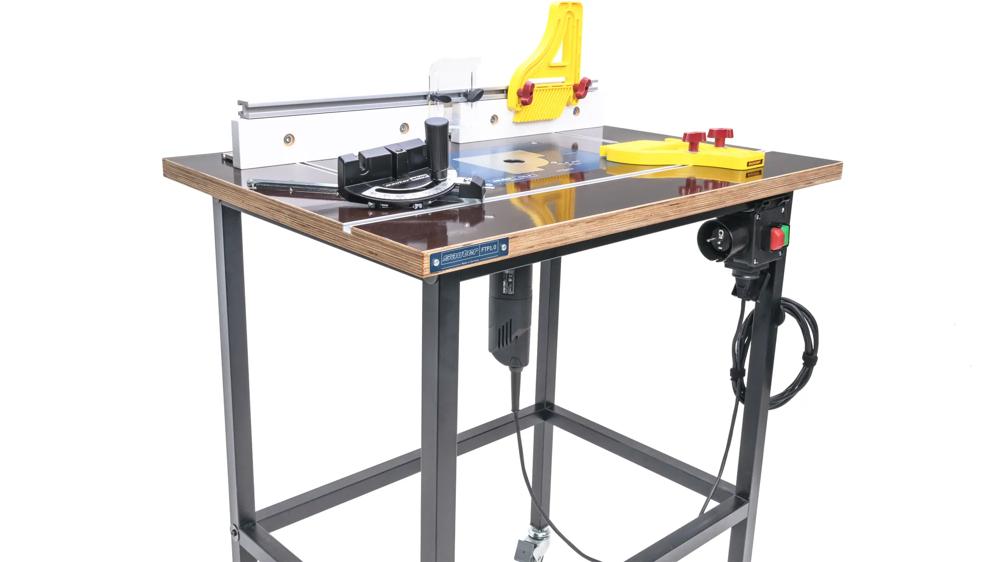

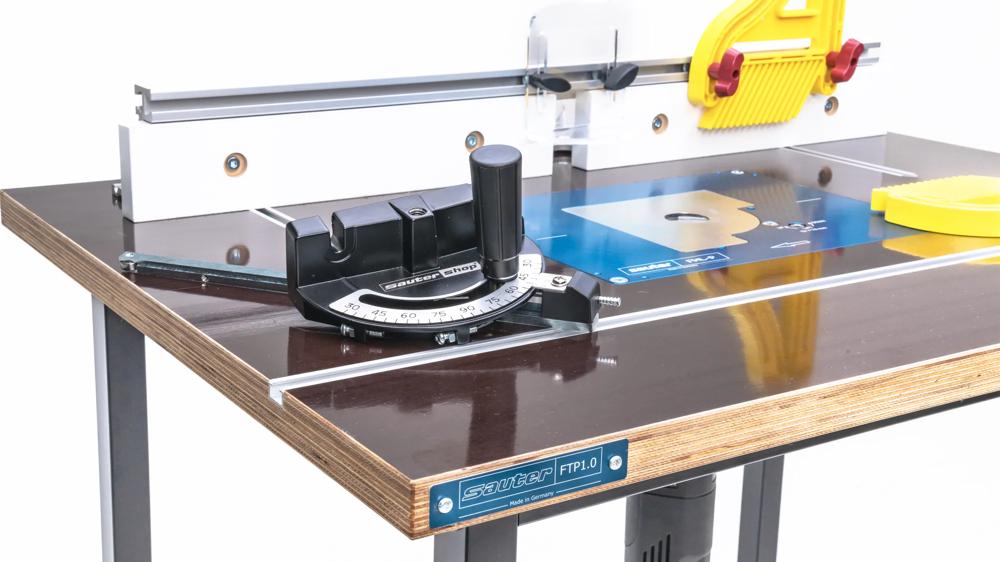

The full configuration incl. router lift and router motor plus accessories
With this configuration you are fully equipped. In addition to the standard configuration, you also get the mitre fence, the pressure comb combination and a set of castors that allow you to conveniently place the router table wherever you want in the workshop. You won't find such a well-equipped and high-quality router table so affordable in such a short time. Including sauter router lift FML-P and the AMB router motor with 1050 watts, this set is definitely worth looking at. For convenient control of the router motor, the safety switch is of course also included.
Technical Data

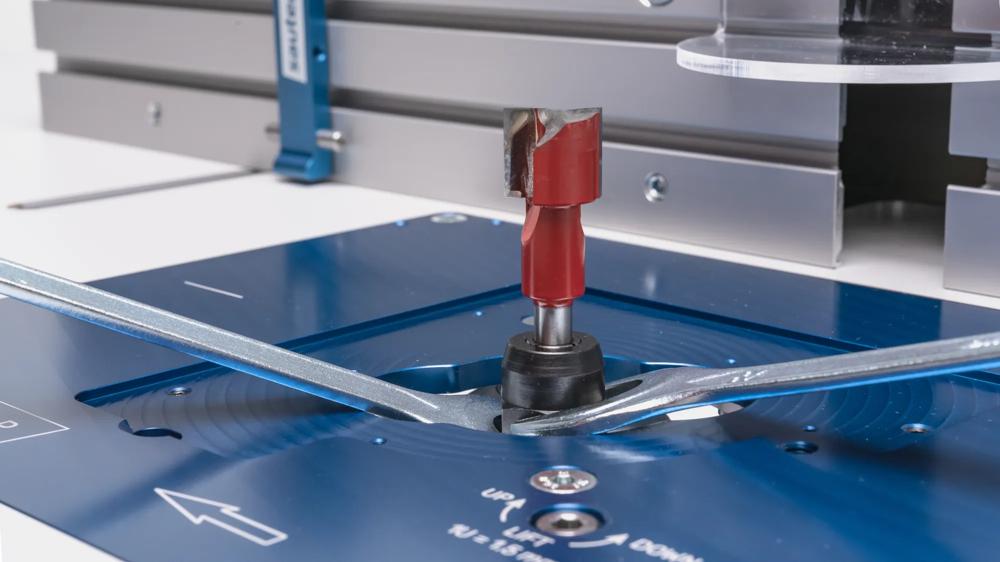

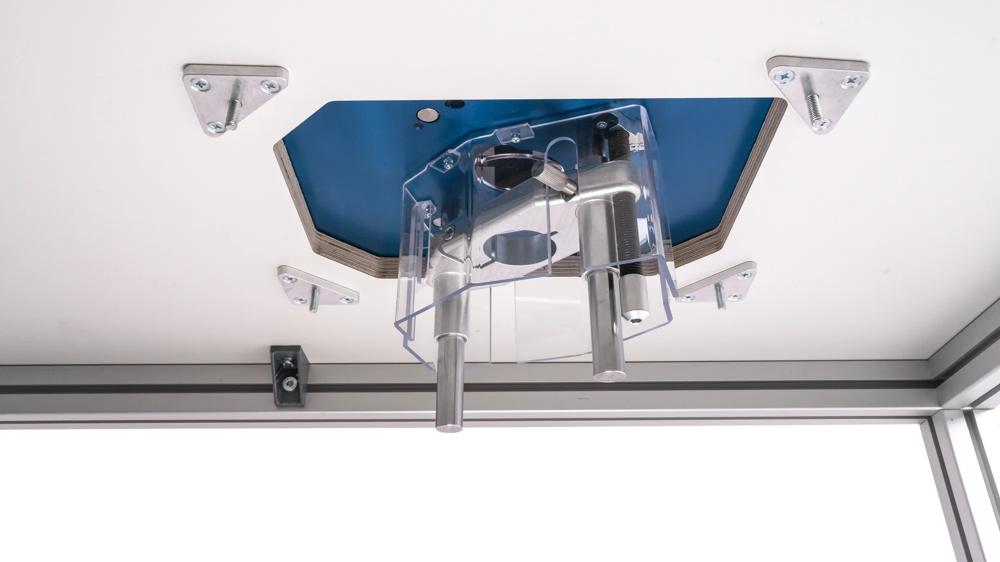

sauter router lift FML-P:
Max. Router bit-Ø: 50mm
Ø Cutter opening: 55mm
Travel: 65mm
Height adjustment from above with hexagon socket (5mm)
Adjustment travel per revolution: 1.5 mm
Spindle locking below the table, one-sided locking.
Dimensions of the table top: 306 x 229 x 9 mm
Corner radius of insertion plate: R6
Dimensions (LxWxH): 306 x 229 x 146 mm

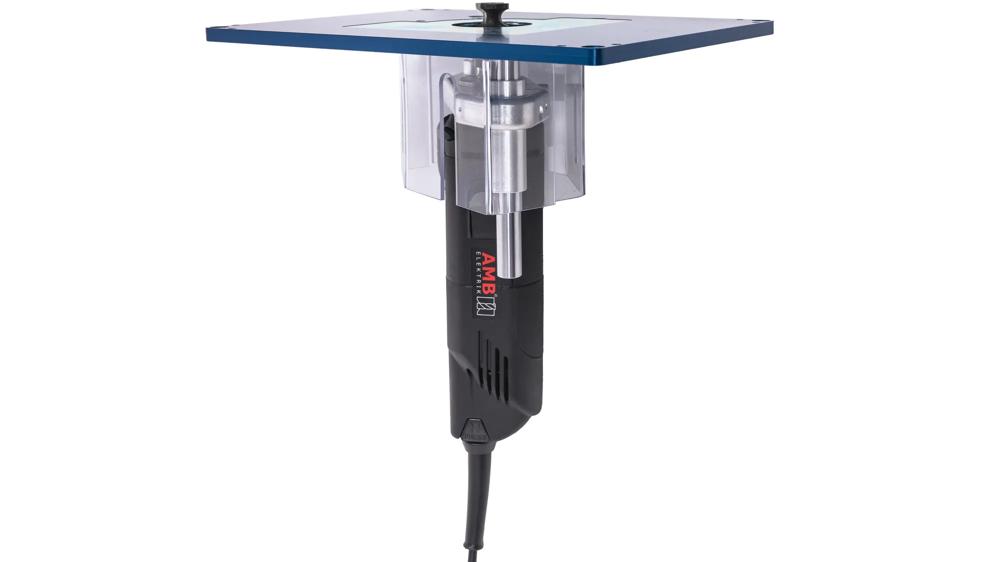

AMB router motor FME-1:
MAXX-Power drive 1,050 Watt
Chuck neck Ø 43 mm (standard) in steel design - for installation in drill stands, CNC and milling devices.
Speed infinitely variable: 5,000 - 25,000 rpm.
Torque: 0.3 Nm
Voltage: 220 - 240 volts / 4.8A 50/60 Hz
Collet: 8 mm

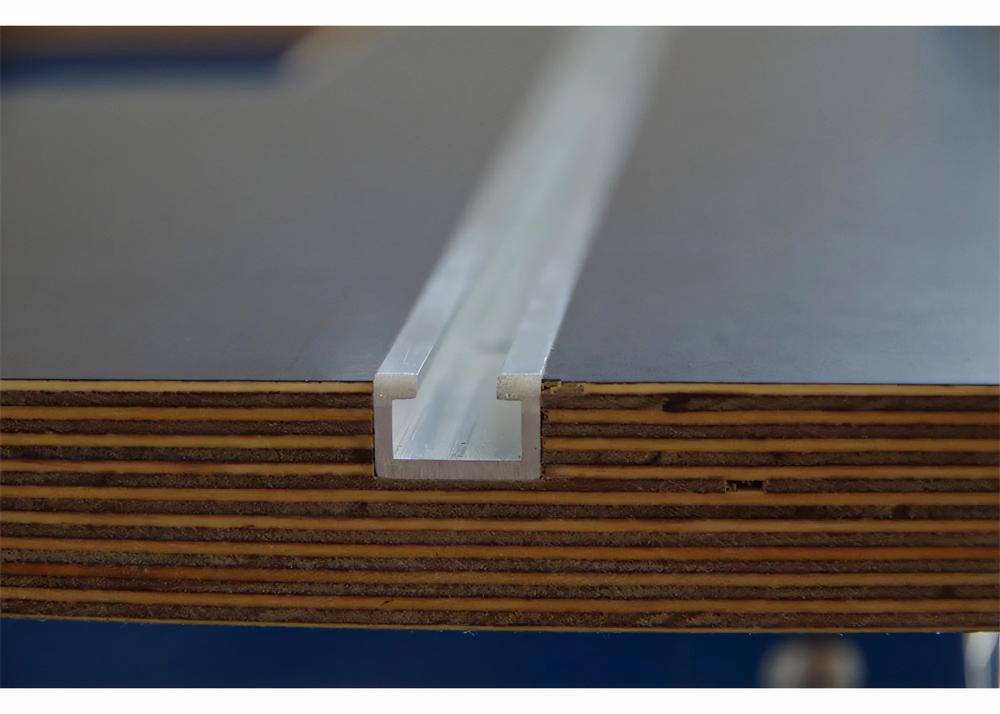

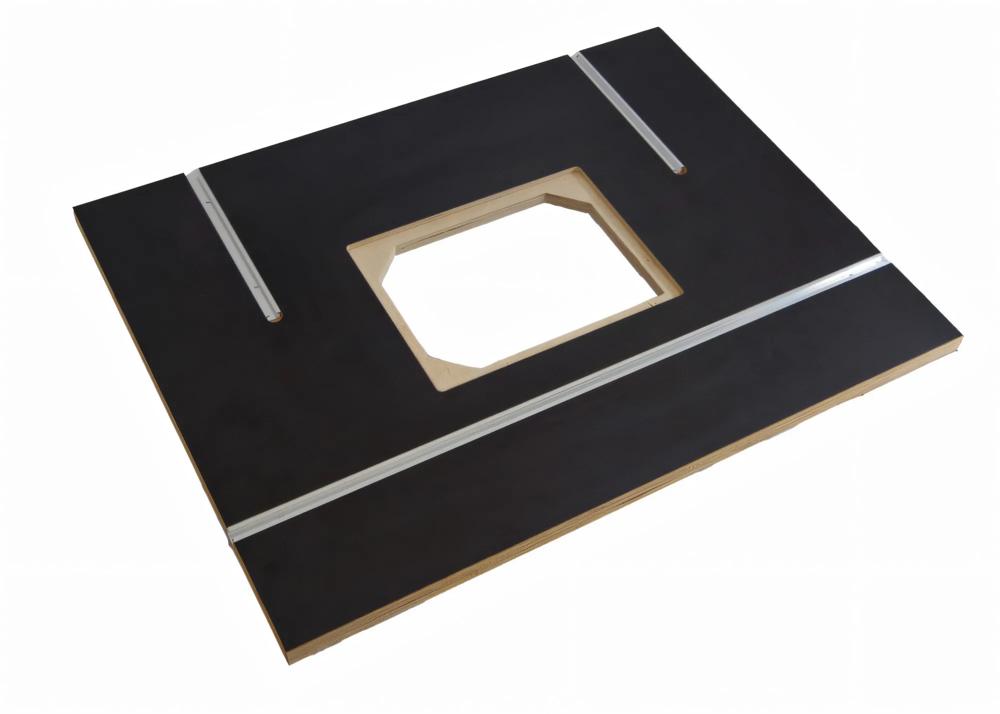

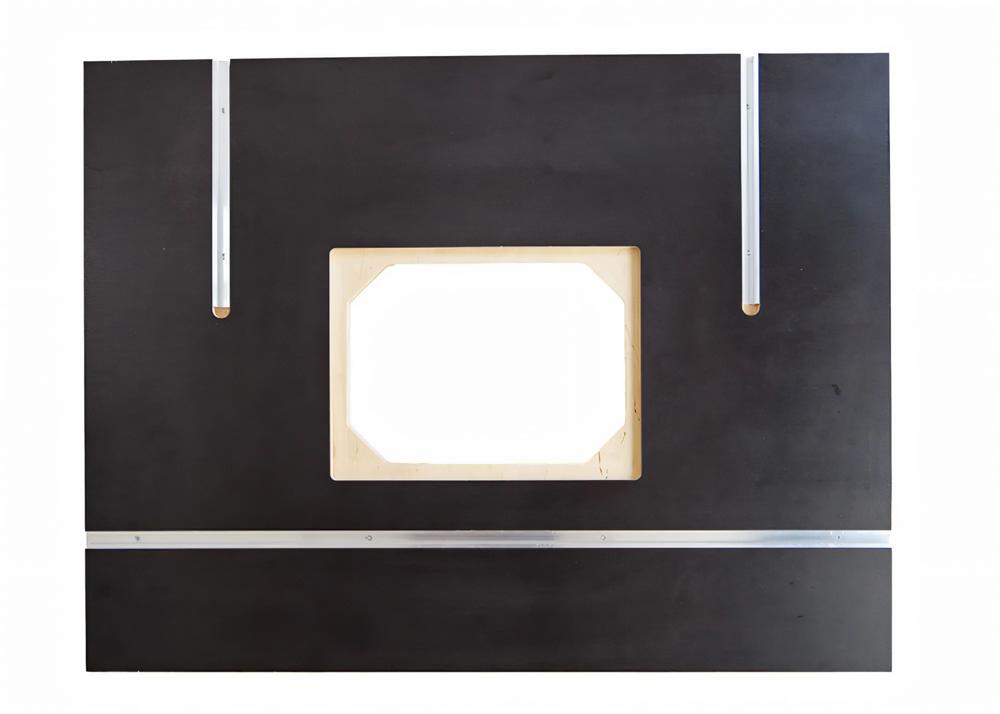

sauter router table top FTP1.0:
Dimensions: 816 x 610 x 28 mm

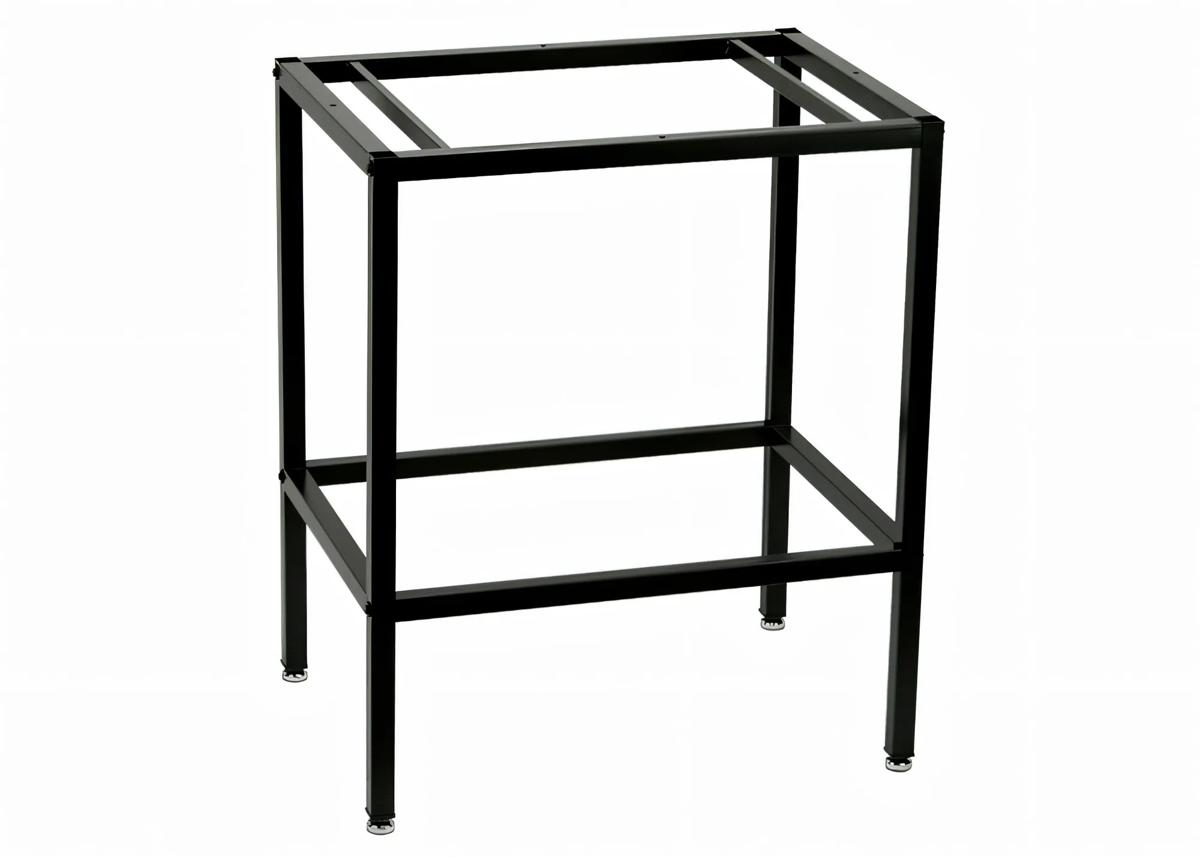

Steel underframe LSD23:
Height with adjustable feet (adjustable): 850 - 870 mm
Height with castors: 925mm
Max. Load capacity: 150 kg
Basic dimensions of base frame (WxHxD): 710 x 850 x 508 mm
Thickness of legs: 30 x 30 mm

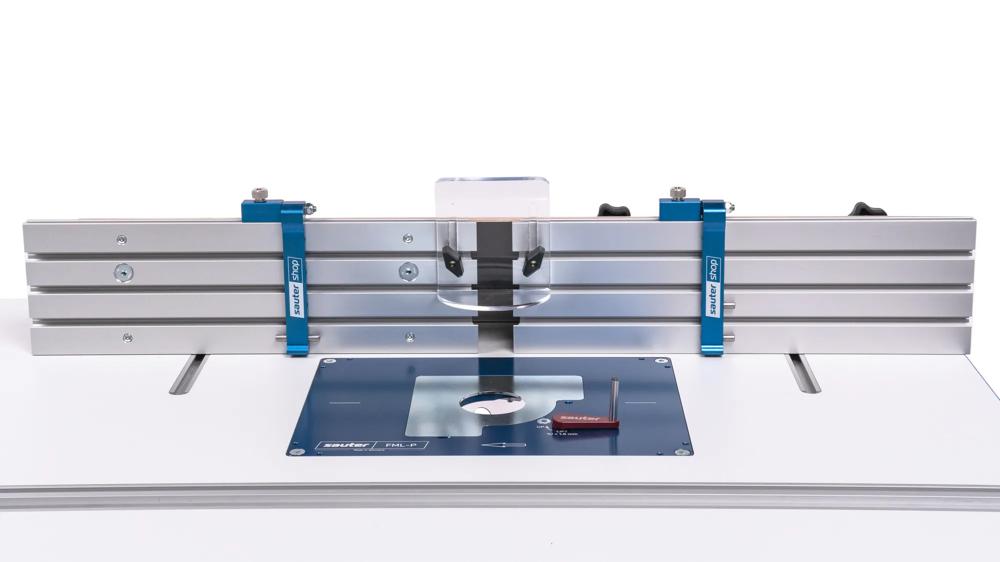

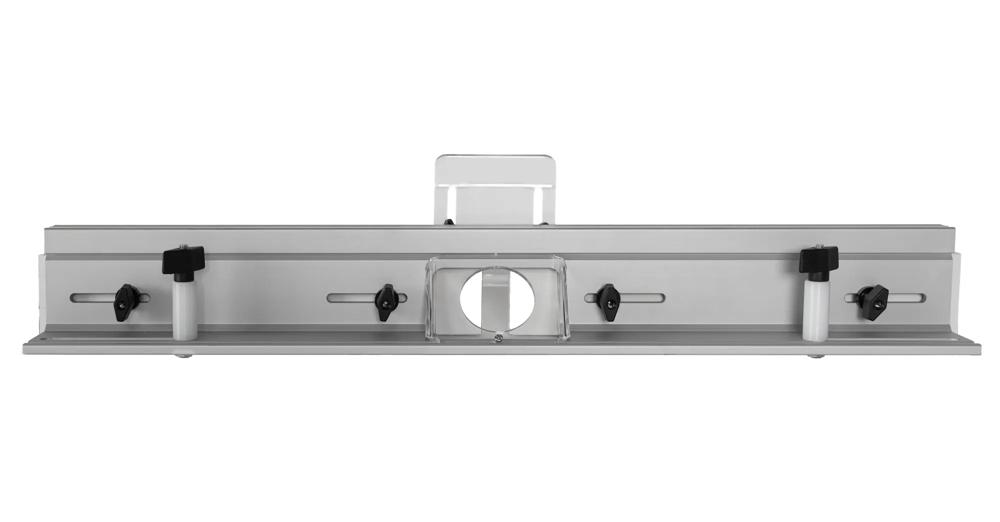

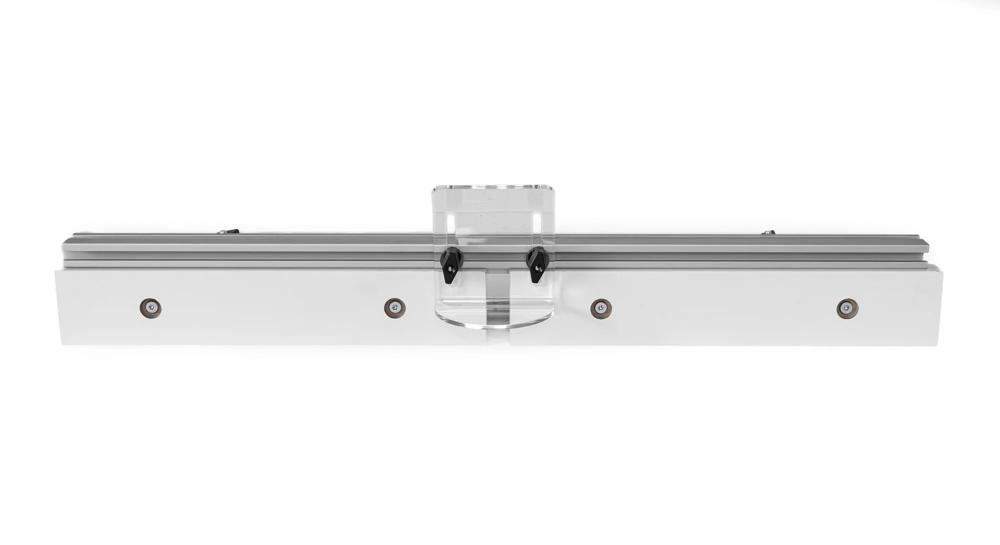

Fence BSF5:
Height with adjustable feet (adjustable): 850 - 870 mm
Height with castors: 925mm
Max. Load capacity: 150 kg
Basic dimensions of base frame (WxHxD): 710 x 850 x 508 mm
Thickness of legs: 30 x 30 mm

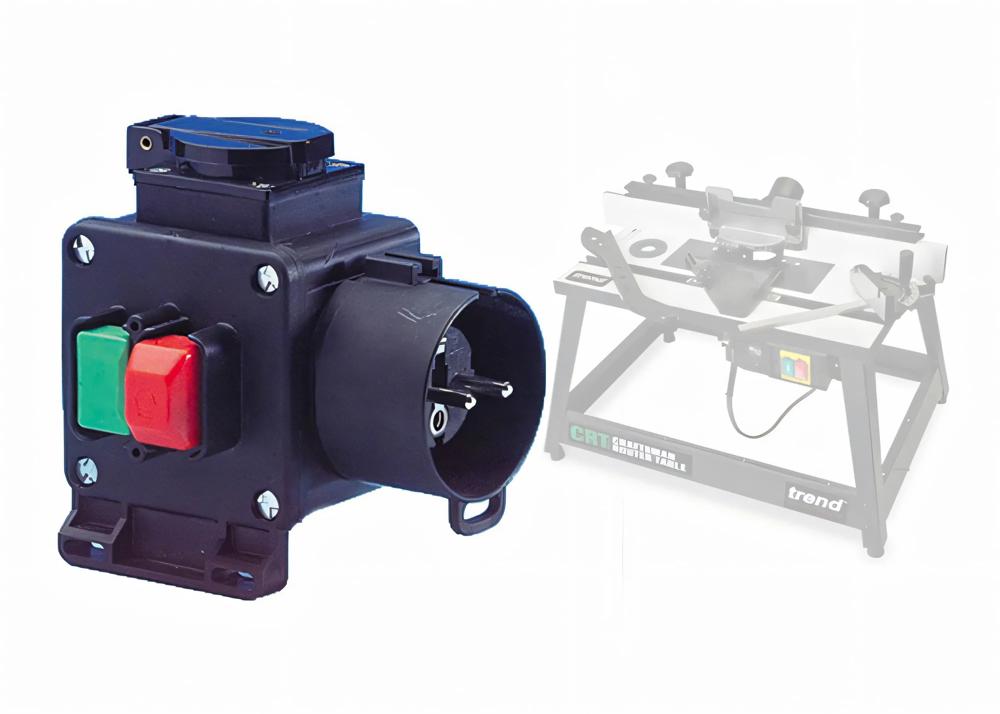

NVR Safety switch:
Protection class: IP44
Operating current IE: 13.5 A/250 V
Universal control voltage UC: 230 V/50 Hz
Use category AC3: 3 kW

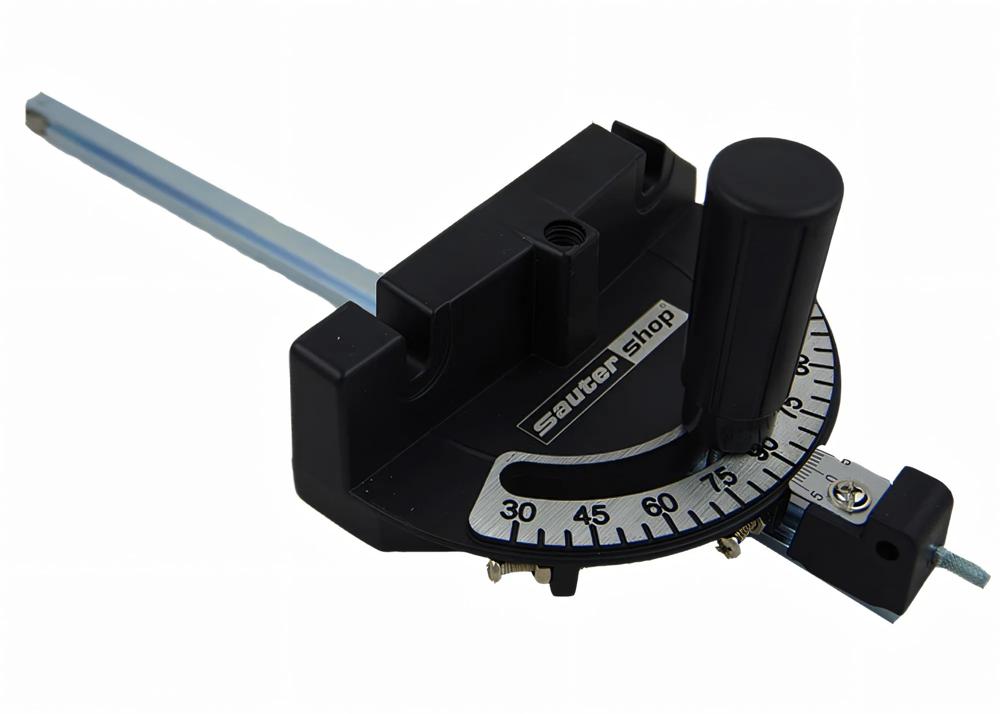

Mitre Gauge MGC-5:
fits profile inside dimension: 13 x 6 mm
compatible with sauter C-profile rails
grub screws for fine adjustment in the guide rail.

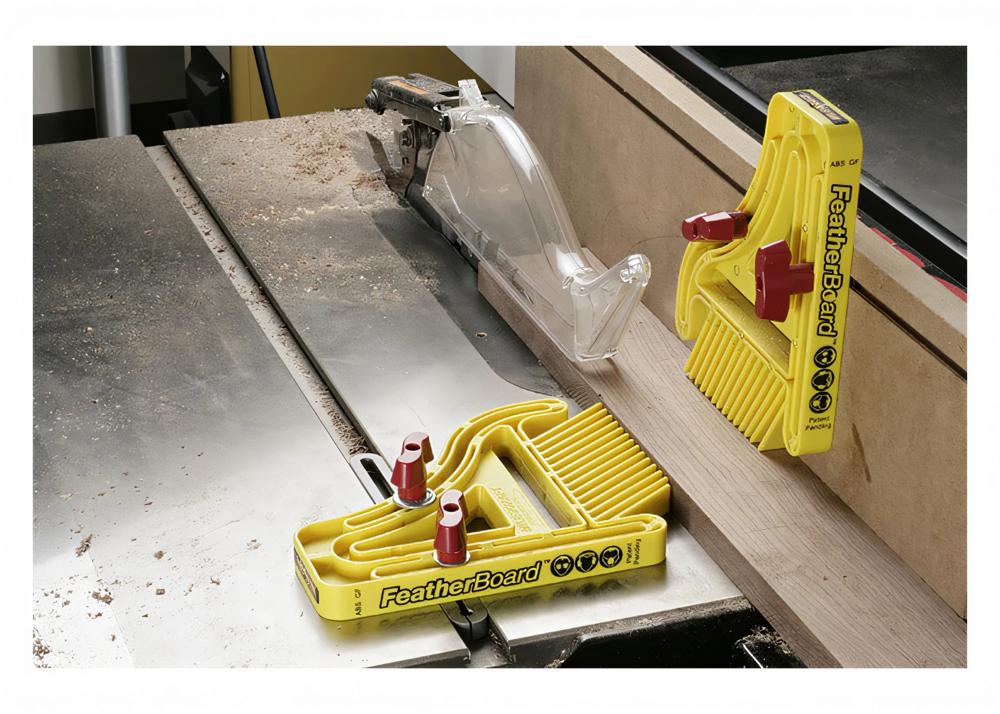

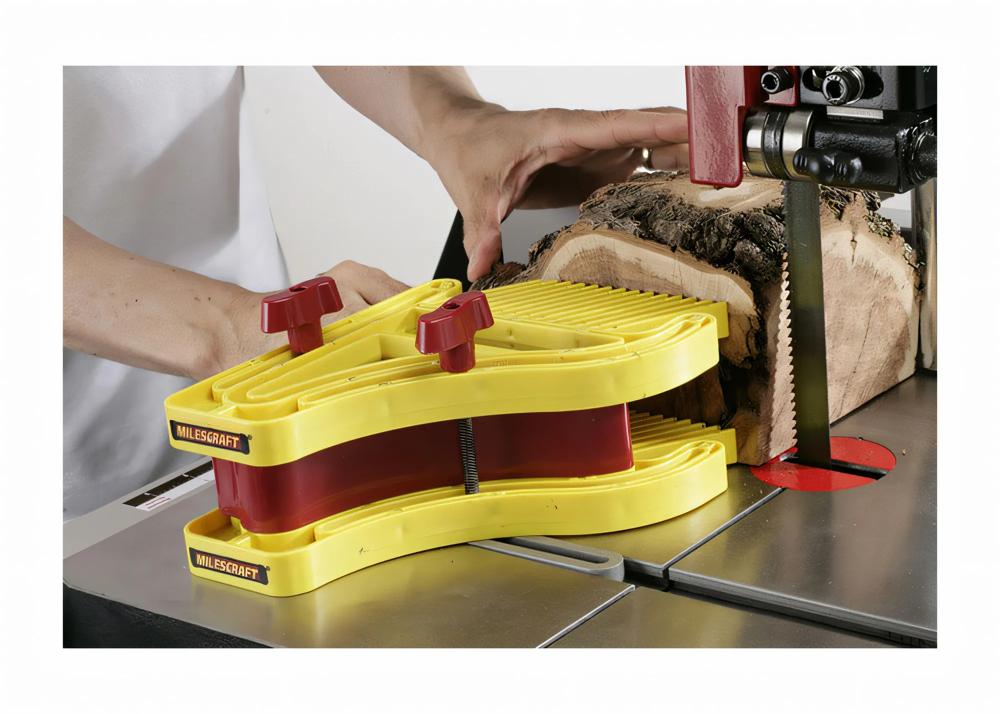

Feather board combi:
Total length: approx. 200 mm
Adjustment range: 130 mm
3/4" guide rail: approx. 19 x 10 in cross cut.
5/8"-guide rail: approx. 16 x 10 in cross cut

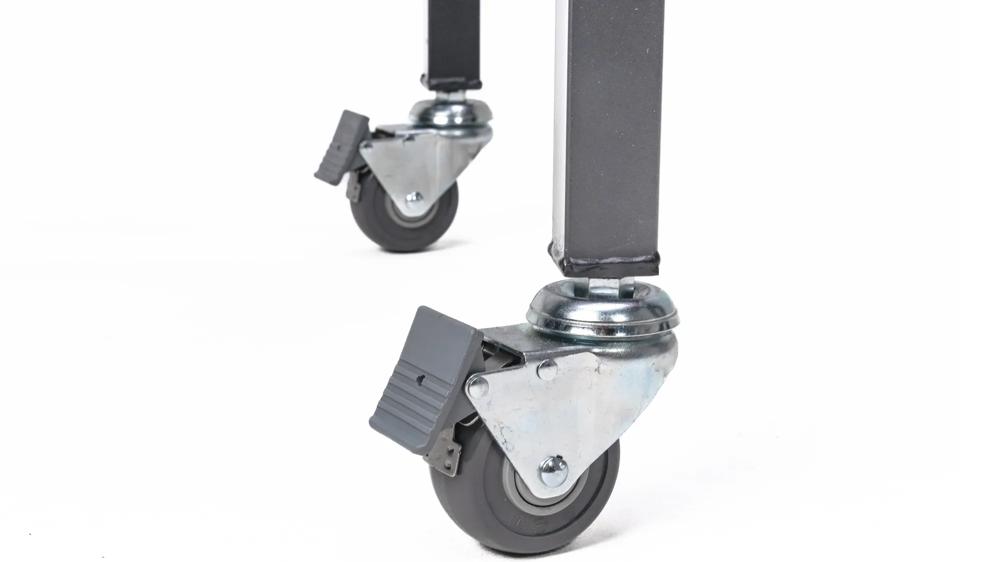

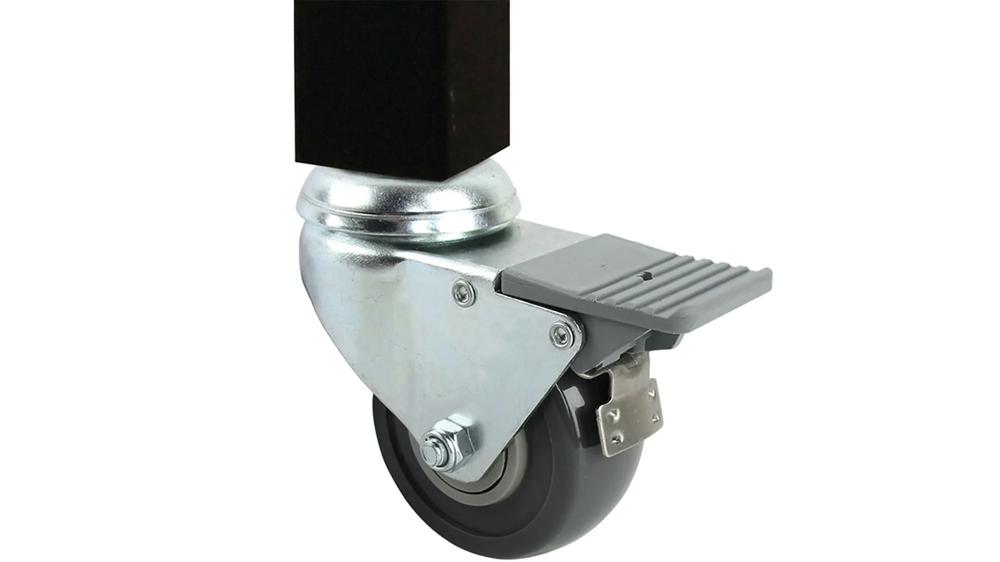

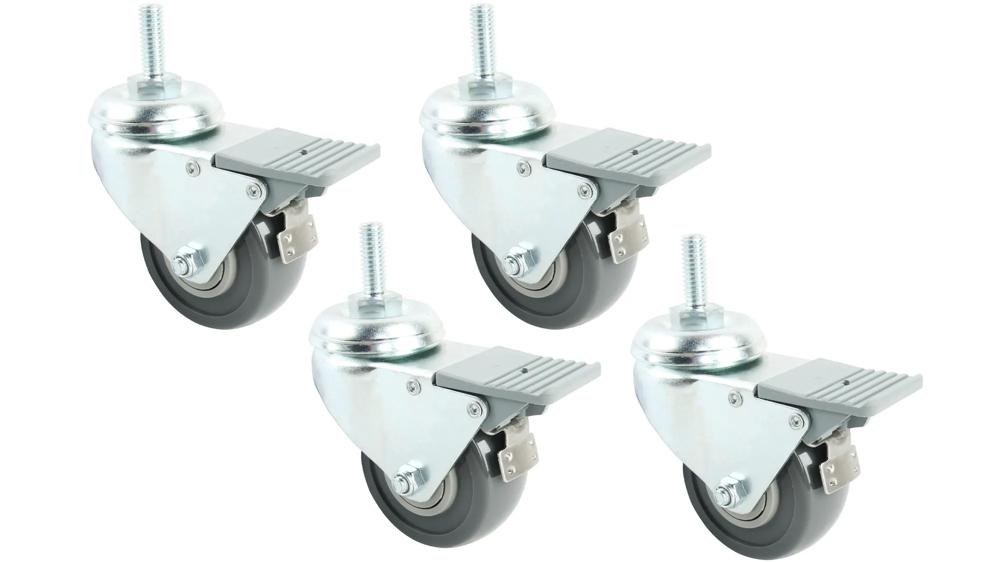

Roller set WBC-1:
Width castors: 27.5 mm
Height of castors: 87 mm
Rise of the base: 100 mm
Ø Castors: 60.5 mm
Thread (inch): 3/8-16 UNC
Caster material: PU (polyurethane)
Properties & Advantages
Completely equipped router table with components matched to each other for entry into the world of sauter router tables.
Thanks to the router lift, the routing height can always be perfectly adjusted.
AMB router motor provides the necessary, powerful and reliable motorisation.
Additionally with mitre fence, pressure comb combination as well as a roller set for more flexibility in the workshop.
