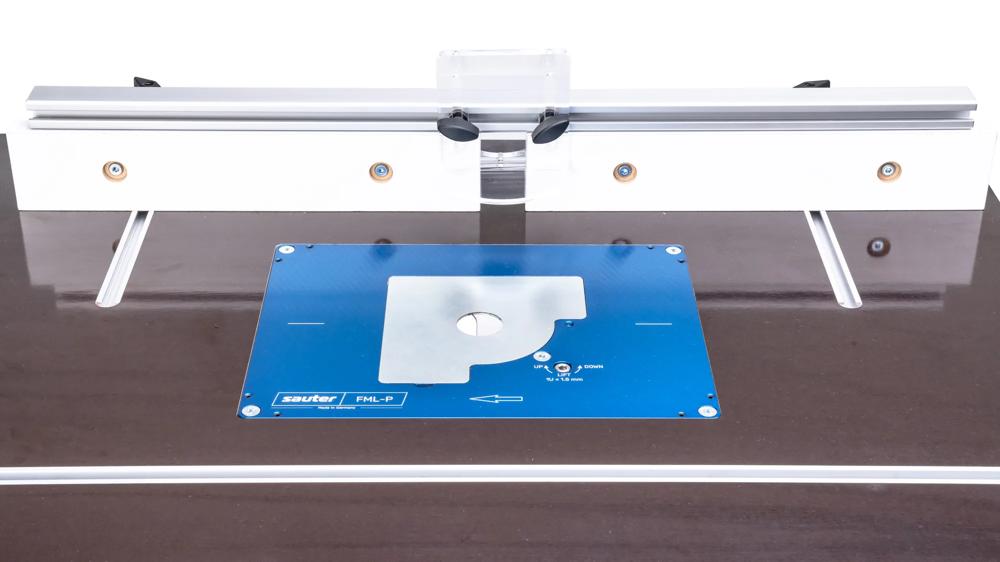

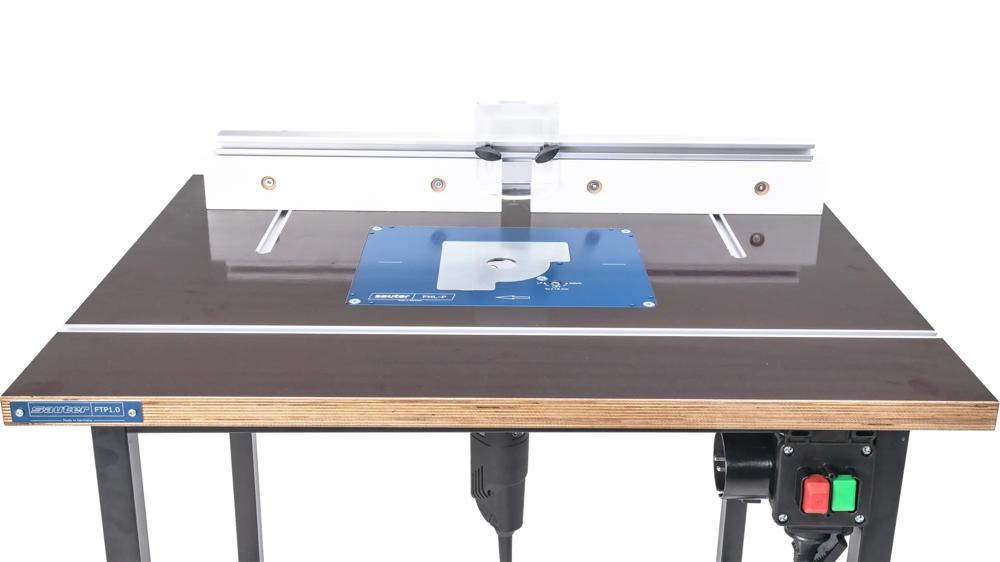

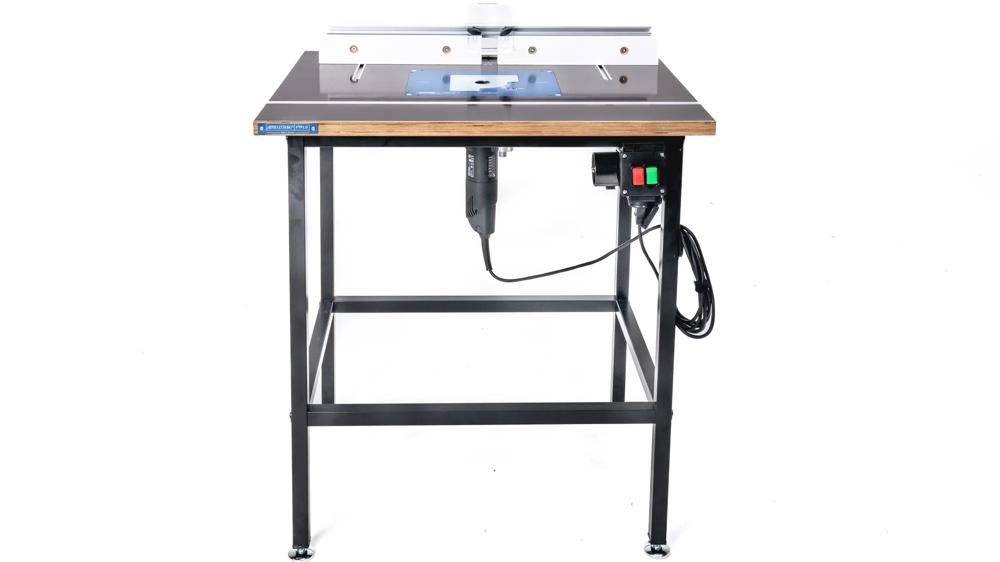

The standard equipment incl. router lift and router motor.
With this configuration, we already come close to a fully-fledged and cost-efficient router table. Including the sauter router lift FML-P and the AMB router motor with 1050 watts, this set is definitely worth looking at. We also include a safety switch for convenient control of the router motor. A standard set with high-quality components, on which you can of course build further. As always, there are no limits to the router table universe.
Technical Data

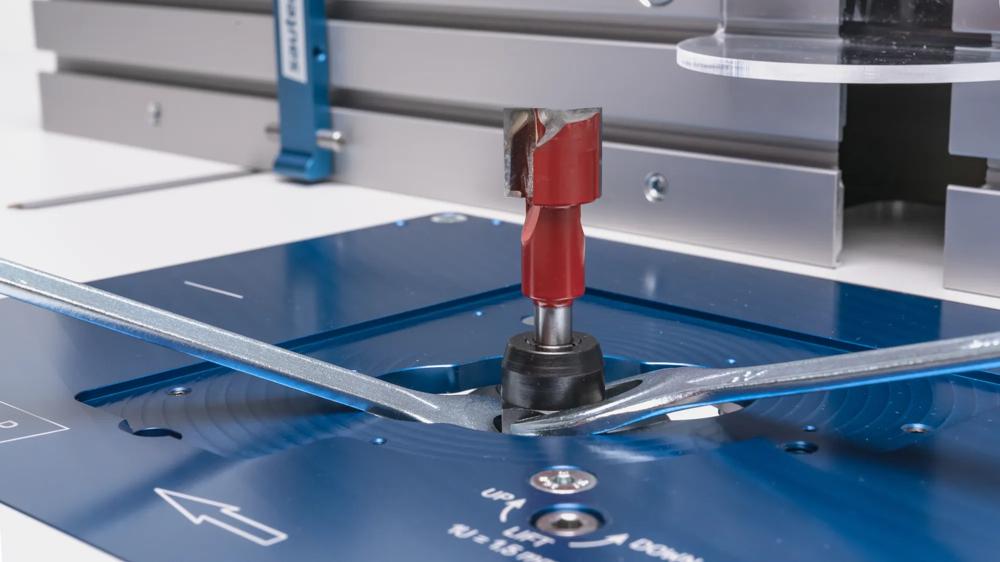

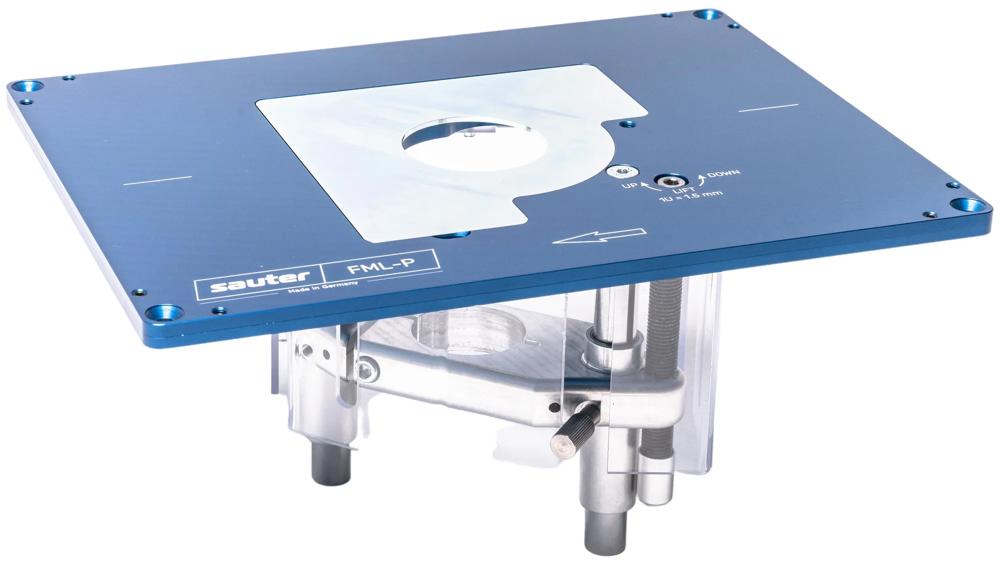

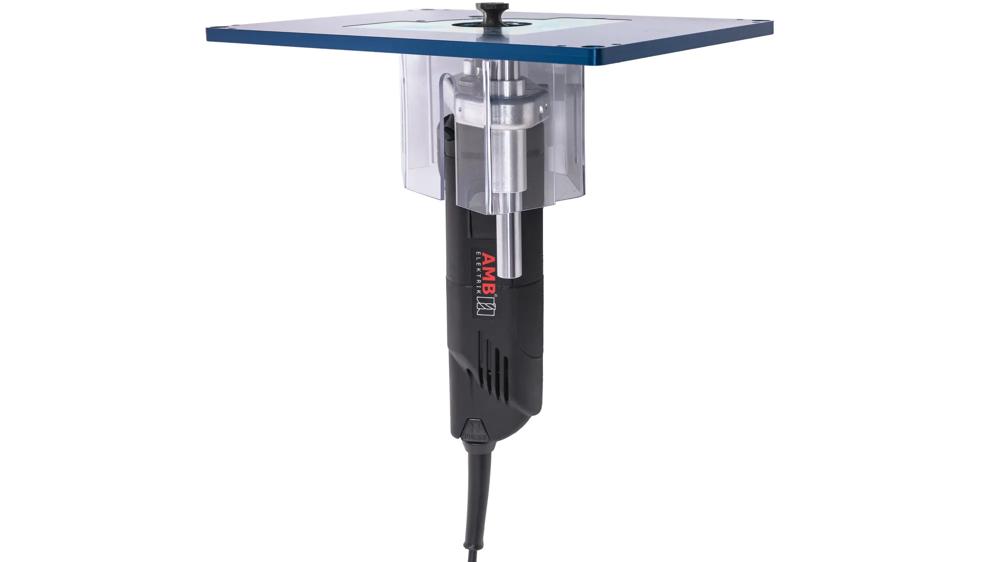

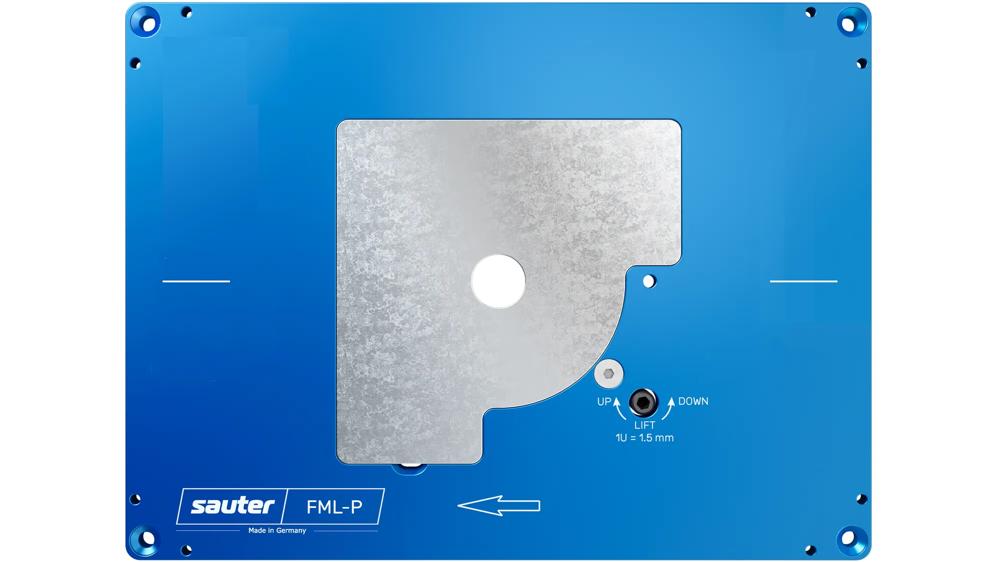

sauter router lift FML-P:
Max. Router bit-Ø: 50mm
Ø Cutter opening: 55mm
Travel: 65mm
Height adjustment from above with hexagon socket (5mm)
Adjustment travel per revolution: 1.5 mm
Spindle locking below the table, one-sided locking.
Dimensions of the table top: 306 x 229 x 9 mm
Corner radius of insertion plate: R6
Dimensions (LxWxH): 306 x 229 x 146 mm

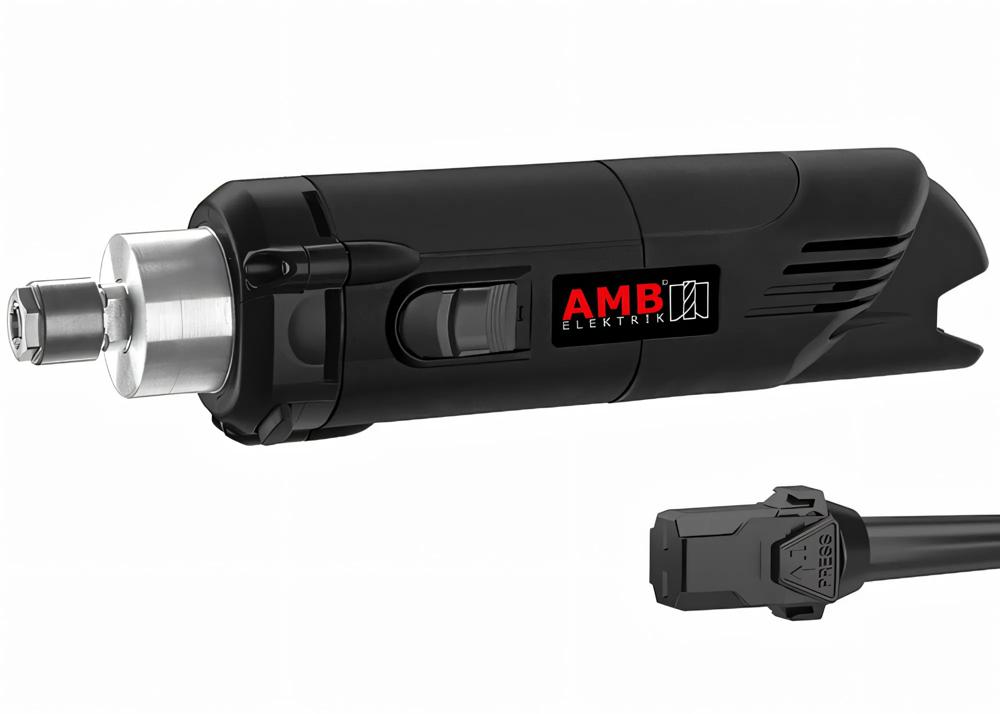

AMB router motor FME-1:
MAXX-Power drive 1,050 Watt
Chuck neck Ø 43 mm (standard) in steel design - for installation in drill stands, CNC and milling devices.
Speed infinitely variable: 5,000 - 25,000 rpm.
Torque: 0.3 Nm
Voltage: 220 - 240 volts / 4.8A 50/60 Hz
Collet: 8 mm

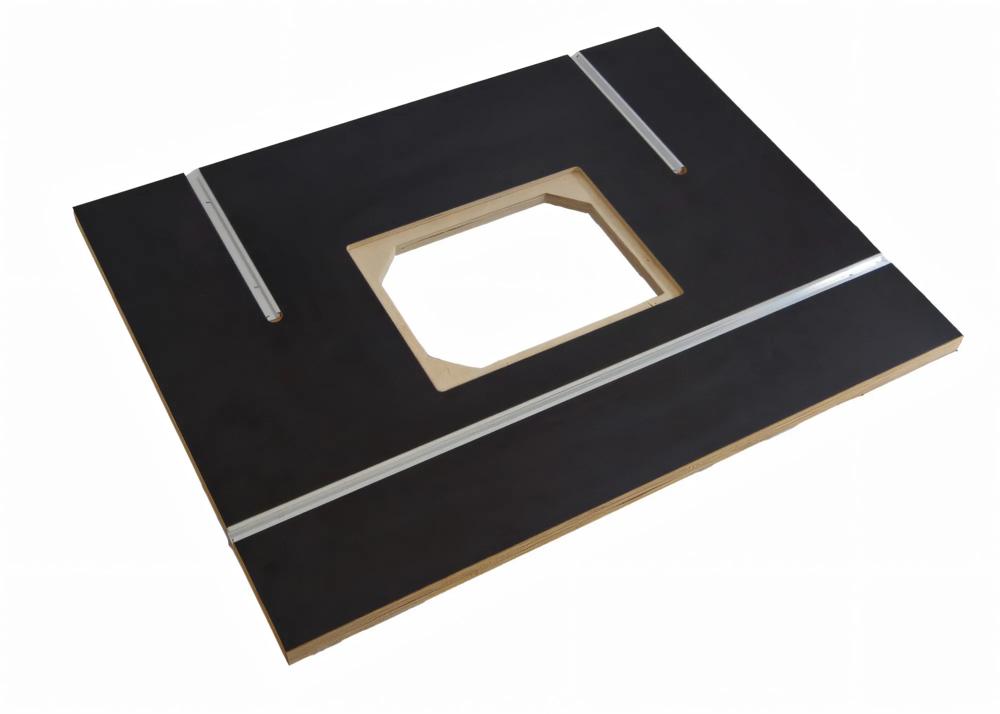

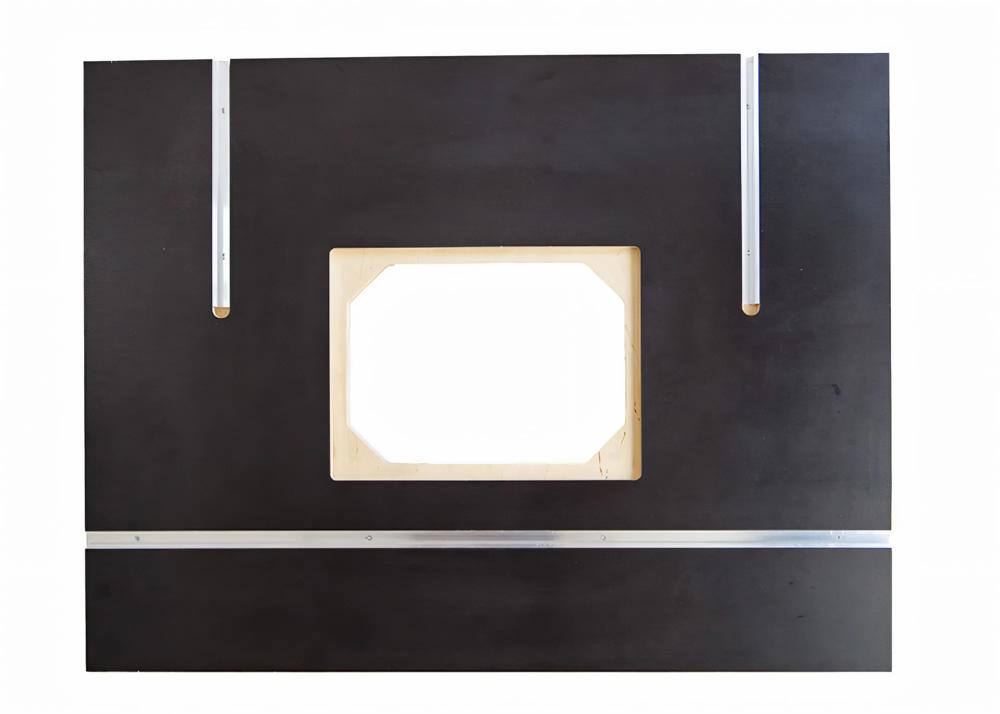

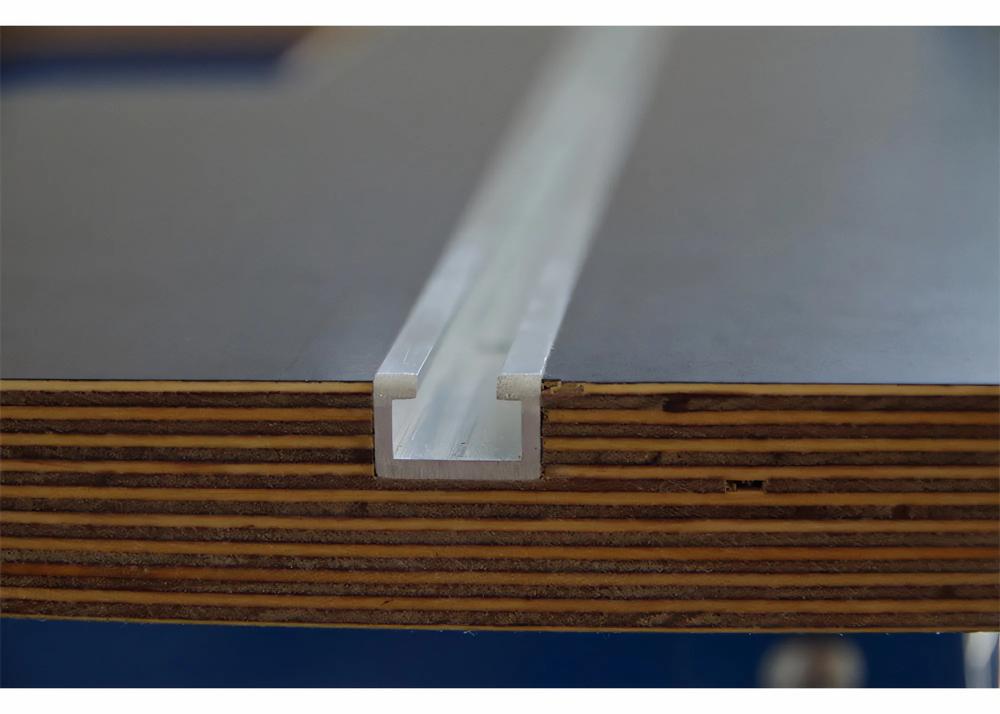

sauter router table top FTP1.0:
Dimensions: 816 x 610 x 28 mm

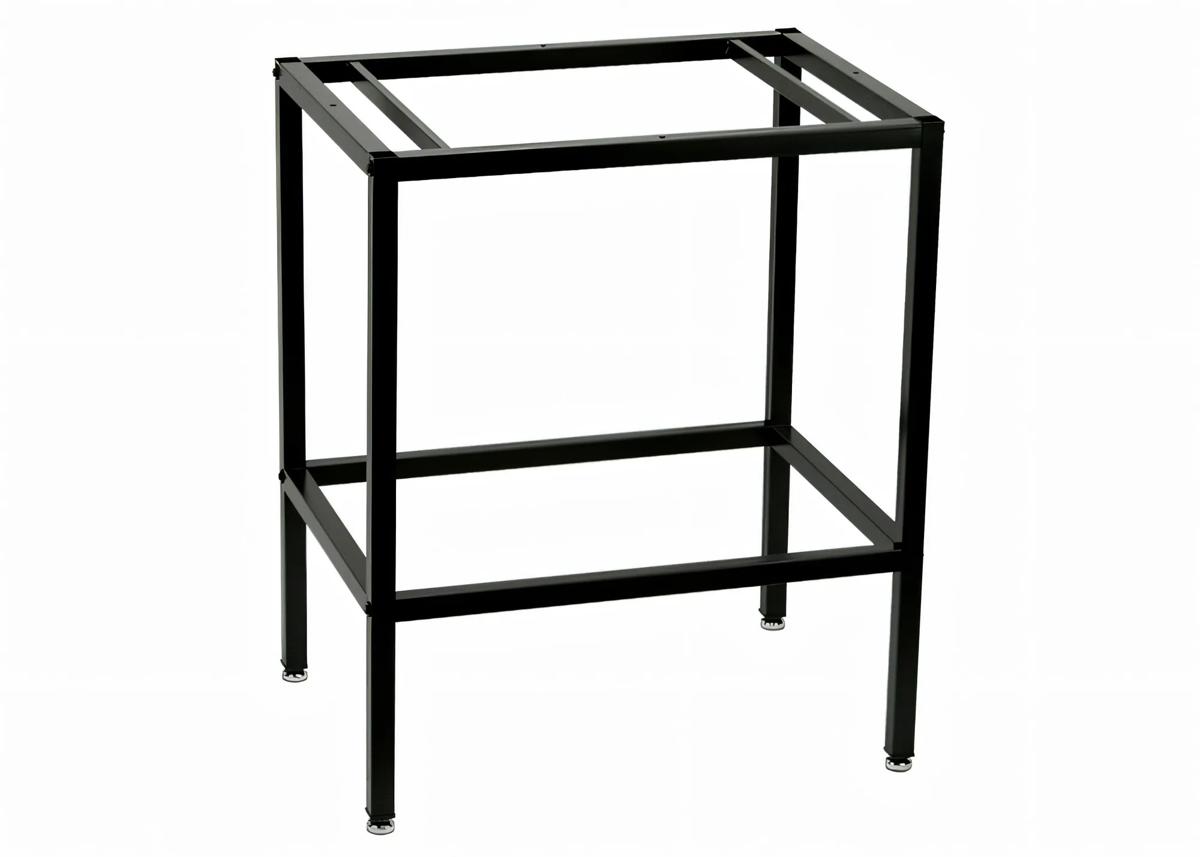

Steel underframe LSD23:
Height with adjustable feet (adjustable): 850 - 870 mm
Height with castors: 925mm
Max. Load capacity: 150 kg
Basic dimensions of base frame (WxHxD): 710 x 850 x 508 mm
Thickness of legs: 30 x 30 mm

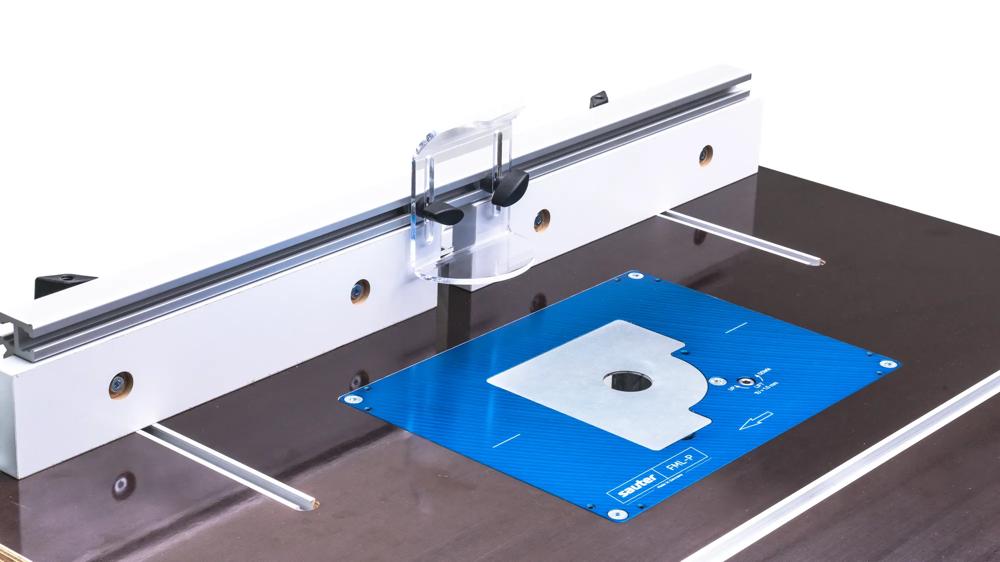

Fence BSF5:
Height with adjustable feet (adjustable): 850 - 870 mm
Height with castors: 925mm
Max. Load capacity: 150 kg
Basic dimensions of base frame (WxHxD): 710 x 850 x 508 mm
Thickness of legs: 30 x 30 mm
Safety switch:
Protection class: IP44
Operating current IE: 13.5 A/250 V
Universal control voltage UC: 230 V/50 Hz
Use category AC3: 3 kW
Properties & Advantages
Matched components for entry into the world of sauter router tables.
Thanks to the router lift, the routing height can always be perfectly adjusted.
AMB router motor provides the necessary, powerful and reliable motorisation.
