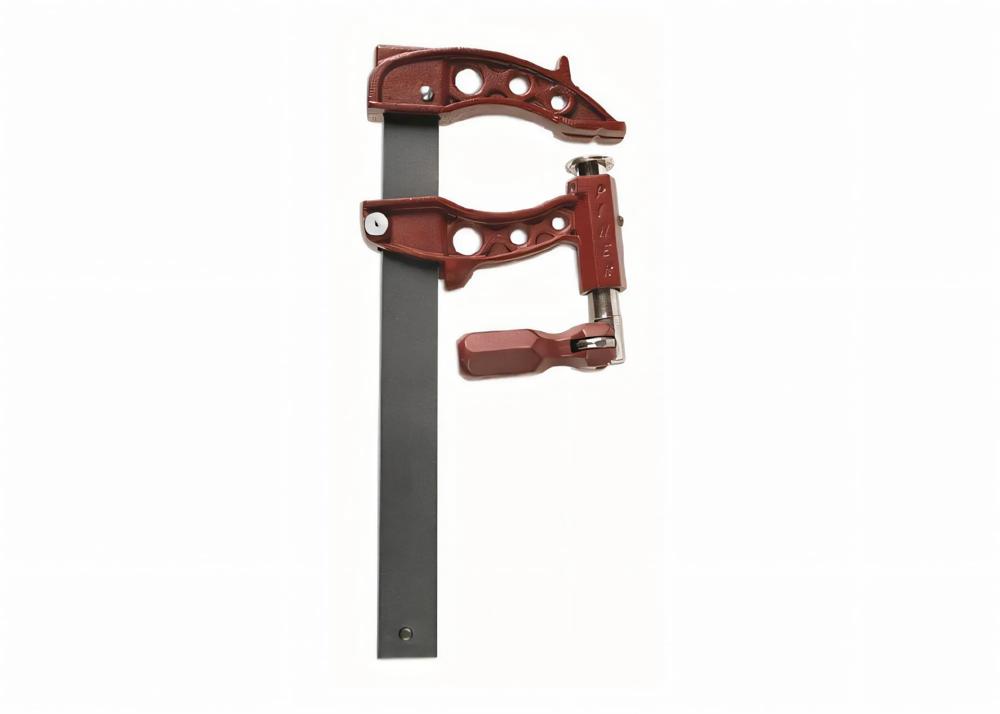

Screw clamp Maxipress F 1000 mm

High-performance clamp with up to 9,000 N clamping force | Max. Working length 1000 mm | Max. Throat 120 mm | extremely stable screw clamp for every application

Delivery time 2-3 days

65,62 €

incl. VAT / excl. shipping costs

Brand:Piher
Article no.:PH-60100
Weight:3.86kg

Piher Heavy Duty Screw Clamp Maxipress F

High-performance clamp with up to 9,000 N clamping force

The Maxipress screw clamps from PIHER are a real innovation that greatly simplifies work in all trades. Thanks to the double thread, in no time at all and without much effort an enormously high clamping force is achieved. Quality from Spain!

Compatible accessories

Ergonomic replacement handle for MAXIPRESS

Replacement handle for MAXIPRESS high-performance clamps

Delivery time 2-3 days

7,51 €

incl. VAT

Art.-Nr: PH-14057

schutzkappen-maxipress-schraubzwingen-2st-piher-ph-24014-01

Protection caps for Maxipress screw clamps - 2 pieces

Length 65 mm | width 45 mm | suitable for model Maxi, E, F, R, EM, EH, FM, FH, P, C, K, S

Delivery time 2-3 days

2,65 €

incl. VAT

Art.-Nr: PH-24014

2 Products

Technical Data

Clamping force: up to 9.000 N
Length of the rail: 35 mm
Thickness of the rail: 8 mm
Max. Working length: 1000 mm
Max. Projection: 120 mm
Max. Throat to the middle of the pressing jaw: 100 mm
Own weight: 3,88 kg

Properties & Advantages

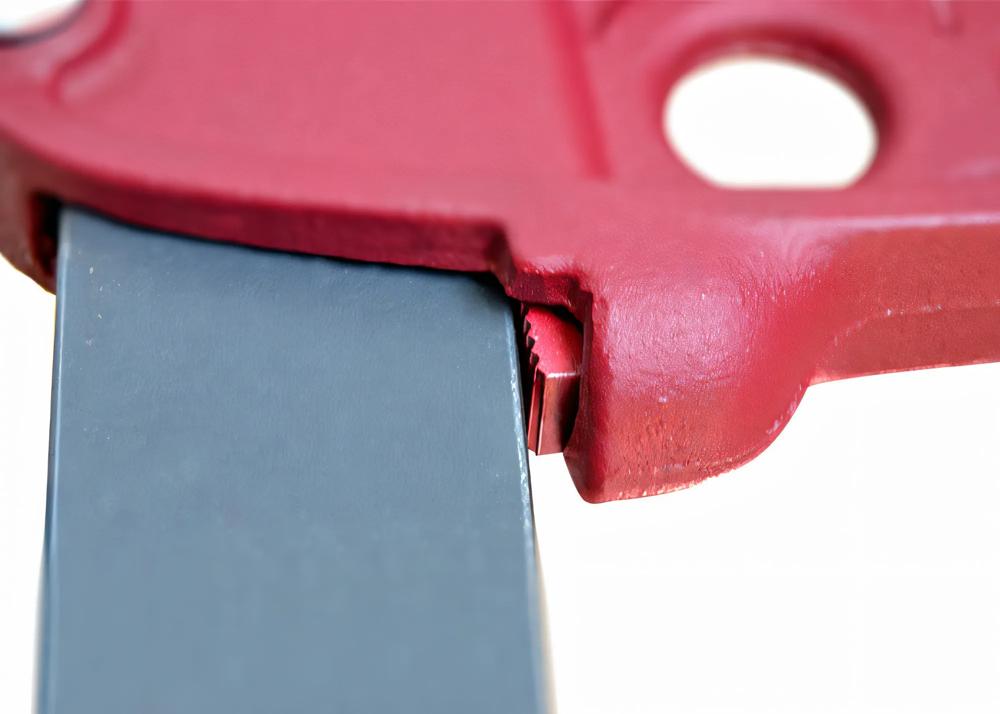

With double thread and special toothing for fast clamping force
Pressure plate does not rotate, thus preventing the clamped workpieces from slipping away
No pressure loss even with angled pressing surface
Material can be protected from pressure marks by protective caps
Clamp is protected against all external influences (welding sparks, chips, cement, concrete, etc.)

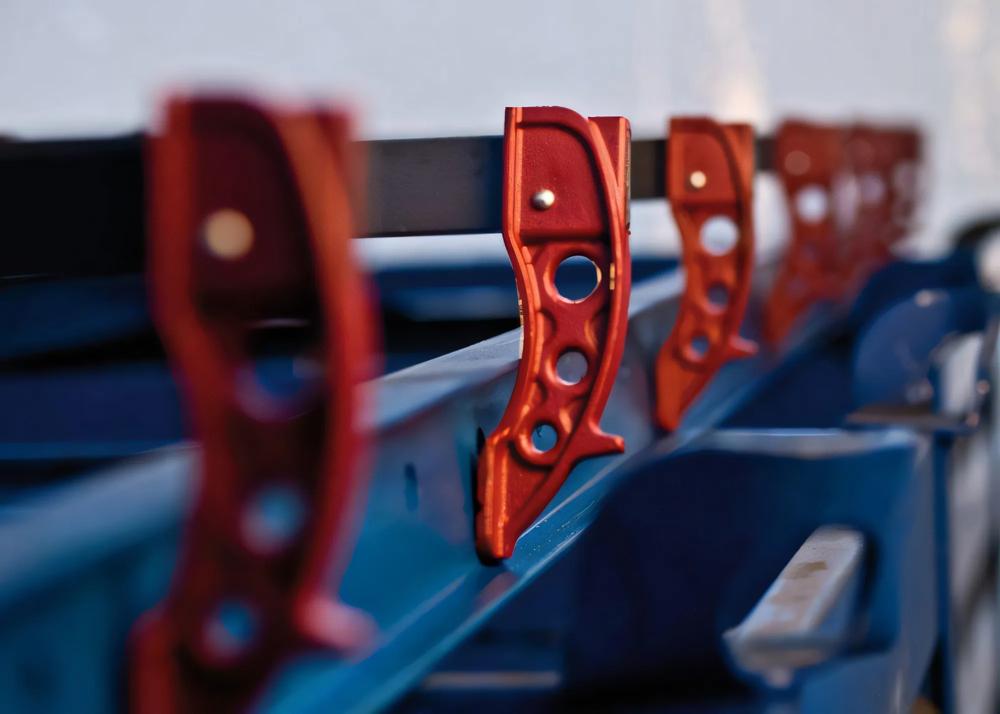

Fall protection brake provides better grip and easier positioning of the clamp
Fall protection brake protects against injuries to the hands
Curvature in the clamp allows to pass over disturbing objects
Thread is protected against external influences in retracted and extended state
With openings for greasing the mechanisms

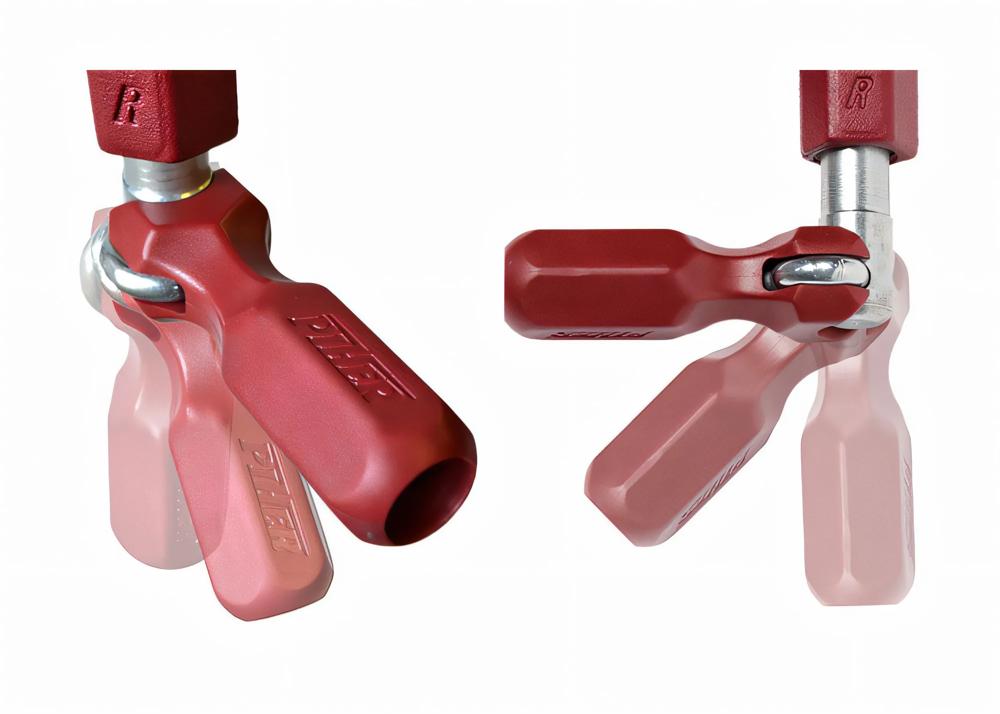

Ergonomic, interchangeable handle ensures better power transmission due to the lever law
Ergonomic handle protects against joint pain when tightening the clamp
