Table Edge Cutter
Table edge and handrail milling cutter with thrust bearing D 69 mm

tischkanten-handlauffraeser-anlauflager-d69-klein-kle-e176-690-r-01

tischkanten-handlauffraeser-anlauflager-d69-klein-kle-e176-690-r-02

tischkanten-handlauffraeser-anlauflager-d69-klein-kle-e176-690-r-03

tischkanten-handlauffraeser-anlauflager-d69-klein-kle-e176-690-r-04

Table edge and handrail milling cutter with thrust bearing D 69 mm

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

D: 69 mm | R: 43 mm | B: 16 mm | L: 64 mm

Delivery time 2-3 days

125,64 €

incl. VAT / excl. shipping costs

Brand:Klein
Article no.:KLE-E176-690-R
Weight:0.132kg

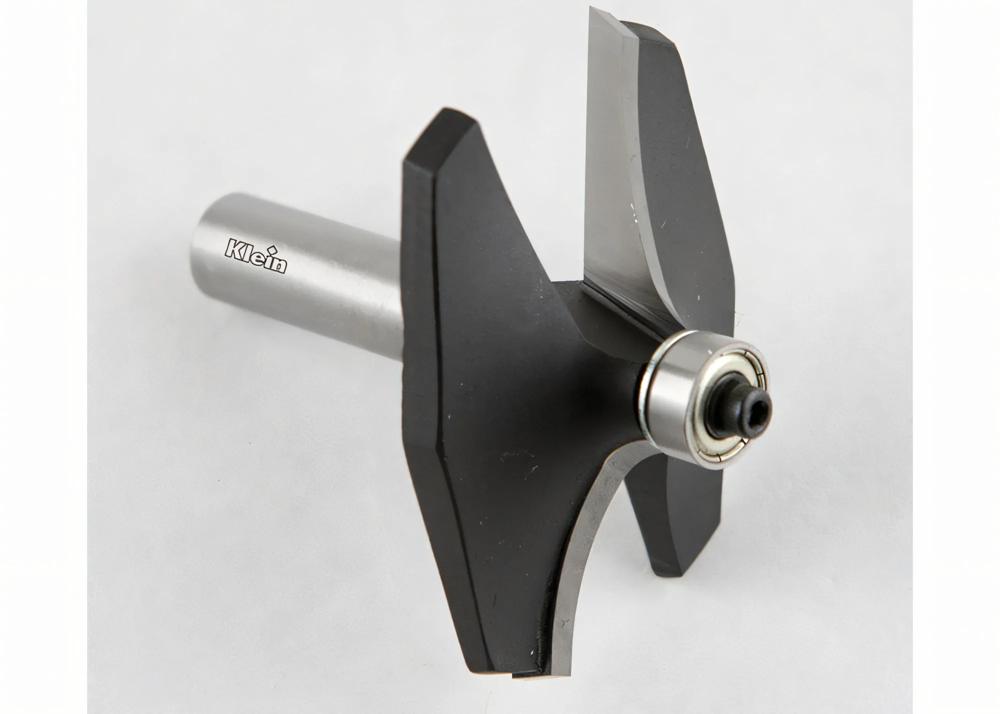

Table edge and handrail milling cutter HW (HM) with thrust bearing Z=2

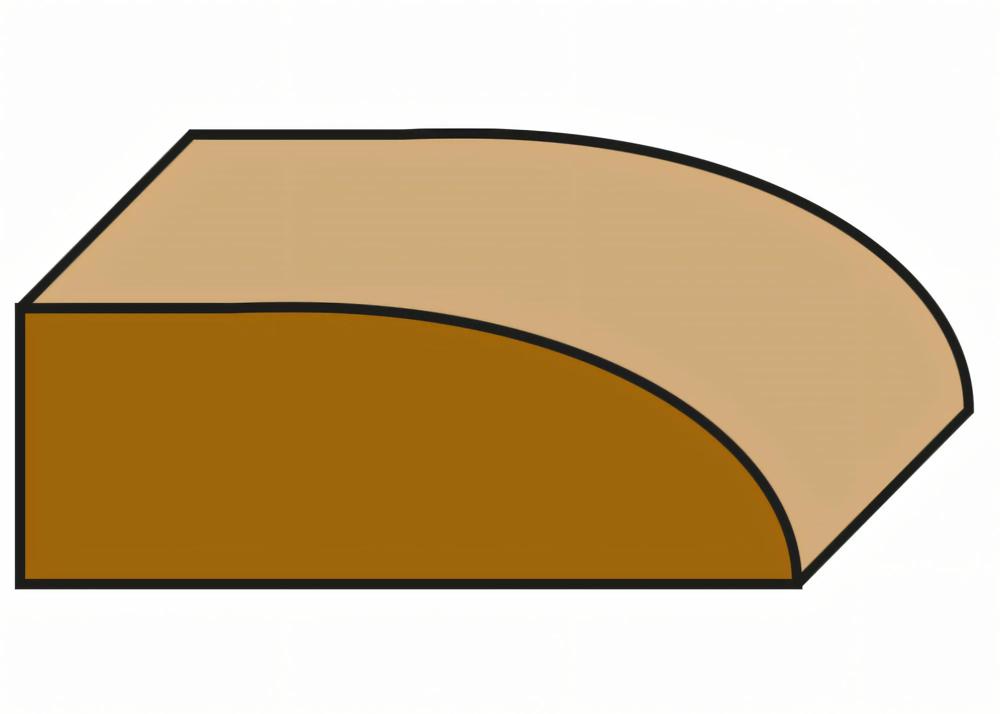

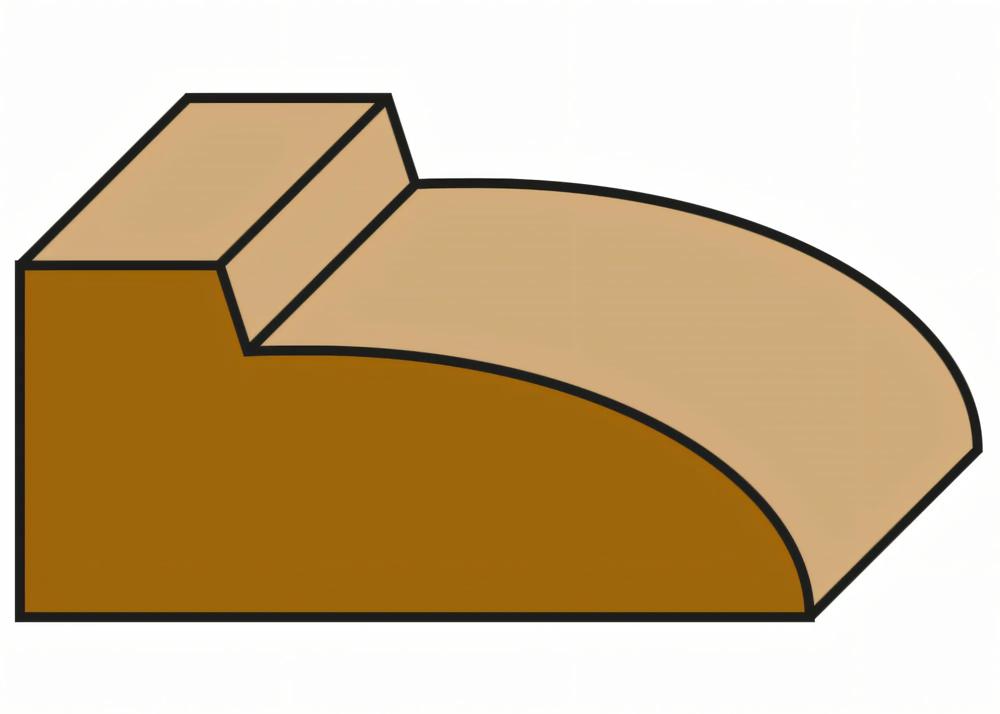

Rounding Over Cutter with ball bearing or rounding cutter with two brazed-on carbide cutting edges and ball bearing. For profiling edges, e.g. normal rounding or simple karnies.

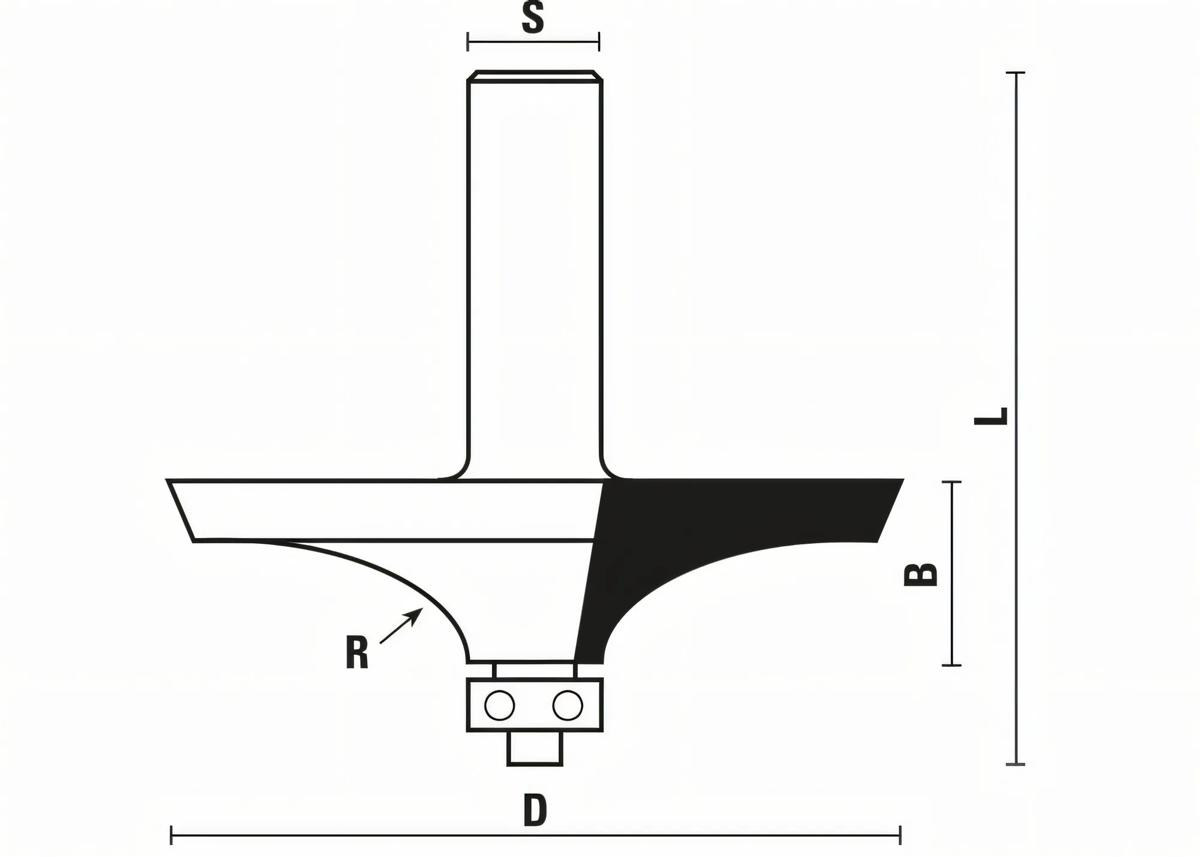

Technical Data

D: 69 mm
R: 43 mm
B: 16 mm
L: 64 mm
S: 12 mm

Properties & Advantages

Hard and soft woods
Plastics (acrylic, polypropylene and polycarbonate)
Laminates (HPL, Trespa...)
Veneered board materials (chipboard, fibreboard, plywood)
