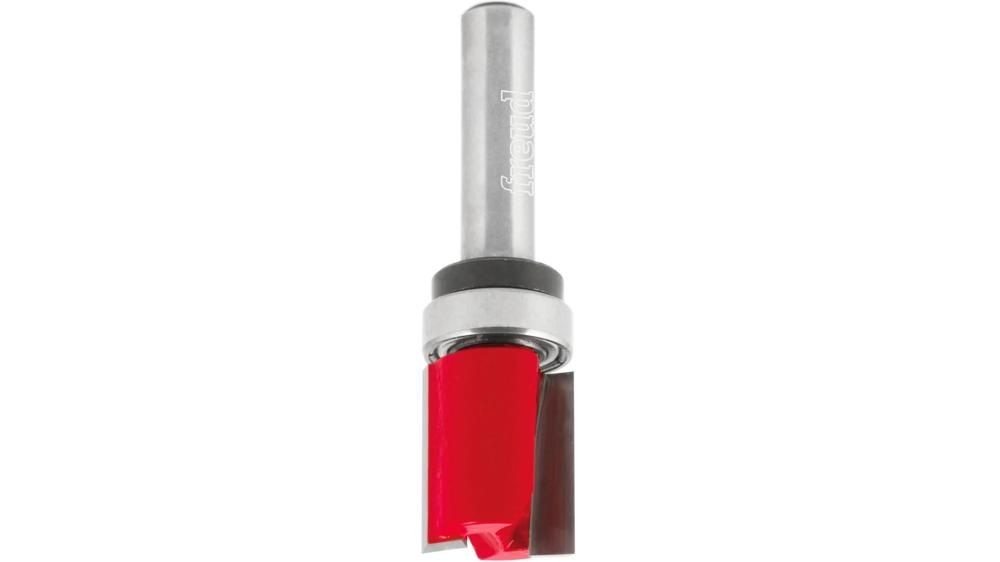

Top Bearing Flush Trim Bit D: 16mm R:20mm

Top bearing flush trim bit | D16 | H60 | h20 | A8

Shipping within 24 hours (working days)

38,26 €

32,52 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-50-10308P
Weight:0.11kg

Freud Top Bearing Flush Trim Bit D: 16mm R:20mm

Top bearing flush trim bit, D16, H60, h20, A8

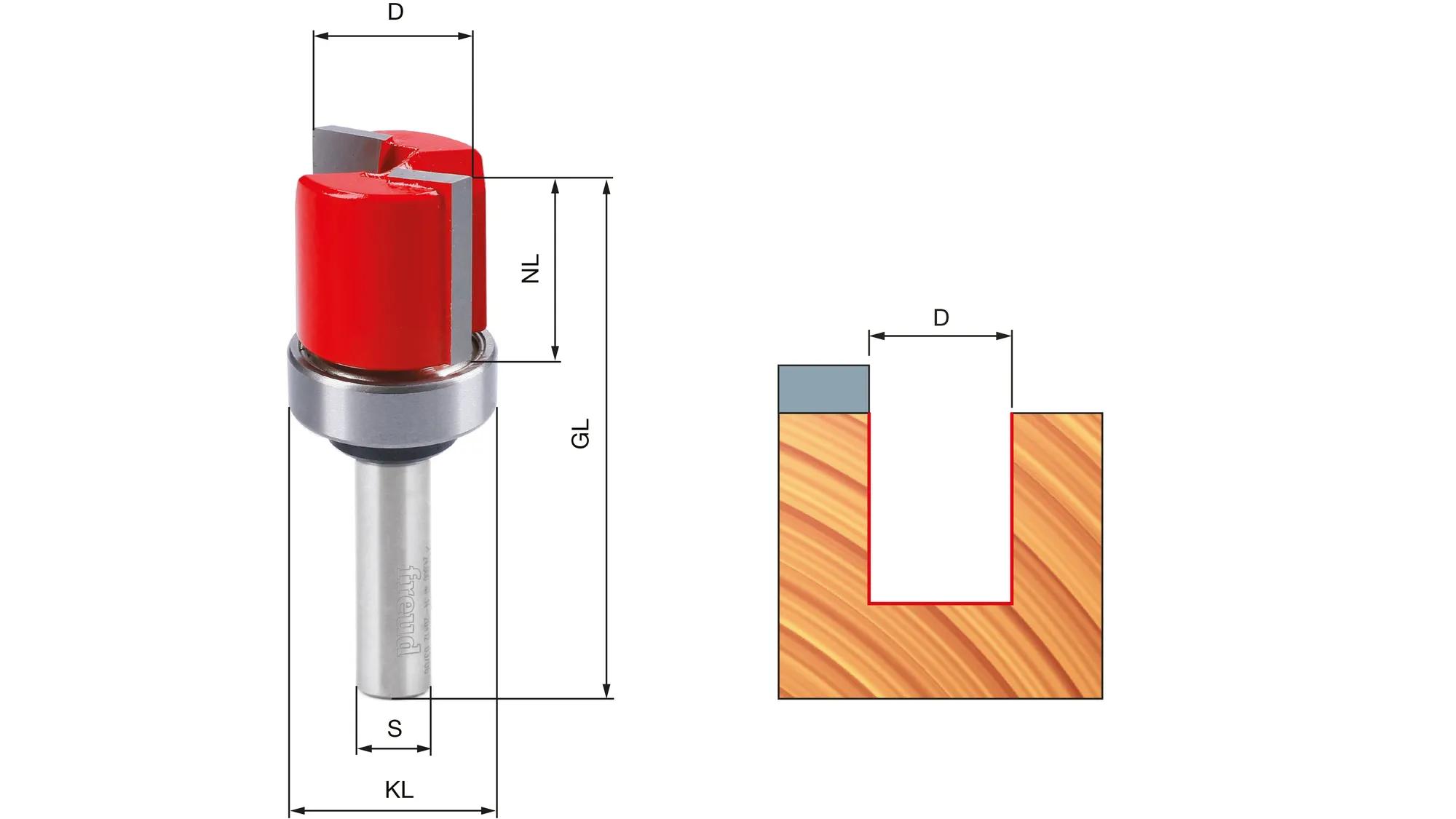

Technical Data

Diameter (D mm): 16Cutting Length (h mm): 20Overall Length (H mm): 60Shank (A mm): 8R1 Radius: -R2 Radius: -R3 Radius: -Bearing (C mm): 16 Teeth: 2Angle (°): -Max RPM 1/min: 24000

Properties & Advantages

Applications:
Ideal for following templates and for other tasks where the pattern is placed on top of the workpiece.Machines:
Hand-held routers and table routers.Materials:
Softwood, hardwood, plywood and wood based panels.Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
