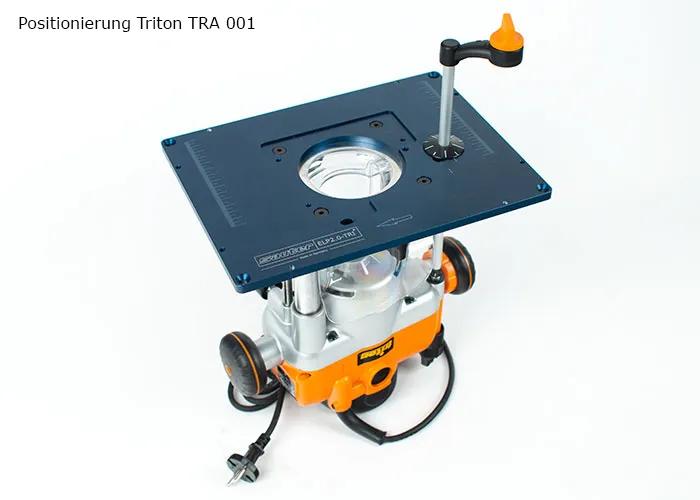

Triton TRA001 and sauter insert plate ELP2.0

Optimum combination for your Router Table | sauter insert plate and Triton 2400w router2400W

Shipping within 24 hours (working days)

529,90 €

429,00 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SET-TRA-ELP2.0
Weight:11.122kg

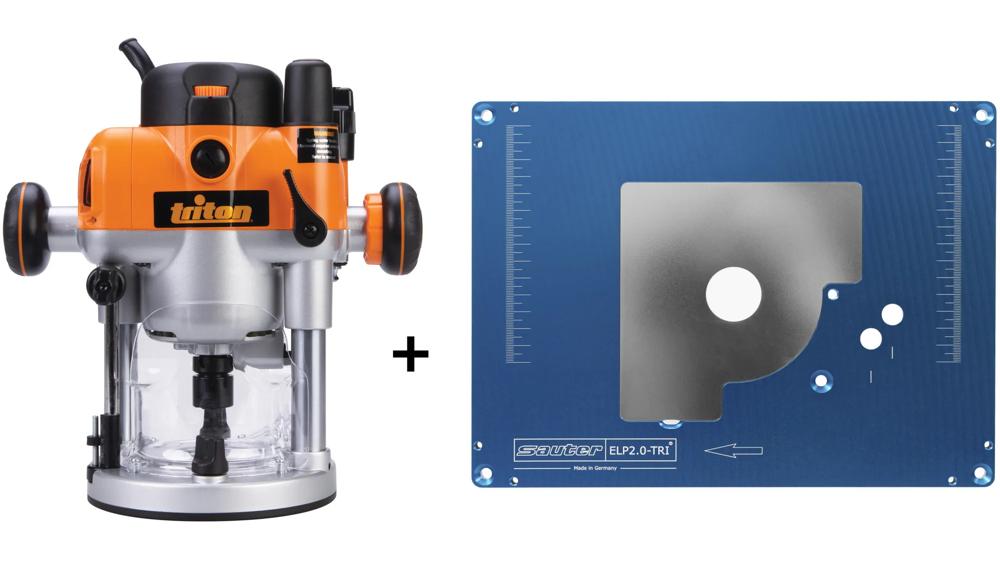

Triton TRA001 2400w and sauter insert plate ELP2.0

The ideal solution for your Router Table

With this set you already have a powerful combination for your Router Table. The powerful router from Triton together with the premium ELP2.0 insert plate from sauter. To the inlay plate also fits the Triton router MOF001 with 1400 Watt.

Great alternatives

oberfraese-einlegeplatte-sauter-set-t14-elp2.0-01

Trend T14EK and sauter Insert Plate ELP2.0

Powerful router T14EK with pre-drilled insert plate ELP2.0 | Router with collets 8 mm and 12 mm incl. union nuts | Height adjustment from above, through the router table

Shipping within 24 hours (working days)

879,00 €

849,01 €

incl. VAT

Art.-Nr: SET-T14-ELP2.0

1 Products

Technical Data

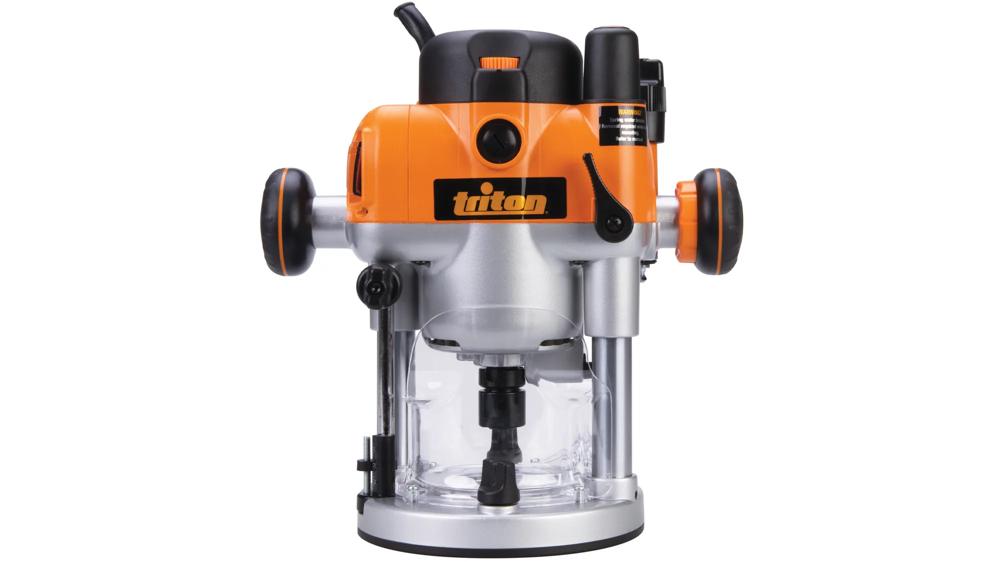

Triton router:

Output: 2,400 W (230 V)
Electronically adjustable speed: 8.000-21.000 rpm with soft start
Collets: 12 mm & 12.7 mm (1/2 inch)
→ further collets 6 and 8 mm to be purchased separately
Plunge Base: 0-68 mm with fine adjustment
Recess of the base plate without suction connection: approx. 80 mm
Recess of the base plate with suction socket: approx. 68 mm
max. cutter diameter: 55 mm
Inner-Ø extraction opening: 38 mm
Dimensions base plate: Ø 180 mm
Weight: 6,2 kg

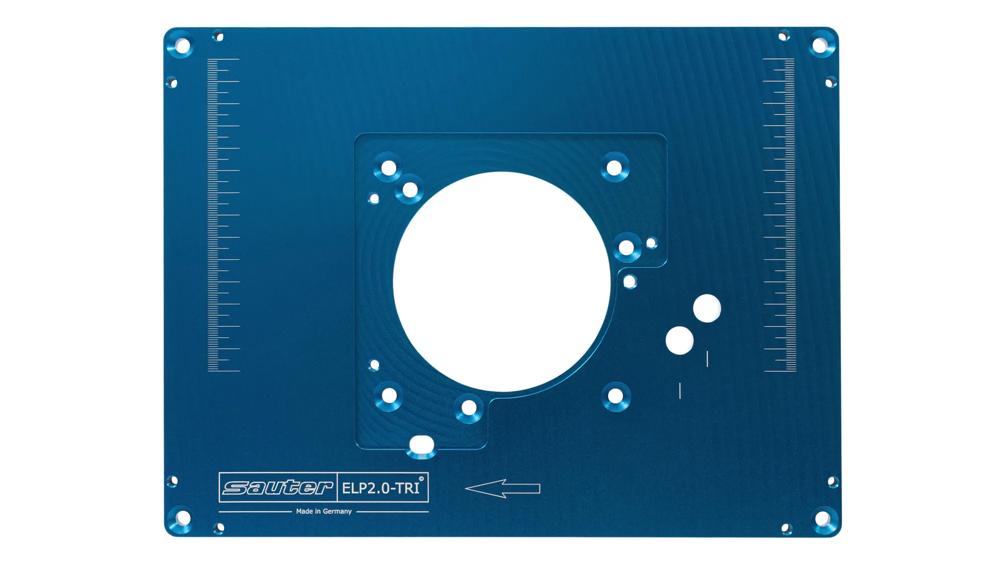

Insert Plate:

Dimensions: 306 x 229 x 9 mm.
Ø cutter openings: 32 and 68 mm (further diameters up to 98 mm separately extendable).

Properties & Advantages

Constant electronics with soft start
Bypass of the restart protection for table operation with enclosed grub screw
With electrical control

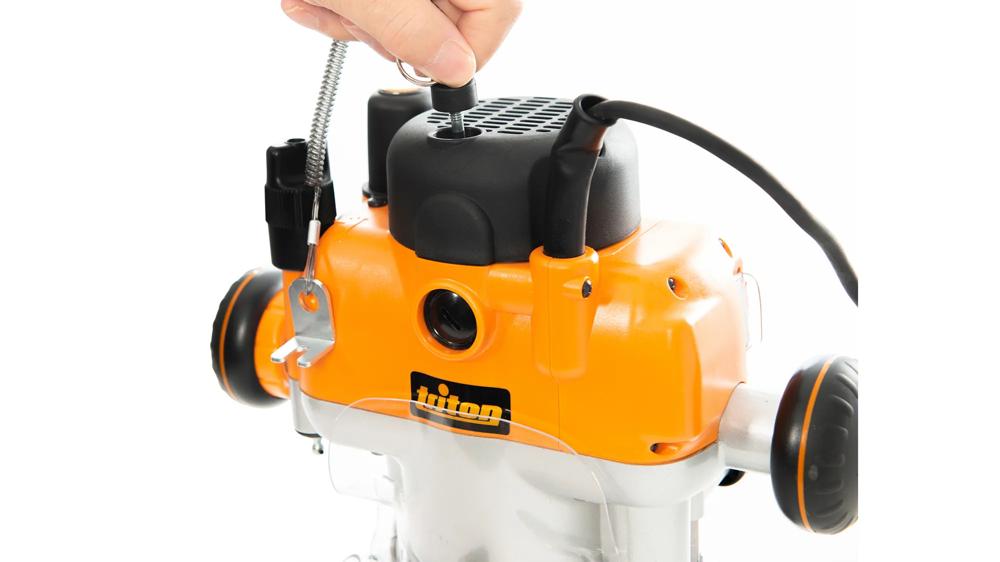

Easy cutter change thanks to automatic spindle locking and union nut protruding beyond the base plate for quick loosening and closing
Incl. on/off switch with safety cut-out
Fine height adjustment also possible from "above/below", through the table

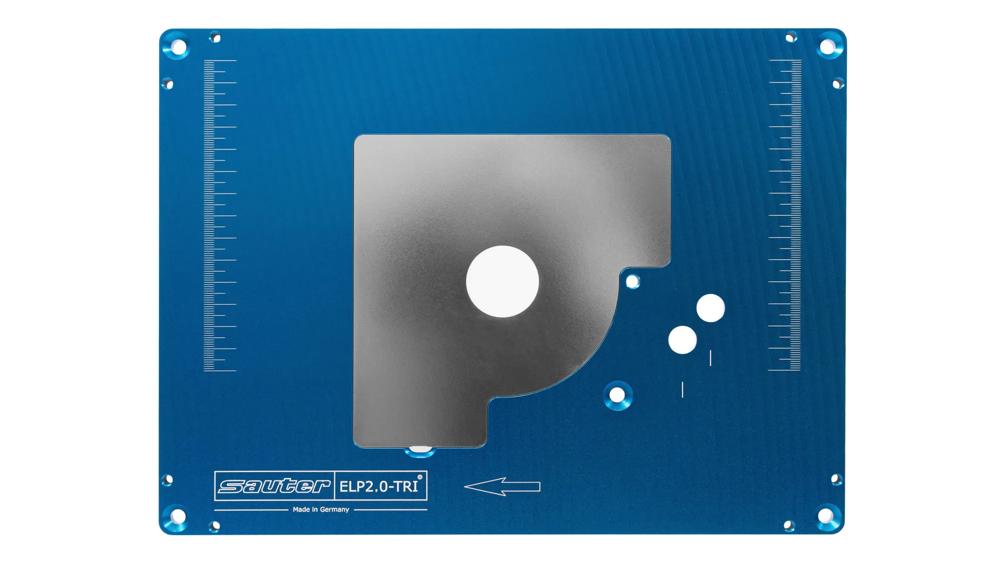

Matching insert plate made of 9 mm thick aluminium for ultimate stability, robustness and flatness, including 2 high-quality reduction plates made of galvanized, 2 mm thick steel with Ø cutter opening 32 and 68 mm.
→ You can find more insert plates and reducing plates here.
Maximum Ø cutter opening: 98 mm (reduction plate art. no. SA-ELP2.0-98).
Scale for precise positioning of the rip fence.
Includes fastening screws for the plate in the table and for fastening the router to the insert plate
