Wavy joint bit D: 16mm R:51,3mm

Wavy joint bit solid surface | D16 | H88 | h51.3 | A12

Delivery time 2-3 days
49,74 €
incl. VAT / excl. shipping costs
1
  • Brand:Freud
  • Article no.:FR-85-03312P
  • Weight:0.11kg

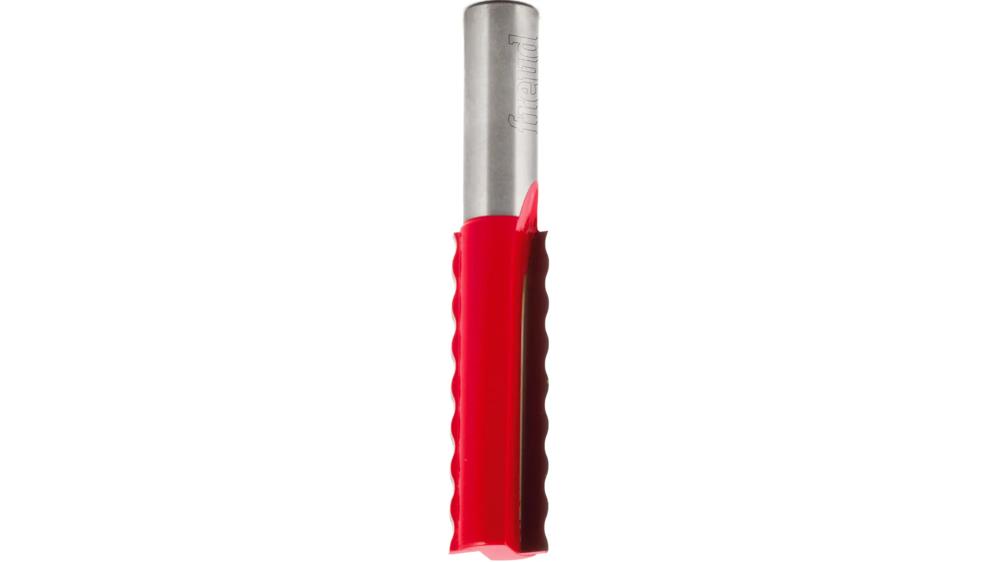

Freud Wavy joint bit D: 16mm R:51,3mm

Wavy joint bit solid surface, D16, H88, h51.3, A12

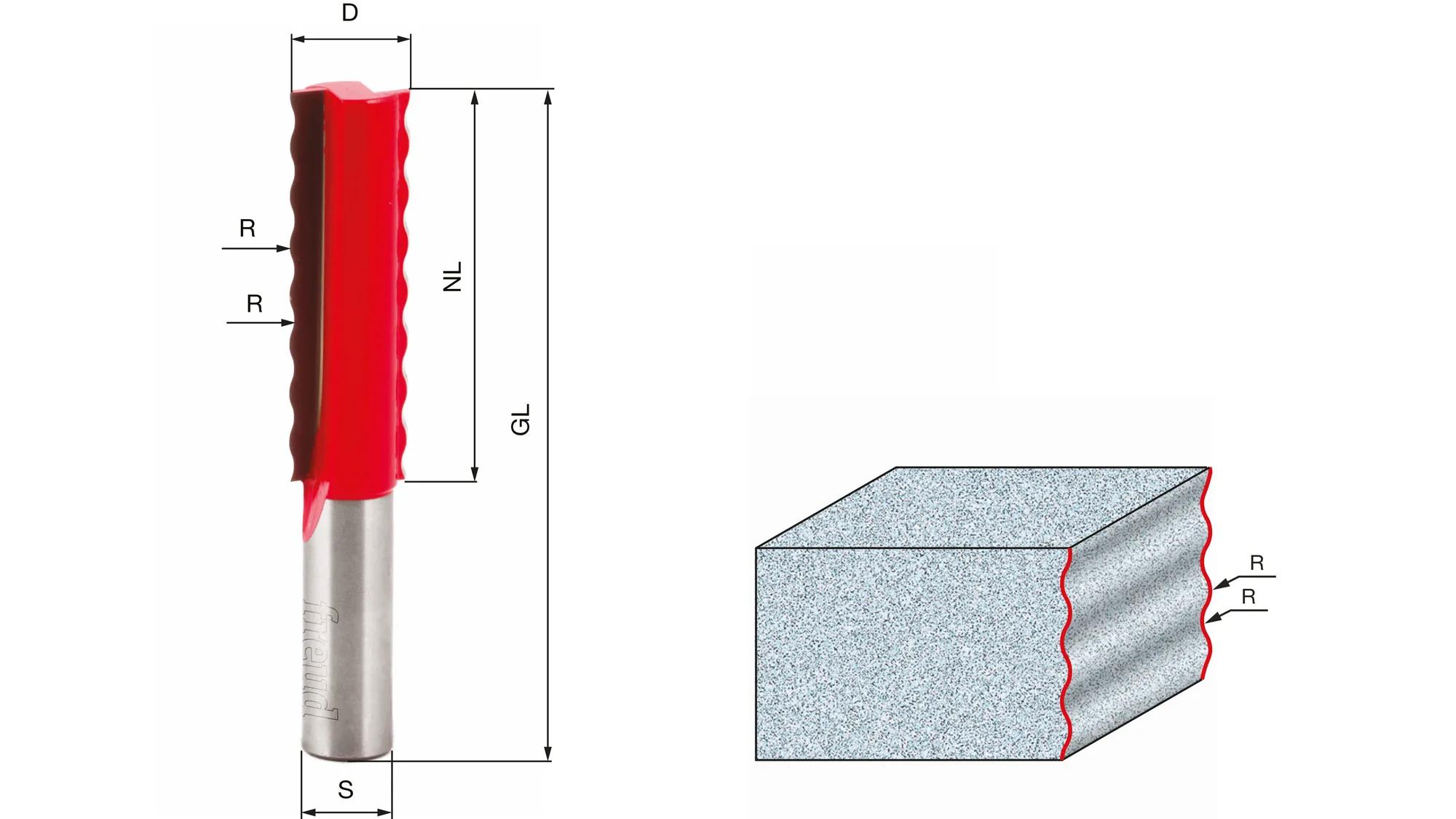

Technical Data

  • Diameter (D mm): 16
  • Cutting Length (h mm): 51,3
  • Overall Length (H mm): 88
  • Shank (A mm): 12
  • R1 Radius: 4
  • R2 Radius: -
  • R3 Radius: -
  • Bearing (C mm): -
  • Teeth: 2
  • Angle (°): -
  • Max RPM 1/min: 24000
    • wellenprofilfraeser-d16-r4-z2-freud-fr-85-03312p-02

    Properties & Advantages

  • Applications:
    Increase gluing area for a stronger joint.
  • Machines:
    Hand-held routers, table routers and CNC machines.
  • Materials:
    Softwood, hardwood, plywood, wood
    based panels and all solid surfaceMaterials.
  • Bit Material - TiCo Carbide
    A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
    It provides a sharper edge and a flawless finish with a dramatically longer cutting life.
  • Perma-SHIELD Coating
    A non-stick coating formulation that withstands the toughest applications.
    It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
