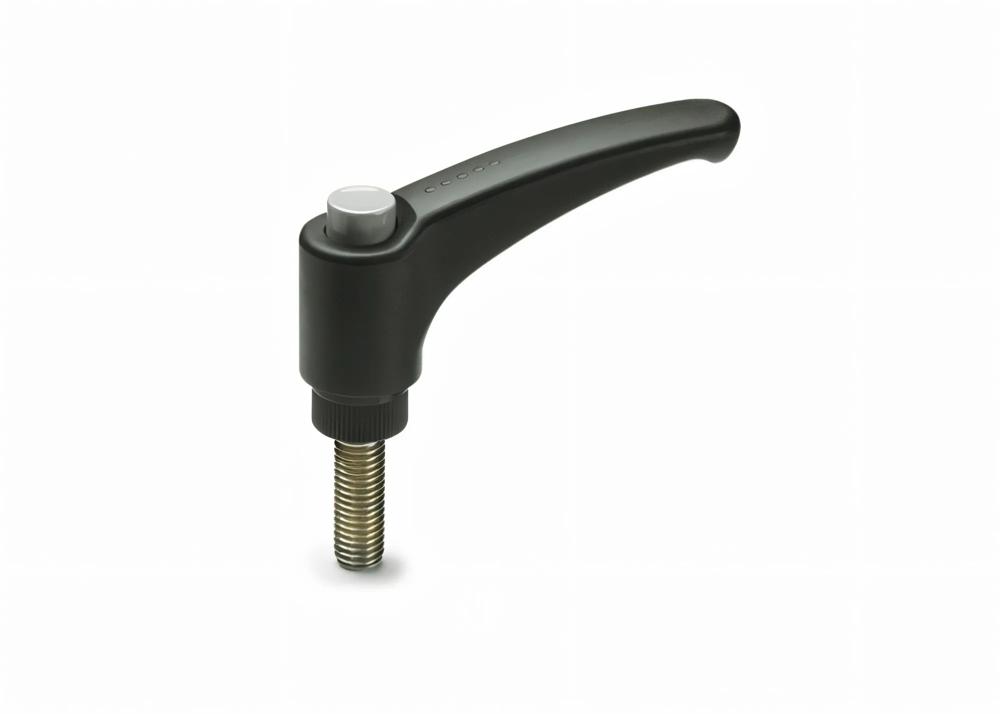

Adjustable clamping lever with thread M6

Clamping lever M6 | 1 piece | adjustable with thread length 30 mm

Shipping within 24 hours (working days)

5,70 €

incl. VAT / excl. shipping costs

Brand:GANTER
Article no.:GN-C44M630
Weight:0.016kg

Adjustable clamping lever with thread M6

Verstellbarer Klemmhebel mit Gewinde M6.

Great alternatives

Adjustable clamping lever with thread M6 - 4 pieces

Clamping lever M6 | 4 pieces | adjustable with thread length 30 mm

Shipping within 24 hours (working days)

15,37 €

incl. VAT

Art.-Nr: SET-C44M630-4

1 Products

Technical Data

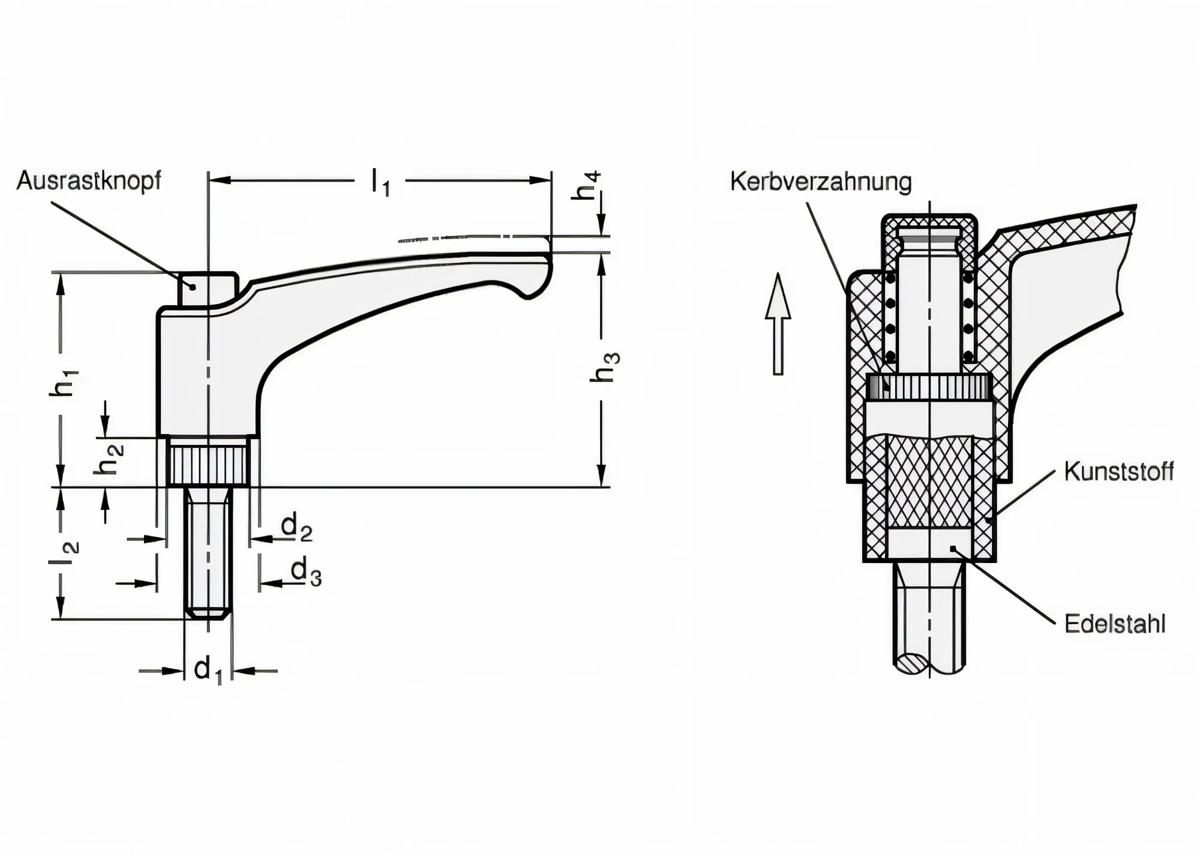

l1 = 44 mm l2 = 30 mm d1 = M6 d2 = 12 mm d3 = 15,5 mm h1 = 29,5 mm h2 = 6 mm h3 = 32,5 mm h4 = 3.5 mm (locking path)

Properties & Advantages

High-quality design with black adjustment knob.

Like all adjustable levers, preferably to be used when the clamping range is limited or a specific clamping position is desired. The threaded insert is detachably connected to the handle by serration. The disengagement knob allows effortless disengagement. However, this design is limited to applications where it is not necessary to disassemble the lever when screwing it in.

For fastening sliding blocks in profile strips etc.
Temperature resistant up to 130 °C.
Colour: black, matt.
Material handle body: glass-fibre reinforced plastic thermoplastic (polyamide PA).
Material screw insert: galvanised steel, blue passivated.
