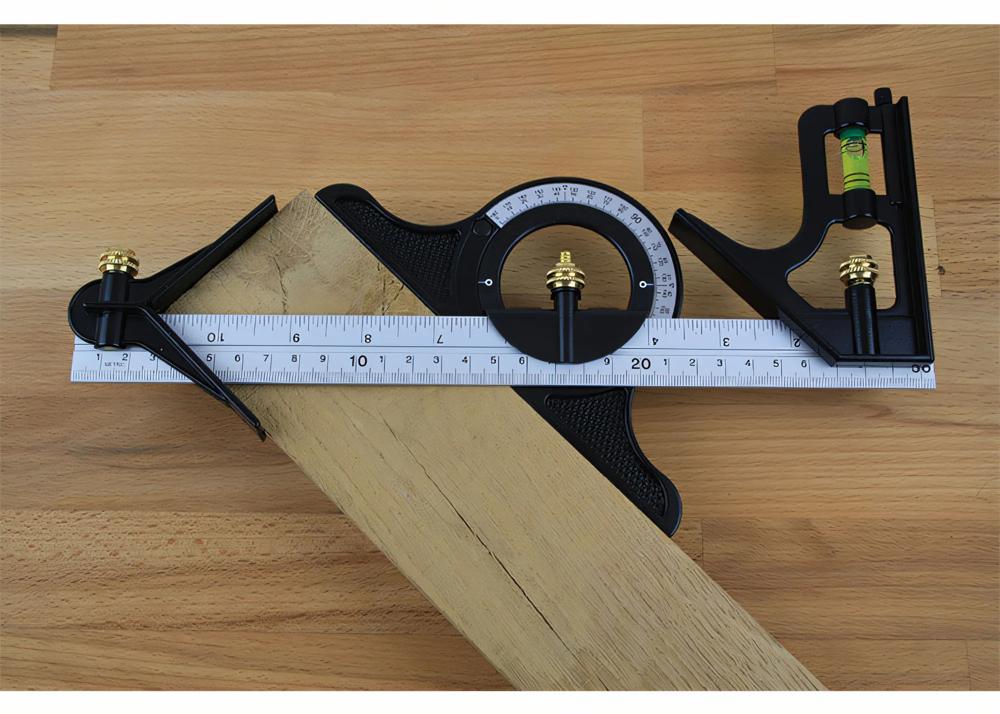

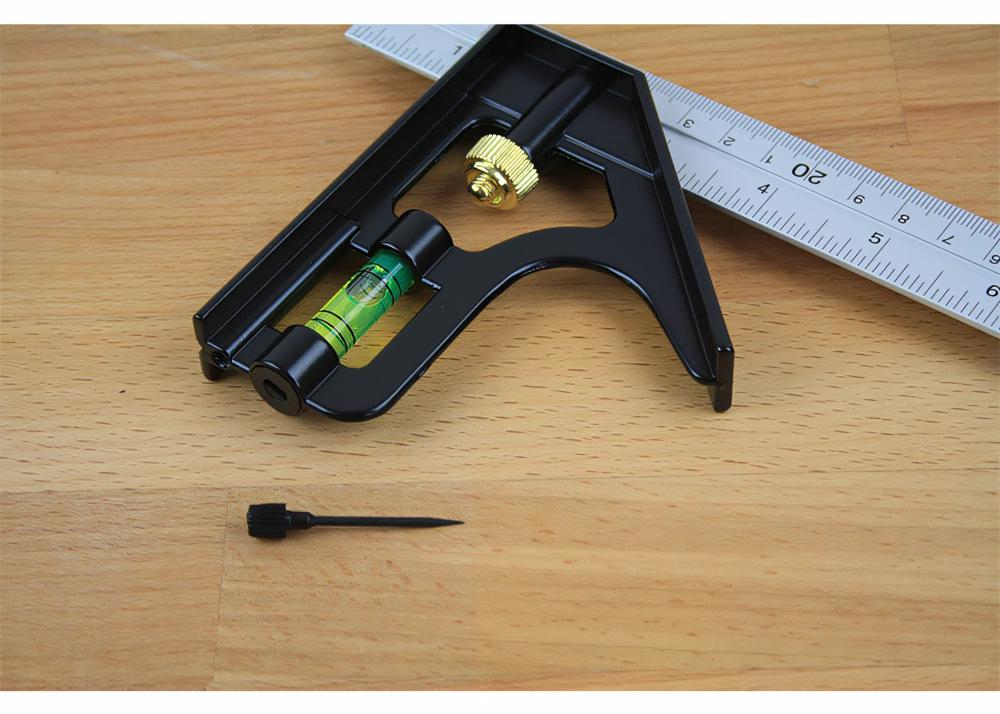

This measuring and marking tool is versatile and easy to use. It consists of a 300 mm ruler made of aluminium, attachable with a 45°/90° angle with built-in spirit level. Scale is is given in mm. Very easy to read scaling. Marking needle is also included.

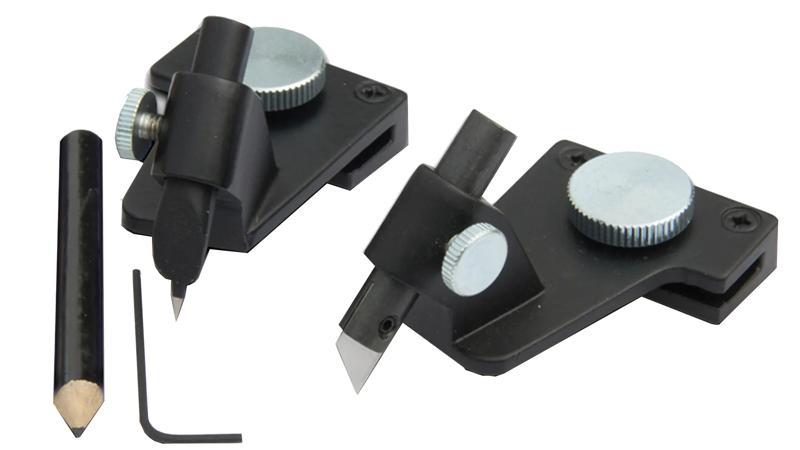

All In One – Trammel Compass, Marking, Mortise & Cutting Gauge
Shipping within 24 hours (working days)
31,01 €
incl. VAT
Art.-Nr: MP-20041
1 Products
Technical Data
300 mm ruler
45°/ 90° angle
Rotatable stop goniometer
built-in spirit level
Properties & Advantages
Scale in mm
sliding ruler
Measure depths - You can measure the depth of a rebate, groove or other recess. Loosen the clamping of the ruler, put on the angle, place the ruler in the recess and tighten the clamp. The depth can now be read off the measuring scale.
Marking - A line parallel to an edge can be drawn or marked. Set the angle to the desired dimension, place it at the edge, place a pencil at the end of the ruler and Move the angle along the edge.
Checking the thickness - Set the desired dimension on the ruler, after planing check the thickness of the wood with the ruler. The end of the ruler must be flush with the wood surface be. More precise and easier than with a yardstick.
Measuring and marking mitres - Simple measurement of 45° bevels by mitre measurement. Mitres can be marked and checked.
Setting the fences - Set the angle to the required dimension, place the fence side against the reference edge and the fence is pushed to the end of the ruler and fixed. Can also be used for setting machines.
