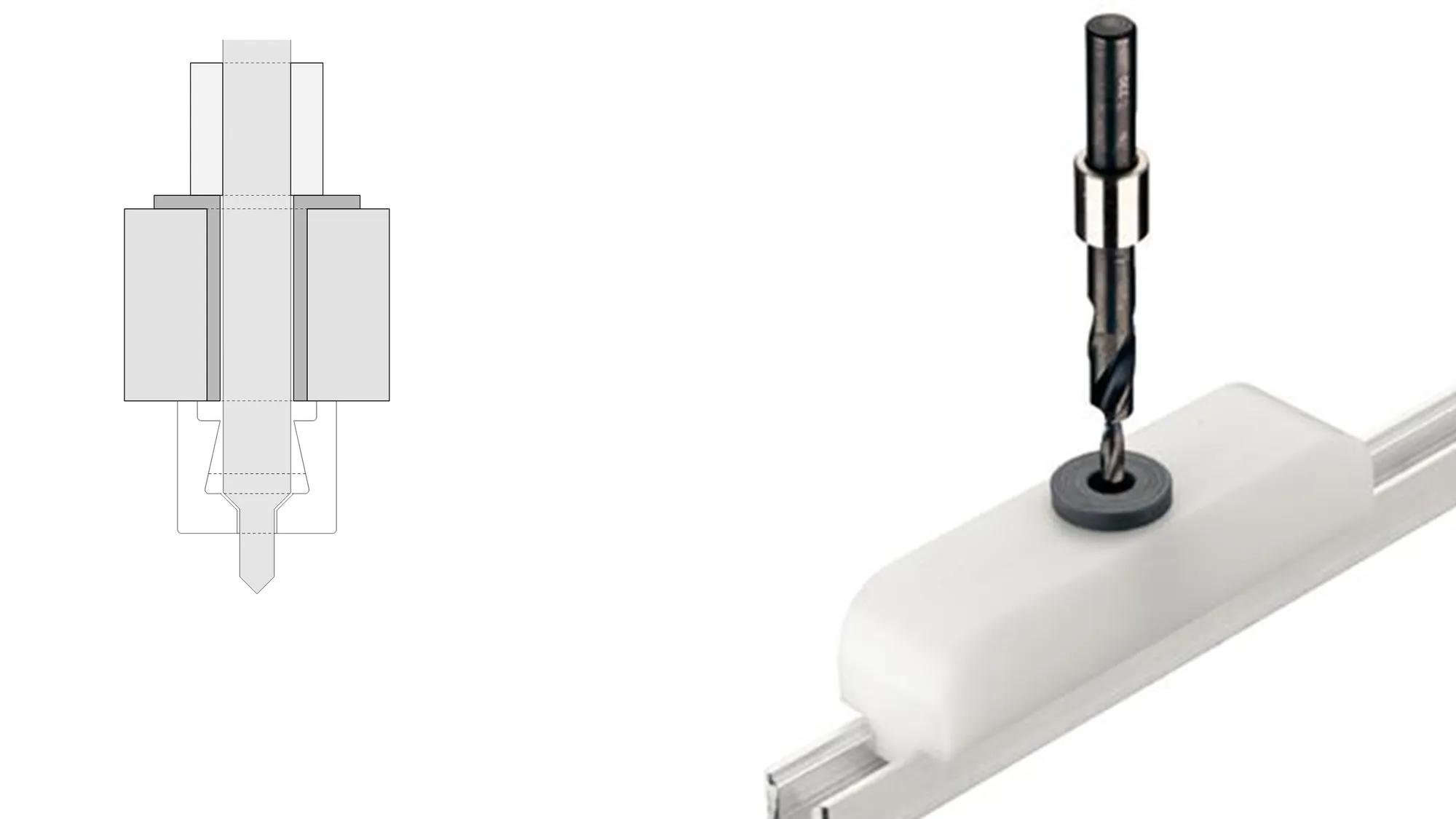

Dovetail connector Drilling jig with countersink bit

Guaranteed centrally drilled holes in the Keilverbinder Aluminium Dovetail Channel

To ensure a secure fit of the dovetail connector in the profile rail, the walls of the profile must not be damaged.

Cleanly centred holes are therefore a necessity. No problem if you have a perfectly matched drilling jig to hand.

Instructions for use:

• The stop ring should be in contact with the drill chuck jaws.
• Drill speed at least 1,400 - 1,800 rpm
• Drill pressure should be even
