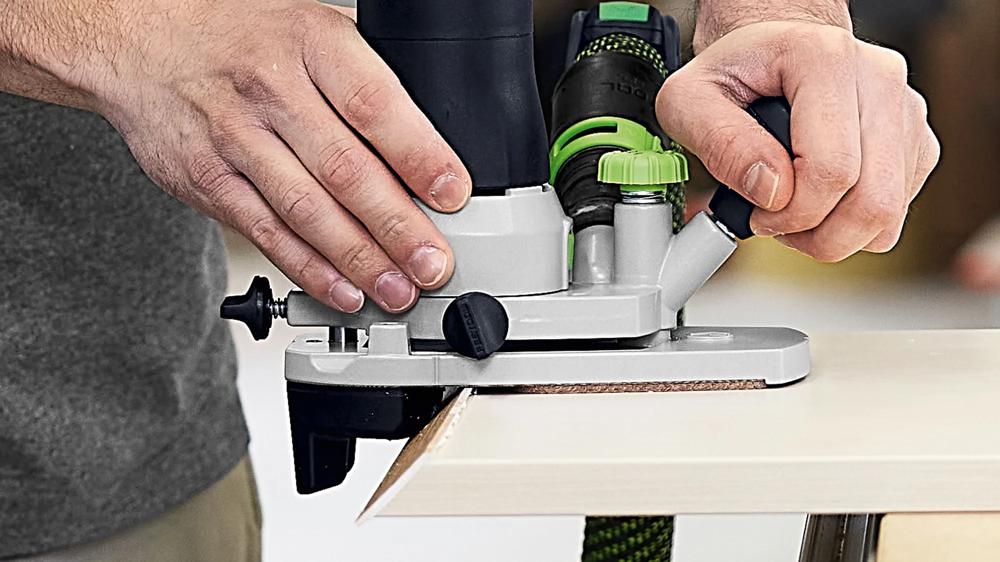

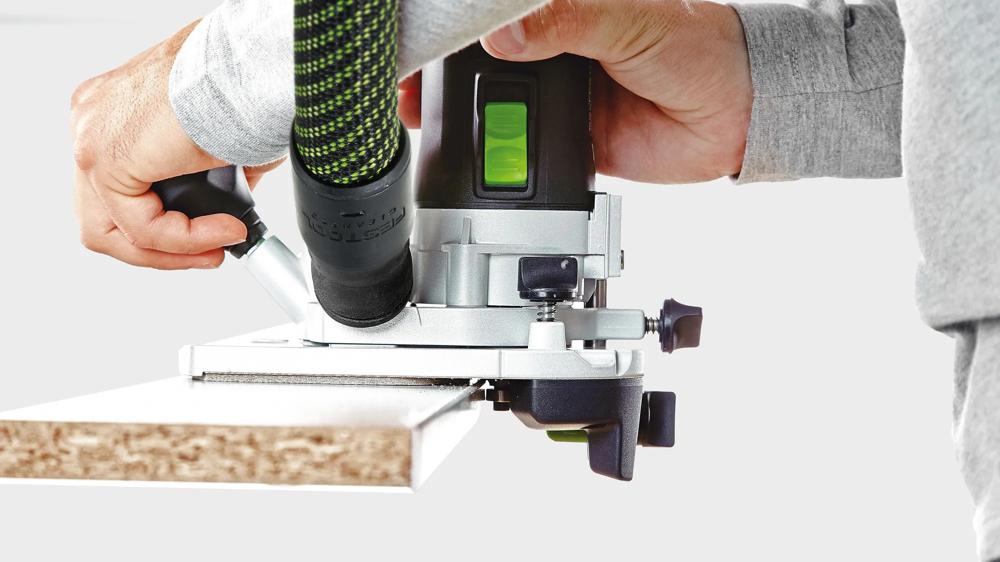

Optimised for routing plastic and veneered edges perfectly flush. The specially developed chip deflector optimises the dust extraction, ensures streak-free results thanks to the integrated ball bearing brake and acts as a guiding aid when flush trimming angled edges. This means that you are ready to make the perfect edge.
Technical Data
Power consumption - 720 W
Idle engine speed - 10 000 - 26 000 min⁻¹
Collet dia. - 6 - 8 mm
Cutter stroke (fine-tuning) - 14.00 mm
Max. cutter diameter - 32.00 mm
Dust extraction connection diameter - 27 mm
Cable length - 4.00 m
Product weight without accessories - 1.90 kg
Transport weight incl. accessories - 3.50 kg
Drive type - 230v 50Hz Mains
Properties & Advantages

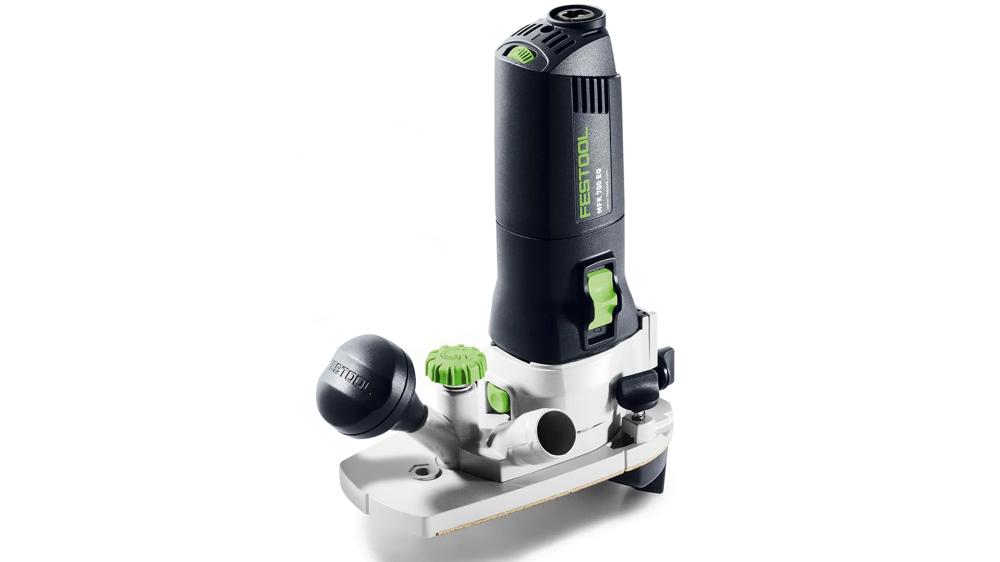

Specialist: Edge router for flush trimming and rounding off those annoying edges.
Dream team: Spot-on addition to the Edge bander CONTURO KA 65.

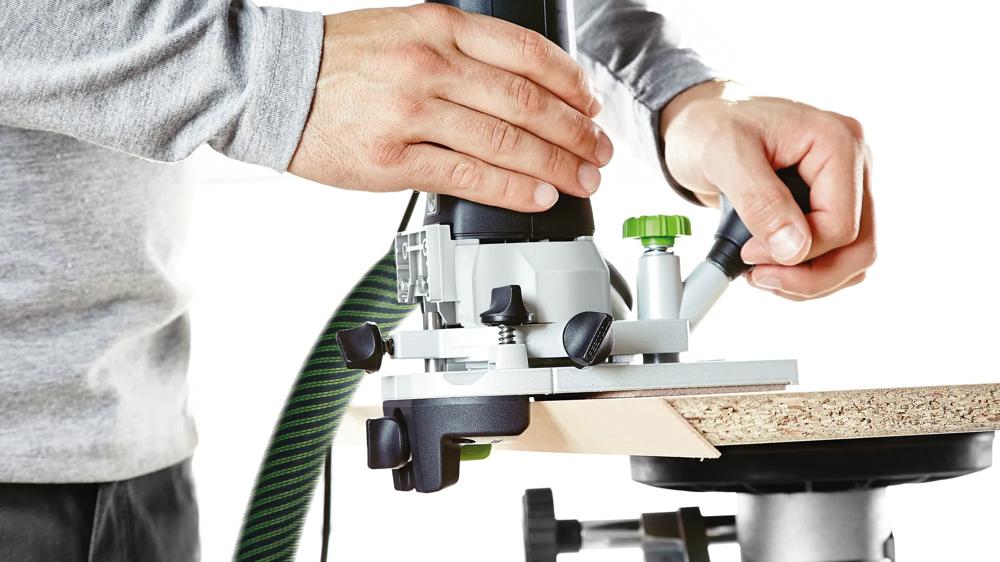

Guidance aid: The chip deflector helps out when you're flush trimming those angled edges from 0° to 45°.
Setting: Easy and accurate to 1/10 mm for adjusting the routing depth.
Universal: You can use all standard cutters (up to 32 mm in diameter) with the 8 mm collet.
Hard fibre base runner: Stops your workpiece getting damaged. Great glide and super scratch-resistant!
Big Support: 130 mm router table support for spot-on routing results.

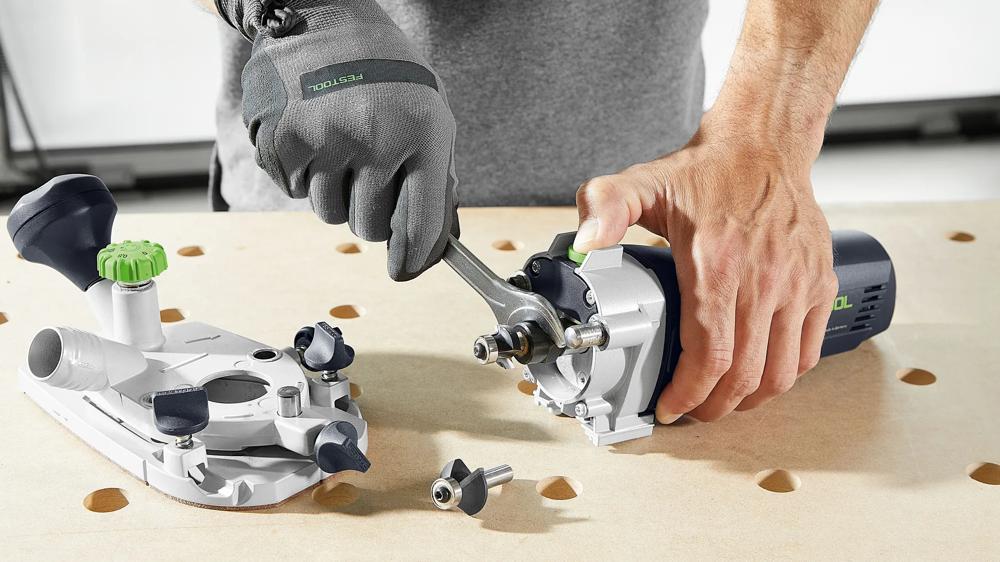

Cutter change: Quick and easy thanks to spindle stop.
Handy: Slim build, lightweight and a well-balanced centre of gravity.
Best dust extraction: Built right into the router table.
Speed control: You can tweak it individually depending on the material.
One-of-a-kind ball bearing brake: For a smooth ride.
Long-lasting: Keeping an eye on the motor's temperature.
