Freud milling cutter set MIX ADVANCED 10 pcs. | S8

Freud milling cutter set MIX ADVANCED 10 pcs. | S8

Shank D8 | 10-piece milling cutter SET | slot; flush; chamfer; radius milling cutter

orderable, delivery week 01

260,61 €

254,61 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-88-31008P
Weight:0.11kg

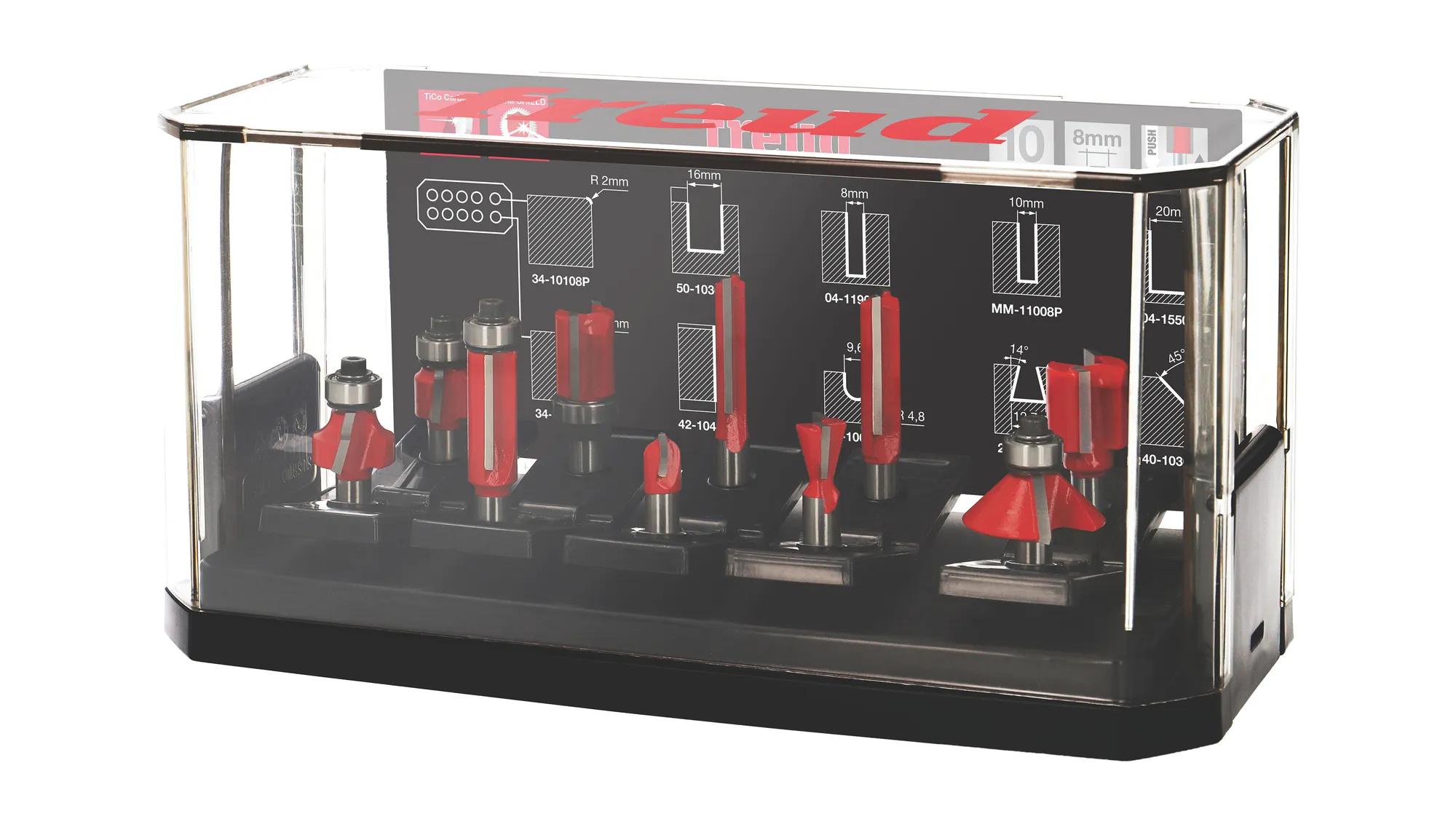

Freud MIX ADVANCED 10-piece router set | S8

Double-edged grooving cutter for grooving and rebating. Face and peripheral cutting (no bottom cutting edge). The grooving cutter ensures tear-free edges. Long service life, corrosion protection, signal colour and easier to clean thanks to the well-known freud Perma-Shield coating. With carbide cutting edges soldered into the shank.

Technical Data

freud rounding cutter with ball bearing R2 D16.7 S8
- R: 2 mm
- D: 16.7 mm
- NL (h): 12.7 mm
- GL (H): 54.9 mm
- S (A): 8 mm
freud rounding cutter with ball bearing R5 S8
- R: 5 mm
- D: - mm
- NL (h): - mm
- GL (H): - mm
- S (A): 8 mm
freud flush milling cutter HW (HM) D12.7 S8 Z2
- D: 12.7 mm
- NL (h): 25.7 mm
- SL: 30 mm
- GL (H): 72.9 mm
- S (A): 8 mm
- D Ball bearing (C): 12.7 mm
- Z: 2
freud flush milling cutter D16 S8 KL shank side
- D: 16 mm
- NL (h): 20 mm
- GL (H): 60 mm
- S (A): 8 mm
- D ball bearing (C): 16 mm
- Z: 2
freud slot milling cutter HW (HM) D8 S8 Z2
- D: 8 mm
- NL (h): 31.8 mm
- SL: 38.2 mm
- GL (H): 70 mm
- S (A): 8 mm
- Z: 2
freud slot milling cutter HW (HM) D10 S8 Z2
- D: 10 mm
- NL (h): 31.8 mm
- SL: 37.2 mm
- GL (H): 69 mm
- S (A): 8 mm
- Z: 2
freud slot milling cutter HW (HM) D20 S8 Z2
- D: 20 mm
- NL (h): 19 mm
- SL: 37 mm
- GL (H): 56 mm
- S (A): 8 mm
- Z: 2
freud hollow milling cutter HW (HM) D9.52 S8 Z2
- D: 9.5 mm
- R: 4.8 mm
- NL (h): 9 mm
- SL: 37 mm
- GL (H): 46 mm
- S (A): 8 mm
- Z: 2
freud tine cutter D12.7 S8 14°
- E (α): 14°
- D: 12.7 mm
- NL (h): 12.7 mm
- SL: 38 mm
- GL (H): 50.7 mm
- S (A): 8 mm
- Z: 2
freud bevelled end mill with ball bearing HW (HM) E45° S8
- E (α): 45°
- D: - mm
- NL (h): - mm
- SL: - mm
- GL (H): - mm
- S (A): 8 mm

Properties & Advantages

New mixed sets in new packaging:
- New industrial design.
- Relevant bit selection
- New Hold & Release Mechanism: Patented, simple and secure mechanism holds the router bits securely during transport and storage and makes removal safe and easy at the touch of a button.
Carbide (HM) from freud's own development and manufacture
Perma-Shield for longer life, corrosion protection, signal colour and easier cleaning
Made in Italy
