Harvey Router Table Set - Premium

The high-end router table with pivoting router motor

Similar products

fraestisch-set-starter-sauter-set-harvey-1-01

Routing table system with premium components from HARVEY | Harvey router table and Fence | sauter base frame | At present shipping is only possible to the EU, Switzerland and Norway

Delivery time 2-3 days

1.999,00 €

incl. VAT

Art.-Nr: SET-HARVEY-1

fraestisch-set-pro-sauter-set-harvey-2-01

Harvey Router Table Set - Pro

Routing table system with premium components from HARVEY | Harvey router table | sauter FML-BR Lift | Suhner router motor | At present shipping is only possible to the EU, Switzerland and Norway

Delivery time 2-3 days

3.059,00 €

incl. VAT

Art.-Nr: SET-HARVEY-2

2 Products

Technical Data

Harvey RT-800 Cast Iron Router Table
- Dimensions of router table top: 800 x 590 x 45 mm
- Dimensions of opening for insert plate / ROUTER LIFT: 298.5 x 235 x 10 mm
- Dimensions front T-slot: 19.05 x 25.4 x 9.5 mm
- Dimensions rear T-slot: 7.1 x 14.2 x 9 mm
- Weight: 48 k

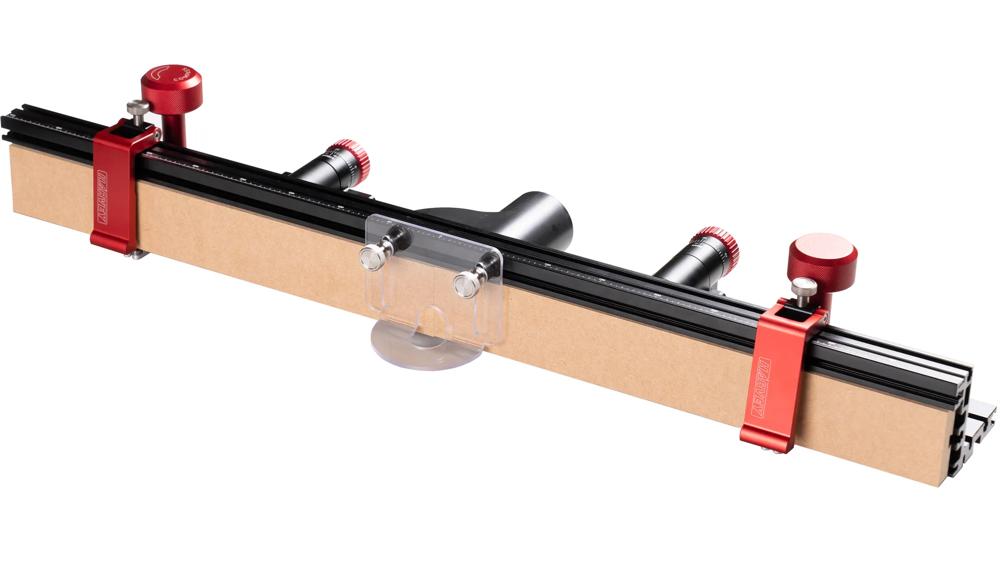

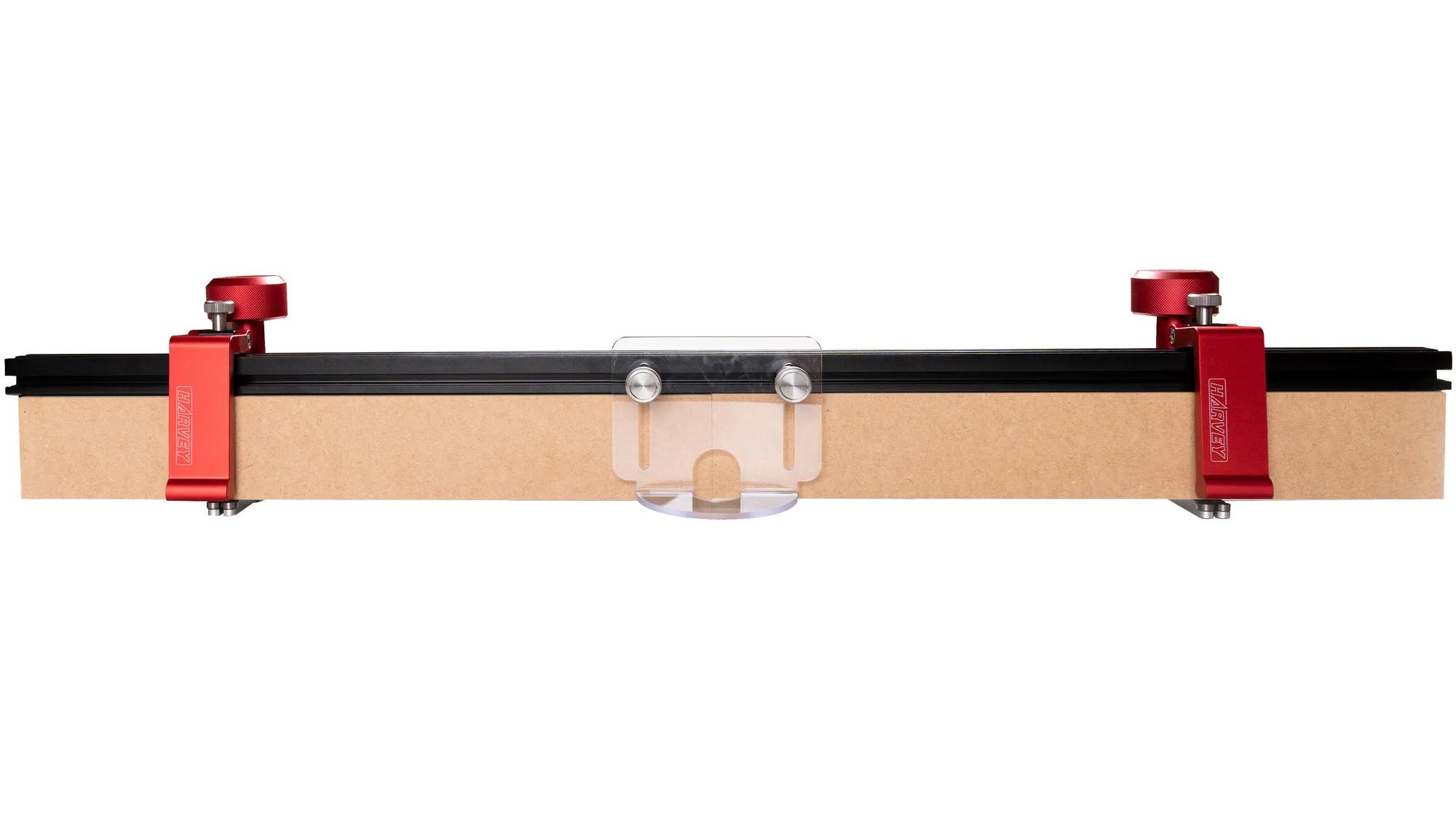

Harvey RF-36 Compass Router Table Fence:
- Fence dimensions: 915 x 113.5 x 91 mm
- Dimensions fence jaws: 450 x 67 mm
- Max. Adjustment travel fence jaws: 178 mm
- Fine adjustment travel of fence: 12.7 mm
- Fine adjustment travel of fence jaw: 6.35 mm
- Scaling: metric
- Fine adjustment fence: 0.02 mm (1 turn corresponds to 1 mm adjustment travel)
- Fine adjustment removal jaw: 0.02 mm (1 turn corresponds to 1 mm adjustment travel)
- Ø extraction socket outside: 63.5 mm
- Ø extraction socket inside: 57.5 mm
- Compatible - only with Harvey router table top steel RT-800
- Weight: 9 kg

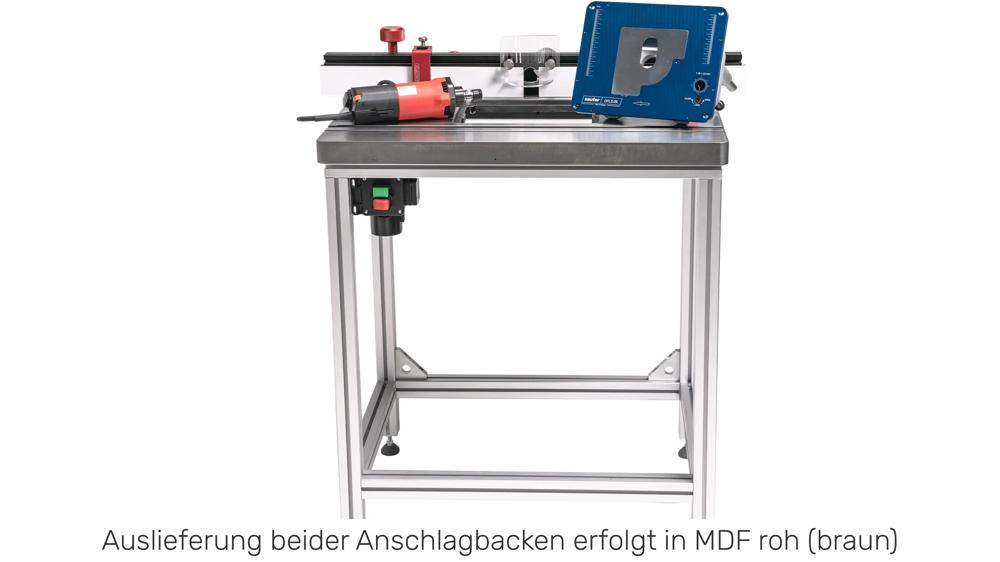

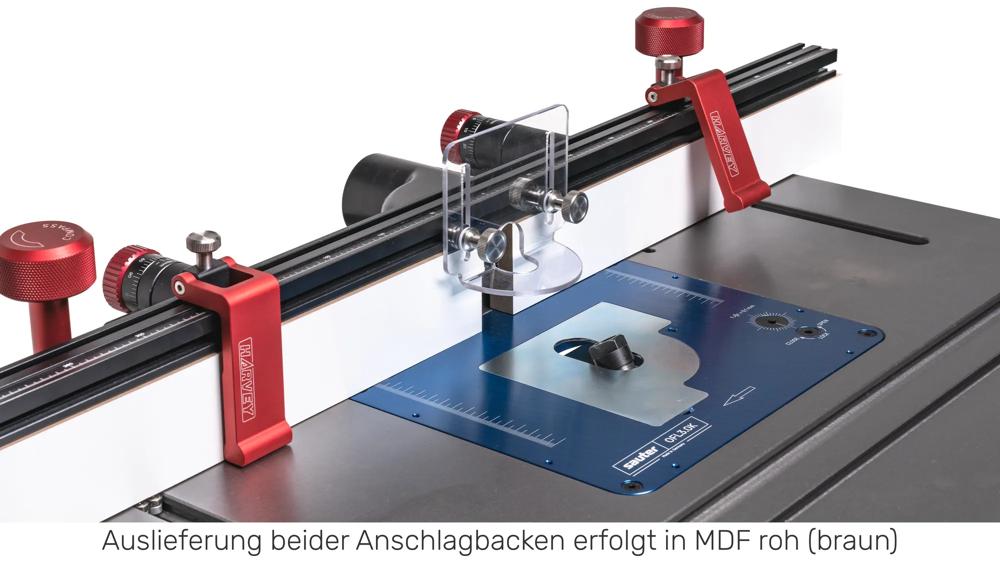

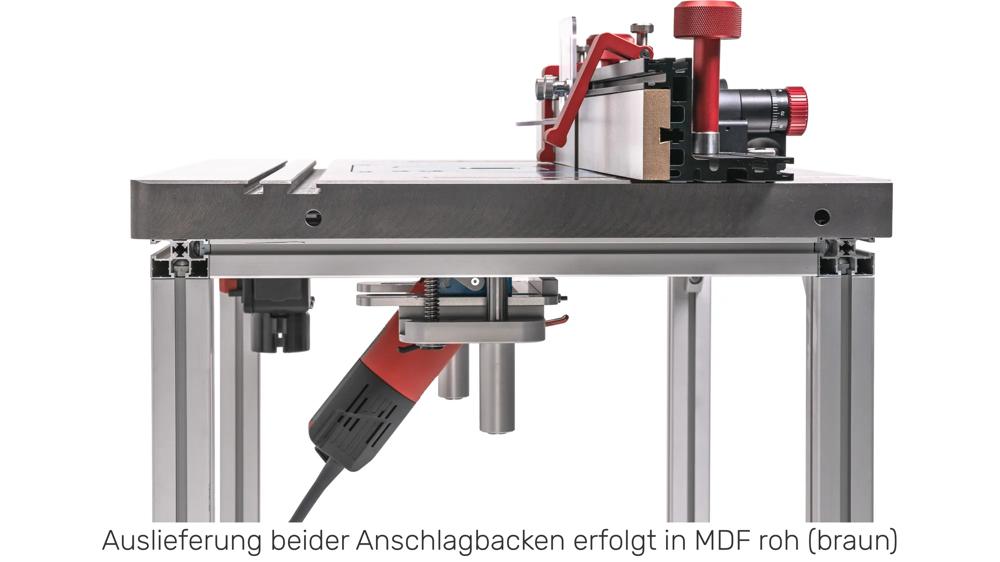

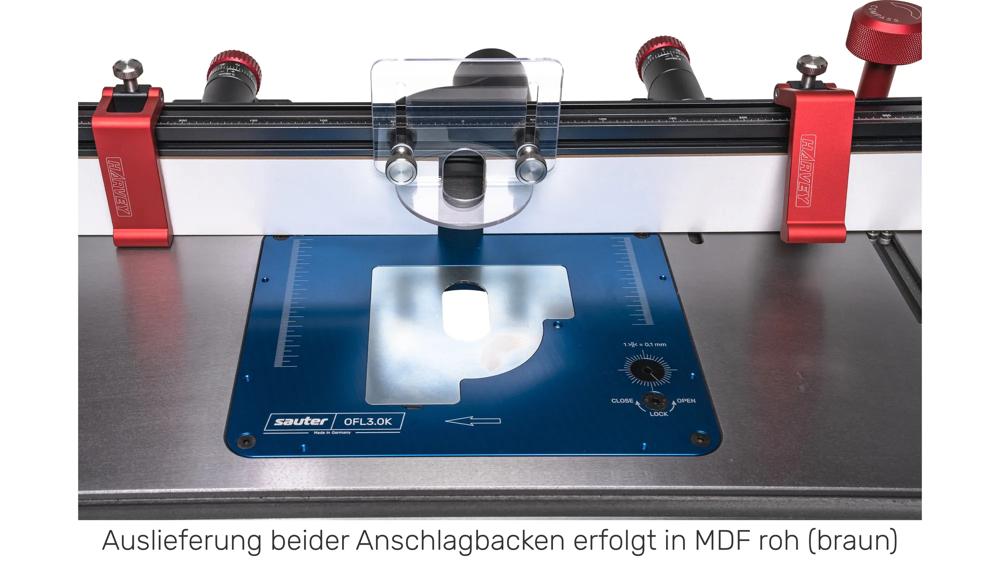

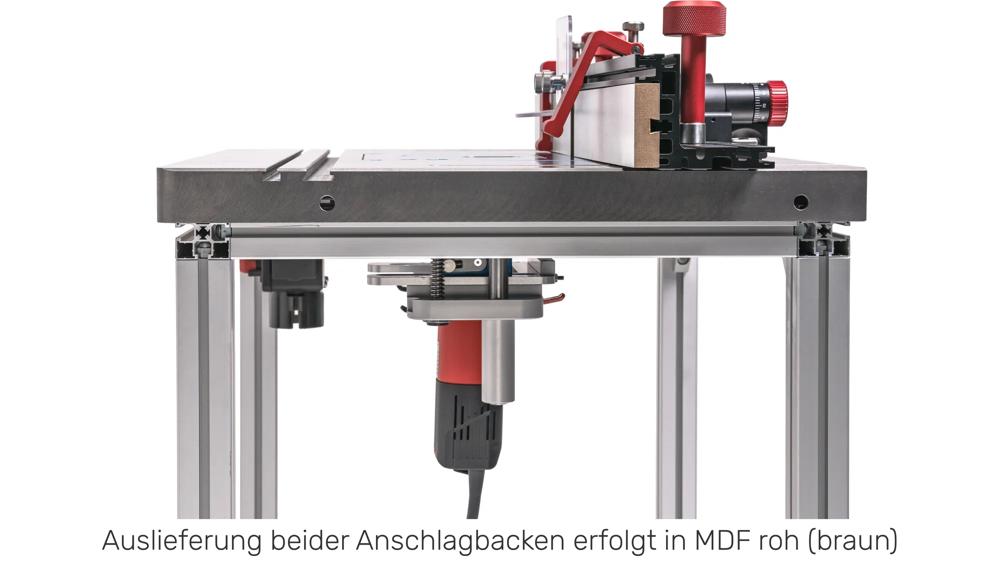

- Both stop jaws are delivered in raw MDF (brown).
sauter Base Frame for Harveys Router Table:
- Size: 775 x 565 x 890 mm
- Profile: 45 x 45 mm
- all four sides grooved
- Very high load capacity
- Anodised surface for better gliding properties and a more attractive appearance
sauter Router Lift OFL 3.0K:
- Dimension insert plate: 298 x 235 x 9 mm
- Corner radius of insert plate: 19.05 mm (3/4")
- Height adjustment travel/revolution: 4 mm
- Max. adjustment travel: 101 mm
- Height ROUTER LIFT (max. extended): 240mm
- Max. Cutter diameter: 55 mm
- Weight: approx. 5 kg
Suhner router motor UAK 30 RF SPZ12:
- Input power: 1,530 watts
- Infinitely variable speed: 3,500 - 30,000 rpm
- Torque: 0.4 Nm
- Voltage: 230 Volt / 50 Hz
- Sound pressure level: 86 dB, K = 3 dB
- incl. collet : 8 mm
- Collet chuck up to 12.7 mm (1/2") possible
- Weight: 2,85 kg
Safety switch for router tables:
- Protection class: IP54
- Operating current IE: 13.5 A/250 V
- Universal control voltage UC: 230 V/50 Hz
- Utilisation category AC3: 3 kW

fraestisch-set-premium-sauter-set-harvey-3-02

Properties & Advantages

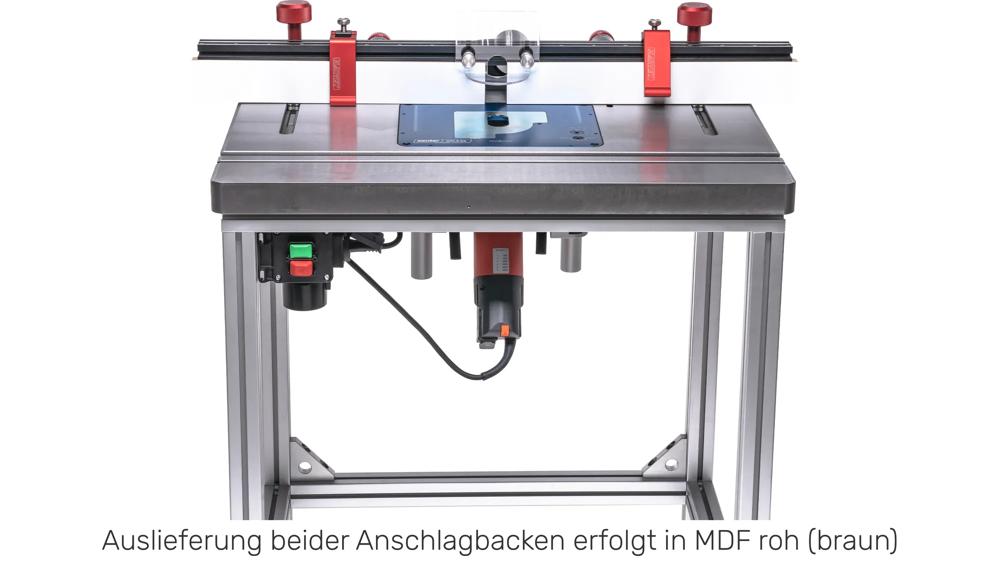

The Harvey PREMIUM router table combination: exquisite router table components from Harvey at the top level. Cast-iron router table top, top-class router fence with absolutely precise fine adjustment.
The crowning glory: the unique pivoting sauter Router lift OFL3.0K for exact height adjustment and the router motor from Suhner UAK 30 RF SPZ12 for powerful work.
