HM slot milling cutter Z2

D: 31,8 mm | NL (C): 4 mm | S: 8 mm

Delivery time 2-3 days
40,00 €
incl. VAT / excl. shipping costs
1
  • Brand:Trend
  • Article no.:T-C144AX8MMTC
  • Weight:0.072kg

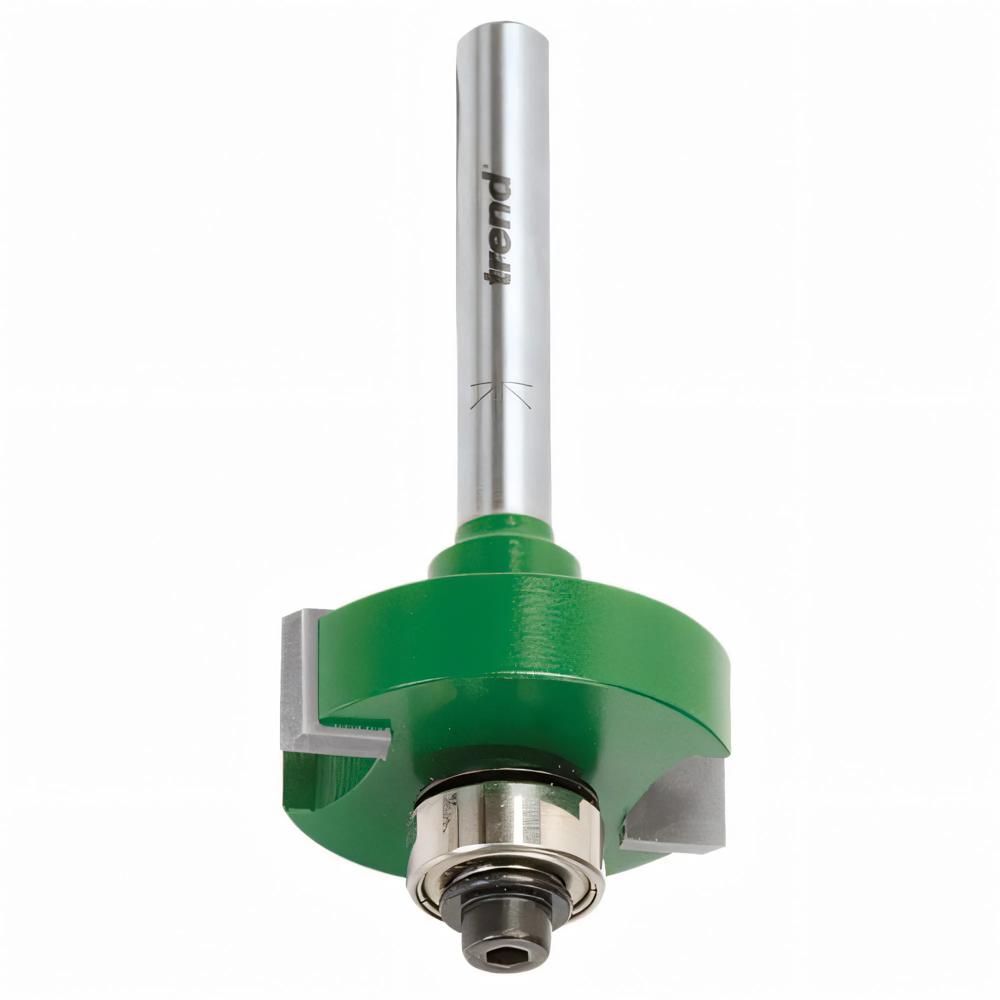

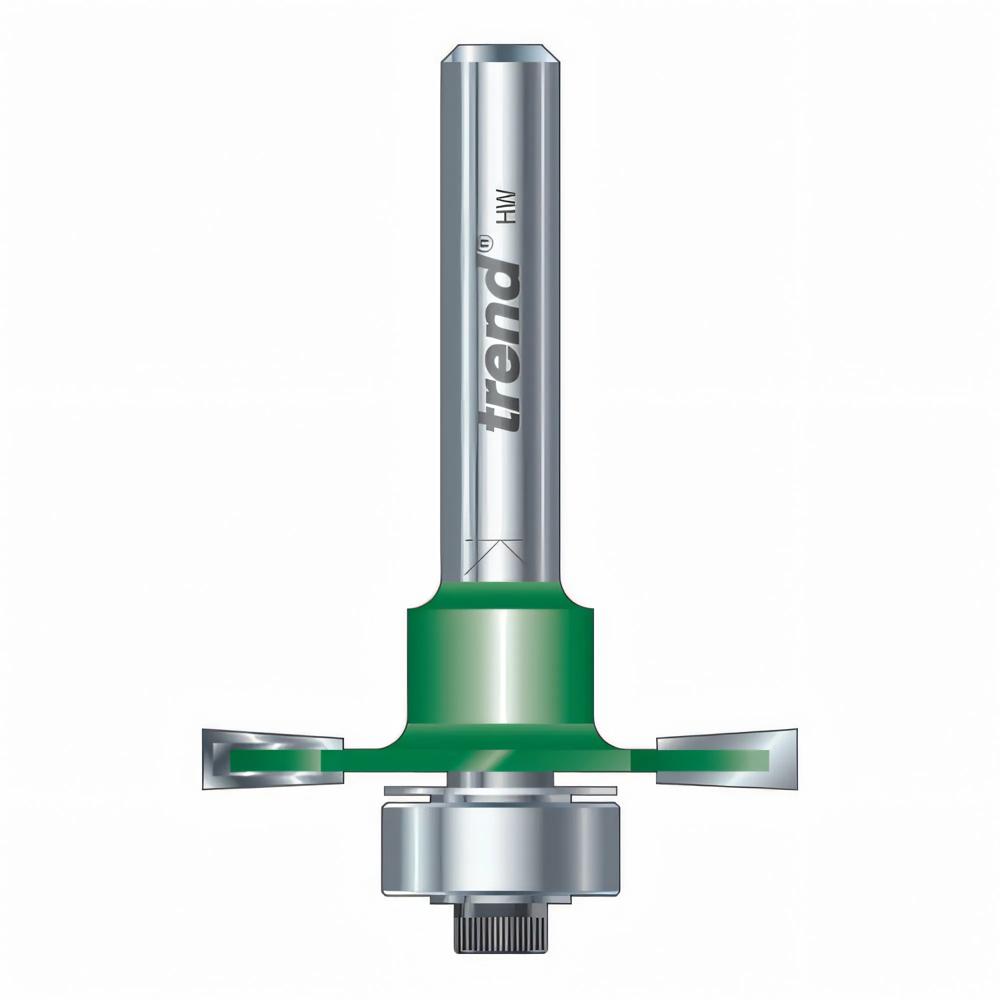

HM slotting cutter with ball bearing

already equipped with ball bearing B127A, diameter D 12.7 mm, gives a slot depth of 9.5 mm

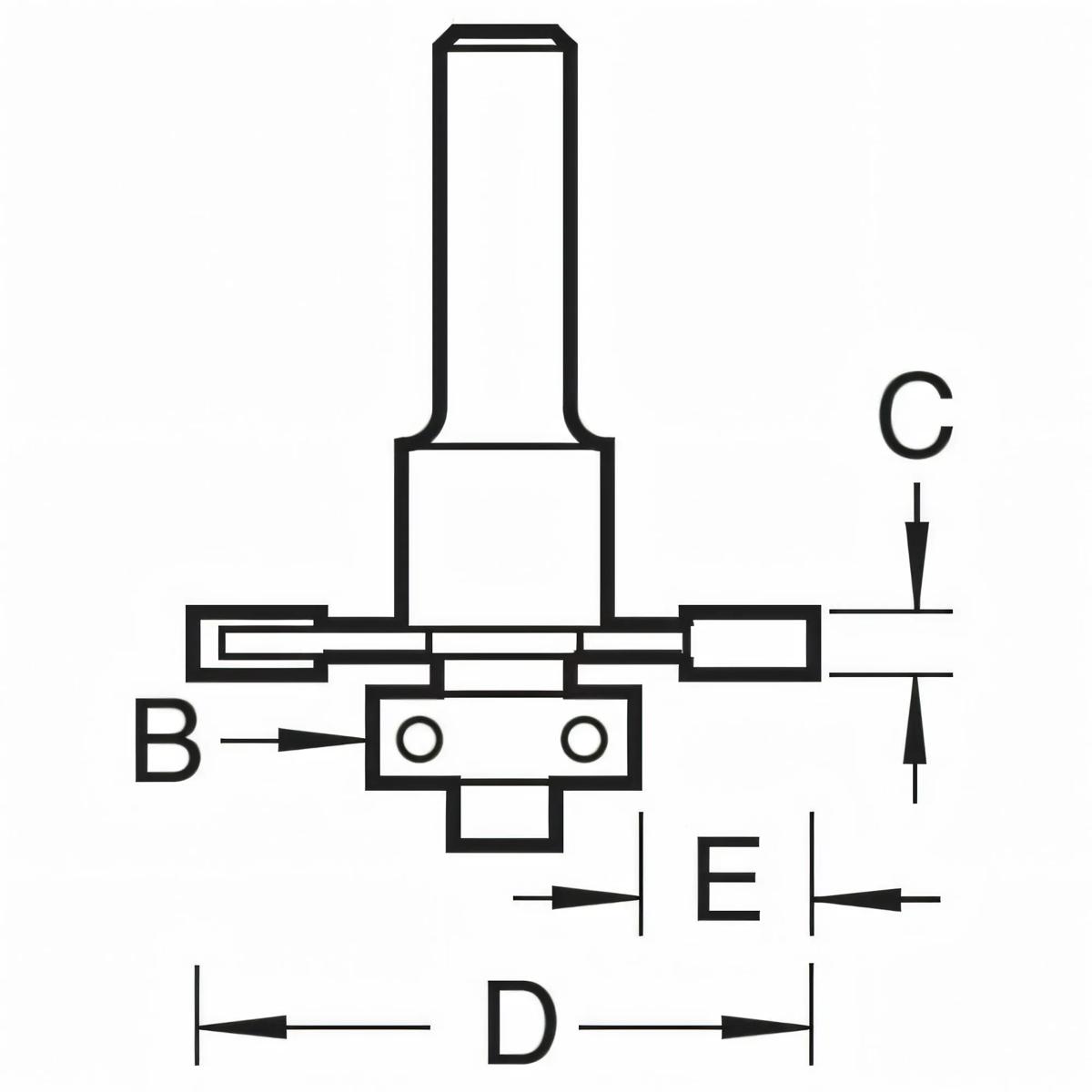

Technical Data

  • D: 31,8mm
  • NL (C): 4 mm
  • Ball bearing (B): 12,7 mm
  • Schlitztiefe (E): 9,5 mm
  • GL (OL): 63 mm
  • S: 8 mm
  • Z: 2
hm-schlitzfraeser-z2-trend-t-c144ax8mmtc-02

Properties & Advantages

additionally the following ball bearings can be mounted (not in the Delivery Includes):

  • B16A, D 16 mm, gives slot depth 7.9 mm
  • B19A, D 19 mm, gives slot depth 6.3 mm
  • B22A, D 22 mm, gives slot depth 4.8 mm
  • B25A, D 25 mm, gives slot depth 3.2 mm
