Keilverbinder dovetail connector sample - Universal furniture construction
Free sample made of MDF to illustrate how the Keilverbinder dovetail connectors work
Would you like to familiarise yourself with the versatility and functionality of Keilverbinder dovetail connectors? Then choose the right one for your needs from our Keilverbinder dovetail connector samples in different material variations.
Technical Data
Material: Forescolor wood fibreboard dyed through
Material thickness: 8, 12 & 19 mm
Properties & Advantages

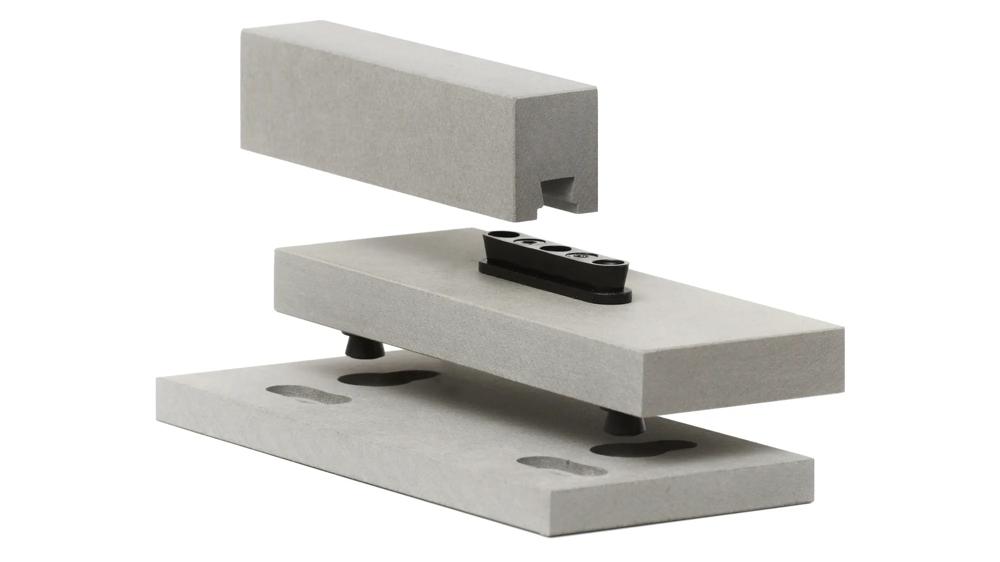

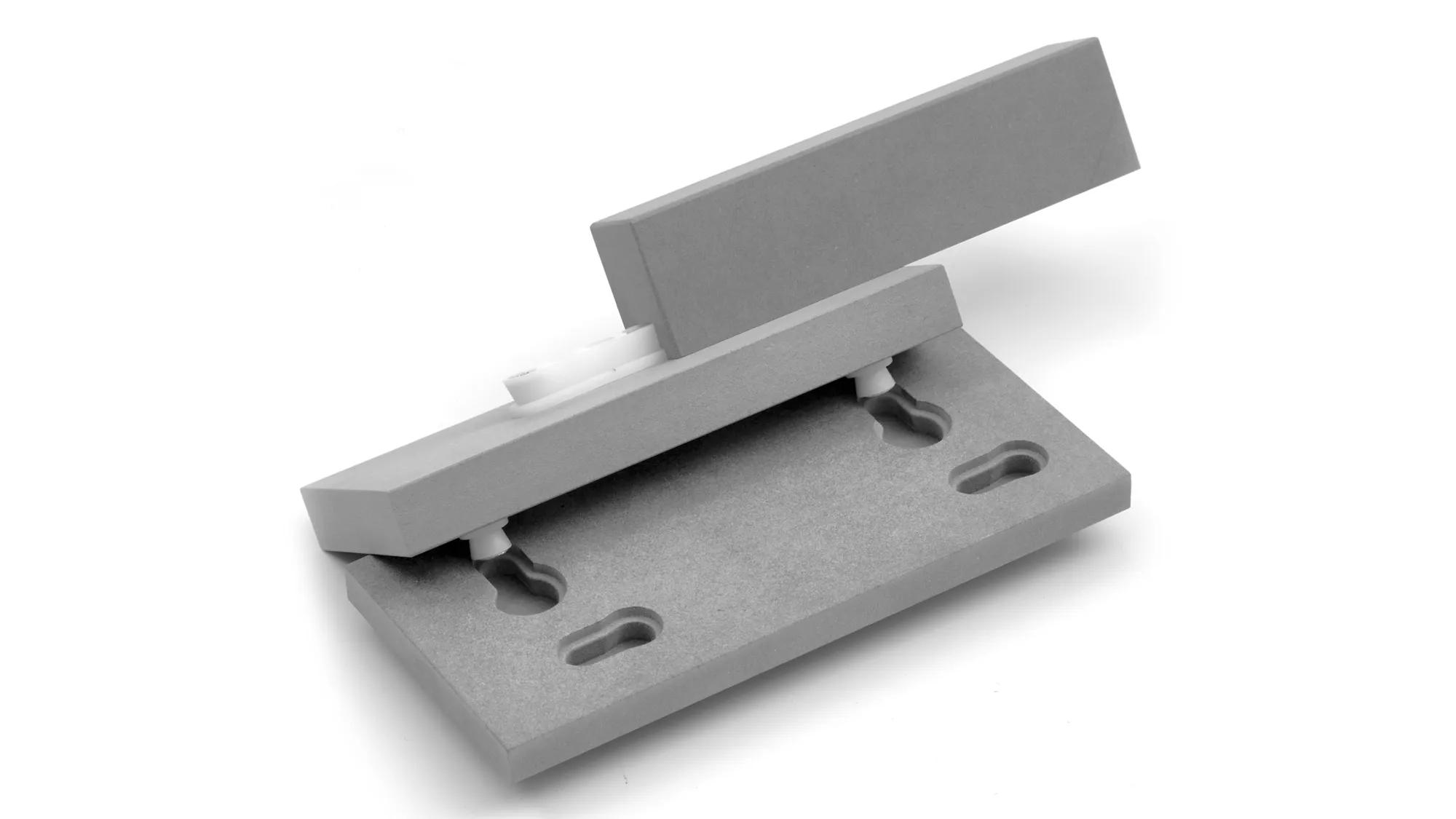

The functional sample shows concealed, semi-concealed and open application examples.
Four keyways are milled into the base plate.
Two dovetail sleeves are mounted on the underside of the centre plate and one long sleeve on the upper side.
A keyway is milled into the end face of the top plate piece. → Change the strength of the connections by tightening or loosening the screws.
The hand sample is made of Forescolor material (→ compressed MDF)
Areas of application: Universal furniture construction, shelving systems
