KREG Shelf Pin Jig 5mm

Drill hole lines in the 32 mm system Quickly adjusted | Precisely drilled | Simply professional

Shipping within 24 hours (working days)

52,35 €

incl. VAT / excl. shipping costs

Brand:Kreg
Article no.:KR-KMA3232-INT
Weight:0.33kg

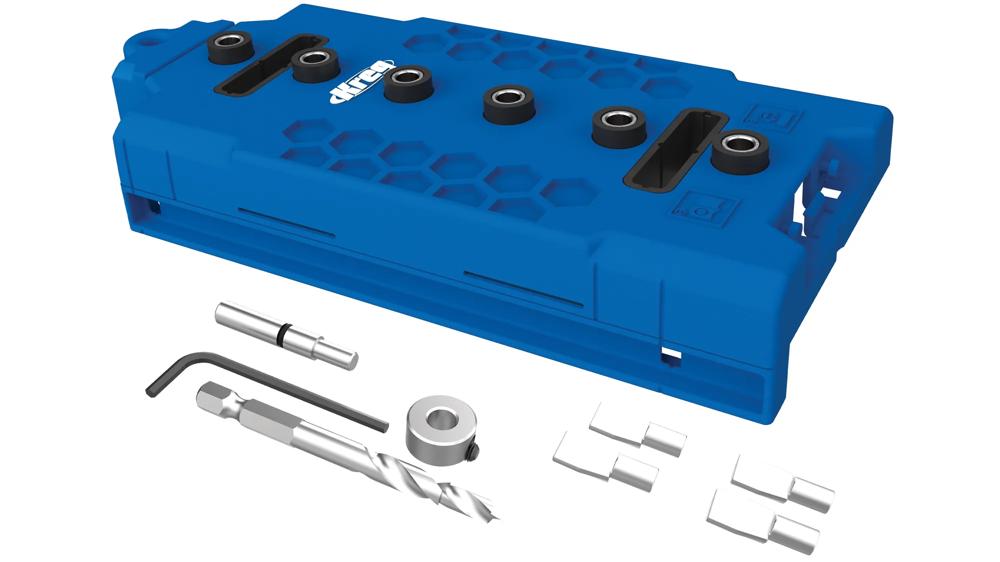

KREG Shelf Pin Jig 5mm

System 32 holes at the perfect distance and depth.

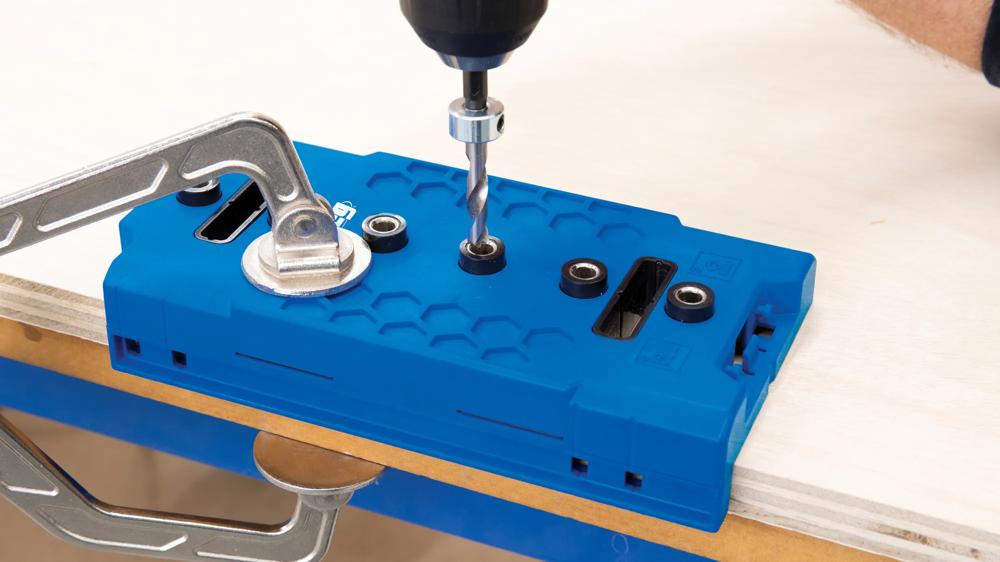

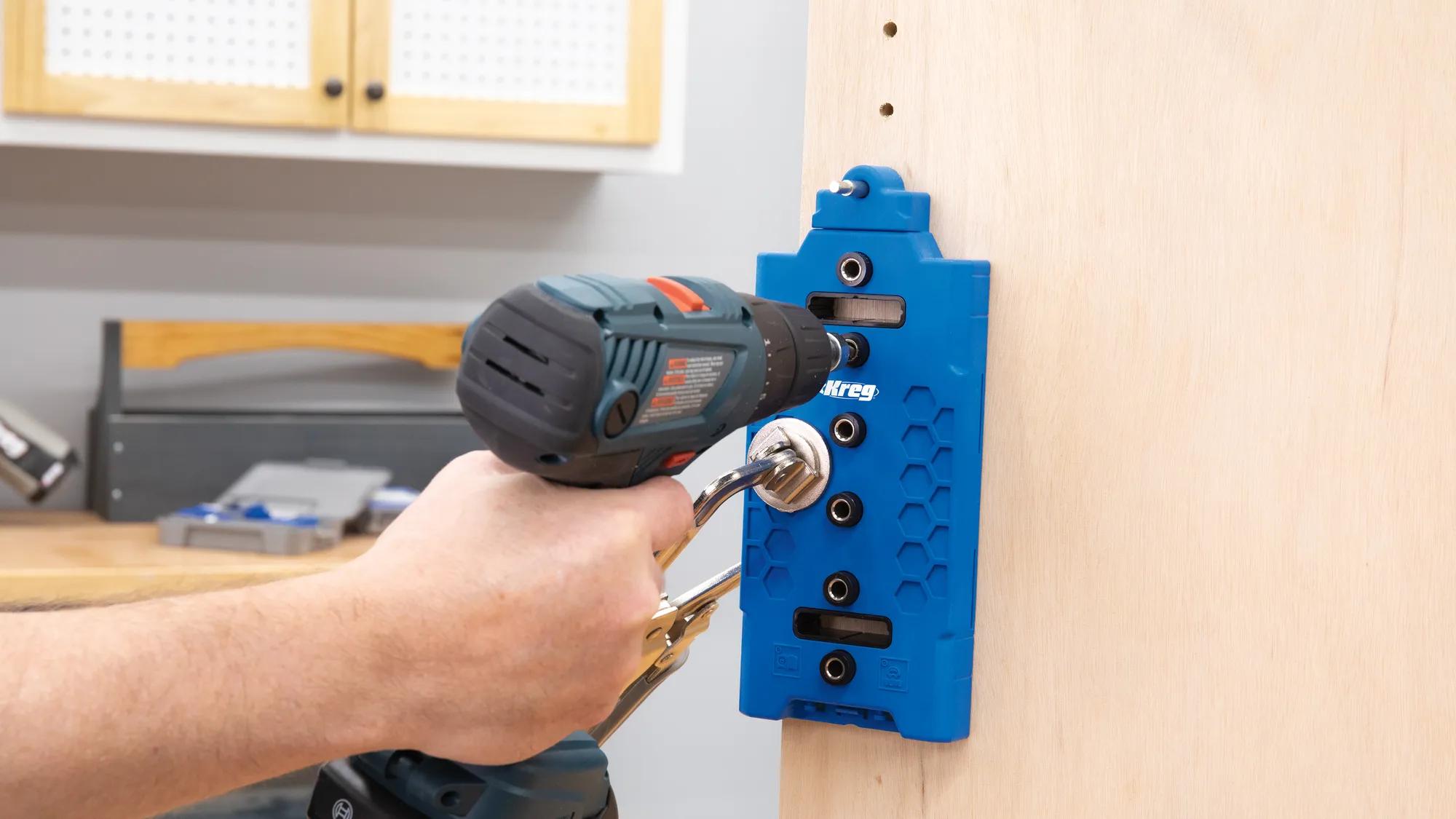

Whether you’re adding shelves to existing furniture, or building from scratch, creating the shelf pin holes is easy. Use the fence to align the jig with the edge of your workpiece for straight, accurate rows. Quickly drill six holes in one setup – or connect a second Shelf Pin Jig to drill longer rows of holes with the same consistent spacing.

The jig also has useful ways for installing concealed cabinet hinges and drawer slides in frameless cabinets. Molded-in alignment marks and an indicator window help align mounting screws for hinge plates – set at standard backspacing for a 32mm cabinet system – which also helps with locating the front hole for drawer slide installation.

Compatible accessories

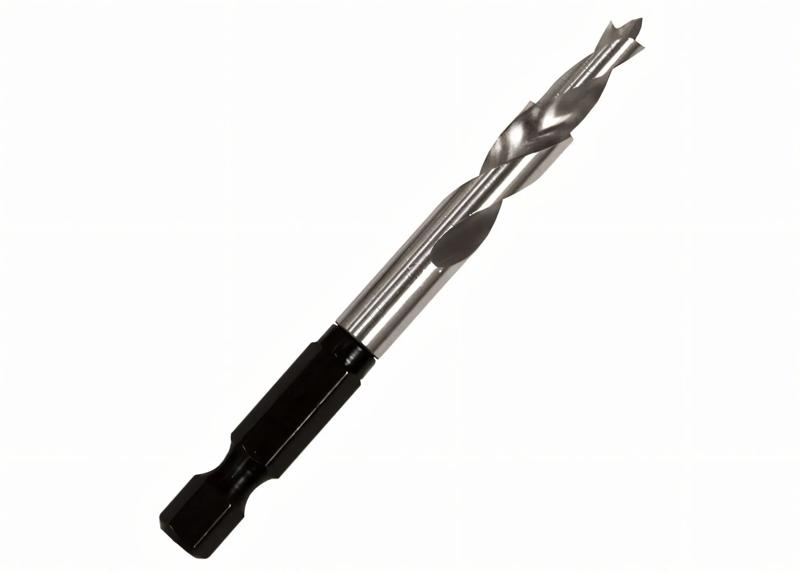

Kreg wood drill 5 mm for KMA3220

Replacement drill bit for KMA322-INT | Drill Ø: 5 mm

Shipping within 24 hours (working days)

17,84 €

incl. VAT

Art.-Nr: KR-KMA3215

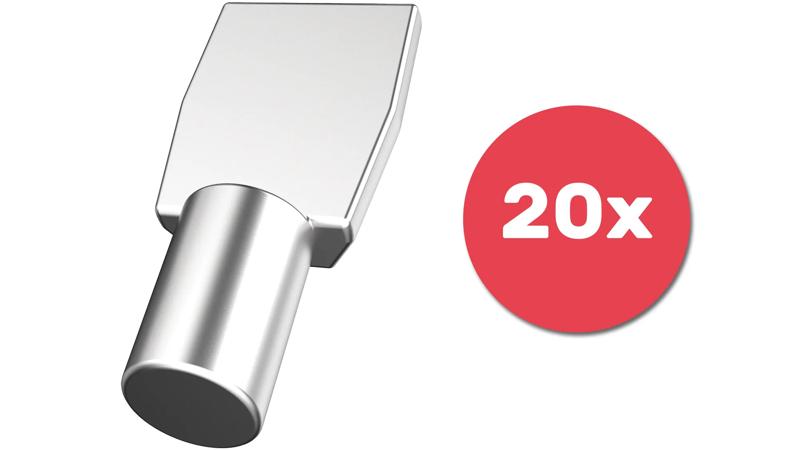

KREG Shelf Pins - 5mm

Shelf holders with zinc finish | Bore-Ø 5mm | Stable and sleek | 20 pieces

Shipping within 24 hours (working days)

12,41 €

incl. VAT

Art.-Nr: KR-KMA-5MPIN

2 Products

Technical Data

Hole spacing: 32 mm
Hole spacing (contact edge): 37 mm
Drilling Ø: 5 mm
Can be extended with additional LR32 templates
Total length incl. extension attachment: 227 mm
Overall length without extension attachment: 215 mm
Total width: 100 mm

Properties & Advantages

Sturdy, impact-resistant construction made of plastic for durability
Drill guide sleeves made of hardened steel for precise drilling even after long periods of use
Seamlessly adjustable with alignment pin for individual hole lines
Required accessories are securely held in the LR32 drilling template

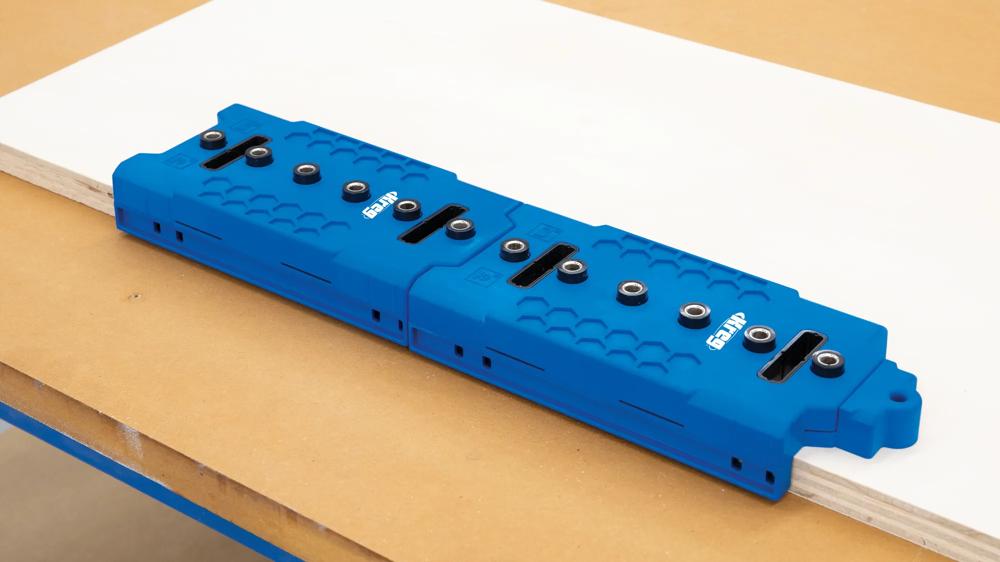

Several templates can be clicked together for even faster work progress
Hole lines compatible with commercially available fittings (industry standard "System 32")
