Lock Mitre Bit 45° D: 55mm R:23mm

Lock mitre bit | D55 | H61 | h23 | A12

Delivery time 2-3 days

80,68 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-99-03512P
Weight:0.11kg

Freud Lock Mitre Bit 45° D: 55mm R:23mm

Lock mitre bit, D55, H61, h23, A12

Similar products

gehrungsfraeser-verleimfraeser-d70-s12-45-freud-fr-99-03412p-01

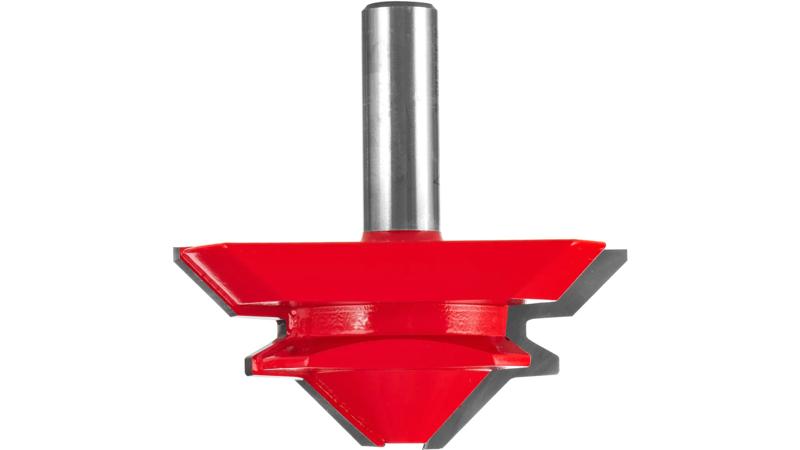

Lock Mitre Bit 45° D: 70mm R:29,5mm

Lock mitre bit | D70 | H67.5 | h29.5 | A12

Delivery time 2-3 days

113,05 €

incl. VAT

Art.-Nr: FR-99-03412P

1 Products

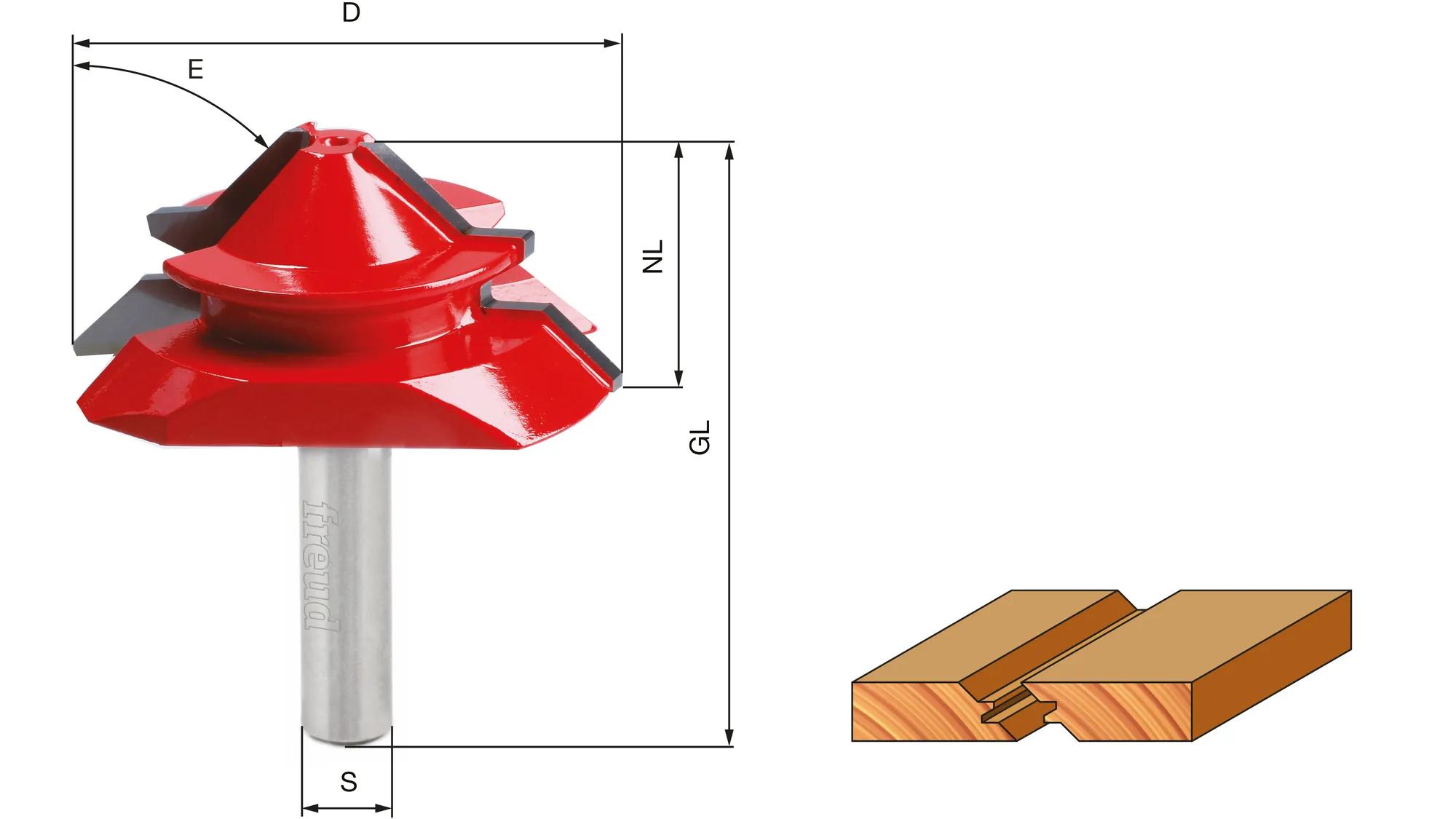

Technical Data

Diameter (D mm): 55

Cutting Length (h mm): 23

Overall Length (H mm): 61

Shank (A mm): 12

R1 Radius: -

R2 Radius: -

R3 Radius: -

Bearing (C mm): -

Teeth: 2

Angle (°): 45°

Max RPM 1/min: 16000

Properties & Advantages

Applications:
Create remarkably strong interlocking joints.

Machines:
Table routers and CNC machines.

Materials:
Softwood, hardwood, plywood and wood based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
