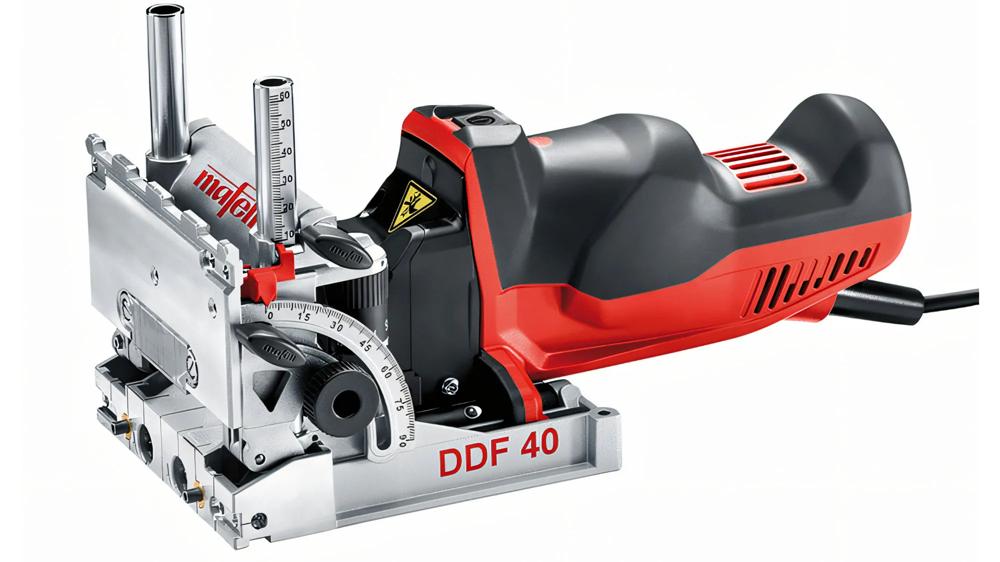

MAFELL DuoDowler DDF40 MaxiMAX

MAFELL DuoDowler DDF40 MaxiMAX

Professional dowelling machine | dowel connections | hole lines | fittings

Shipping within 24 hours (working days)

1.260,21 €

incl. VAT / excl. shipping costs

Brand:MAFELL
Article no.:MAF-918602
Weight:6.8kg

MAFELL DuoDowler DDF40 MaxiMAX - a future-oriented innovation from Mafell.

With the "MaxiMAX" version, Mafell offers a complete system solution here. In addition to the actual DuoDowler, the T-MAX also includes wooden dowels, glue bottle, anti-slip mats and drill bits.

Compatible accessories

MAFELL dowel drill 5mm

Dowel drill for DuoDowler DDF40 | Drill Ø: 5 mm

Shipping within 24 hours (working days)

40,34 €

incl. VAT

Art.-Nr: MAF-090089

MAFELL dowel drill 10,2mm

Dowel drill for DuoDübler DDF40 | Drill Ø: 10.2 mm

Shipping within 24 hours (working days)

66,64 €

incl. VAT

Art.-Nr: MAF-090125

MAFELL dowel drill 6mm

Dowel drill for DuoDowler DDF40 | Drill-Ø: 6 mm

Shipping within 24 hours (working days)

41,53 €

incl. VAT

Art.-Nr: MAF-090096

MAFELL dowel drill 8,1mm

Dowel drill for DuoDübler DDF40 | Drill Ø: 8.1 mm

Shipping within 24 hours (working days)

50,34 €

incl. VAT

Art.-Nr: MAF-090122

MAFELL dowel drill 3mm

Dowel drill for DuoDowler DDF40 | Drill-Ø: 3 mm

Shipping within 24 hours (working days)

40,34 €

incl. VAT

Art.-Nr: MAF-090083

MAFELL dowel drill 10,1mm

Dowel drill for DuoDübler DDF40 | Drill Ø: 10.1 mm

Shipping within 24 hours (working days)

66,64 €

incl. VAT

Art.-Nr: MAF-090124

MAFELL dowel drill 12,2mm

Dowel drill for DuoDübler DDF40 | Drill Ø: 12.2 mm

Shipping within 24 hours (working days)

83,06 €

incl. VAT

Art.-Nr: MAF-090127

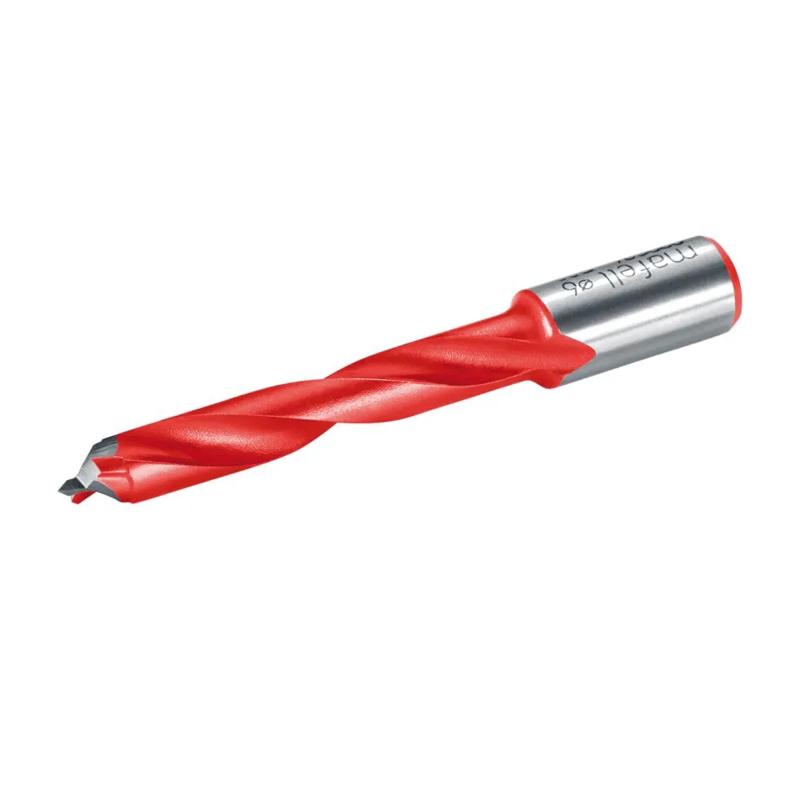

MAFELL dowel drill 8,2mm

Dowel drill for DuoDübler DDF40 | Drill Ø: 8.2 mm

Shipping within 24 hours (working days)

50,34 €

incl. VAT

Art.-Nr: MAF-090123

MAFELL dowel drill 10mm

Dowel drill for DuoDowler DDF40 | Drill-Ø: 10 mm

Shipping within 24 hours (working days)

55,34 €

incl. VAT

Art.-Nr: MAF-090098

MAFELL dowel drill 6,1mm

Dowel drill for DuoDübler DDF40 | Drill Ø: 6.1 mm

Shipping within 24 hours (working days)

46,53 €

incl. VAT

Art.-Nr: MAF-090120

MAFELL dowel drill 12mm

Dowel drill for DuoDübler DDF40 | Drill-Ø: 12 mm

Shipping within 24 hours (working days)

70,45 €

incl. VAT

Art.-Nr: MAF-090099

MAFELL dowel drill 8mm

Dowel drill for DuoDowler DDF40 | Drill Ø: 8 mm

Shipping within 24 hours (working days)

44,03 €

incl. VAT

Art.-Nr: MAF-090097

12 Products

Technical Data

Drilling depth: 0 - 40 mm
Drill bit distance: 32 mm
Tool holder Ø: 8 mm
Maximum tool Ø: 12.2 mm
Minimum tool Ø: 3 mm
Swivel range: 0 - 90°
Nominal idle speed: 8000 rpm
Nominal power consumption: 900 W
Suction connection Ø: 29 mm
Weight: 2,8 kg
Dimensions (WxLxH): 145 x 300 x 164 mm

Properties & Advantages

With the DuoDowler DDF40, setting high-precision dowel holes becomes even easier and more efficient. It stands for an extremely wide range of applications, easy handling thanks to innovative ergonomics as well as absolutely form-fitting, stable connections
Whether workshop or assembly: a higher connection quality cannot be achieved with a hand-held machine
Whether outside corner, middle wall or hole line: the DDF40 not only enables the precision of a stationary machine, but also achieves this with standard roundwood dowels at a particularly low cost
Thanks to the double-hole technology, extremely high stability is already guaranteed during installation
The height of the swivelling stop can be set accurately to size up to 62 mm in height using the rotary wheel and scale. Common dimensions can be pre-set by means of the turret stop

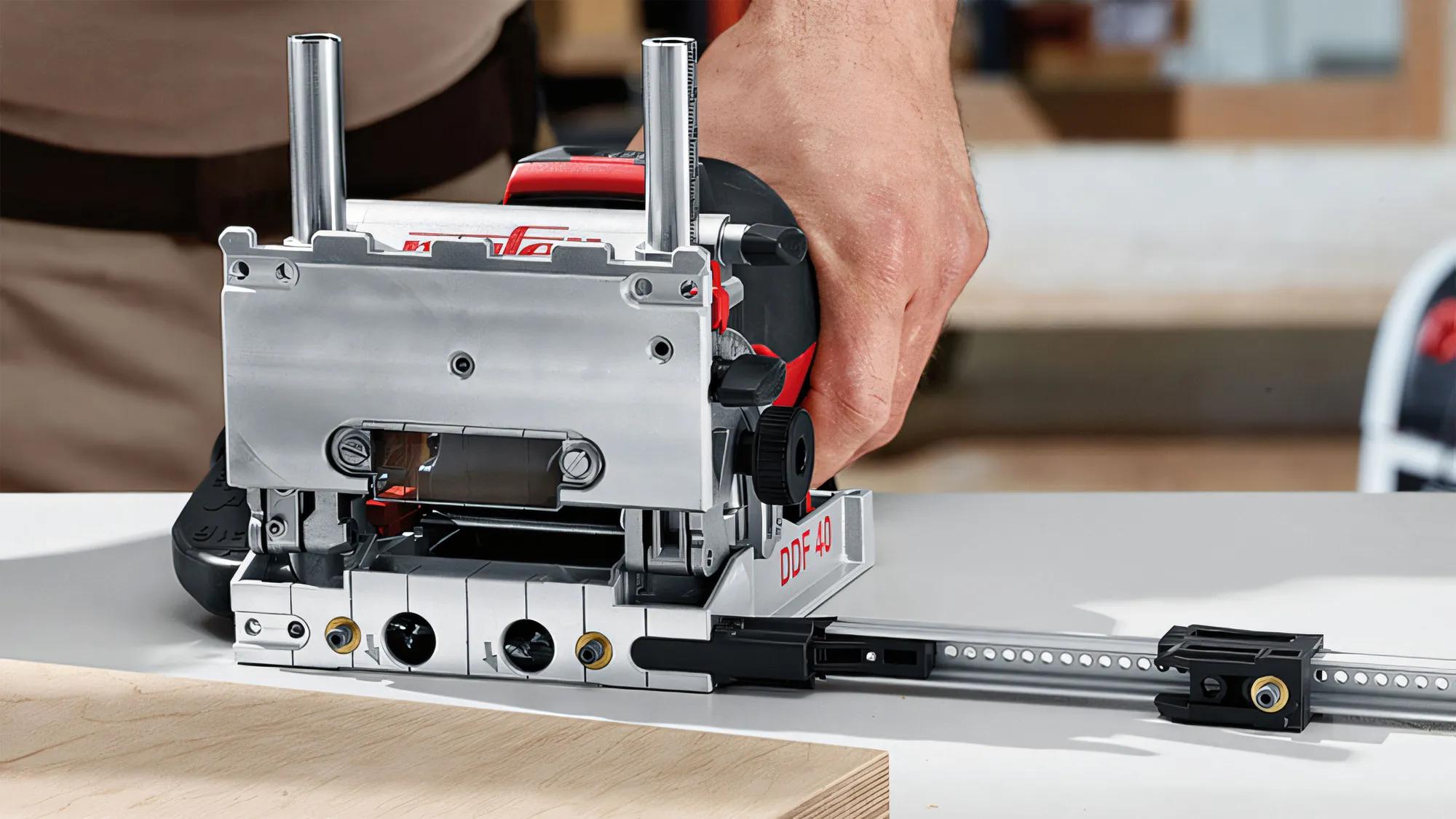

With the two spring-loaded stop pins in the base plate, holes can be drilled at a fixed distance of 15.5 mm from the edge of the workpiece: repeatable and without measuring and marking
The ergonomically well thought-out motor housing with recessed grip at the front and grip hump at the back allows an ideal grip position and at the same time an optimal force transmission during every use

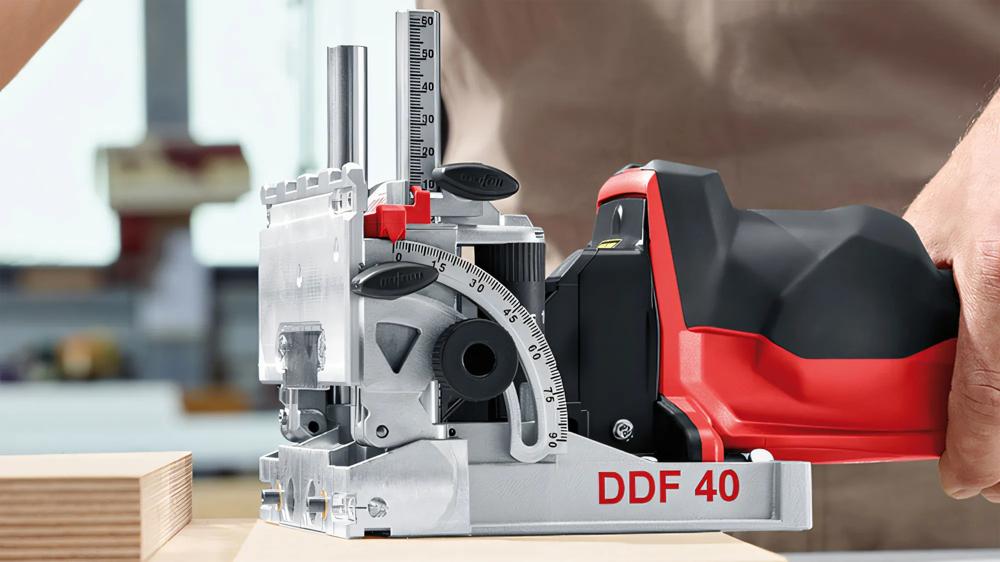

The swivel stop is guided on both sides and centrally clamped with only one adjusting screw. For mitre joints it can be swivelled continuously from 0 to 90 degrees. Detent positions for 22.5°, 45° and 67.5° are predefined
Perfect full equipment for hole line drilling, hardware drilling, in solid wood or panel materials
Ideal for furniture and staircase construction in the workshop or on assembly
No special wooden connectors required. Common and inexpensive round dowels are used

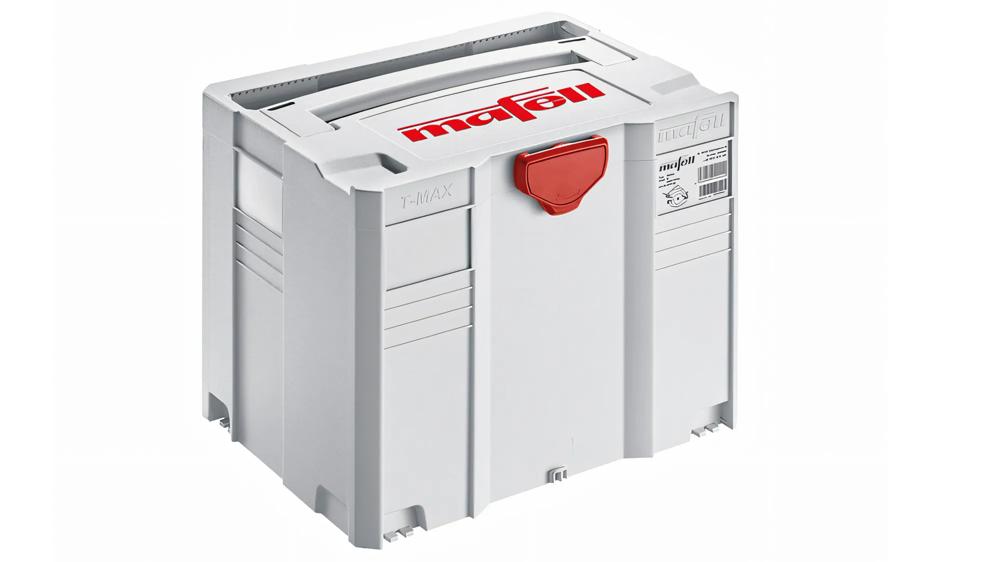

Including T-MAX (transport case)
