MAFELL FM 1000 NC-ER Router motor

Motor with 1,000 watts incl. "ER16", 8 mm collet chuck | 4,000 - 25,000 rpm. | overload indicator | external portal interface

Delivery time 2-3 days

487,90 €

incl. VAT / excl. shipping costs

Brand:MAFELL
Article no.:MAF-9M1401
Weight:1.65kg

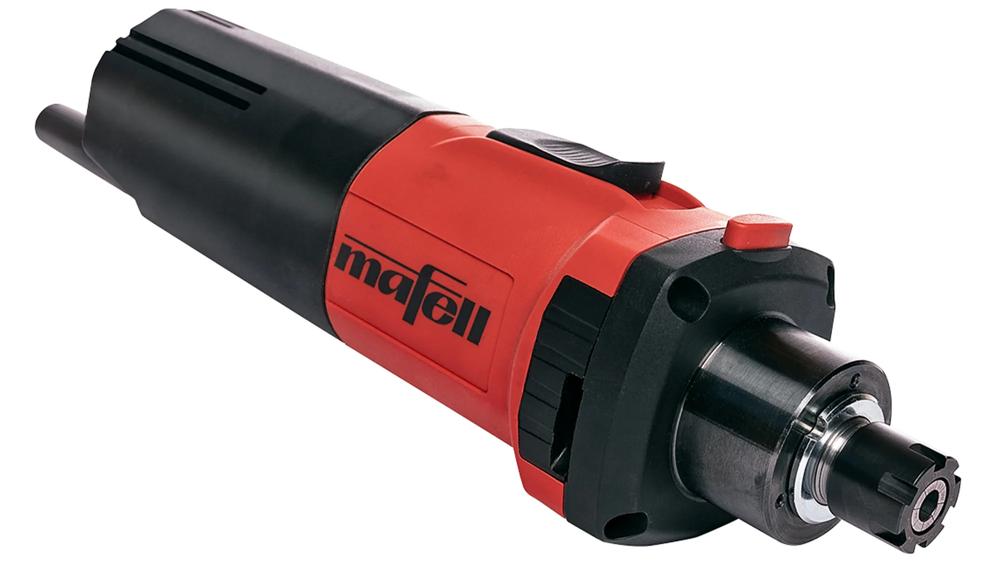

The MAFELL FM 1000 NC-ER router motor

Motor with 1,000 watts, external portal interface and overload indicator

With the FM 1000 PV-ER, MAFELL has developed a milling motor made in Germany. The high quality standard and well thought-out details make the MAFELL milling motor a competent partner for CNC-controlled machines.

Compatible accessories

MAFELL Collet ER16 Ø8 mm (precision)

Precision collet ER16 | Ø 8 mm | suitable for the collet adapter ER16 (MAF-208109)

Delivery time 2-3 days

48,79 €

incl. VAT

Art.-Nr: MAF-093756

MAFELL Collet ER16 Ø6 mm (precision)

Precision collet ER16 | Ø 6 mm | suitable for the collet adapter ER16 (MAF-208109)

Delivery time 2-3 days

48,79 €

incl. VAT

Art.-Nr: MAF-093755

MAFELL Collet ER16 Ø6.35mm (1/4") (precision)

Precision collet ER16 | Ø 6.35mm (1/4") | suitable for the collet adapter ER16 (MAF-208109)

Delivery time 2-3 days

48,79 €

incl. VAT

Art.-Nr: MAF-093760

MAFELL Collet ER16 Ø3.175 mm (1/8") (precision)

Precision collet ER16 | Ø 3.175 mm (1/8") | suitable for the collet adapter ER16 (MAF-208109)

Delivery time 2-3 days

48,79 €

incl. VAT

Art.-Nr: MAF-093757

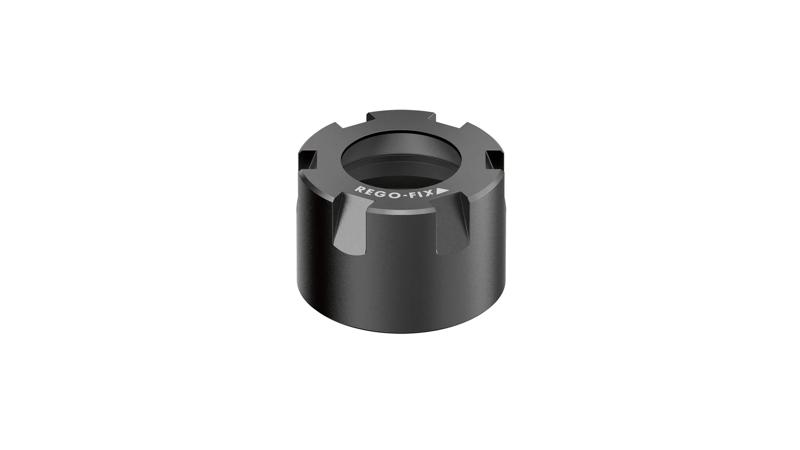

ueberwurfmutter-er16-mafell-maf-093758-01

MAFELL Union nut ER16

suitable for the ER16 collets and the ER16 adapter (MAF-208109)

Delivery time 2-3 days

45,22 €

incl. VAT

Art.-Nr: MAF-093758

MAFELL NC control cable M8 / 4-pin - 5m

For Mafell PV- and NC- router motors with external speed control | 4-pole | Length: 5 m | Socket: M8

Delivery time 2-3 days

30,94 €

incl. VAT

Art.-Nr: MAF-211868

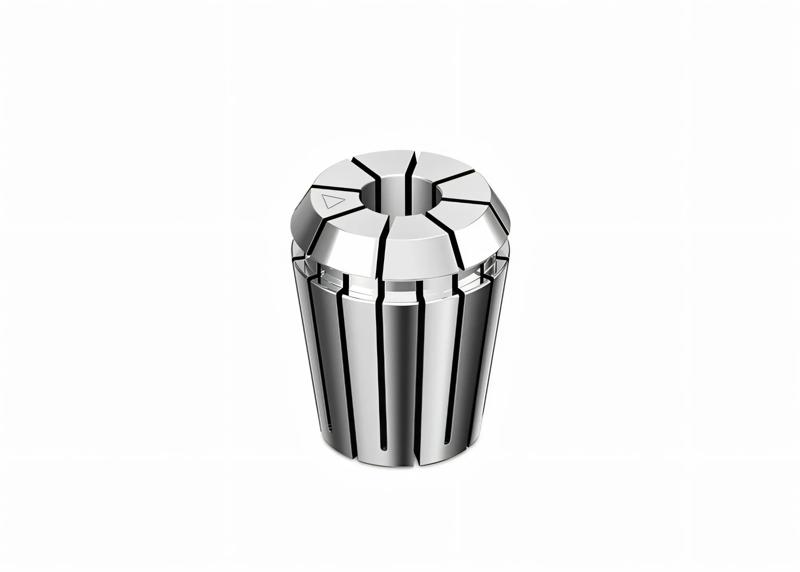

MAFELL Collet ER16 Ø4 mm (precision)

Precision collet ER16 | Ø 4 mm | suitable for the collet adapter ER16 (MAF-208109)

Delivery time 2-3 days

48,79 €

incl. VAT

Art.-Nr: MAF-093754

MAFELL Collet ER16 Ø3 mm (precision)

Precision collet ER16 | Ø 3 mm | suitable for the collet adapter ER16 (MAF-208109)

Delivery time 2-3 days

48,79 €

incl. VAT

Art.-Nr: MAF-093753

8 Products

Technical Data

Rated power consumption: 1000 watts
Collet chuck holder: from Ø 3 to Ø 10 mm
ER16 collet included in the scope of delivery: Ø 8 mm
Nominal idle speed: 4,000 - 25,000 rpm
Clamping neck: 43 mm
Dimensions L x H x W: 254 x 79 x 73 mm
Sound pressure level: 74 db (A)
Weight: 1.65 kg
Length of data / mains cable: 0.75 m / 4 m

Properties & Advantages

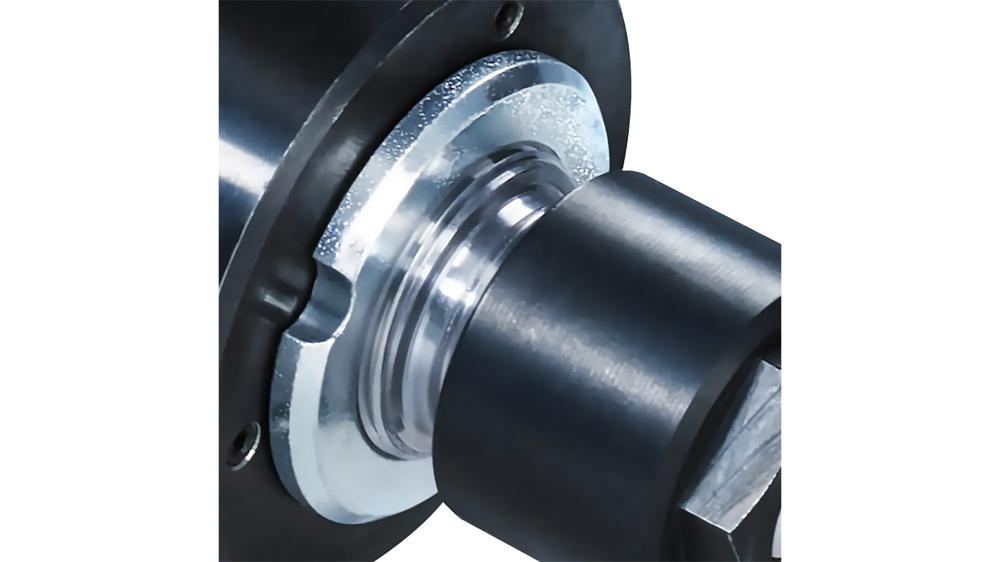

Labyrinth seal permanently protects the spindle and bearing from the smallest particles, dust and chips.
The sound pressure level is only 74 dB (A) and is therefore extremely quiet.

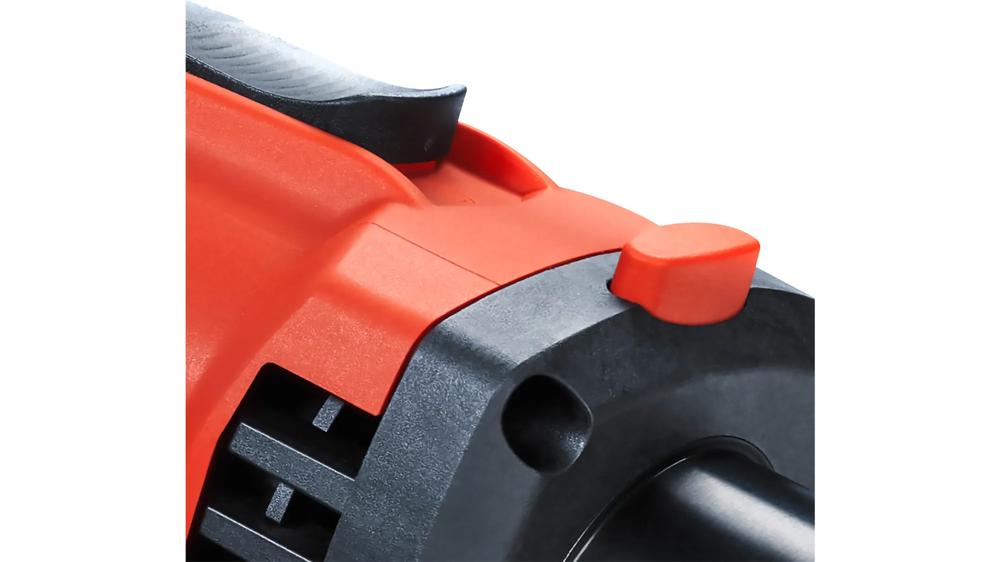

Spindle lock for easy and convenient tool changes - the spindle can be locked at the touch of a button.

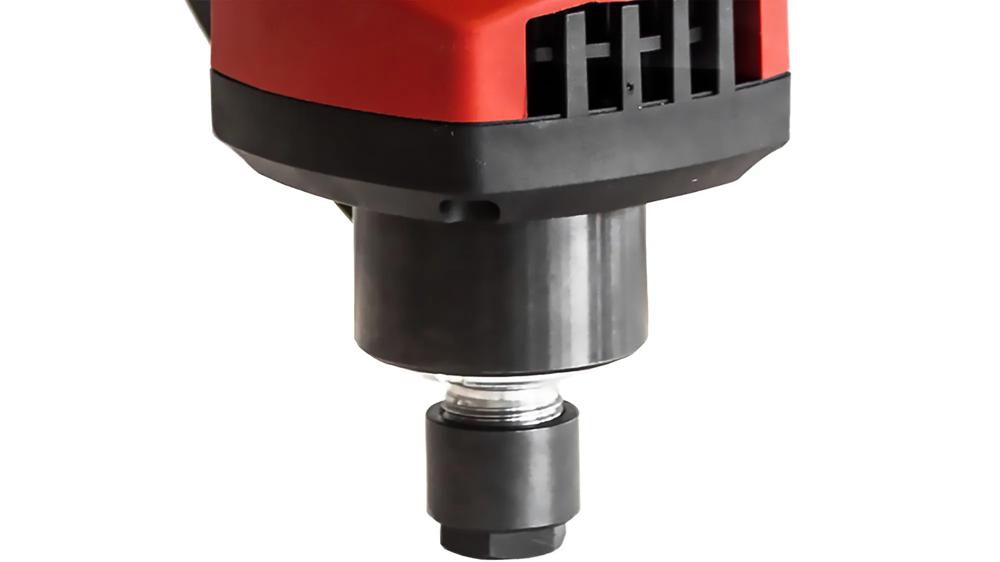

An ER16 precision collet chuck including balanced union nut is used to hold milling tools.

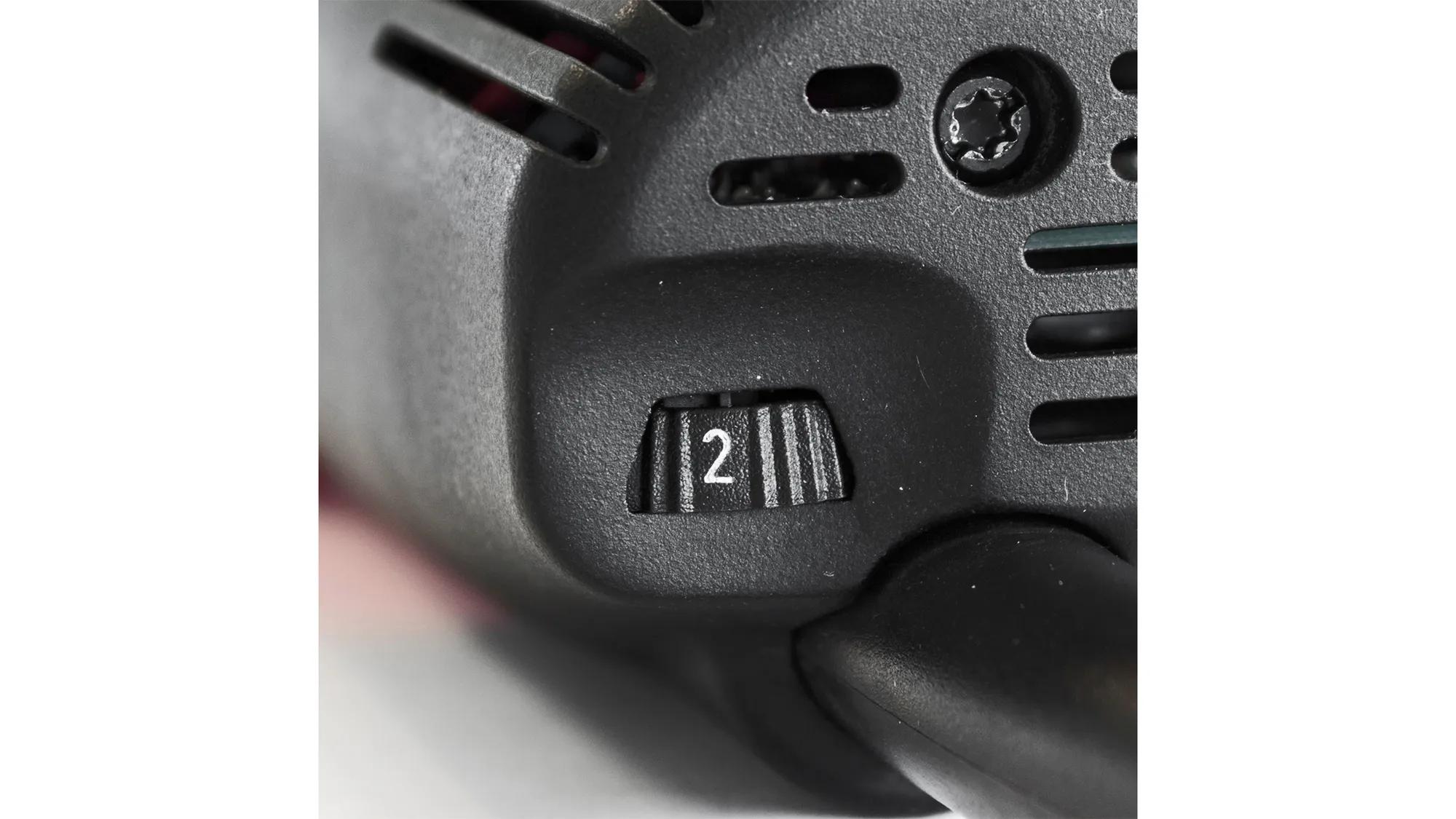

The speed can be infinitely adjusted manually or via the portal interface to suit any application.
Digital electronics with soft start, idle speed reduction, constant speed under load and overload protection (LED status display).
The FM 1000 NC-ER is manufactured under the strictest quality controls in Oberndorf am Neckar.
Before delivery, each milling cutter is run in under laboratory conditions. This increases service life and durability.
The FM 1000 PV-ER impresses with maximum concentricity of < 0.05 mm at a distance of 25 mm (< 0.01 mm in the cone).
Responsible for this exceptional precision is the filigree coordination of all components
and the fact that the armature and spindle are manufactured and balanced in one piece.
