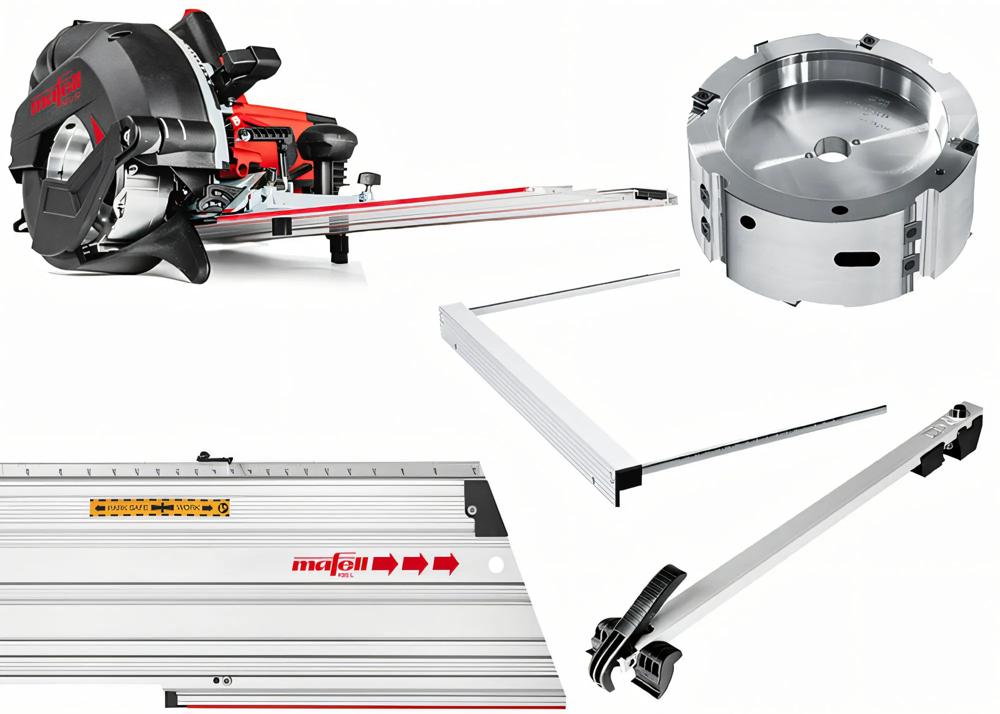

MAFELL Groove Cutter NFU 50

Flexible all-rounder for the most diverse milling operations in timber construction Versatile | Powerful | Precise

Shipping within 24 hours (working days)

2.807,21 €

incl. VAT / excl. shipping costs

Brand:MAFELL
Article no.:MAF-918701
Weight:17.6kg

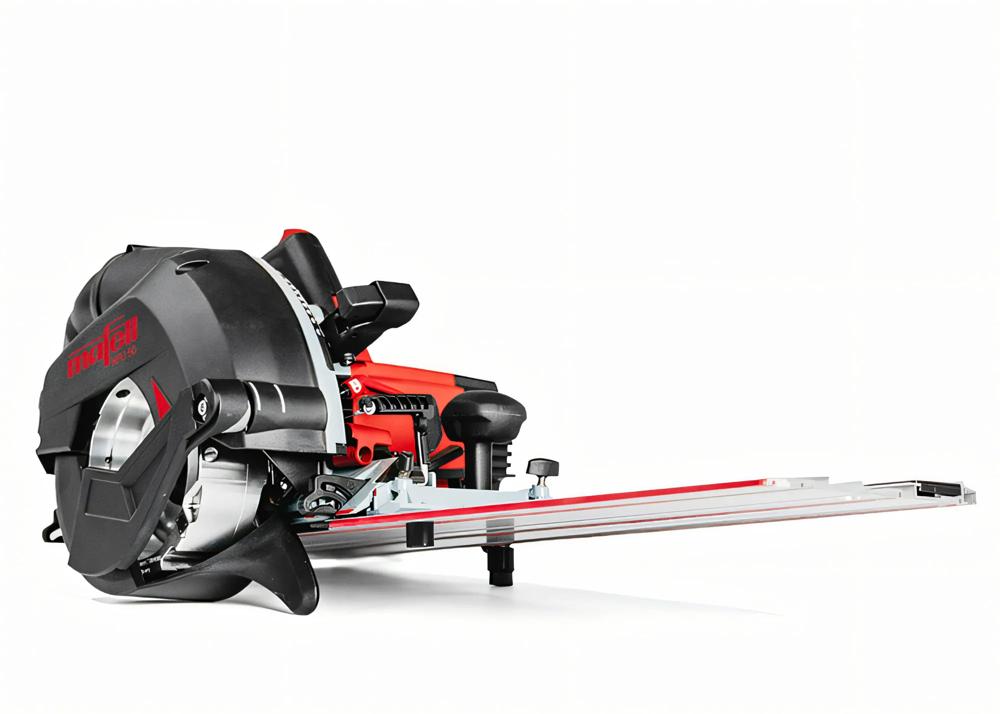

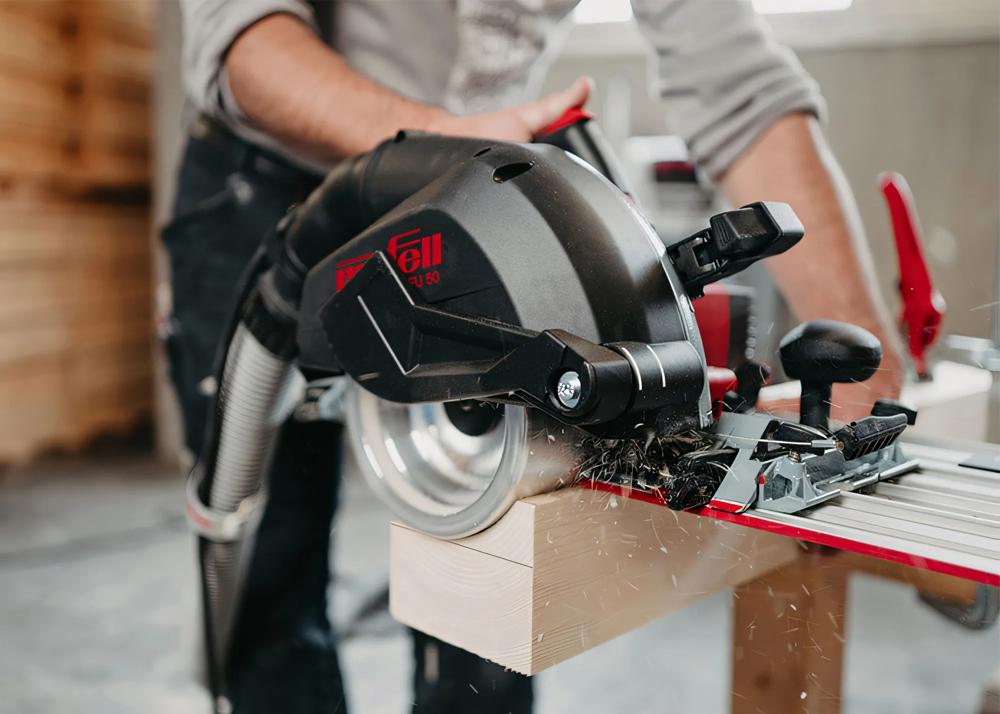

MAFELL Groove Cutter NFU 50

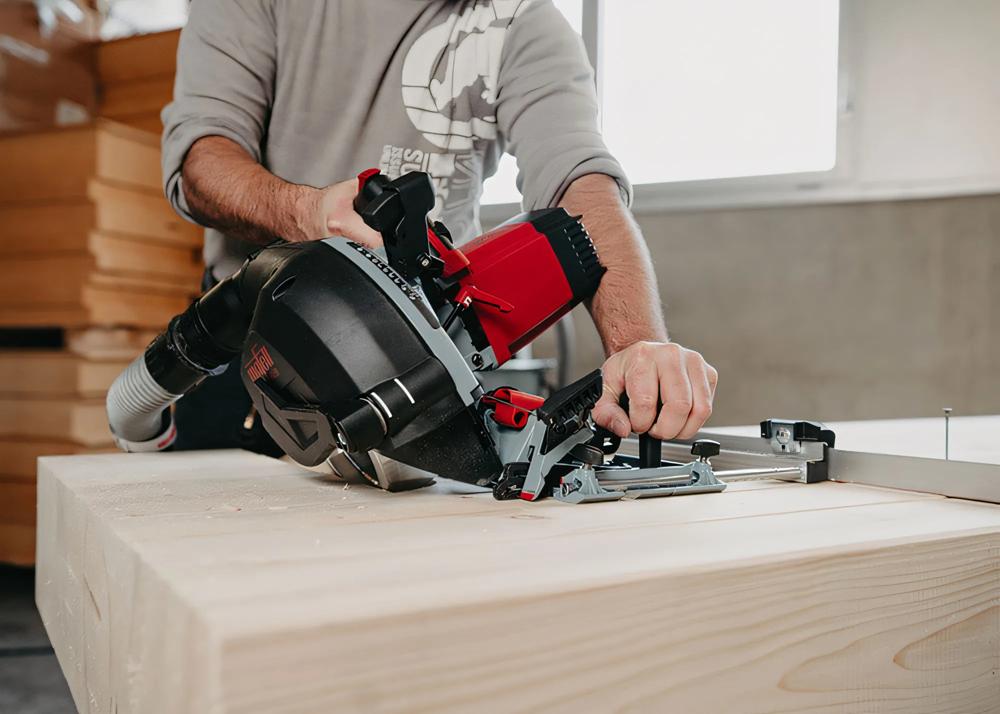

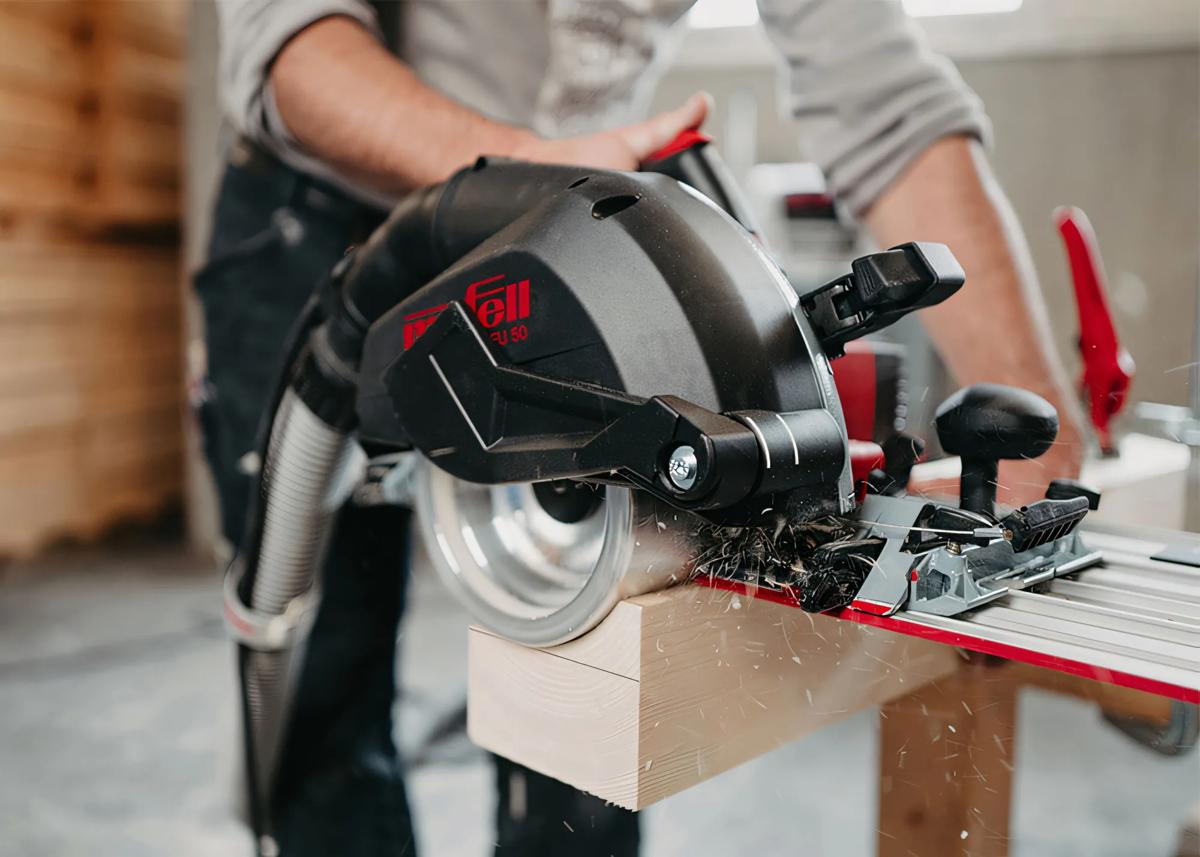

Flexible all-round machine for the most varied routing jobs in timber construction!

Best material selection and exemplary workmanship make the NFU 50 an absolute all-rounder.A wide range of accessories further extend the possibilities. Well thought-out application comfort creates energy and time for the actual task: the perfect job!

Spare parts

hm-vorschneider-oberfraese-universell-freud-fr-rg01m-aa3-01

HM pre-cutter 14 x 14 x 2 mm

L:14 mm | B: 14 mm | S:2 mm

Shipping within 24 hours (working days)

4,06 €

incl. VAT

Art.-Nr: FR-RG01M-AA3

1 Products

Technical Data

Cutting depth: 0 - 50 mm
Swivel range: 0 - 45°
Nominal operating speed: 5,900 rpm
Dimensions W x L x H (with guiding device L): 370 x 810 x 280 mm
Machine length (with guiding device L): 370 mm
Nominal power consumption: 2300 W
Nominal voltage: 230 V
Weight: 9,4 kg

Properties & Advantages

Versatile due to extensive accessories
Powerful thanks to CUprex high-performance engine. Concentrated power and high pulling power
Precisely adjustable thanks to sophisticated depth adjustment and optimally readable scales

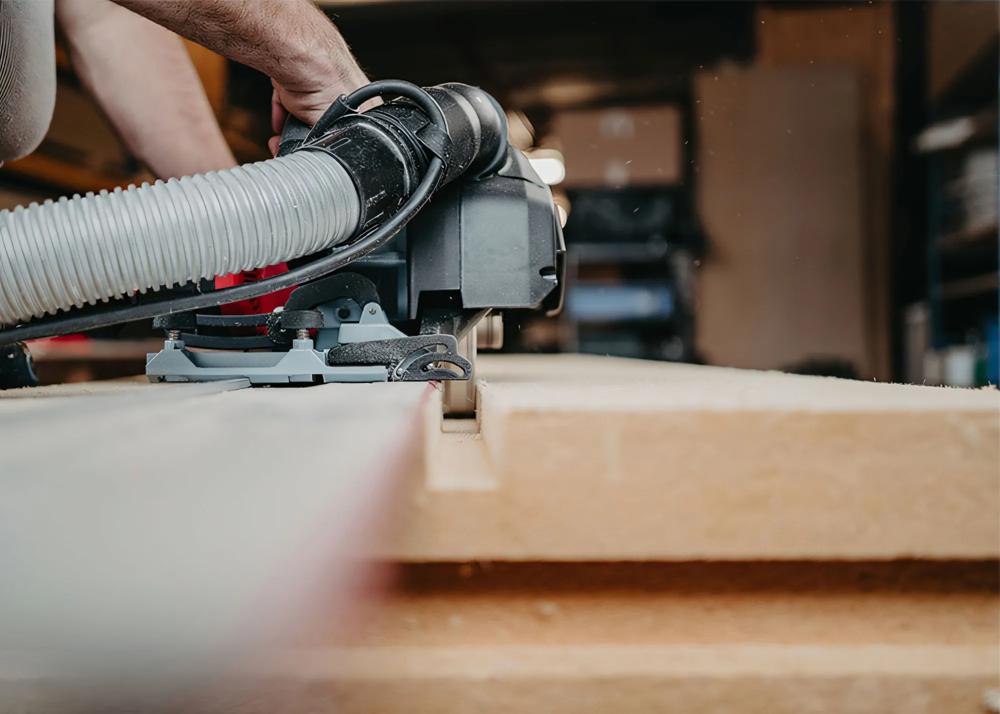

Slots up to 50 mm deep and 60 mm wide can be produced effortlessly in no time at all
Cutting head stops after 3 seconds by hydraulic brake
Flashing LED always informs the user about the cutting tool still rotating
45° pivoting cutting head.
Rotatable 58mm extraction socket reliably transports large quantities of chips
With the supplied side stop, grooves with a grid dimension of 62.5 cm can be repeated in any order without time-consuming marking
With the position indicator, the right side of the tool can always be displayed visibly

Consumables

HM pre-cutter 14 x 14 x 2 mm

L:14 mm | B: 14 mm | S:2 mm

Shipping within 24 hours (working days)

4,06 €

incl. VAT

Art.-Nr: FR-RG01M-AA3

1 Products

MAFELL Groove Cutter MFU 50

Discover now

MAFELL Guide Rail F80
Length: 800 mm
Shipping within 24 hours (working days)
90,44 €
incl. VAT
Art.-Nr: MAF-204380

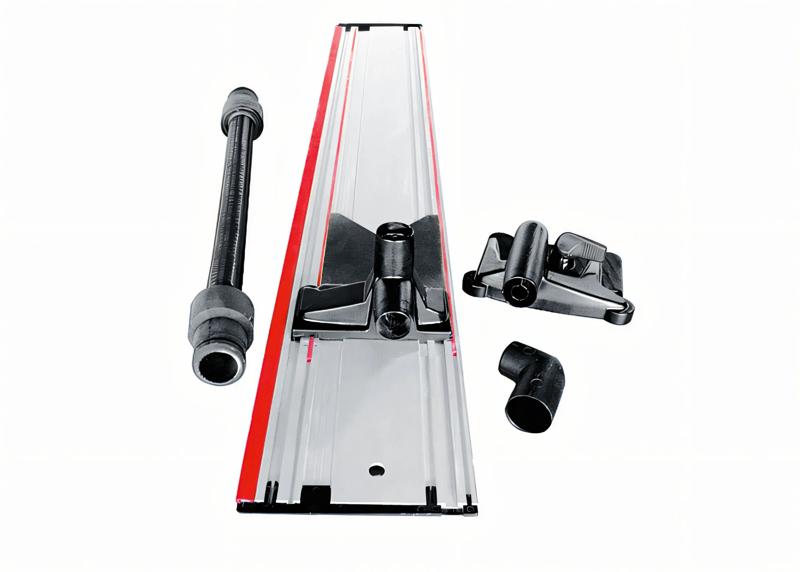

MAFELL Aerofix suction and clamping system
Includes 1.3m guide rail, adapter for top and bottom and flexible hose
Shipping within 24 hours (working days)
243,00 €
incl. VAT
Art.-Nr: MAF-204770

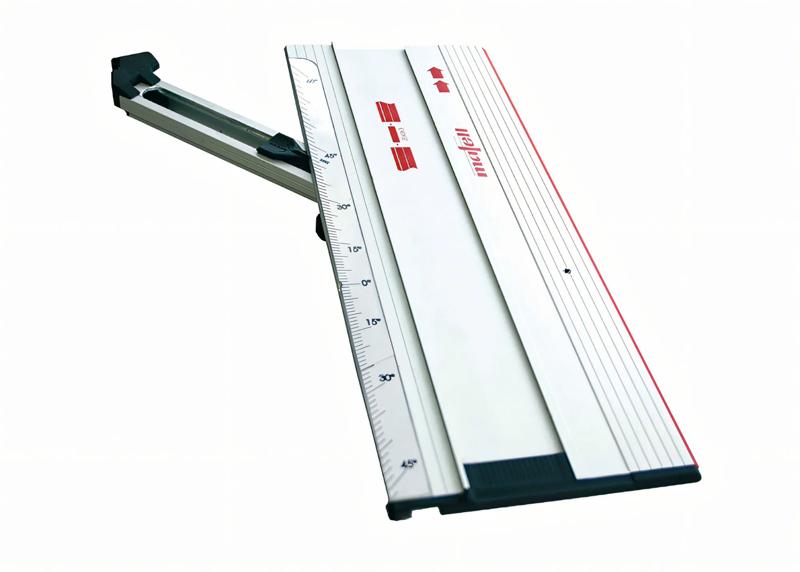

MAFELL angular stop for guide rails
Angle cuts with guide rails | Precise | Easy to use
Shipping within 24 hours (working days)
150,18 €
incl. VAT
Art.-Nr: MAF-205357

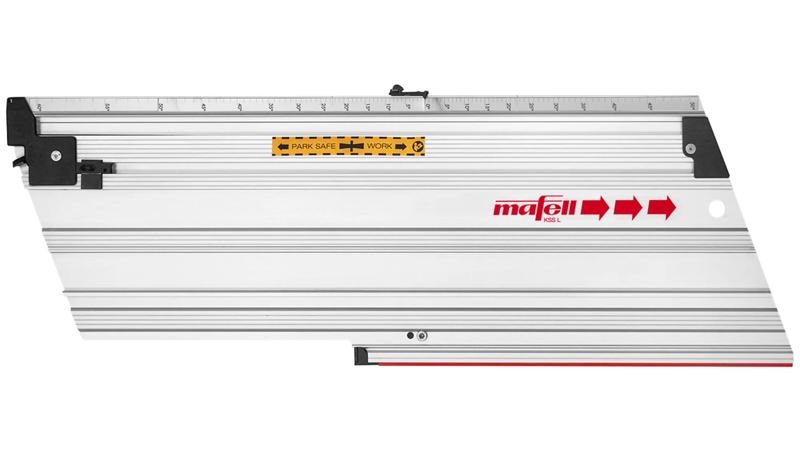

Mafell Guide Track L
