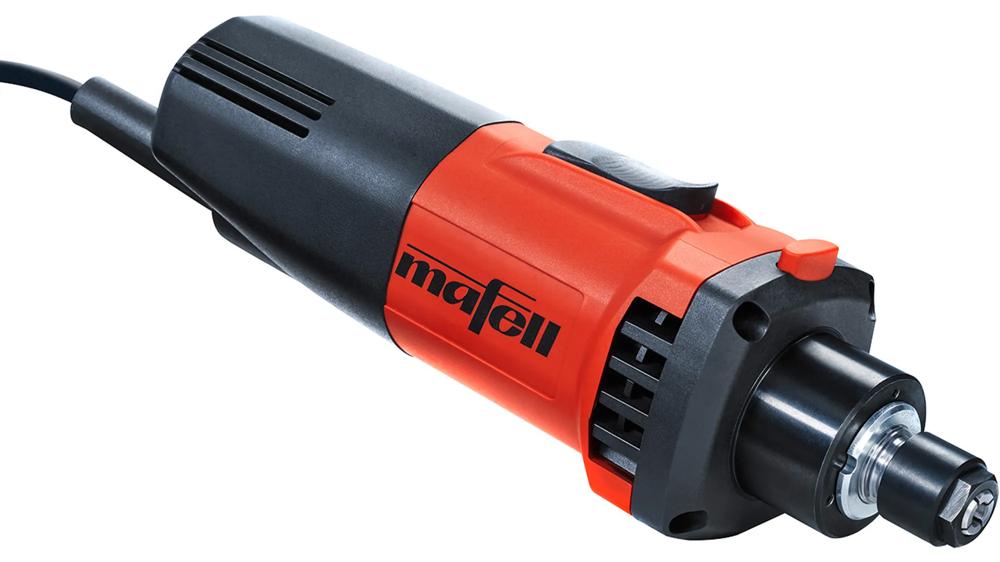

With the FM 800, MAFELL has developed a router motor Made in Germany. The high quality standard and well thought-out details make the MAFELL router motor the best partner for your Power class.
Mechanical router lift OFL3.0 | pivots from -5° to 50° | for router motors with neck Ø 43 mm | exact fine height adjustment & magnetic reduction plates
Shipping within 24 hours (working days)
709,49 €
638,54 €
incl. VAT
Art.-Nr: SA-OFL3.0
1 Products
Technical Data
Rated power consumption: 800 Watt
Collet chuck reception: from Ø 3 to Ø 8 mm
Collet in Delivery Includes: Ø 6 mm
Nominal idle speed: 7,000 - 25,000 rpm

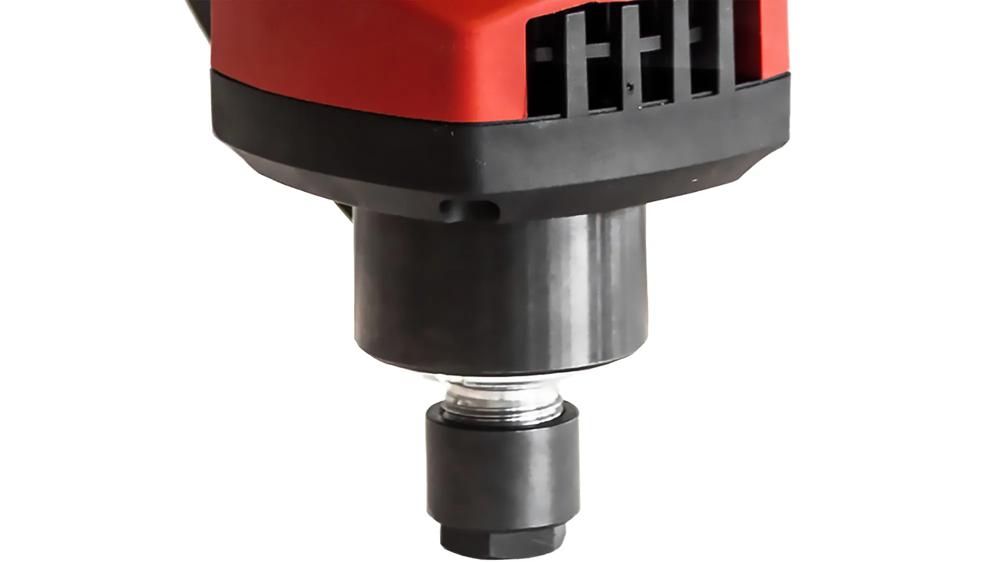

Tension neck: 43mm
Dimensions L x H x W: 254 x 79 x 73 mm
Sound pressure level: 71 db (A)
Weight: 1,60 kg
Length of connection cable: 1 m
Properties & Advantages

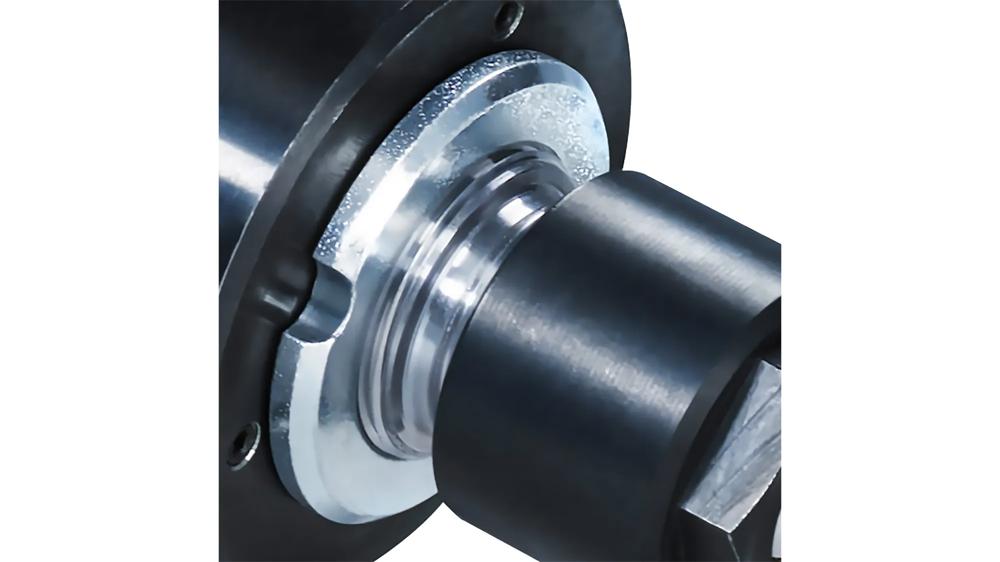

Labyrinth seal protects spindle and bearing permanently against smallest particles, dust and chips

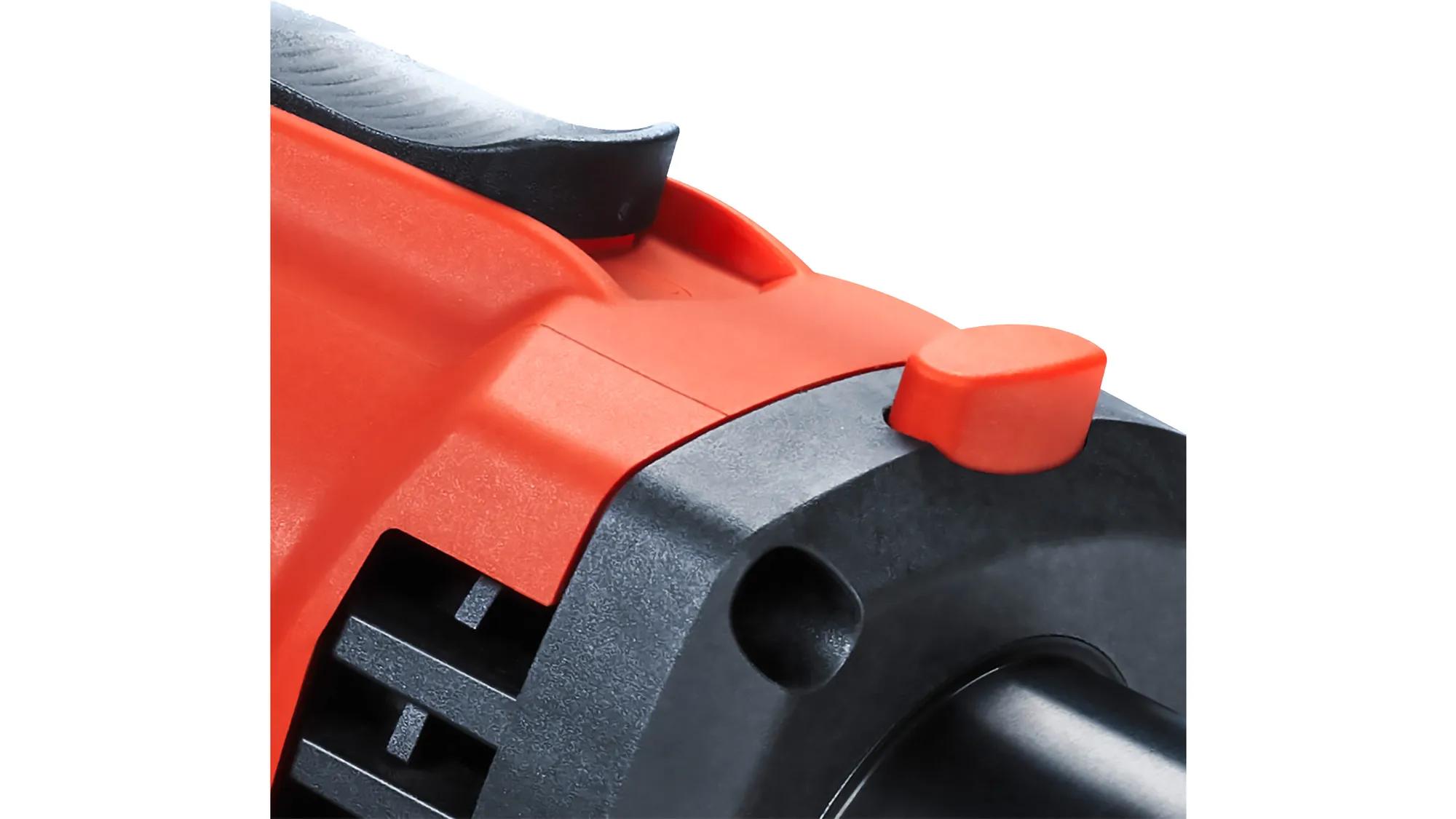

Spindle lock for easy and comfortable tool change - the spindle can be locked at the push of a button
The sound pressure level is only 71 dB (A) and is therefore extremely quiet

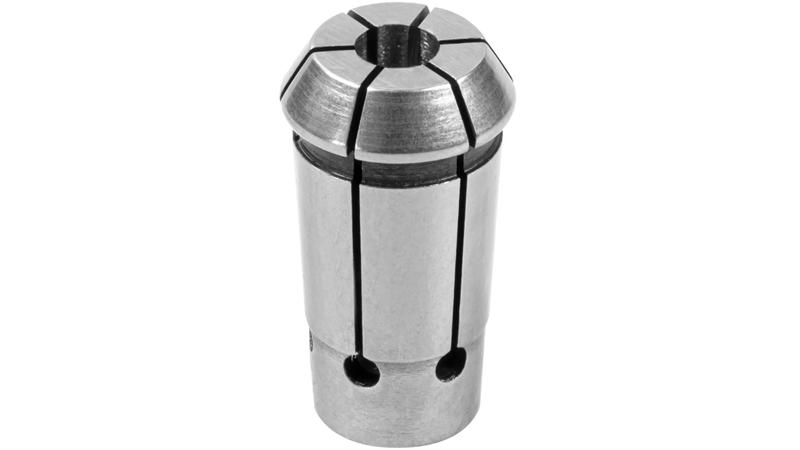

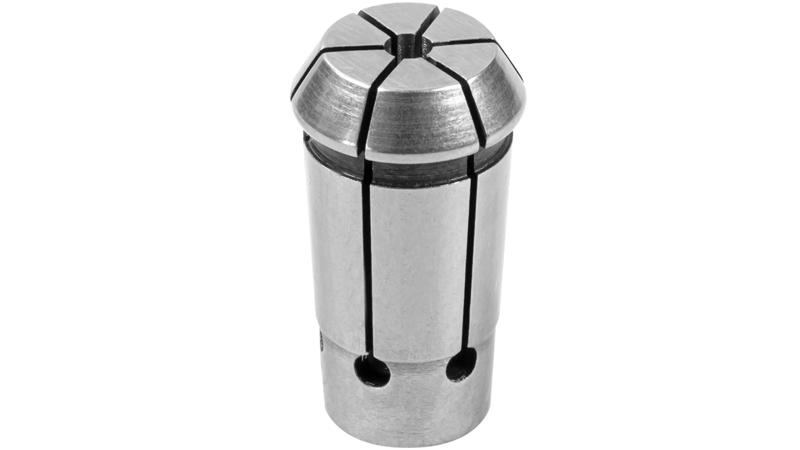

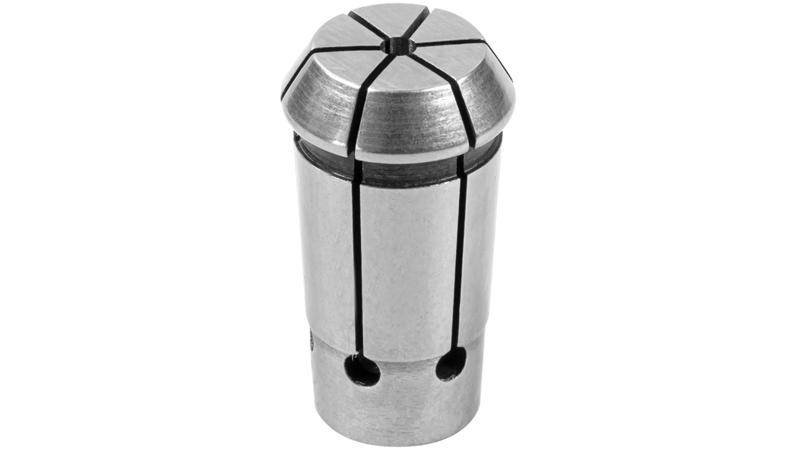

A universal collet chuck (OZ collet chuck) is used to hold standard tools
Double bearing spindle - for better absorption of axial forces,schlossa double ball bearing is used

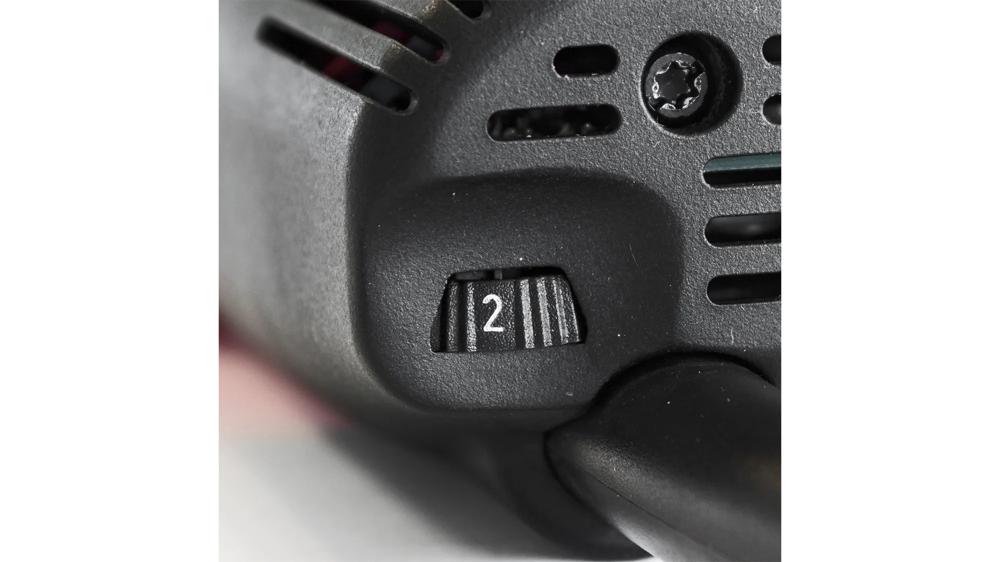

The speed can be infinitely adjusted to any application. In addition, the digital electronics are equipped with soft start, idle speed reduction, constant speed under load and Overload protection equipped
The FM 1000 is manufactured in Oberndorf am Neckar under the strictest quality controls. Before delivery, each milling cutter is run in under laboratory conditions. This increases the tool life and the service life.
The FM 1000 impresses with highest concentricity of < 0.05 mm at 25 mm distance (in the cone < 0.01 mm). Responsible for this extraordinary precision is the filigree Coordination of all components and the fact that armature and spindle are manufactured and balanced from one piece.
