Rebate cutters

D: 24 mm l NL: 12,7 mm l Rebate depths E: 4,0 | 2,5 | 1,0 mm | KL: 16 | 19 | 22 mm

Delivery time 2-3 days

110,90 €

incl. VAT / excl. shipping costs

Brand:Trend
Article no.:T-46-44X8MMTC
Weight:0.102kg

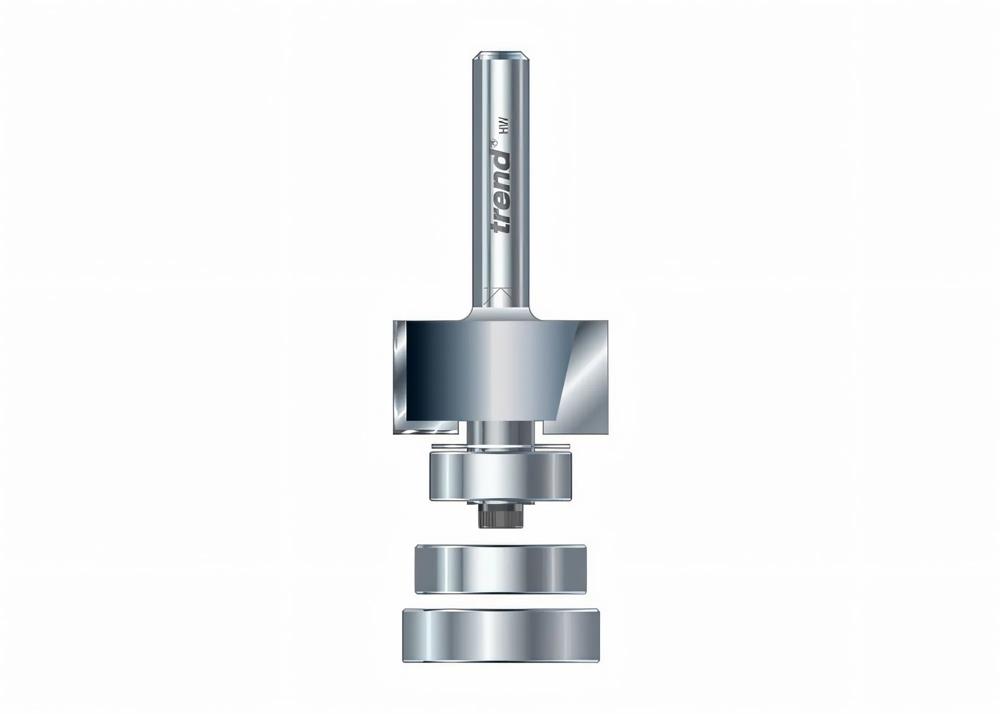

PROFESSIONAL rebate cutter set with 3 ball bearings

Absolute top quality, for the highest demands and precision, finest grinding, extremely long service life and with a pulling cut.

Compatible accessories

kugellager-oberfraeser-ad1905-id635-trend-t-b19-01

Ball bearing for router

OD: 19,05 mm l ID: 6,35 mm l H: 7,14 mm

Delivery time 2-3 days

9,70 €

incl. VAT

Art.-Nr: T-B19

kugellager-oberfraeser-ad21-id635-trend-t-b21-01

Ball bearing for router

OD: 21 mm l ID: 6,35 mm l H: 5 mm

Delivery time 2-3 days

20,63 €

incl. VAT

Art.-Nr: T-B21

kugellager-oberfraeser-ad20-id635-trend-t-b20-01

Ball bearing for router

OD: 20 mm l ID: 6,35 mm l H: 5,9 mm

Delivery time 2-3 days

20,63 €

incl. VAT

Art.-Nr: T-B20

kugellager-oberfraeser-ad24-id635-trend-t-b24-01

Ball bearing for router

OD: 24 mm l ID: 6.35 mm l H: 4.7 mm

Delivery time 2-3 days

20,66 €

incl. VAT

Art.-Nr: T-B24

kugellager-oberfraeser-ad15-id635-trend-t-b15-01

Ball bearing for router

OD: 15 mm l ID: 6,35 mm l H: 4,76 mm

Delivery time 2-3 days

22,21 €

incl. VAT

Art.-Nr: T-B15

kugellager-oberfraeser-ad18-id635-trend-t-b18-01

Ball bearing for router

OD: 18 mm l ID: 6,35 mm l H: 5,56 mm

Delivery time 2-3 days

22,75 €

incl. VAT

Art.-Nr: T-B18

kugellager-oberfraeser-ad23-id635-trend-t-b23-01

Ball bearing for router

OD: 23 mm l ID: 6,35 mm l H: 5,9 mm

Not available at the moment

Art.-Nr: T-B23

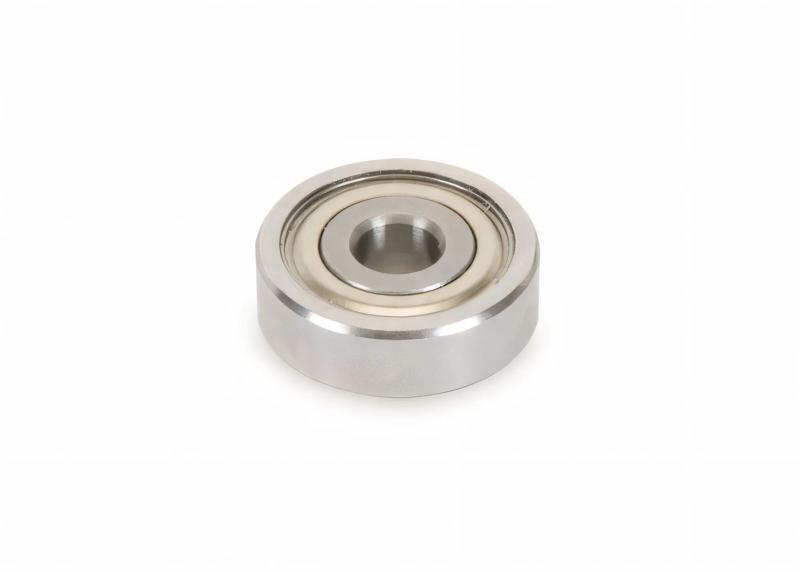

kugellager-oberfraeser-ad22-id635-trend-t-b22-01

Ball bearing for router

ID: 6,35 mm (1/4") | OD: 22 mm | H: 6 mm

Not available at the moment

Art.-Nr: T-B22

kugellager-oberfraeser-ad14-id635-trend-t-b14-01

Ball bearing for router

OD: 14 mm l ID: 6,35 mm l H: 4,76 mm

Delivery time 2-3 days

22,21 €

incl. VAT

Art.-Nr: T-B14

kugellager-oberfraeser-ad1588-id635-trend-t-b16-01

Ball bearing for router

Spare ball bearing | ID: 6,35 mm | OD: 15,88 mm | H: 4,76 mm

Not available at the moment

Art.-Nr: T-B16

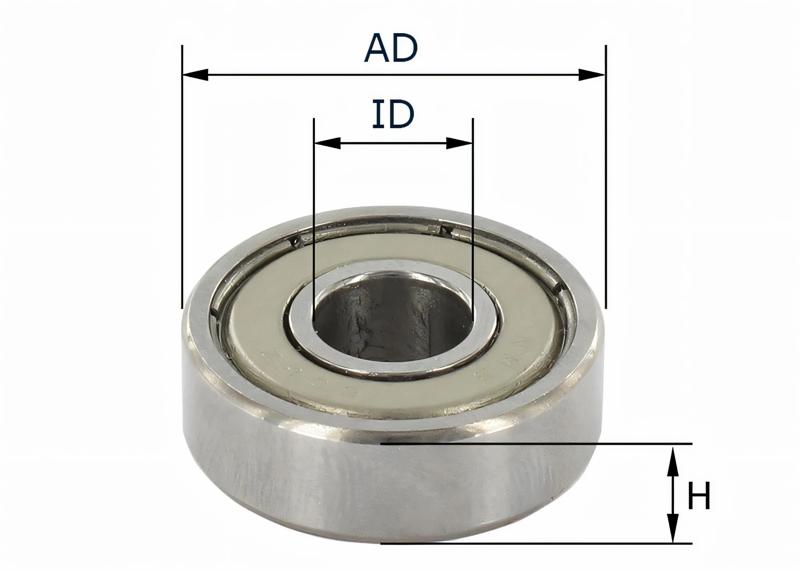

kugellager-oberfraeser-ad17-id635-trend-t-b17-01

Ball bearing for router

OD: 17 mm l ID: 6,35 mm l H: 5,56 mm

Delivery time 2-3 days

22,21 €

incl. VAT

Art.-Nr: T-B17

11 Products

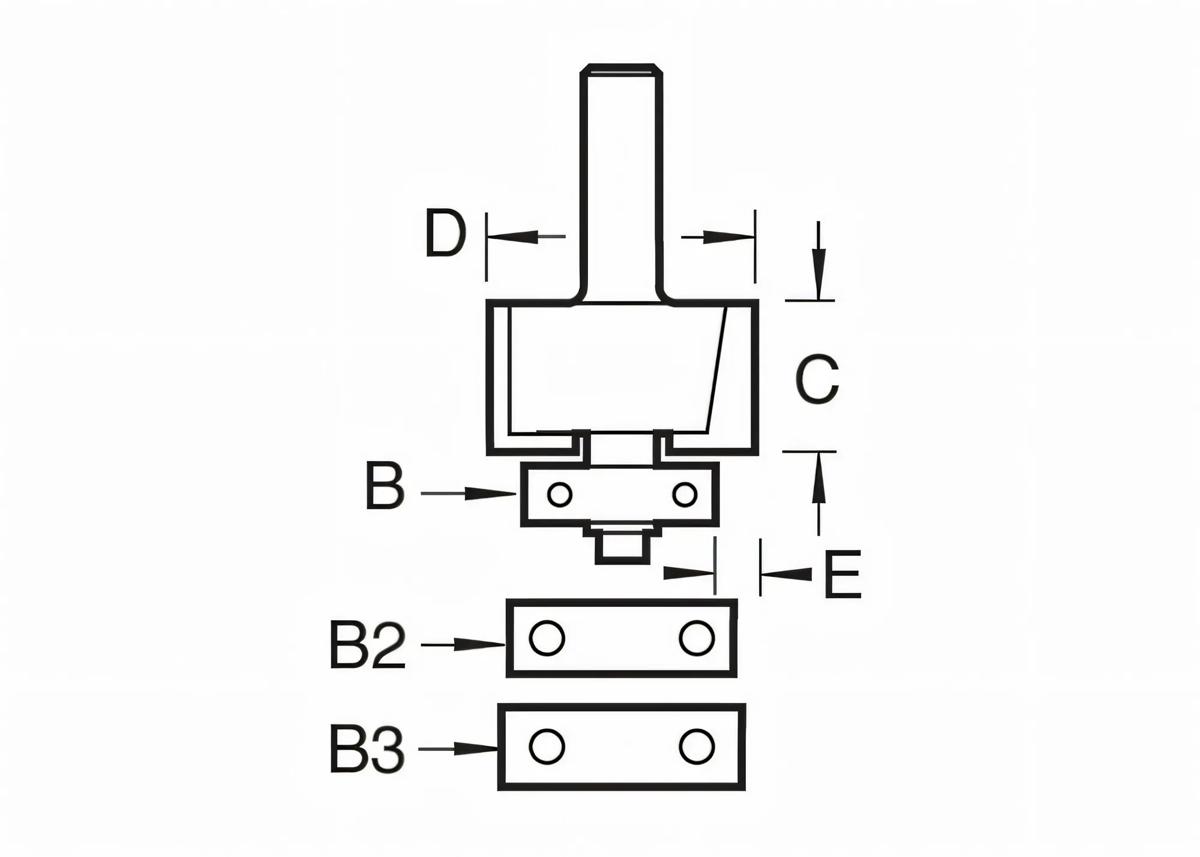

Technical Data

D: 24 mm
Working length (C): 12.7 mm
Ball bearing (B): 22 mm
Fold depth (E): 1 mm
Ball bearing (B2): 19 mm
Fold depth (E2): 2.5 mm
Ball bearing (B3): 16 mm
Fold depth (E3): 4 mm
S: 8 mm

Additional possible ball bearings - please order separately

D 20 mm (B20) for rebate depth 2.0 mm
D 18 mm (B18) for rebate depth 3.0 mm
D 17 mm (B17) for rebate depth 3.5 mm
D 15 mm (B15) for rebate depth 4.5 mm
D 14 mm (B14) for fold depth 5.0 mm
D 12.7 mm (B127) for fold depth 5.6 mm

Properties & Advantages

Hartmetall (HM) aus freud eigener Entwicklung und Herstellung
Perma-Shield für höherer Lebensdauer, Korrosionsschutz, Signalfarbe und einfachere Reinigung
Made in Italy
