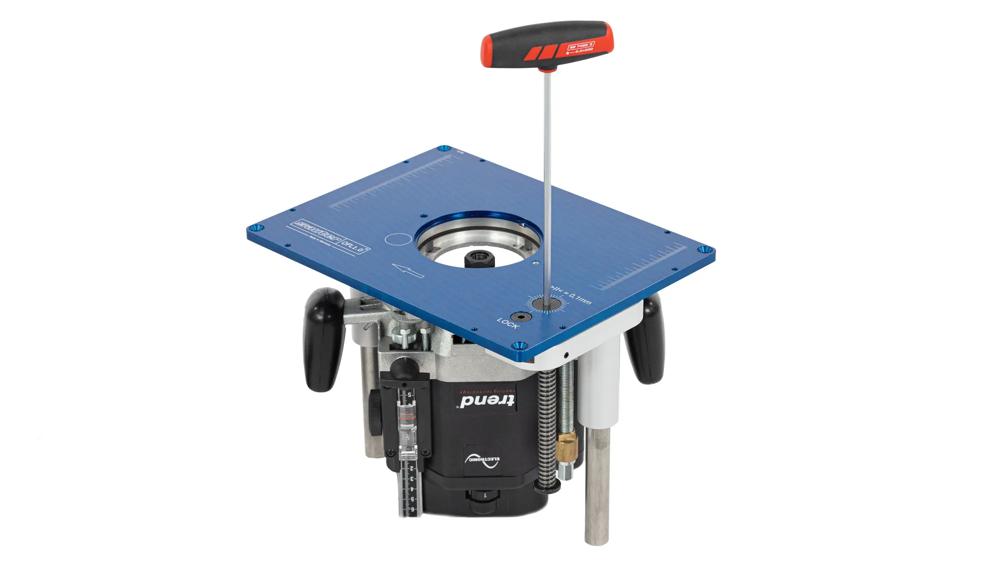

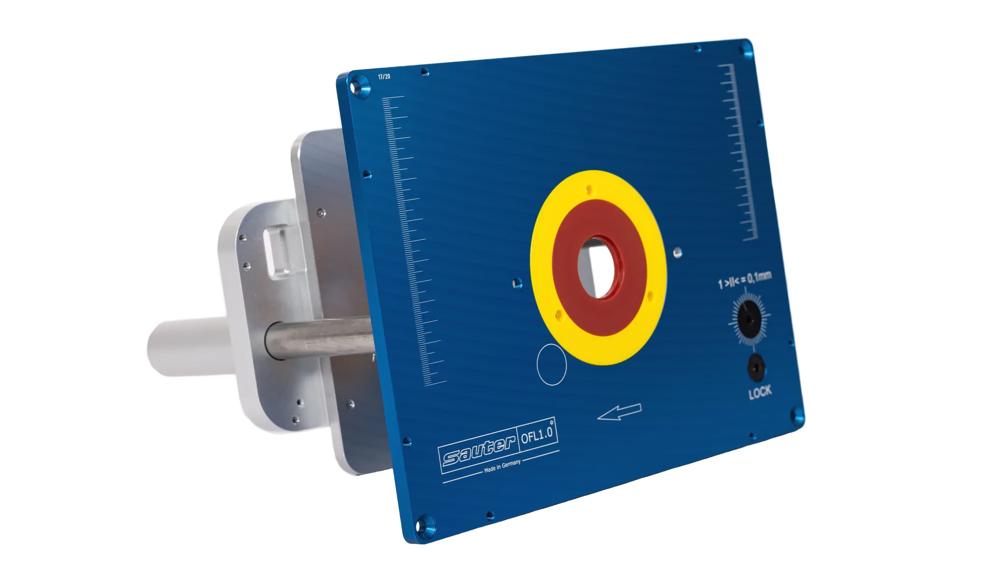

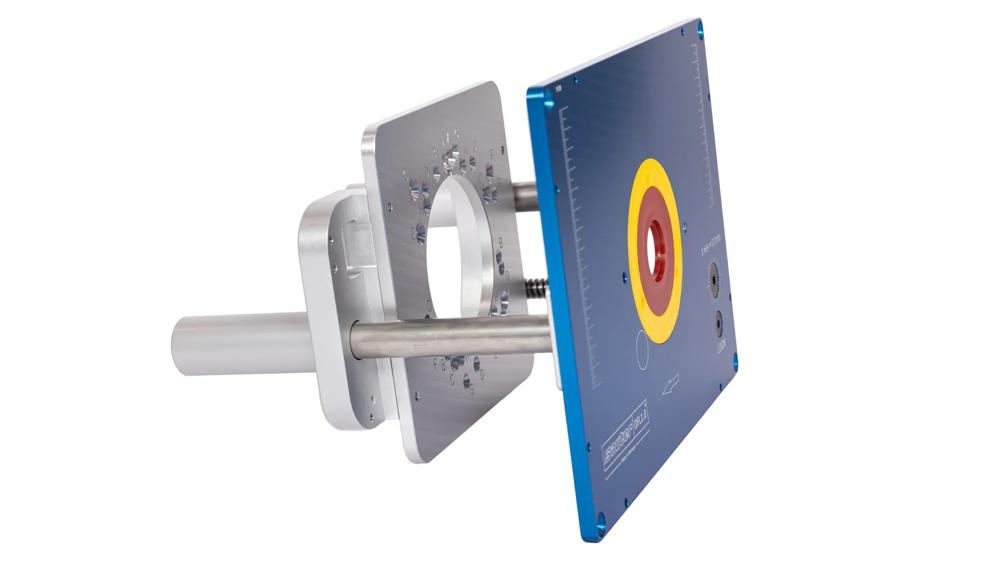

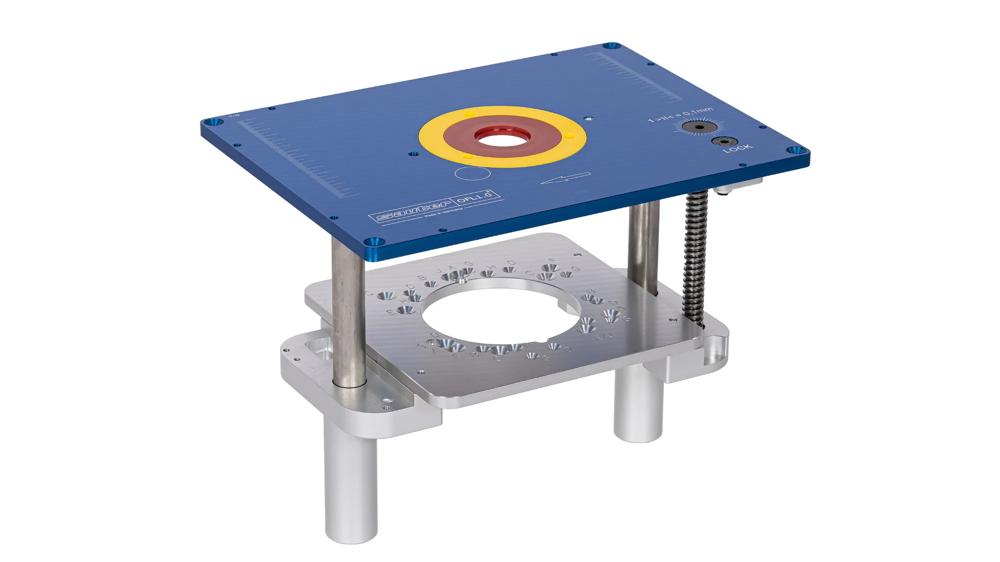

Router Lift OFL1.0

Router Lift OFL1.0 | for Router Table-installation with exact fine height adjustment | Installation dimension: 306 x 229 x 9 mm

Shipping within 24 hours (working days)

404,98 €

364,49 €

incl. VAT / excl. shipping costs

Brand:sauter
Article no.:SA-OFL1.0
Weight:6.5kg

The first Router Lift OFL1.0 from sauter

Router Lift OFL1.0 "Made in Germany" for common European routers

The Router Lift OFL1.0 was developed and produced for sauter GmbH in cooperation with a German manufacturer. For the router lift we promise absolutely first-class, solid Materiality, 1A processing and well thought-out function. - Genuinely Made in Germany!

Compatible accessories

oberfraeslift-hoeheneinstellung-handkurbel-sauter-sa-ofl-kurbel-01

Hand crank for sauter router lifts

Fine height adjustment for all sauter OFL router lifts | Allen Key Size 5

Shipping within 24 hours (working days)

19,56 €

17,61 €

incl. VAT

Art.-Nr: SA-OFL-KURBEL

fraesschablone-buendigfraeser-sauter-set-fs-11651-01

Routing template for ELP & OFL incl Router Cutter

for insert plates and sauter router lifts | made of MDF - suitable for panel size 306 x 229 mm

Shipping within 24 hours (working days)

80,13 €

incl. VAT

Art.-Nr: SET-FS-11651

befestigungsplatten-nivellierrahmen-sauter-sa-99600006-01

Levelling frame for insert plates

for levelling of mounting plates and OFLs | For alignment in router table- especially with softer table top material

Shipping within 24 hours (working days)

21,57 €

incl. VAT

Art.-Nr: SA-99600006

fraesmotor-inkl-oberfraesenlift-adapter-sauter-set-fm1000-ofl-adap-01

Sauter router motor incl. adapter for OFL

tool-free cutter change | incl. mounting adapter for sauter OFL | compatible with the milling lifts OFL1.0, OFL2.0 & OFL2.0-AD43

Shipping within 24 hours (working days)

509,00 €

incl. VAT

Art.-Nr: SET-FM1000-OFL-ADAP

oberfraeslift-fraesmotor-adapter-sauter-sa-adap-fm1000-01

Adapter for sauter FM1000-OFL routing motor

for mounting the motor with quick-change system on sauter OFL lifts | suitable for sauter router lifts OFL1.0, OFL2.0 & OFL2.0-AD43

Shipping within 24 hours (working days)

51,10 €

45,99 €

incl. VAT

Art.-Nr: SA-ADAP-FM1000

hoehenmessgeraet-digital-wixey-wx-wr525-01

Wixey Digital Height Gauge

Automatic measuring (1/1000mm) on the router lift | Ideal accessory for the sauter router lifts

Shipping within 24 hours (working days)

84,89 €

incl. VAT

Art.-Nr: WX-WR525

fraesschablone-einlegeplatten-sauter-sa-elp-fs-01

Template ELP-FS for insert plates

for mounting and insertion plates | made of MDF - for insert plates with dimensions 306 x 229 mm

Shipping within 24 hours (working days)

30,95 €

incl. VAT

Art.-Nr: SA-ELP-FS

freifraesanschlag-mit-schutzschild-sauter-sa-rts-kit-01

Starter Pin with Protective Shield

Perfect accessory for all sauter OFL and ELP | Safely keeps fingers protected

Shipping within 24 hours (working days)

55,80 €

incl. VAT

Art.-Nr: SA-RTS-KIT

ofl-befestigungsplatten-montagesatz-alu-20teilig-sauter-sa-99600005-01

Mounting kit aluminium

for the installation of mounting plates and OFLs | 20-piece set made of high-quality aluminium

Shipping within 24 hours (working days)

34,51 €

incl. VAT

Art.-Nr: SA-99600005

9 Products

Technical Data

Distance from the top edge of the inlay plate to the base plate of the mounted router: 14 mm (Routing Depthloss)

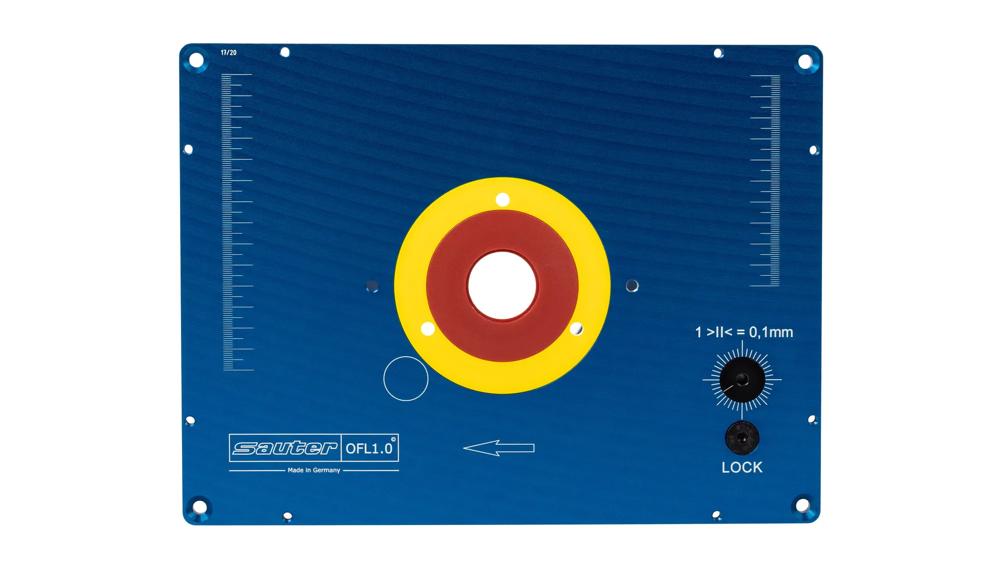

Dimension insert plate: 306 x 229 x 9 mm
Corner radius of insert plate: 6 mm
Height adjustment travel/rotation: 4 mm
Height router lift (max. extended): 240mm
Max. Adjustment travel: 105 mm
Max. Cutter diameter: 86 mm (without insert ring)
Weight: 4,5 kg

Router lift OFL1.0
