Rebate Cutters
This routing insert can be used to rout rebates, i.e. right-angled shouldering at the edge of the workpiece. Areas of application are e.g. frames, doors, panels or drawers made of soft and hard wood.
Rebate cutter with ball bearing
Since the rebate cutters are equipped with a ball bearing, you do not need an additional guide to guide the cutter cleanly and precisely along the edge. With a replaceable ball bearing, up to 6 different rebate depths can be achieved with just one cutter.
Read more
For insert grooving cutter F-491110.
Item no.: F-491389Delivery in 1-2 business days
For cutter 491079
Item no.: F-491387Delivery in 1-2 business days

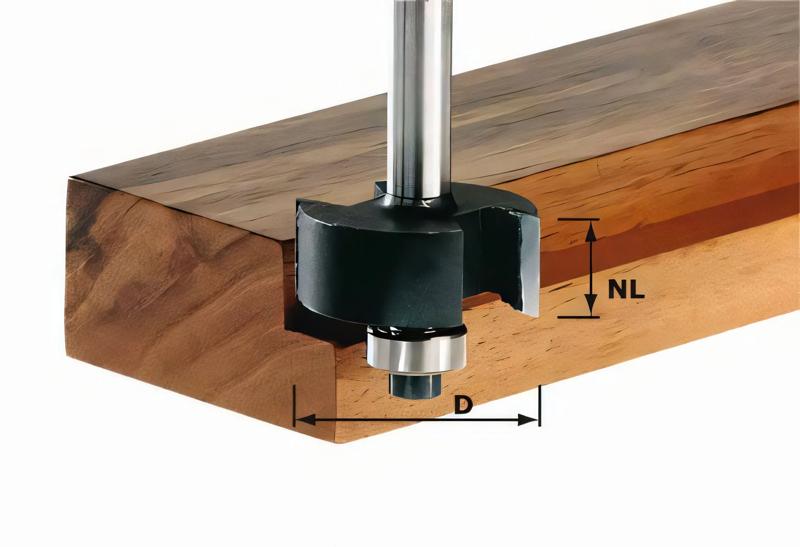

D: 31,7 mm | NL: 12,7 mm | Rebate depth: 9,5 mm | GL: 54 mm
Item no.: F-491022Delivery in 1-2 business days
For cutters 491080, 492715
Item no.: F-491388Delivery in 1-2 business days
For cutter 491078
Item no.: F-491386Delivery in 1-2 business days
D: 24 mm | B: 13 mm | Rebate depth E: 4 mm | L: 54 mm
Item no.: KLE-C121-240-RDelivery in 1-2 business days

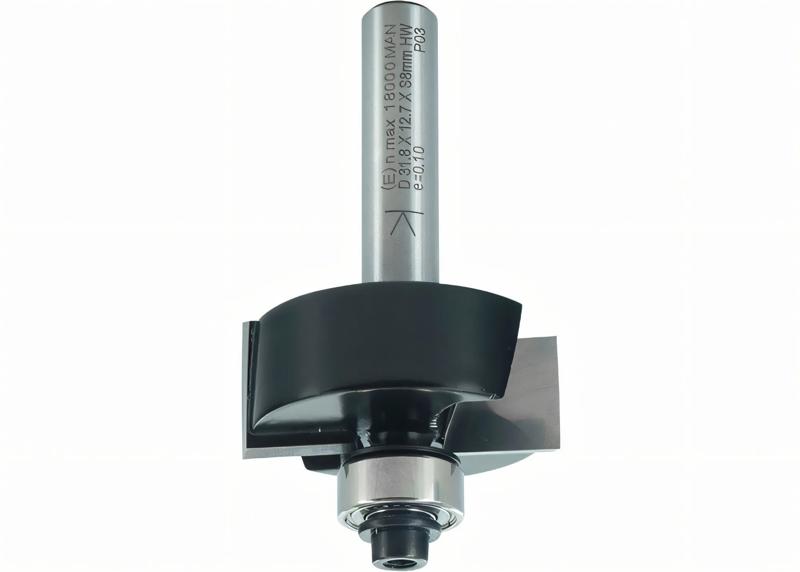

D 31,8 mm | NL 12,7 mm | T 9.5 mm | S 12 mm | SL 40 mm
Item no.: E-16640Delivery in 1-2 business days
D: 50 mm | NL: 30 mm
Item no.: F-489284Delivery in 1-2 business days
D: 24 mm l NL: 12,7 mm l Rebate depths E: 4,0 | 2,5 | 1,0 mm | KL: 16 | 19 | 22 mm
Item no.: T-46-44X8MMTCReplenishment is on the way
D 34,9 mm | NL 12,7 mm | S 12 mm | SL 40 mm | GL 60 | T 12,7 / 11,1 / 9,5 / 7,9 mm | ØKL 9,52 / 12,7 / 15,88 / 19,05 mm
Item no.: E-16710Delivery in 1-2 business days
D: 31,8 mm l NL: 12,7 mm l SL: 32 mm l Rebate depth T: 9,5 mm
Item no.: E-16620Delivery in 1-2 business days

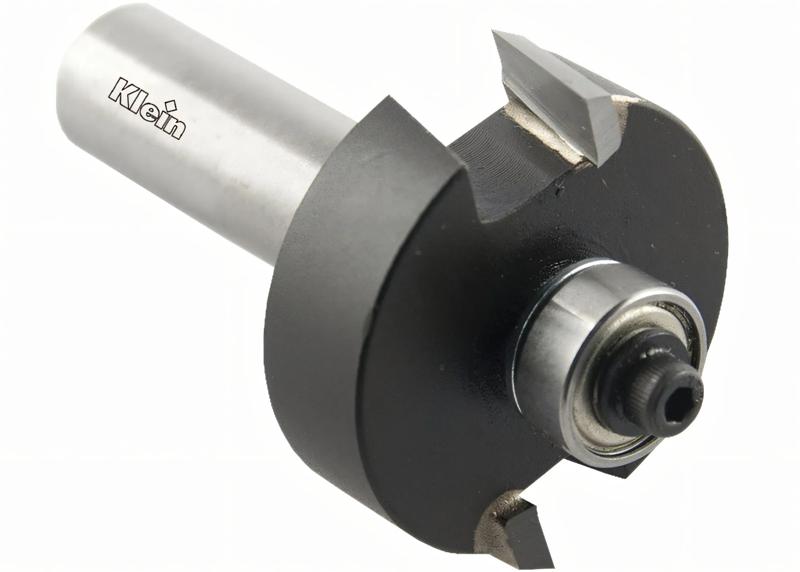

D: 35 mm | B: 13 mm | E: 8-9.5-11-12.7 mm | L: 60 mm
Item no.: KLE-E150-850-RDelivery in 1-2 business days
D: 34,9 mm l Rebate depths: 7,9 | 9,5 | 11,1 | 12,7 mm | NL: 12,7 mm l SL: 32 mm
Item no.: E-16690Delivery in 1-2 business days
D: 38 mm | NL: 12,7 mm | Rebate depth T: 12,7 mm | GL: 56 mm
Item no.: TI-RCB12-8Delivery in 1-2 business days
D: 31,8 mm | NL: 13,2 mm | Rebate depth T: 9,5 mm | KL: 12,7 mm | GL: 55,7 mm | S: 8 mm | Z: 2
Item no.: FR-32-10008PReplenishment is on the way

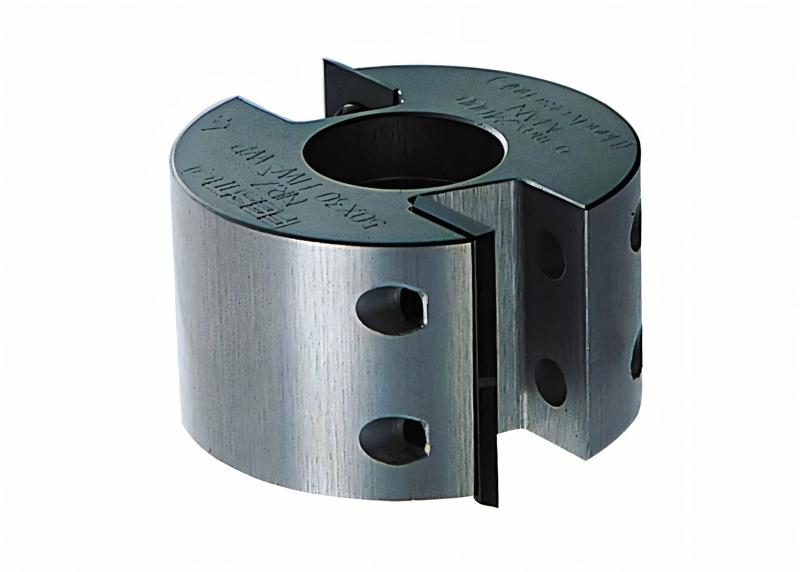

Interchangeable blades, incl. screws | 1 pair - for folding head FK D 50x30
Item no.: F-489286Delivery in 1-2 business days
D: 35 mm | B: 13 mm | Rebate depth E: 11 mm | L: 51 mm | KL: 12,7
Item no.: KLE-C121-350-RDelivery in 1-2 business days

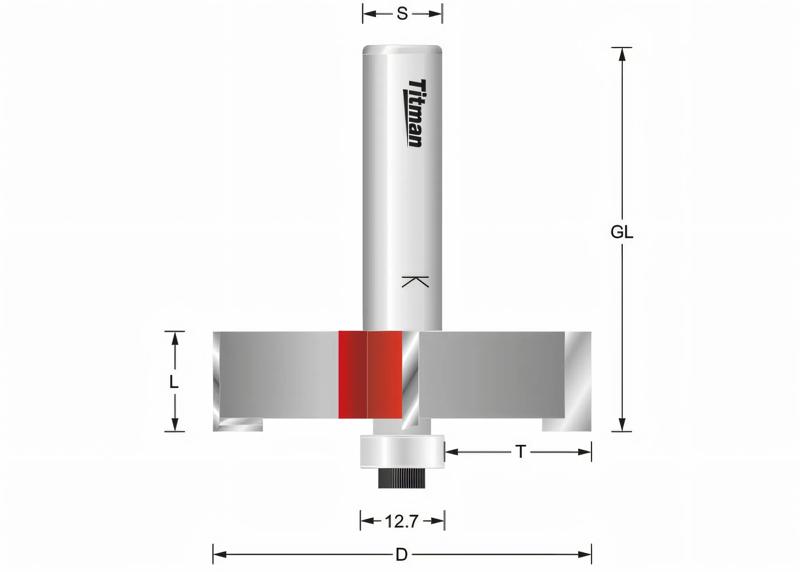

Rebate milling cutter HM with ball bearing | D:- 57 mm | NL:- 15 mm | D: 22,2 mm | GL:- 60 mm
Item no.: TI-RCB57-12Delivery in 1-2 business days
D: 35 mm | NL: 12,7 mm | Rebate depths T: 7,9 | 9,5 | 11,1 | 12,7 mm | GL: 54,4 mm | S: 8 mm
Item no.: FR-32-50208PReplenishment is on the way
D: 35 mm | NL: 12,7 mm | Rebate depth T: 11 mm | GL: 54,7 mm | S: 8 mm | Z: 2
Item no.: FR-32-50008PReplenishment is on the way
D: 35 mm | NL: 12,7 mm | Rebate depths T: 0 | 3,2 | 6,3 | 7,9 | 9,5 | 11,1 | 12,7 mm | GL: 54,4 mm | S: 8 mm
Item no.: FR-32-50408PReplenishment is on the way

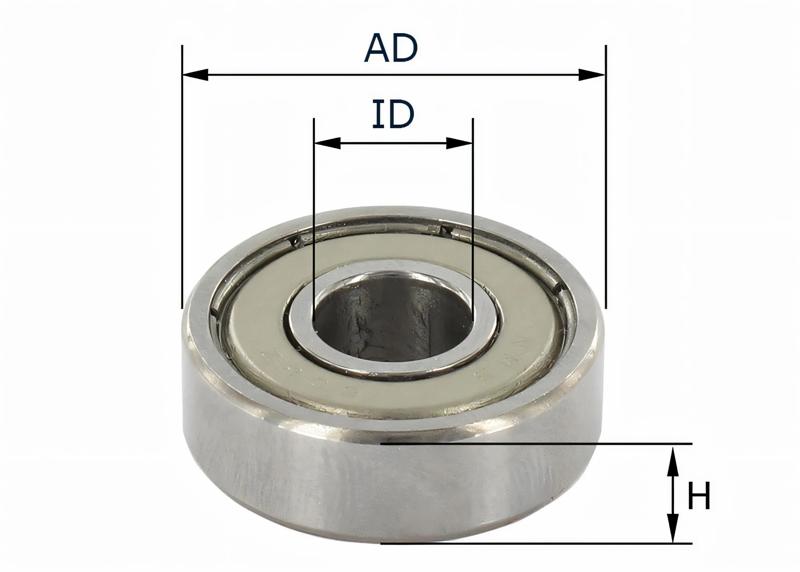

OD: 14 mm l ID: 6,35 mm l H: 4,76 mm
Item no.: T-B14Delivery in 1-2 business days
OD: 15 mm l ID: 6,35 mm l H: 4,76 mm
Item no.: T-B15Delivery in 1-2 business days
OD: 15.58 mm l ID: 4,76 mm l H: 4,76 mm
Item no.: T-B16ADelivery in 1-2 business days
REBATE CUTTERS FOR THE MACHINING OF EDGES
