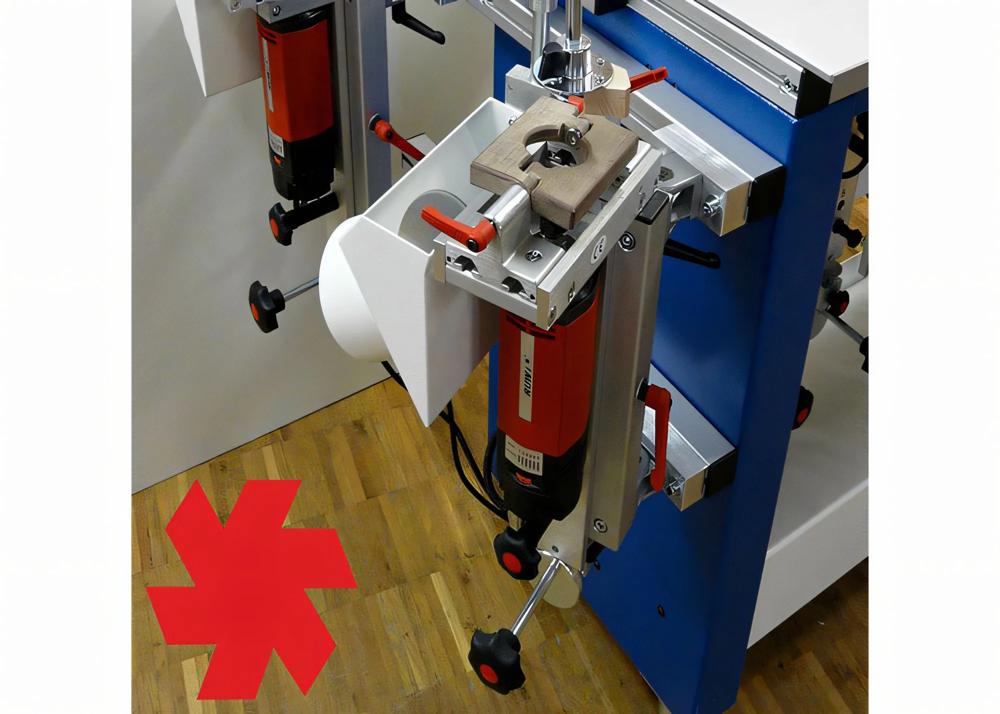

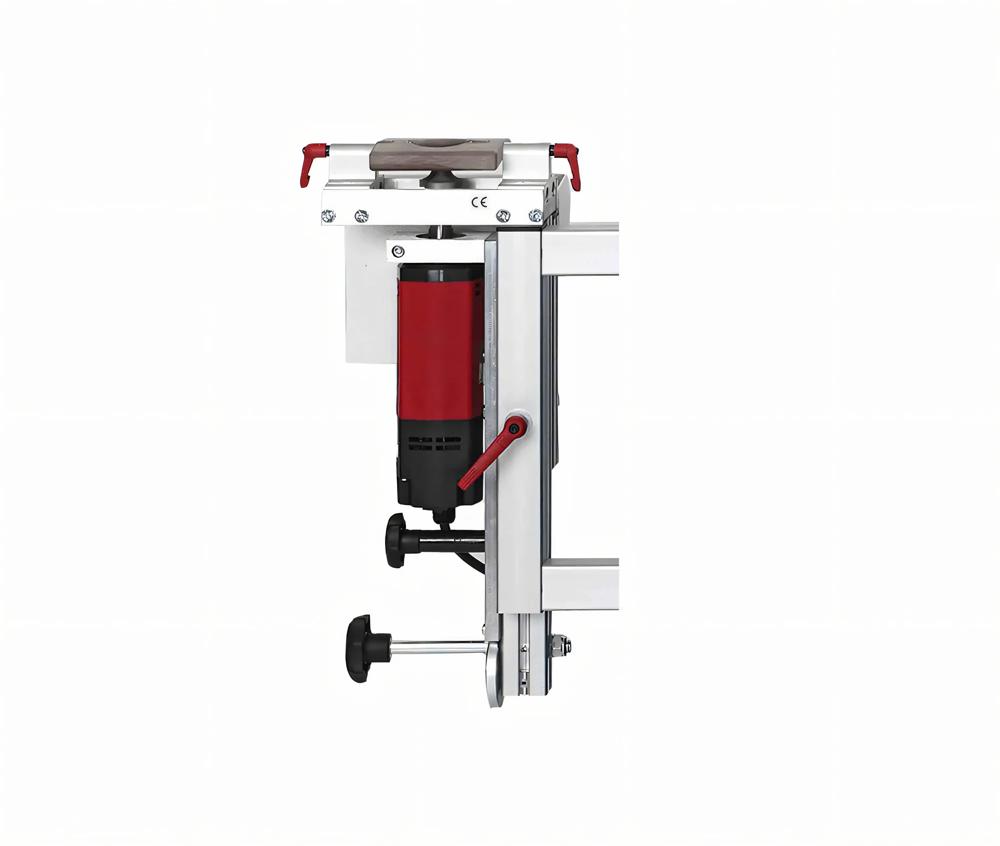

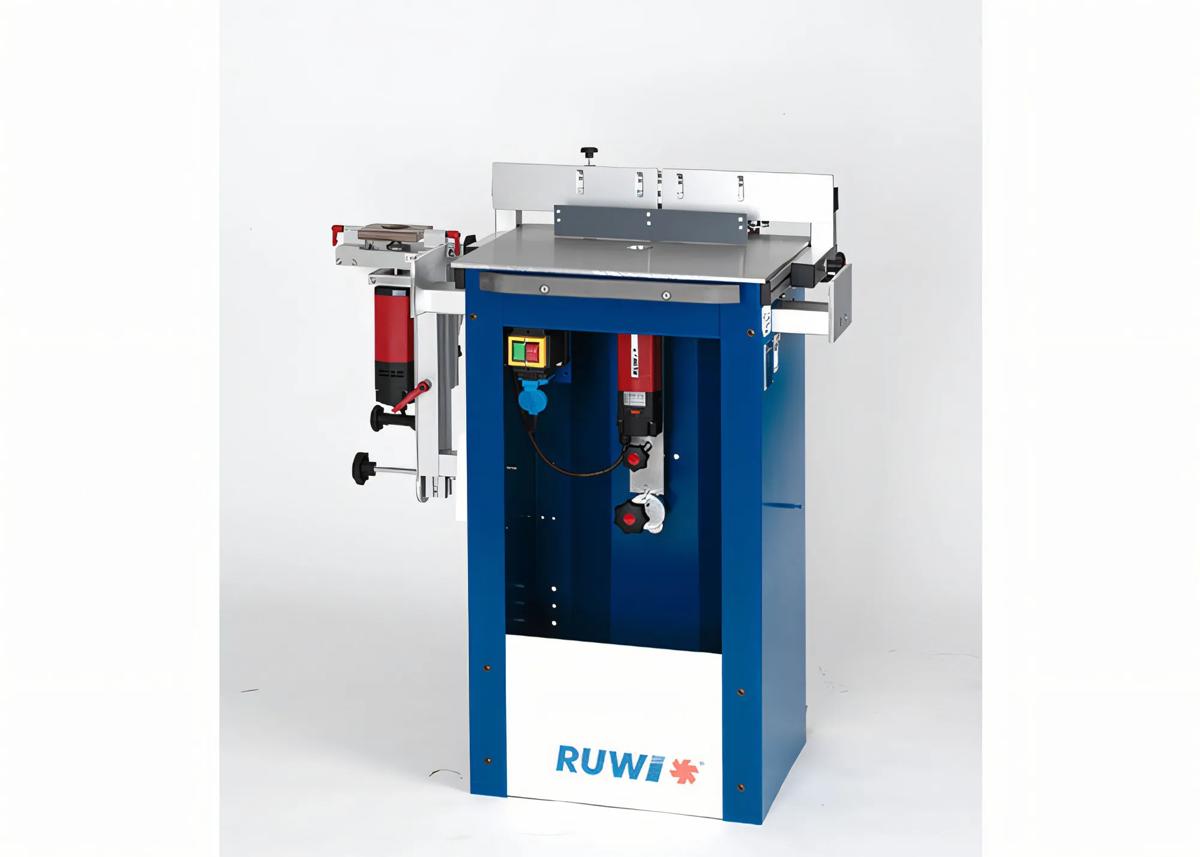

RUWI 3D Routing Motor Unit

Name: sauter GmbH
Address: Arzbergerstraße 4, Herrsching a.Ammersee, Germany, Bayern, 82211, Deutschland
Telephone: +49 8152 92898-88

For mounting to the RUWI table routers | 3-dimensional post-processing of the workpiece

Delivery time 2-3 days

1.522,90 €

incl. VAT / excl. shipping costs

The 3D router unit from RUWI is used for the ideal processing of curved, or rounded workpieces.

Infinitely variable speed control: 8000 25000 rpm
Motor power: 1050 Watt for continuous industrial use
Voltage: 230V
Precise double bearing arrangement of the spindle: spindle bearing arrangement with 2 ball bearings for extreme long-term load
Collets: 8 mm standard, optionally also 6 mm or 6.35 mm
Spindle: 22 mm diameter

Movable swivel supports to follow the curvature of the workpiece (lockable)
High quality processing
Control electronics prevent speed fluctuations under load
Robust and heavy-duty motor
Motor with overload protection
Temperature monitoring with PTC resistor
Soft start and starting current limitation
The counter-rotating return thread above the ball bearings reduces the penetration of dust and dirt
Quick tool change
Simple and quick positioning to the side of the underfloor router machine
Height adjustable
