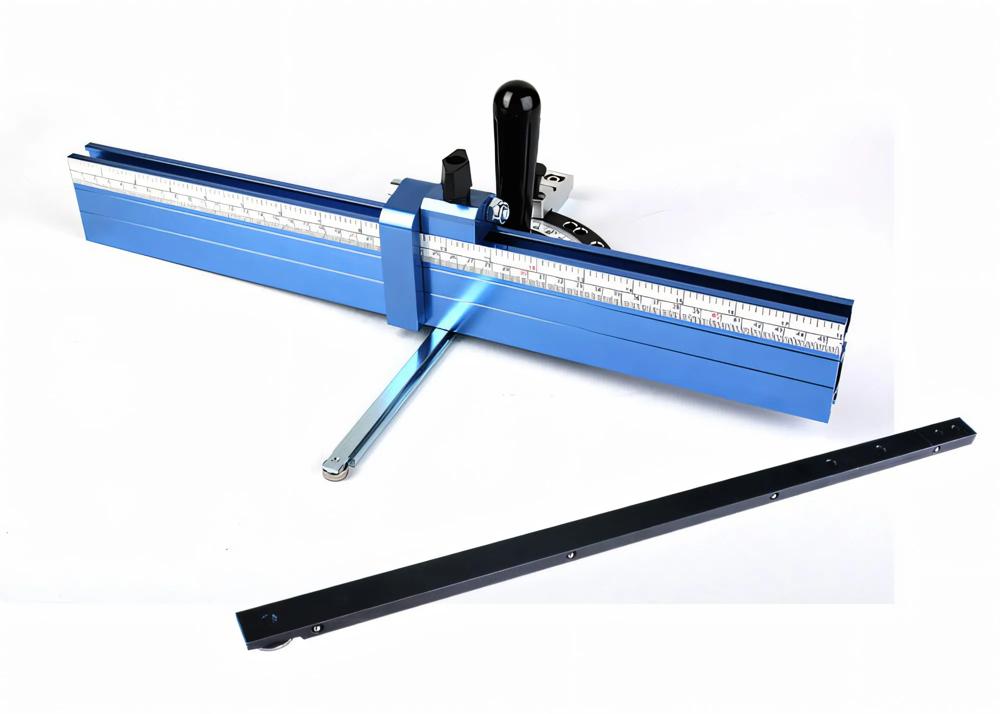

sauter Mitre Gauge inc. 3/4" Guide Rail

Gauge with additional guide rail 3/4" (19.05 mm) | Length of stop rail: 458 mm

Shipping within 24 hours (working days)

135,07 €

incl. VAT / excl. shipping costs

The guide rail fits perfectly into sauter aluminium profile rails.

Exclusively in the set: 3/4" (19.05 mm) wide guide rail for retrofitting to many commercially available 3/4" wide profile rails.

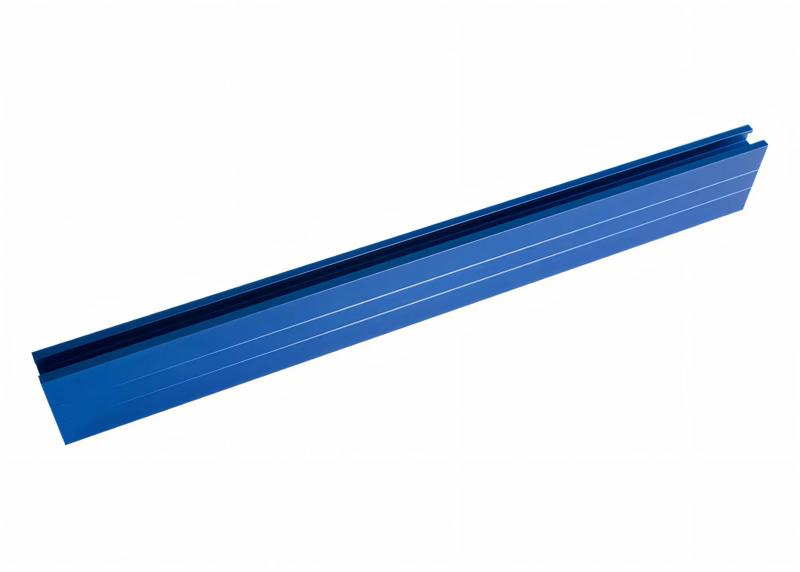

Rail set for building your own mitre gauge

Shipping within 24 hours (working days)

32,09 €

incl. VAT

Art.-Nr: FO-MGC-14

Flip stop for the crosscut fence MGC-10

Shipping within 24 hours (working days)

21,02 €

incl. VAT

Art.-Nr: FO-MGC-16

2 Products

Miter fence:
- Dimensions of the fence rail (L x H x W): 458 x 59 x 22 mm
- Dimensions of the top profile of the fence rail: 15 x 7.5 mm
- Length of the guide rail: 300 mm
3/4‘ guide rail:
- Length: 457 mm (18’)
- Width: 19.05 mm (3/4‘)
- Thickness: 10 mm (3/8’)
- Number of levelling screws: 4

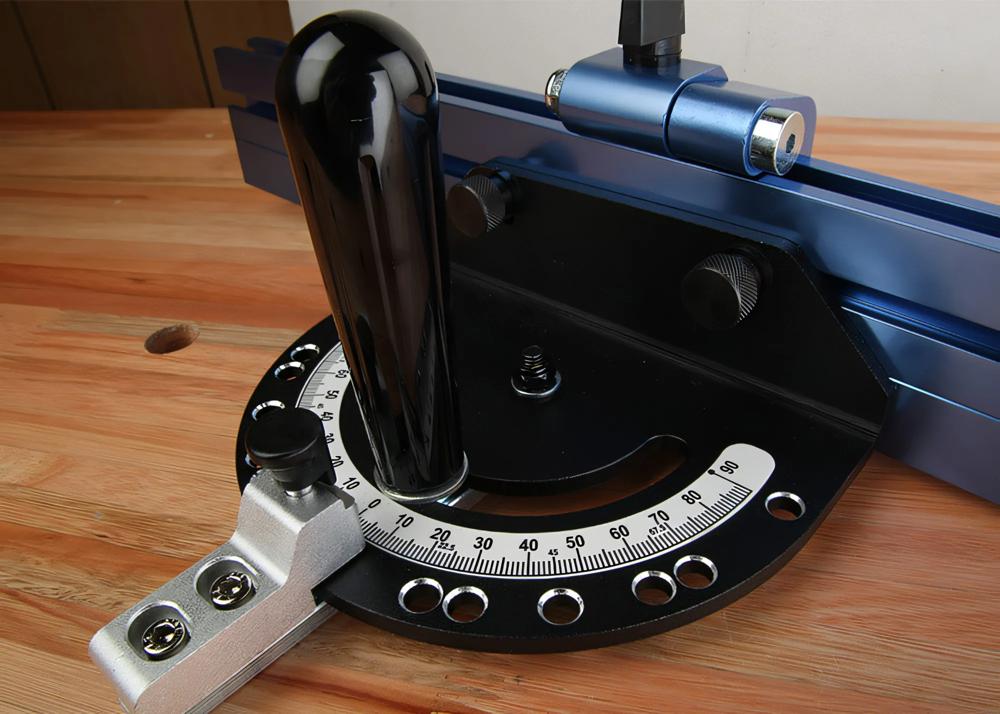

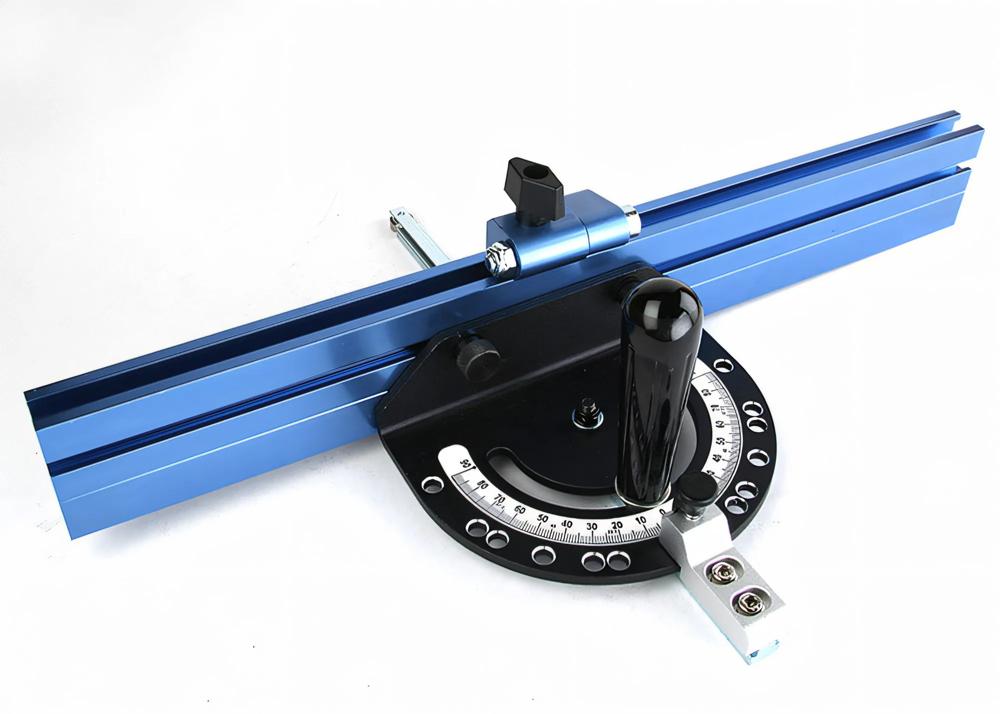

Mitre Gauge:

Beautifully crafted with stop profile

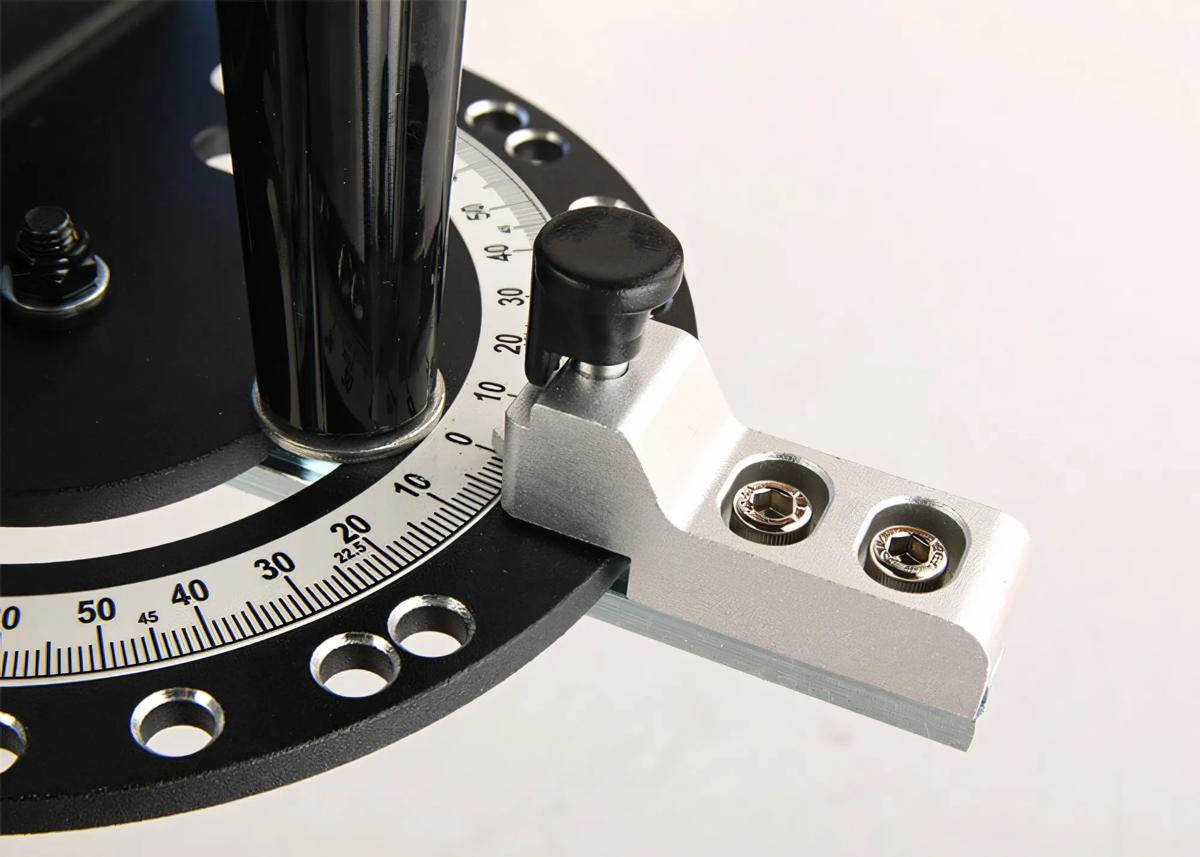

Quick adjustment through fixed angular grids at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°
Any other angle continuously adjustable
Position of the stop rail can be moved variably
Including foldable crosscut fence

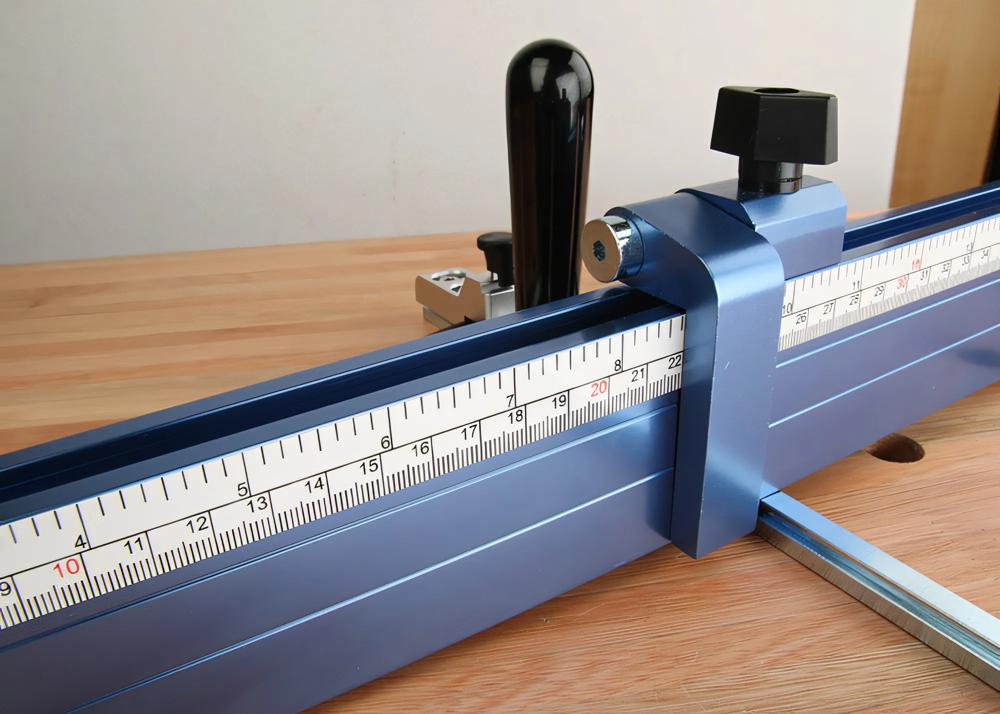

With self-adhesive tape measure in metric and imperial scale
Steel guide rail
Stop profile made of blue anodised aluminium
Dimensions of stop rail (L x H x W): 458 x 59 x 22 mm
Dimensions of the upper profile of the stop rail: 15 x 7.5 mm
Length of the guide rail: 300 mm
Ball bearing grub screws for backlash-free fine adjustment in the C-profile rail

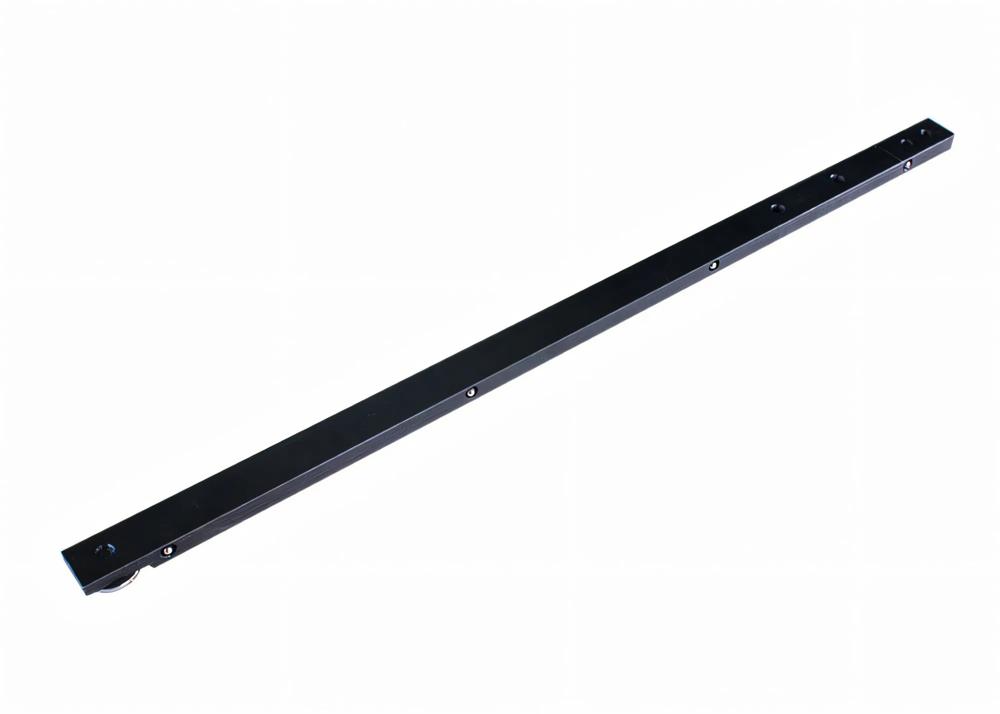

3/4" guide rail:

Suitable for the sauter double profile aluminium rail as well as for all profile rails with a width of 3/4" or 19.05 mm.

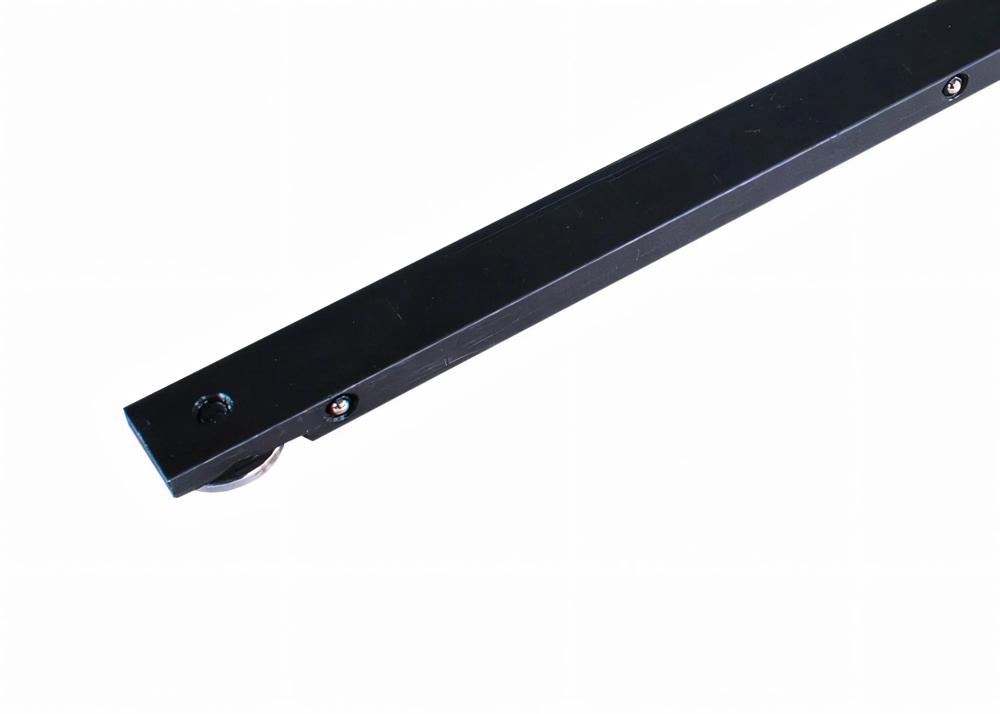

Laterally integrated levelling screws for optimum adjustment (free of play) within the profile rail

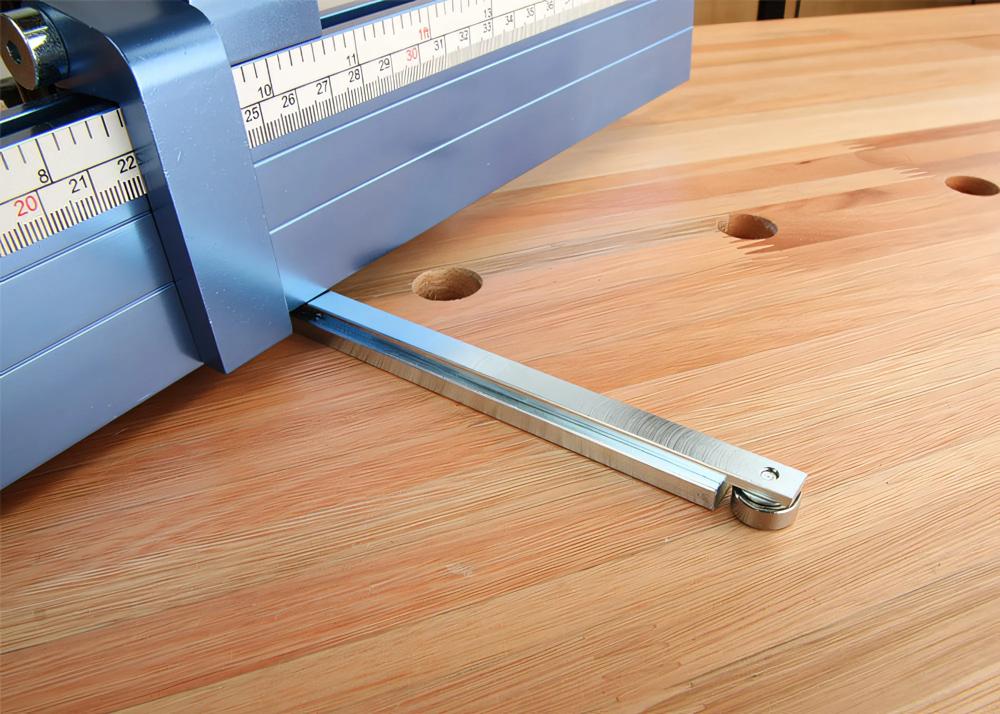

Mounted sliding disc at the front end of the steel rail for good and stable guidance
Rail to retrofit the mitre fence MGC-10
Length: 457 mm (18")
Width: 19.05 mm (3/4")
Thickness: 10 mm (3/8")
Number of levelling screws: 4
