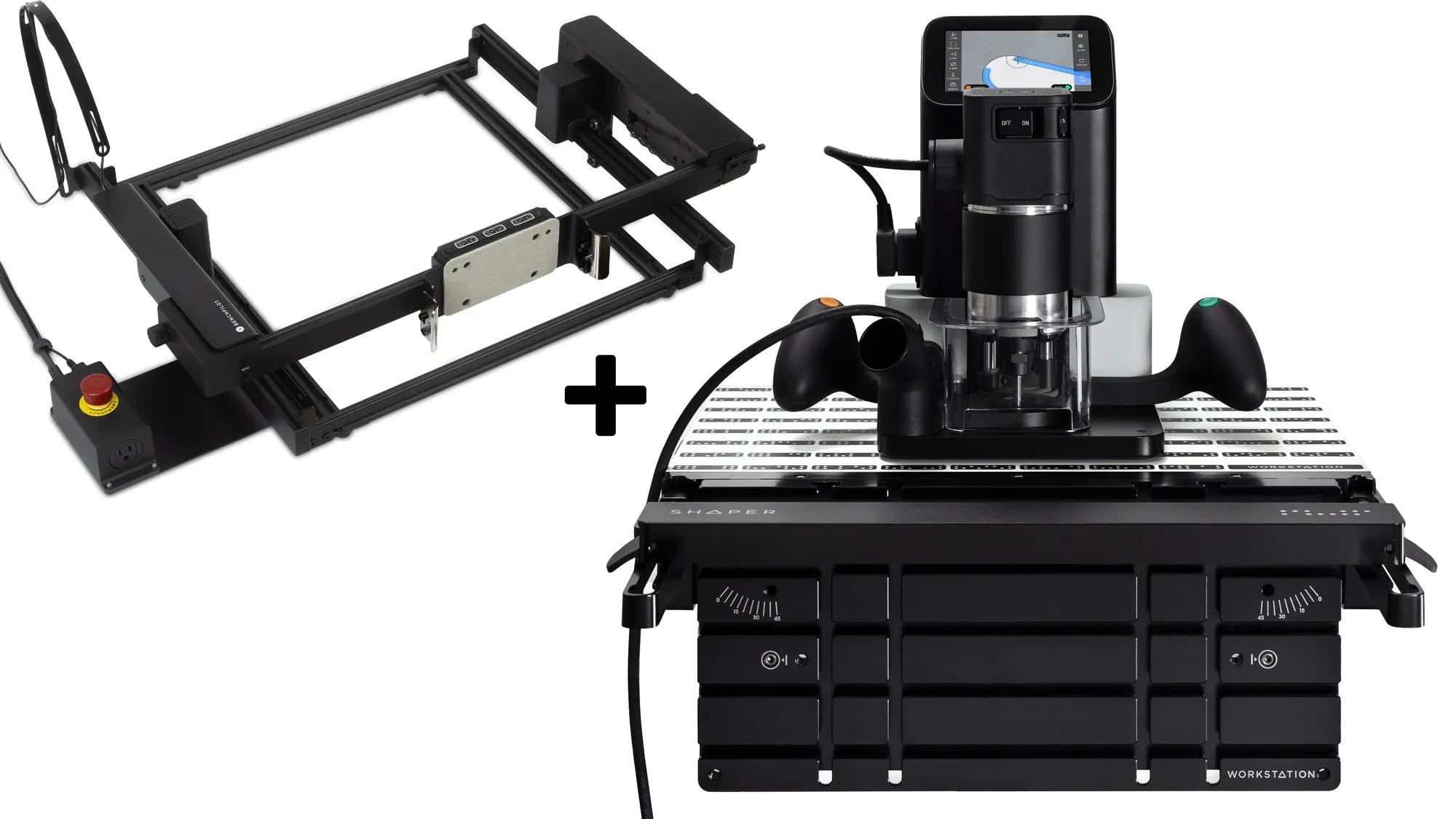

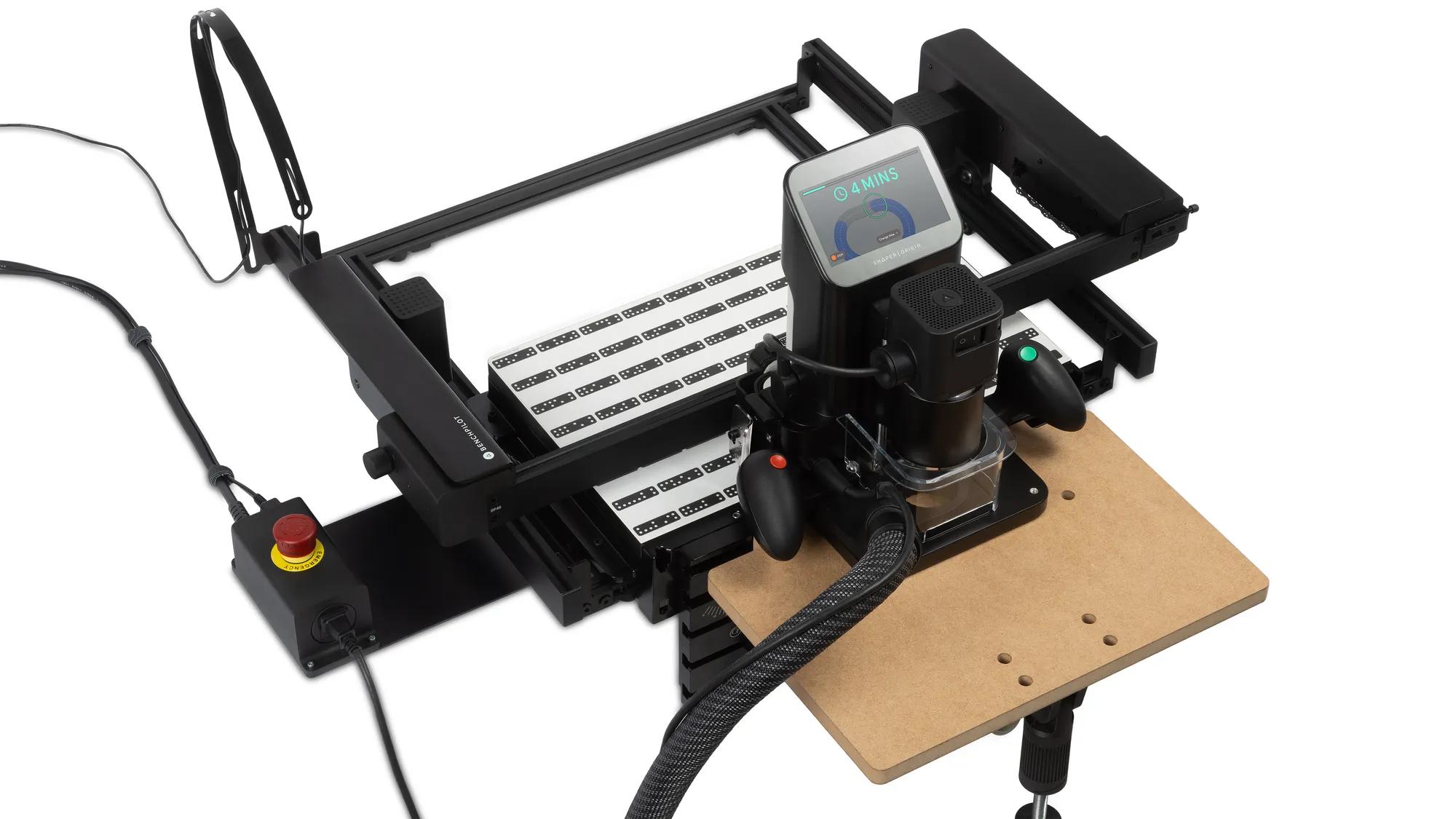

Shaper Origin + Workstation + Bench Pilot

Benefit from the SET advantage! | Shaper Origin | Workstation| Bench Pilot Pre-orders are possible. Delivery will take place end of the year 2025.

Delivery time 2-3 days

6.115,41 €

5.936,91 €

incl. VAT / excl. shipping costs

Brand:SHAPER TOOLS
Article no.:SET-SO2-BUNDLE-7
Weight:45.8kg

Compatible accessories

sauter stylus for Shaper Origin

For easier zeroing | D1: 8 mm | D2: 6 mm | GL: 60 mm

Delivery time 2-3 days

15,73 €

incl. VAT

Art.-Nr: SA-TAS-8

workstation-upgrade-kit-werkstuecktraeger-shaper-st-su1-wsuk1-01

Shaper Shelf Upgrade Kit

Accessories for Shaper Workstation | Enlarge the working area | Stable surface Pre-orders are possible. Delivery will take place from August/September 2025.

Delivery time 2-3 days

236,81 €

incl. VAT

Art.-Nr: ST-SU1-WSUK1

shaper-origin-screen-protector-shaper-tools-st-su1-dsp1-01

Shaper Origin Screen Protector (Gen 2)

Protects the Origins (Gen 2) screen from scratches, dirt and dust.

Delivery time 2-3 days

41,65 €

incl. VAT

Art.-Nr: ST-SU1-DSP1

handgefuehrte-cnc-fraese-tape-shapertools-st-st1-150-01

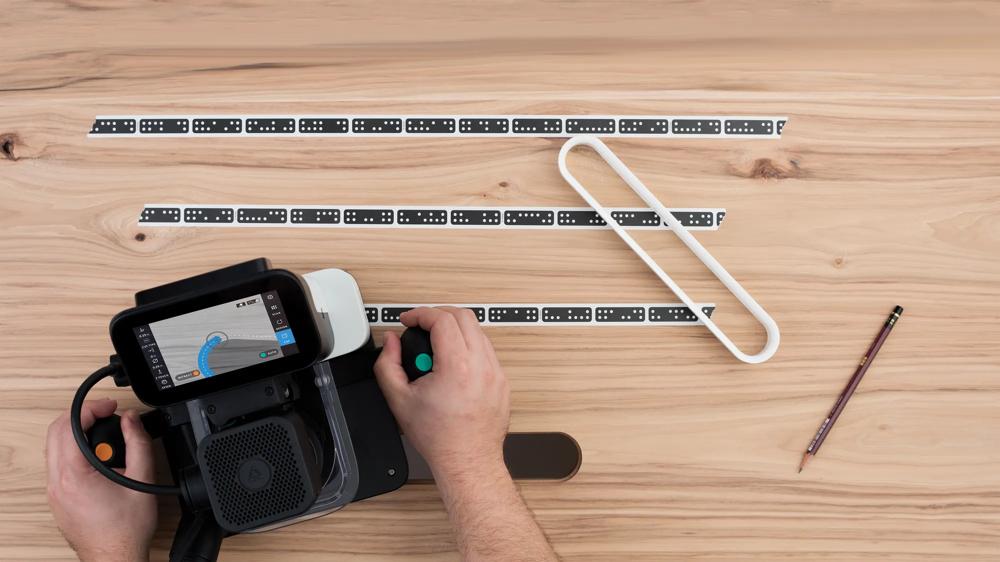

Shaper Origin Tape

Length: 45m | Width: 1,9cm

Delivery time 2-3 days

22,61 €

incl. VAT

Art.-Nr: ST-ST1-150

funk-messschieber-shaper-tools-st-sy1-cc1-01

Shaper Connected Caliper

Wireless caliper with Bluetooth® | Measuring range: 200 mm | Accuracy: 0,0254 mm

Delivery time 2-3 days

202,30 €

incl. VAT

Art.-Nr: ST-SY1-CC1

Shaper AutoPass

Increase Speed and Productivity Streamline your Origin Experience

Delivery time 2-3 days

236,81 €

incl. VAT

Art.-Nr: ST-SA2-APPE

6 Products

Technical Data

Shaper Origin:
- Input power
  - 220-240 V, 50 Hz/60 Hz
- WLAN & USB connection
  - Software updates via WLAN (alternatively via USB)
  - Wireless data transfer via ShaperHub
  - USB interface enables easy data transfer even without the internet
- Touch screen
  - Capacitive multi-touch colour LC display
- Suction connection
  - Developed for the SM1 milling spindle
  - Suitable for most standard 27 mm and 36 mm suction hoses (e.g. Festool)
- Brushed AC motor
  - 720 watts (AC), 10,000 - 26,000 rpm with load-balancing speed control
  - Soft start, overtemperature and overload safety cut-out
  - Produced by Festool according to Shaper specifications
- 8 mm collet chuck
  - Included in the scope of delivery
  - Accepts all standard 8 mm shank tools
  - Other collets are available separately
- Traverse path of the Z-axis | 43 mm
  - Digitally adjustable milling depth
  - Automatic zero point detection
Shaper workstation:
- Max. height: 250 mm
- Depth: 465 mm
- Width: 515 mm
- Total weight: 9.75 kg
Shaper Bench Pilot:
- 176 x 955 x 568 mm (H x W x D)
- Total weight: 12.85kg
- Compatible with Origin Gen1 and Gen2

Properties & Advantages

Shaper Origin:
- Designed for the woodworking trade, with a familiar form factor
- Work on site on workpieces of almost any size
- Designs and mills perfect contours, joints and engravings
- No CAD knowledge required
- On-tool design
- Automatic milling correction
- Intuitive operation
- 8 mm collet chuck allows many milling cutters to be held
Shaper Workstation:
- Equipped with durable ShaperTape surface
- Front panel with T-slots
- Height-adjustable workpiece carrier
- Ideal for tenons & grooves, finger joints and much more
- Base plate: With the ShaperTape surface, it is the core of the workstation and support surface for Origin.
- Front plate: A versatile clamping device with T-slots, which is attached to the base plate at a 90° angle.
- Workpiece carrier: A height-adjustable carrier for securing small or difficult-to-clamp workpieces.
- Hold-down clamps: T-slot clamps for versatile and secure fastening of workpieces.
- Sacrificial strips: Sacrificial material (MDF) used to minimise tear-out during routing.
- Support bar: Extended support surface for Origin and help to correctly align workpieces.
- Support arms: Keep the support bar and therefore Origin level with the ShaperTape surface.
- Angle fence: Easily adjustable fence for easy alignment of a workpiece at the appropriate angle.

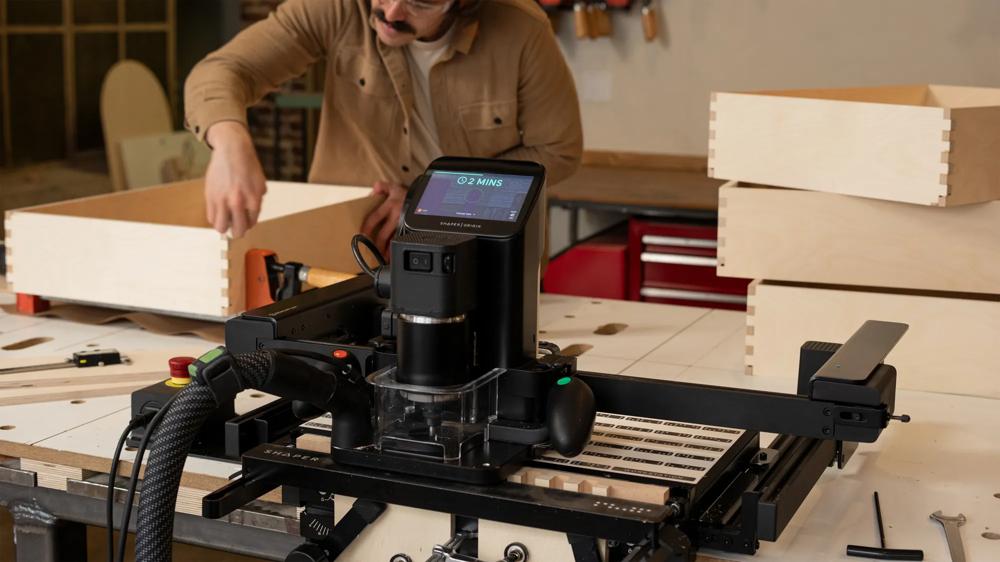

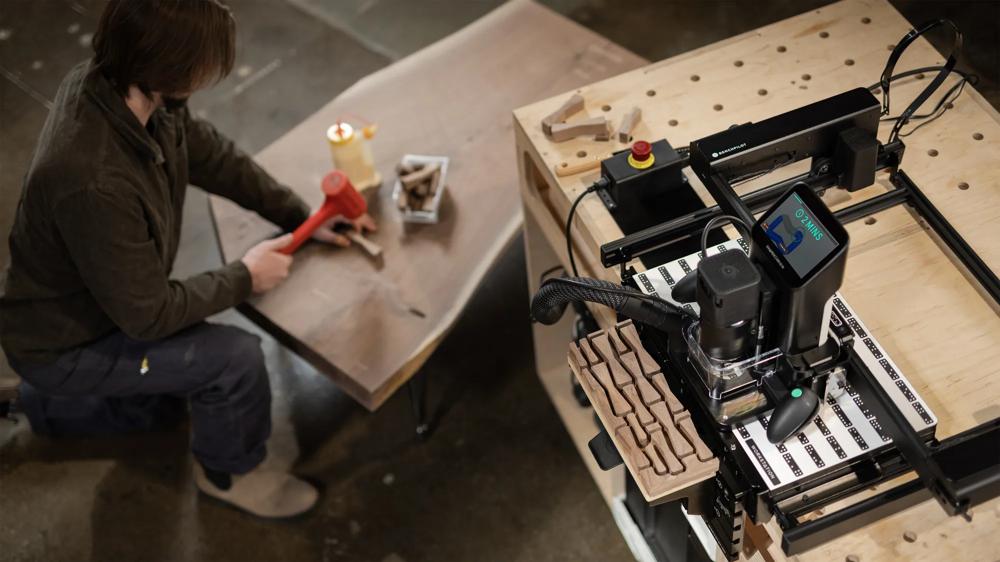

Shaper Bench Pilot:
- Controls Origin automatically
- Transforms Origin into a gantry system
- Easy insertion and removal of Origin, for maximum freedom
- Compatible with Origin Gen1 and Gen2
- Ideal for tenon joints, vertical or horizontal routing
- Rotary knob for variable feed speed control
- Design directly on Origin, no programming required
- Origin display shows the remaining milling time
- Emergency stop button in case of emergency
