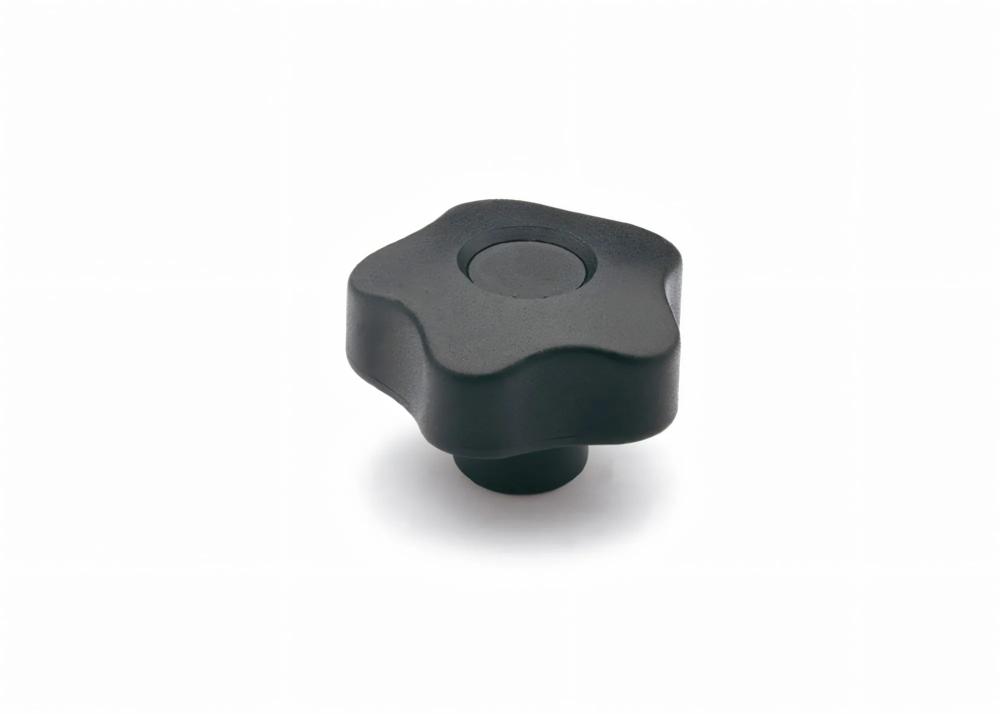

Star knob with threaded through hole M10

Star handle M10 | 1 piece | Female threaded through hole with length 20 mm

Shipping within 24 hours (working days)

3,86 €

incl. VAT / excl. shipping costs

Brand:GANTER
Article no.:GN-F50M10D
Weight:0.031kg

Star knob with female threaded hole M10

Sterngriff mit Innengewinde-Durchloch M8

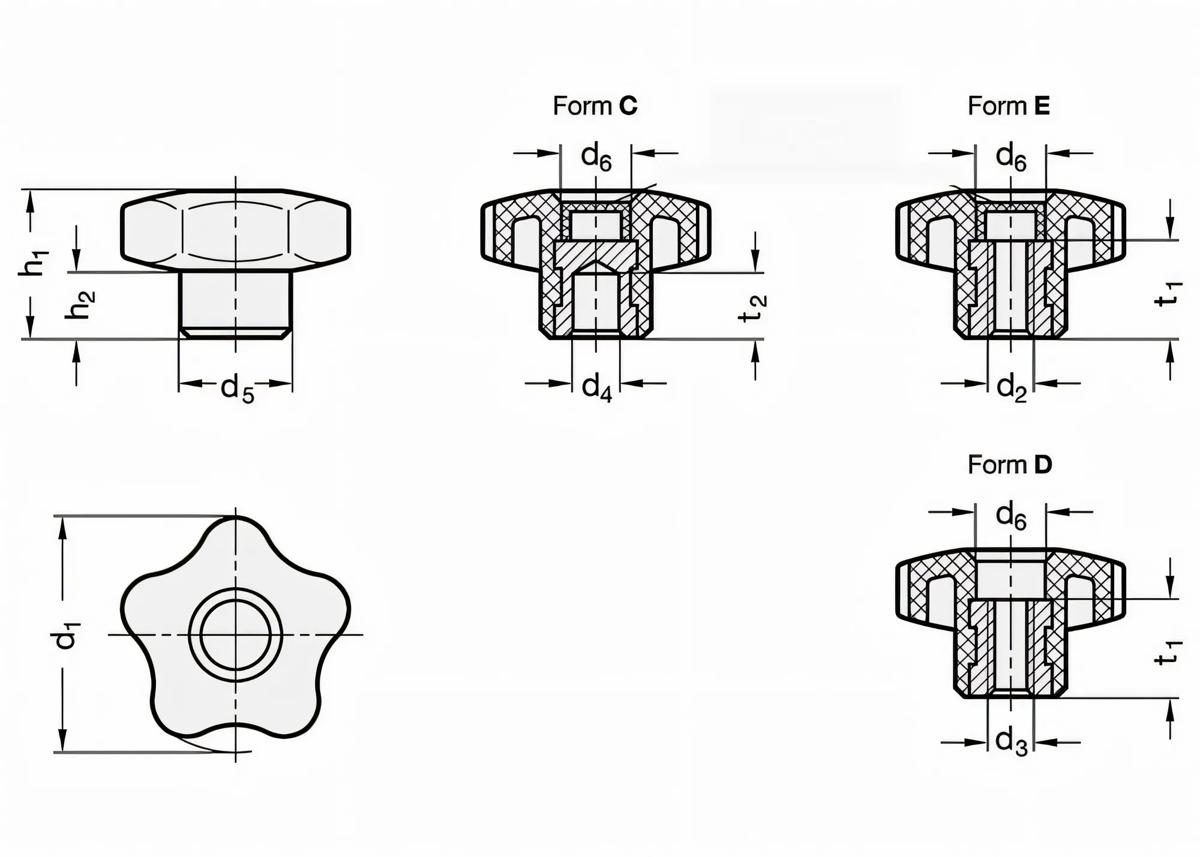

Technical Data

d1 = 50 mm
d2 = M10
d5 = 19 mm
d6 = 15 mm
t1 = 20 mm
h1 = 32 mm
h2 = 14 mm

Properties & Advantages

Design Form D with threaded through hole.

The 5 knobs or recessed grips are characteristic. They not only give these star grips an attractive design. Due to their shape, a high torque can be achieved.

For fastening e.g. sliding blocks in the rail.
For high torque.
Attractive design.
Temperature resistant up to 90 °C.
Reinforced and impact resistant.
Colour of star grip: black, matt.
Material star grip: plastic, thermoplastic (polyprobylene PP).
Material bush: brass
