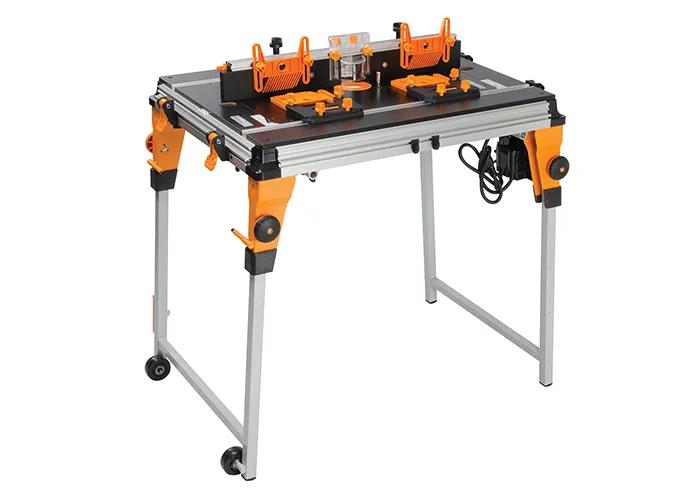

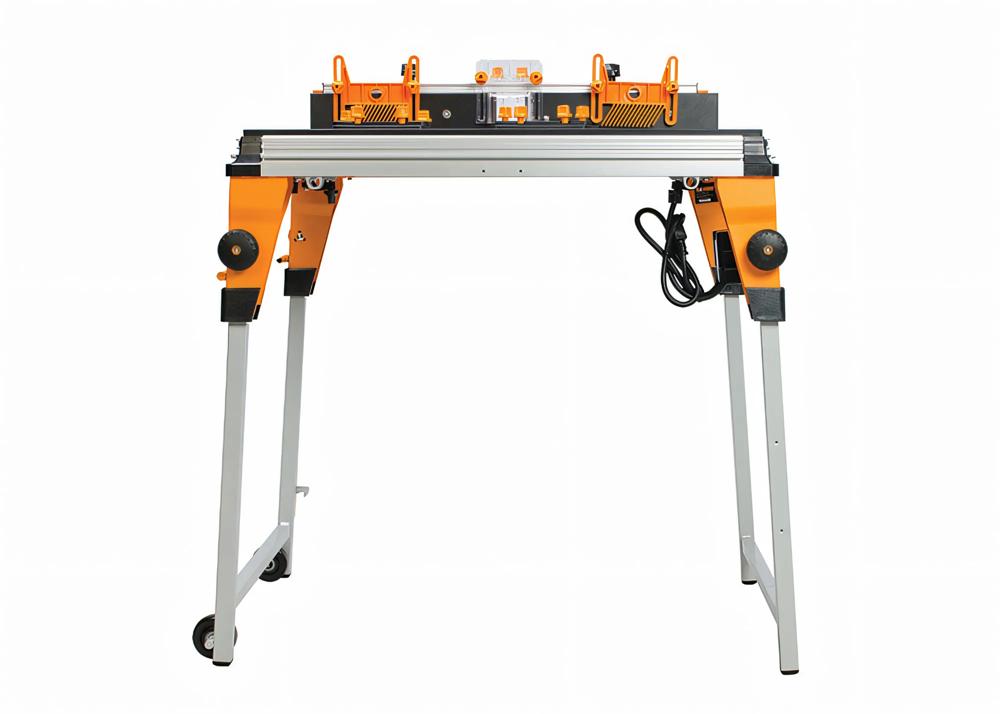

Triton router table

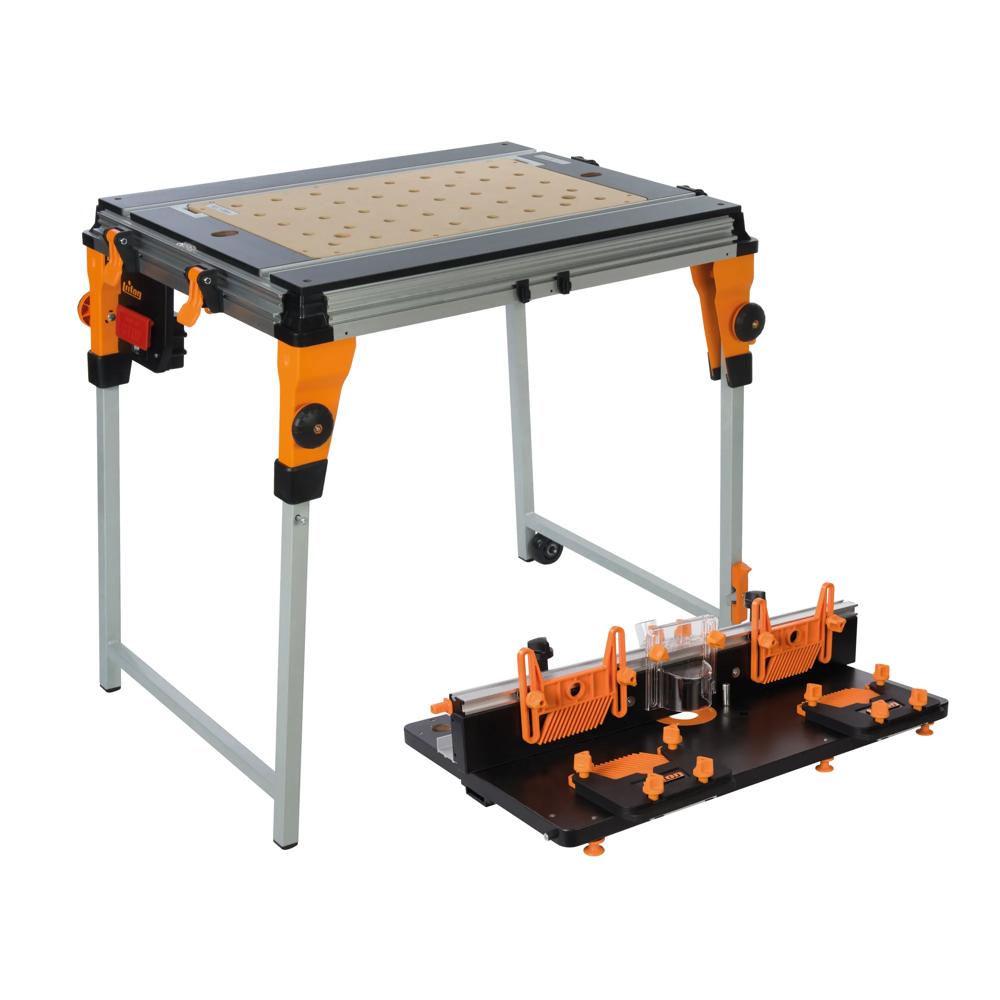

Workcentre TWX7 incl. router table module | Space-saving router table

Not available at the moment

924,88 €

770,00 €

incl. VAT / excl. shipping costs

FreightArticle is oversized / overweight and will be dispatched by a freight carrier.

Brand:Triton
Article no.:SET-265709
Weight:43.5kg

Triton milling table

Ideal combination of the TWX work centre and the matching milling table module. A successful solution for DIY enthusiasts and craftsmen.

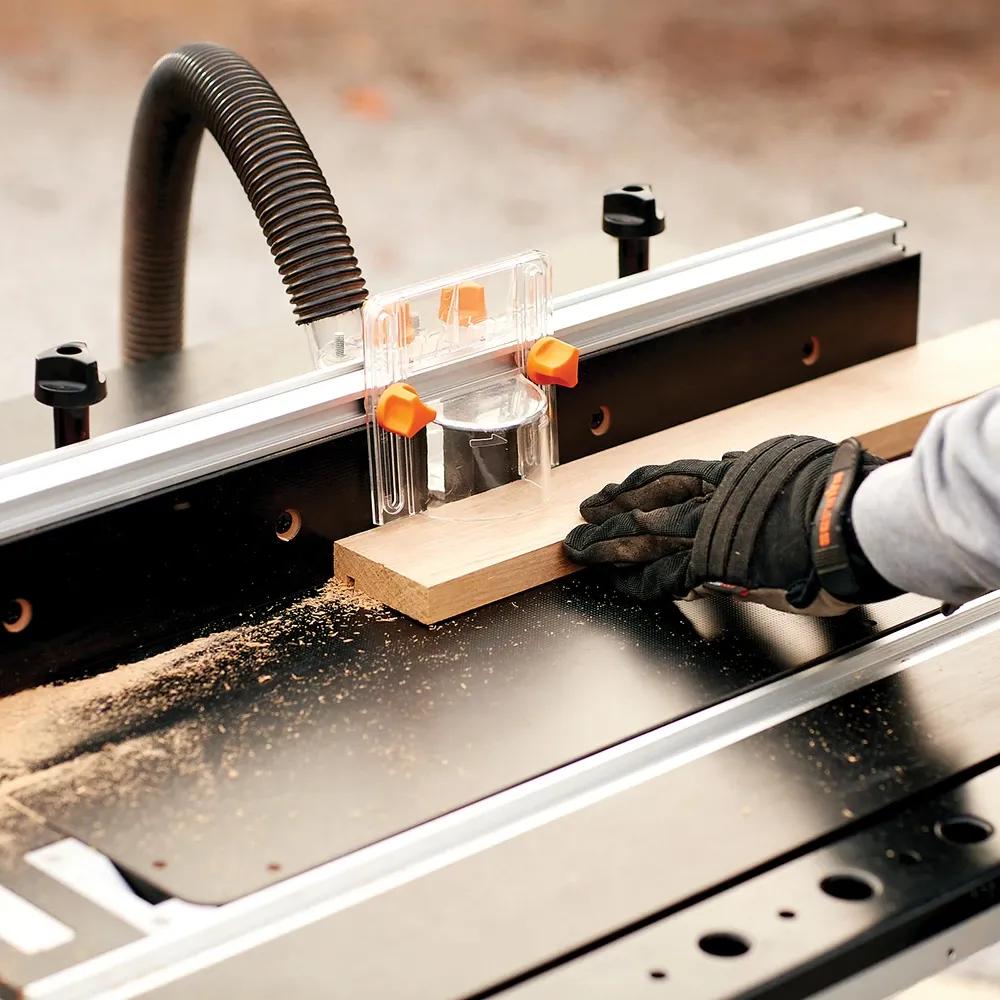

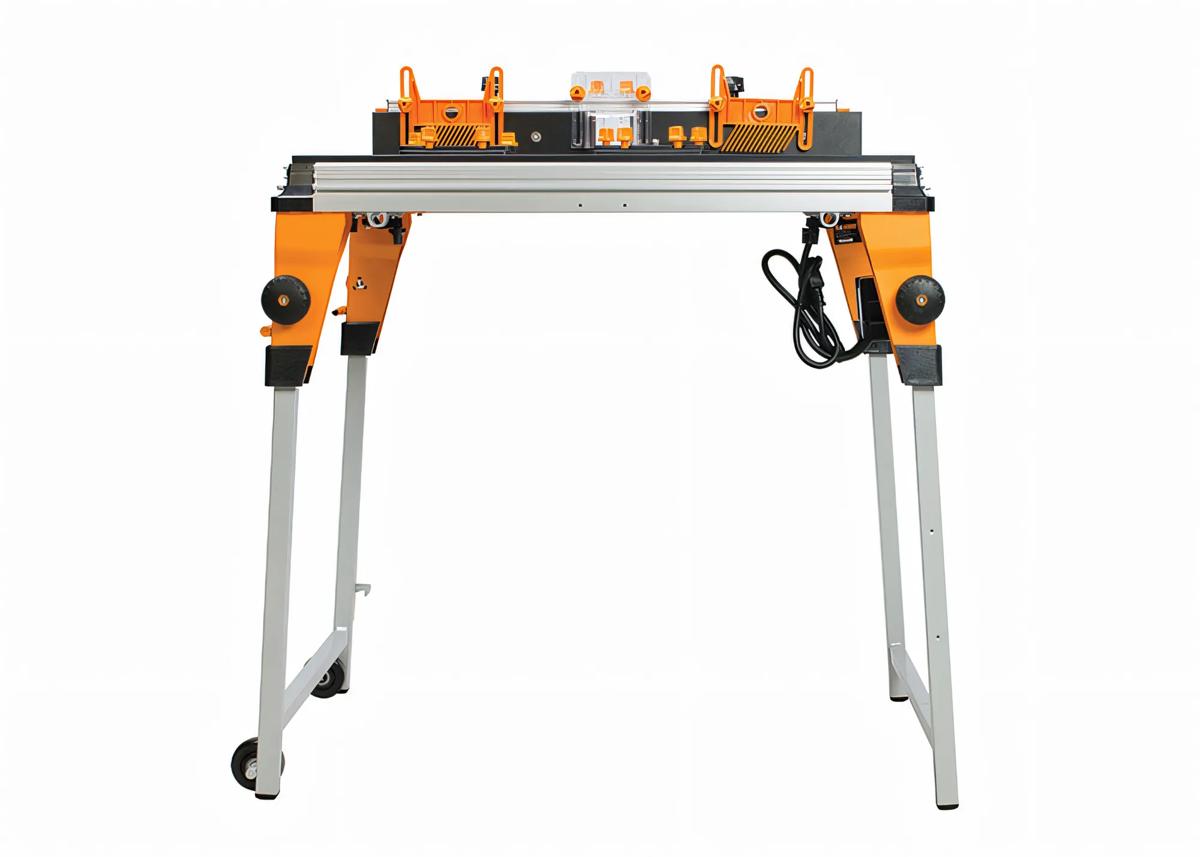

The router table module turns the TWX7 work centre from Triton into a practical router table. With a routing fence and adjustable additional fences made of extruded aluminium. Equipped with fine adjusters, rotating spacers, protective bonnet and extraction nozzle, all typical milling work can be carried out. High-quality materials and components guarantee a long service life. Compatible with the two Triton routers TRA001 and MOF001.

Technical Data

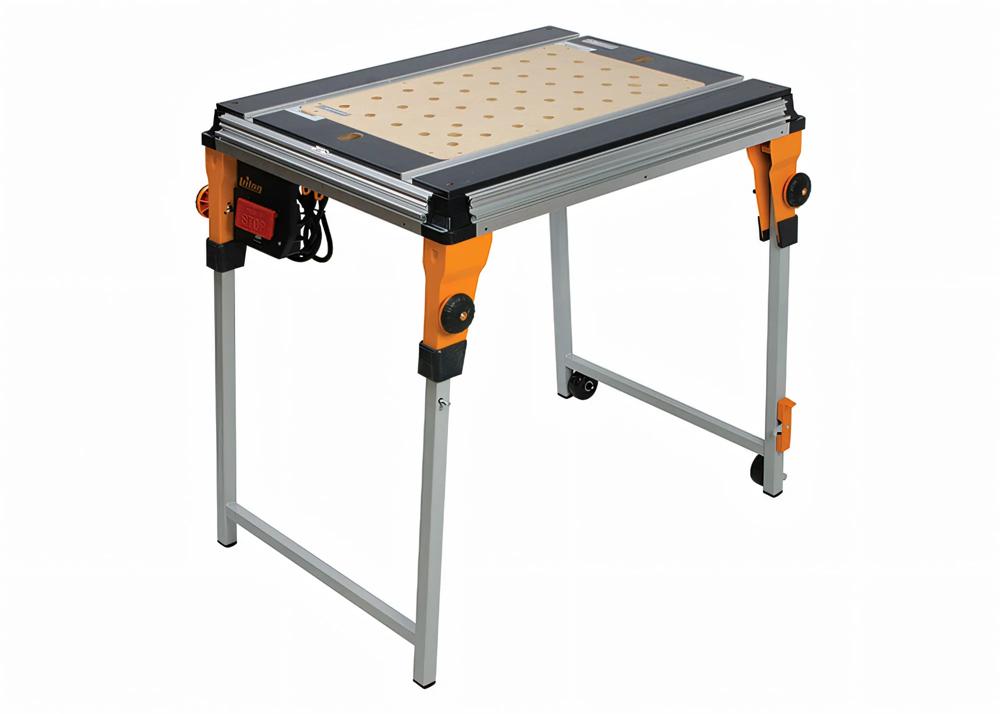

Workcentre TWX7:
- Max. Load capacity: 150 kg
- Dimensions when folded (L x W x H): 995 x 737 x 317 mm
- Dimensions when set up (L x W x H): 1036 x 737 x 900 mm

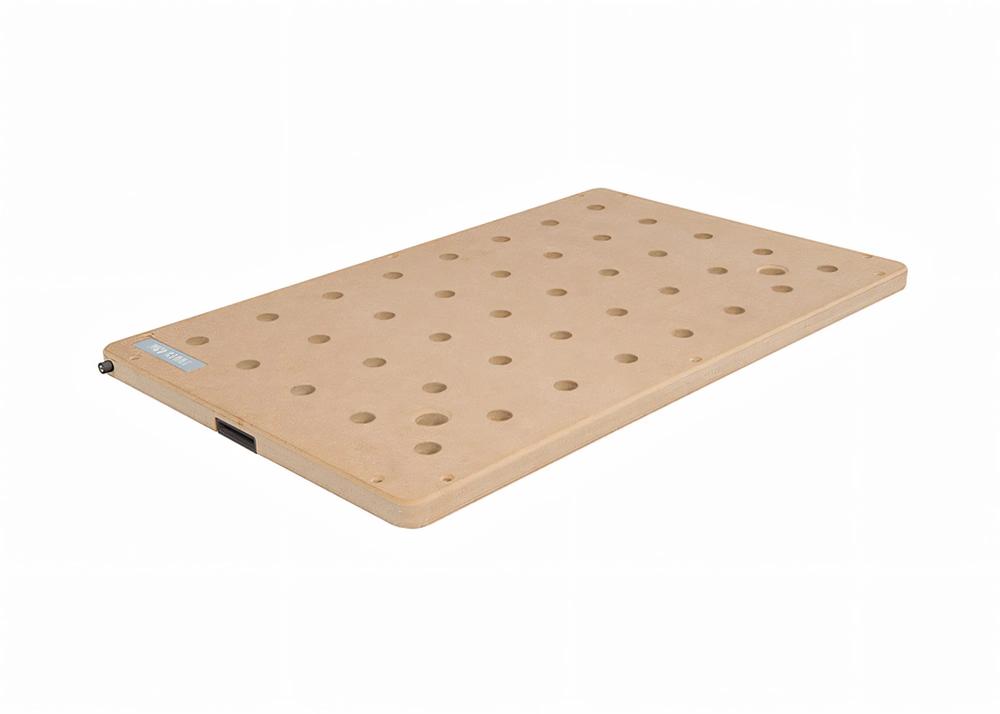

- Perforated plate dimensions: 660 x 410 x 50 mm
- Weight: 23.5 kg
- Voltage: 230 V
- Rated power: max. 2,000 W
- Mains cable: 1.2 m
- Number of bench hook holes: 40
- Hole dimensions: Ø 20 (for 19 mm bench hooks)
- Internal dimension of bottom guide groove: 23 mm
- Internal dimension of top guide groove: 19.05 mm
- Distance rails centre to centre: 445 mm

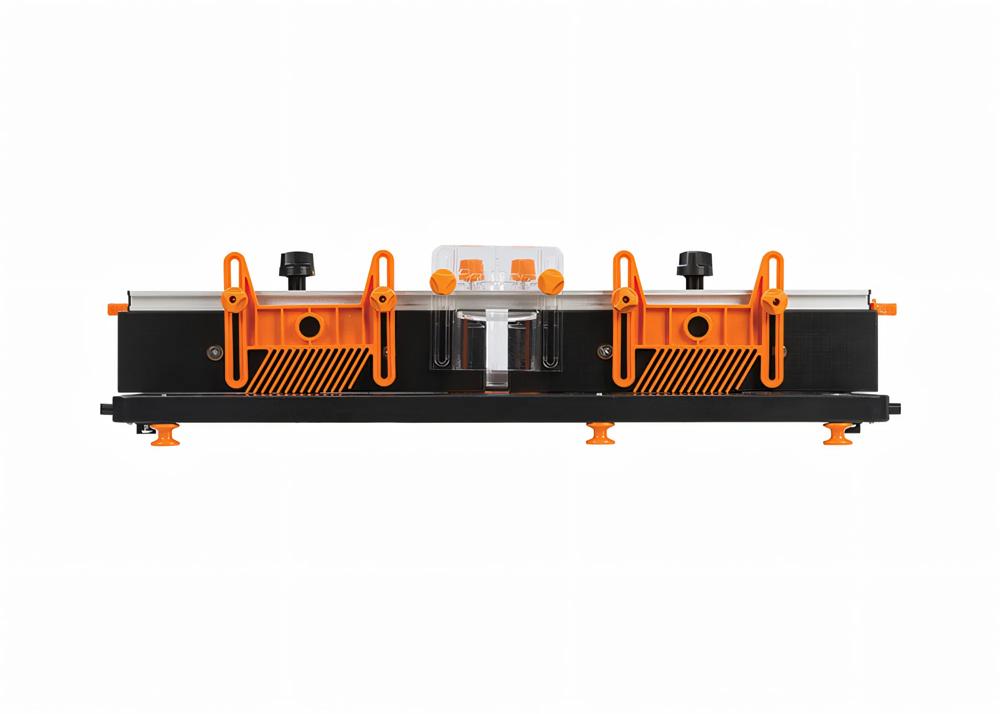

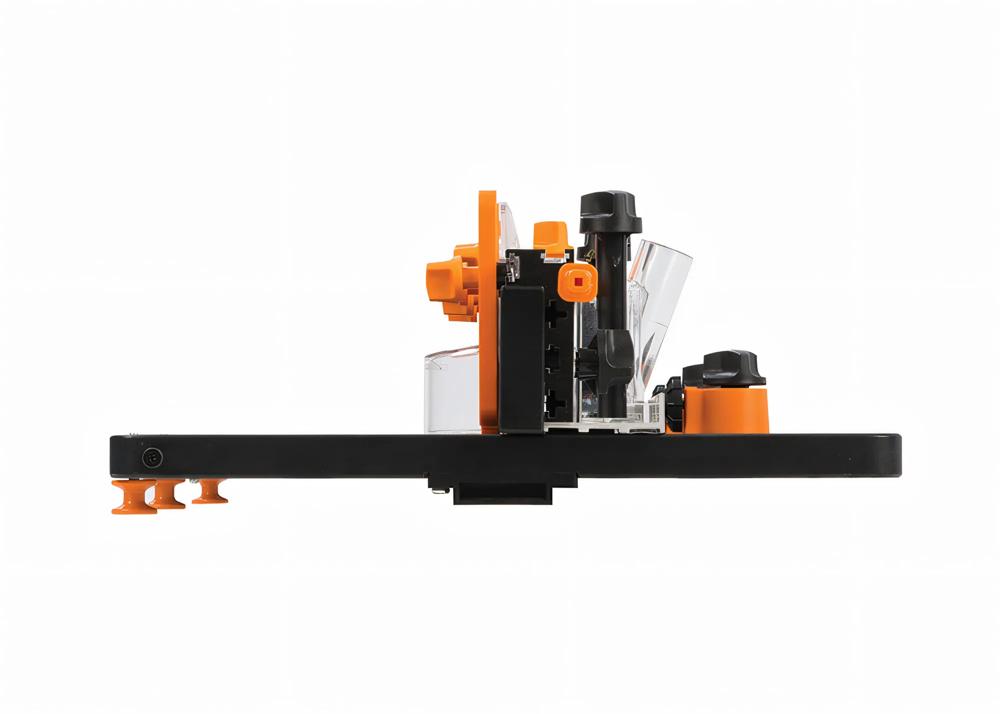

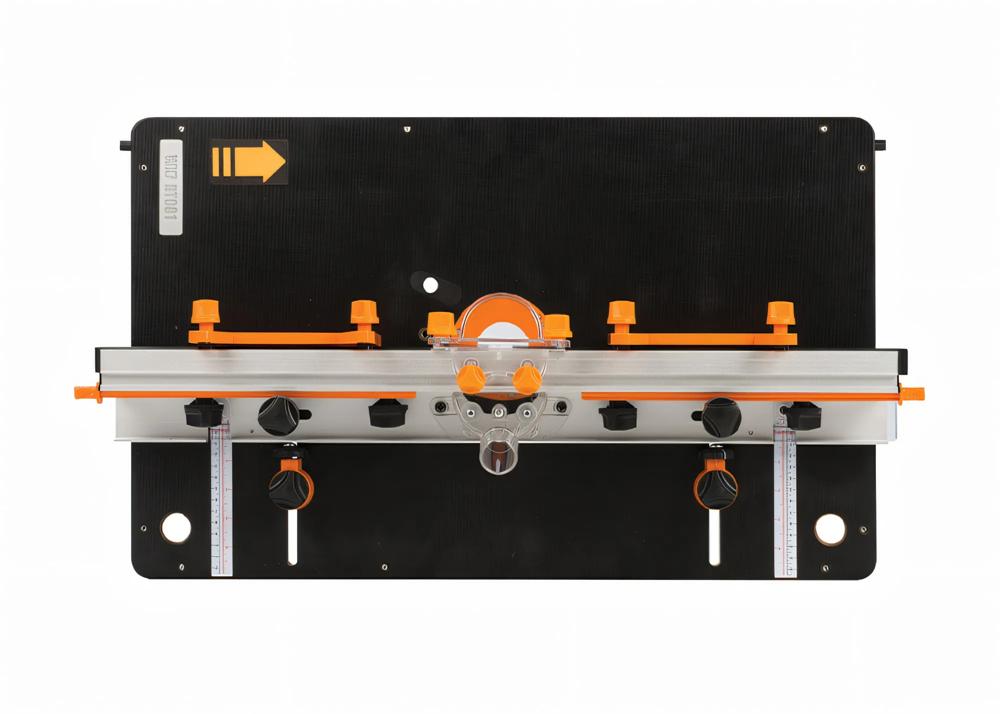

Milling table module TWX7:
- Length: 710 mm
- Width: 410 mm
- Height: 180 mm
- Weight: 9.9 kg

Properties & Advantages

Multifunctional work centre from Triton with matching milling table module.
Solution for confined spaces in the workshop and optimum flexibility during assembly.
Milling table suitable for the Triton routers MOF001 and TRA001 as well as for the CMT router CMT7E.
Ideal solution for the flexible DIY enthusiast and craftsman. Absolutely high-quality design that is fun to use.

Compatible accessories

Triton TRA001 Router 2400W

Router Triton TRA001 (2400 W) - Hobby | electr. adjustable speed 8-21.000 rpm | Stroke 0-59 mm, incl. collet 12 & 12,7 mm | with fine height adjustment through the table

Delivery time 2-3 days

399,90 €

380,00 €

incl. VAT

Art.-Nr: TS-330165

werkstueckstuetze-fuer-twx7-triton-ts-265901-01

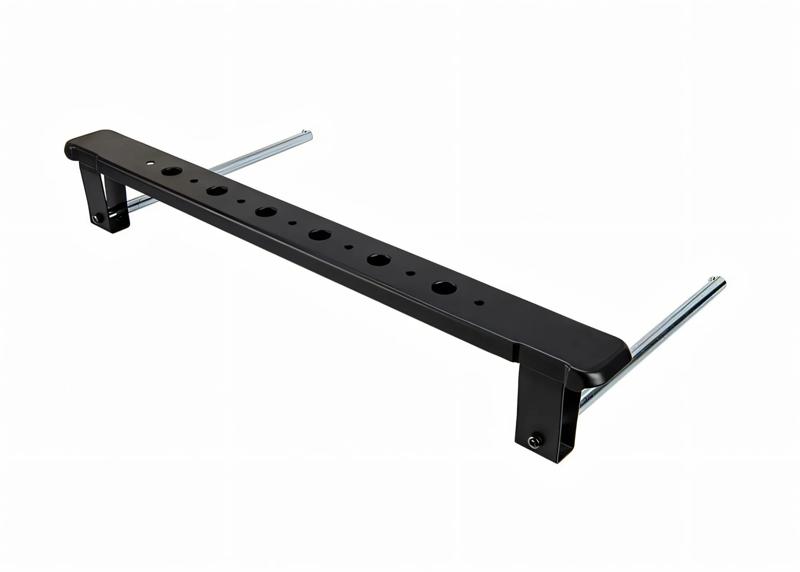

Work support for Triton TWX7

Additional support surface for Triton multifunctional table | Lateral extension of the table to 600 mm possible

Delivery time 2-3 days

59,11 €

incl. VAT

Art.-Nr: TS-265901

Triton MOF001 Router 1400W

Triton MOF001 (1400 W) | for ambitious hobby craftsmen | with fine height adjustment through the table

Delivery time 2-3 days

289,90 €

259,90 €

incl. VAT

Art.-Nr: TS-330085

abnahmetisch-fuer-twx7-triton-ts-266505-01

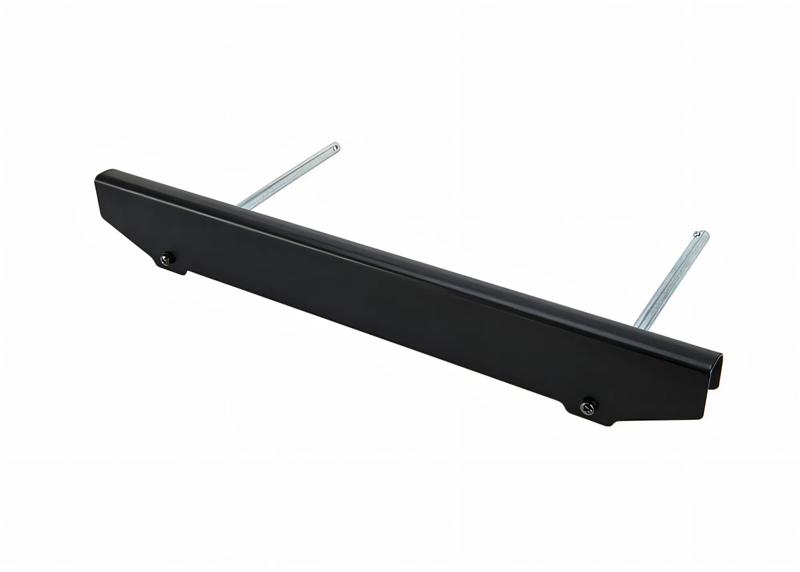

Removal table for Triton TWX7
