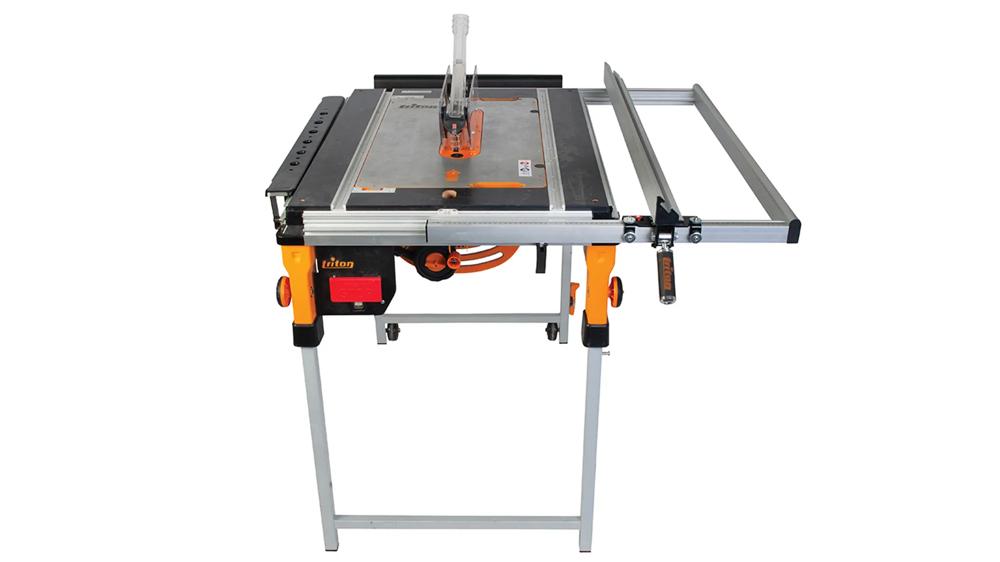

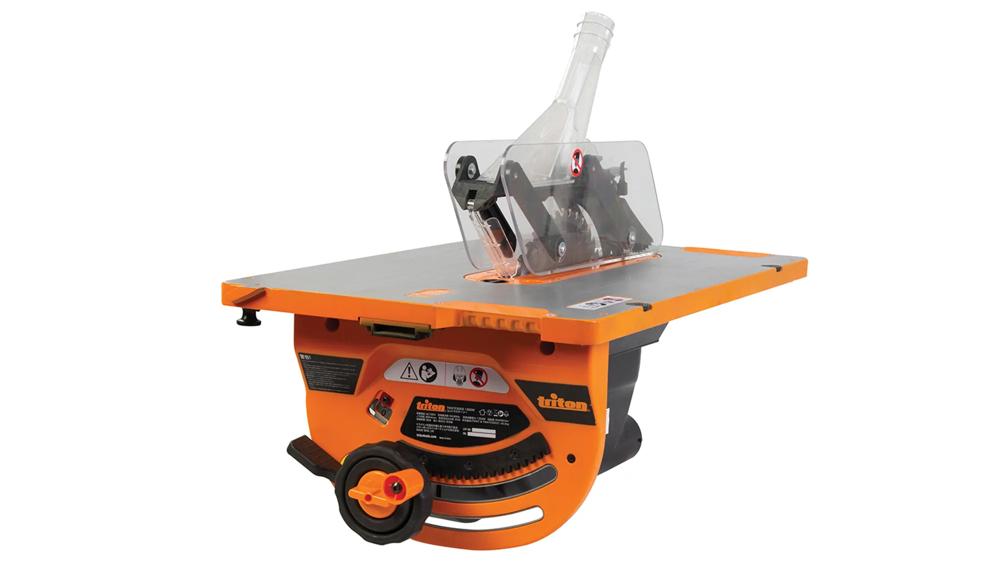

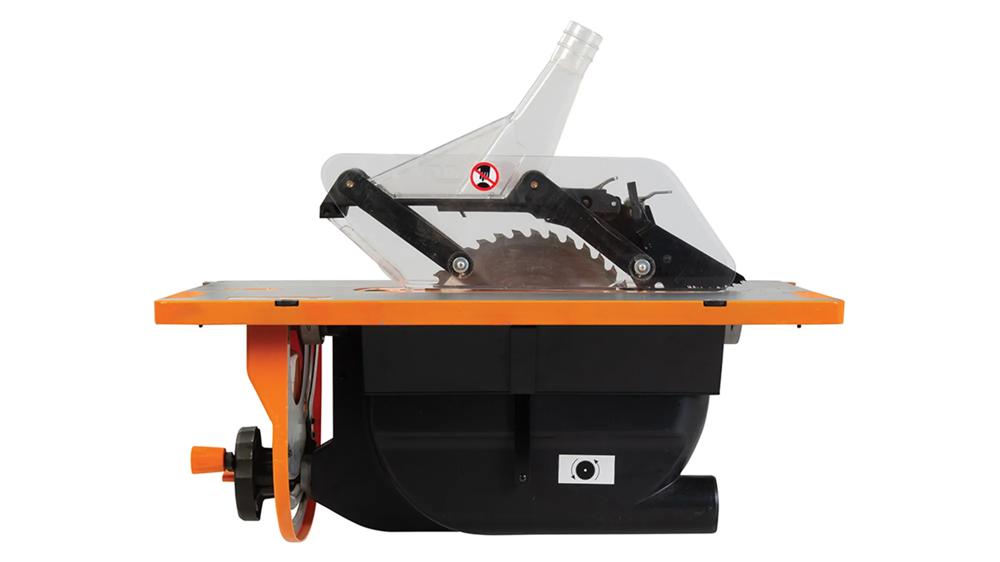

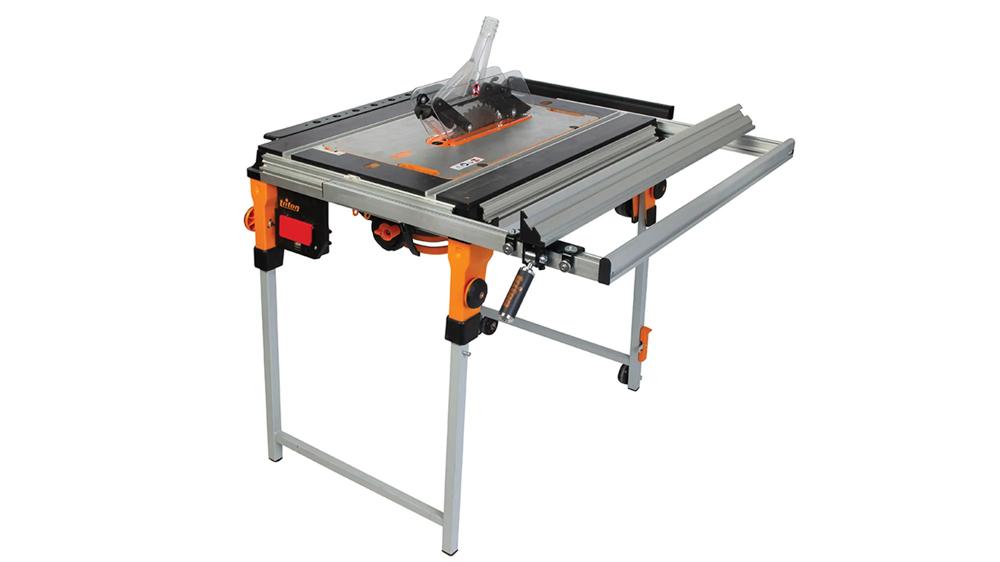

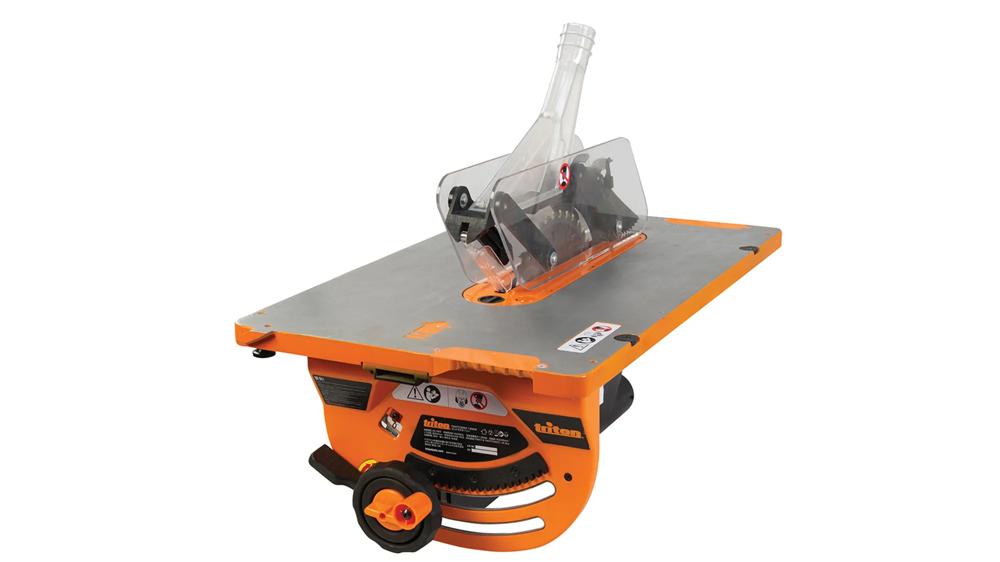

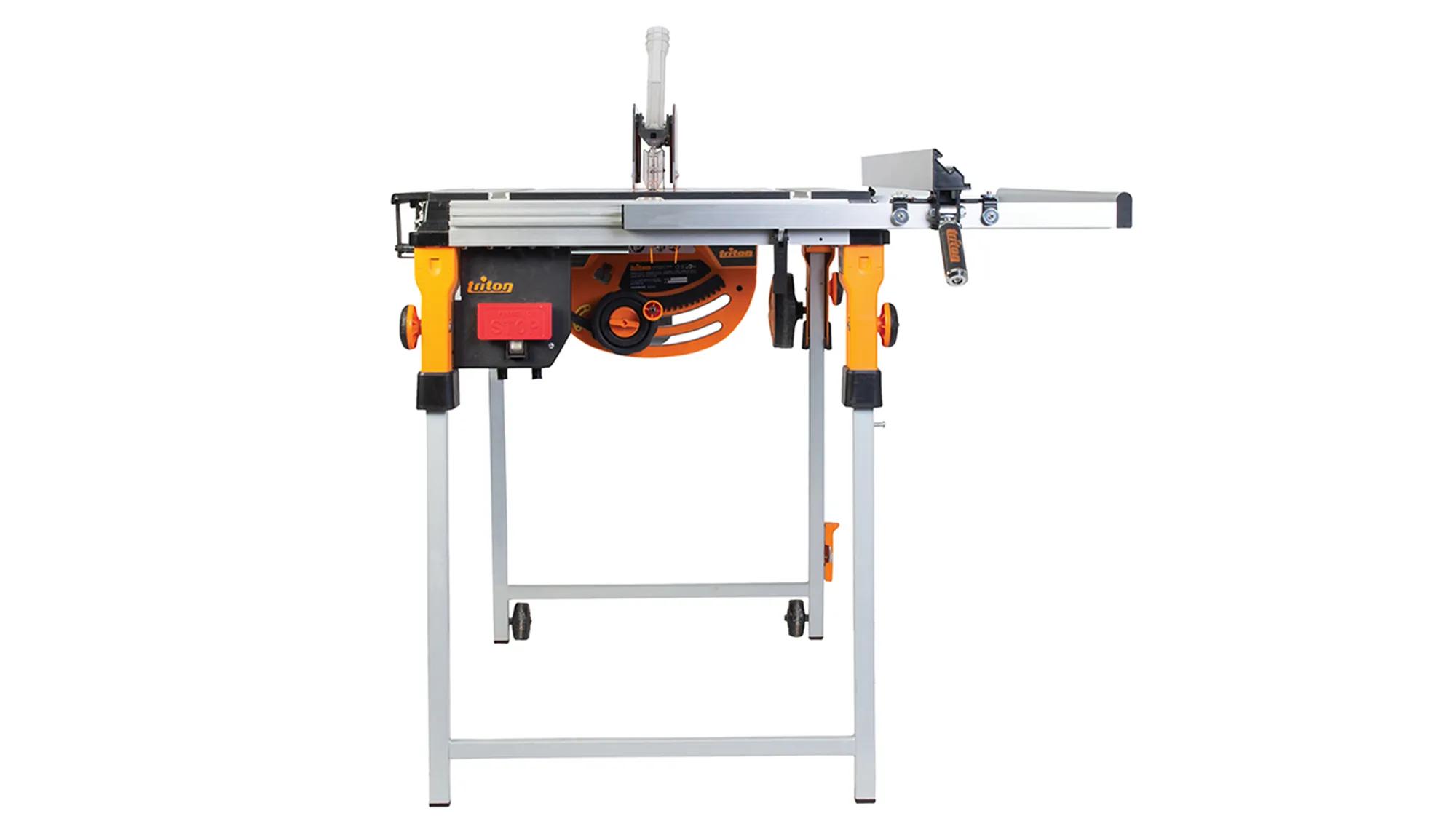

The TWX7 Workcenter transforms this unit into a fully functional saw table. This allows you to achieve professional results. A powerful 1800 watt motor and the 254 mm carbide precision saw blade complete the circular saw module. The dust extraction device set up under the table top ensures effective dust removal. Effortless assembly and configuration.
Technical Data
Saw blade: 60 TCT ATB (complies with standard EN847-1)
Bore diameter of the cutting disc: 30 mm
Mitre angle range: 0 - 45
Max. Cutting depth (45°): 59.5 mm
Max. Cutting depth (90°): 86 mm
No-load speed: 4,500 min-1
Power: 1800 W
Weight: 15,2 kg
Table dimensions: 851 x 650 mm
Module plate dimensions: 660 x 410 mm
Table top edge - module bottom edge dimension: 300 mm
Longitudinal cutting capacity: 775 mm
Saw blade diameter: 254 mm
Ø extraction socket ID/OD: 26/32 mm
Properties & Advantages
Powerful 1,800 watt motor and 254 mm precision saw blade.
Including protractor for precise cross and mitre cuts
Fence with integrated T-slot for precise parallel cuts and accessory holder
Double dust extraction device for clean operation
Hand slots in the table surface for easy module changing
Adjustable cutting angle for precise 0 - 45° mitre cuts
Pushstick included for safe control of the workpiece
