V-Groove Bit D:15,88mm R:12,5mm

V-Groove bit | D15.88 | H56.5 | h12.5 | A12

Delivery time 2-3 days

34,21 €

incl. VAT / excl. shipping costs

Brand:Freud
Article no.:FR-20-10612P
Weight:0.11kg

Freud V-Groove Bit D: 15,88mm R:12,5mm

V-Groove bit, D15.88, H56.5, h12.5, A12

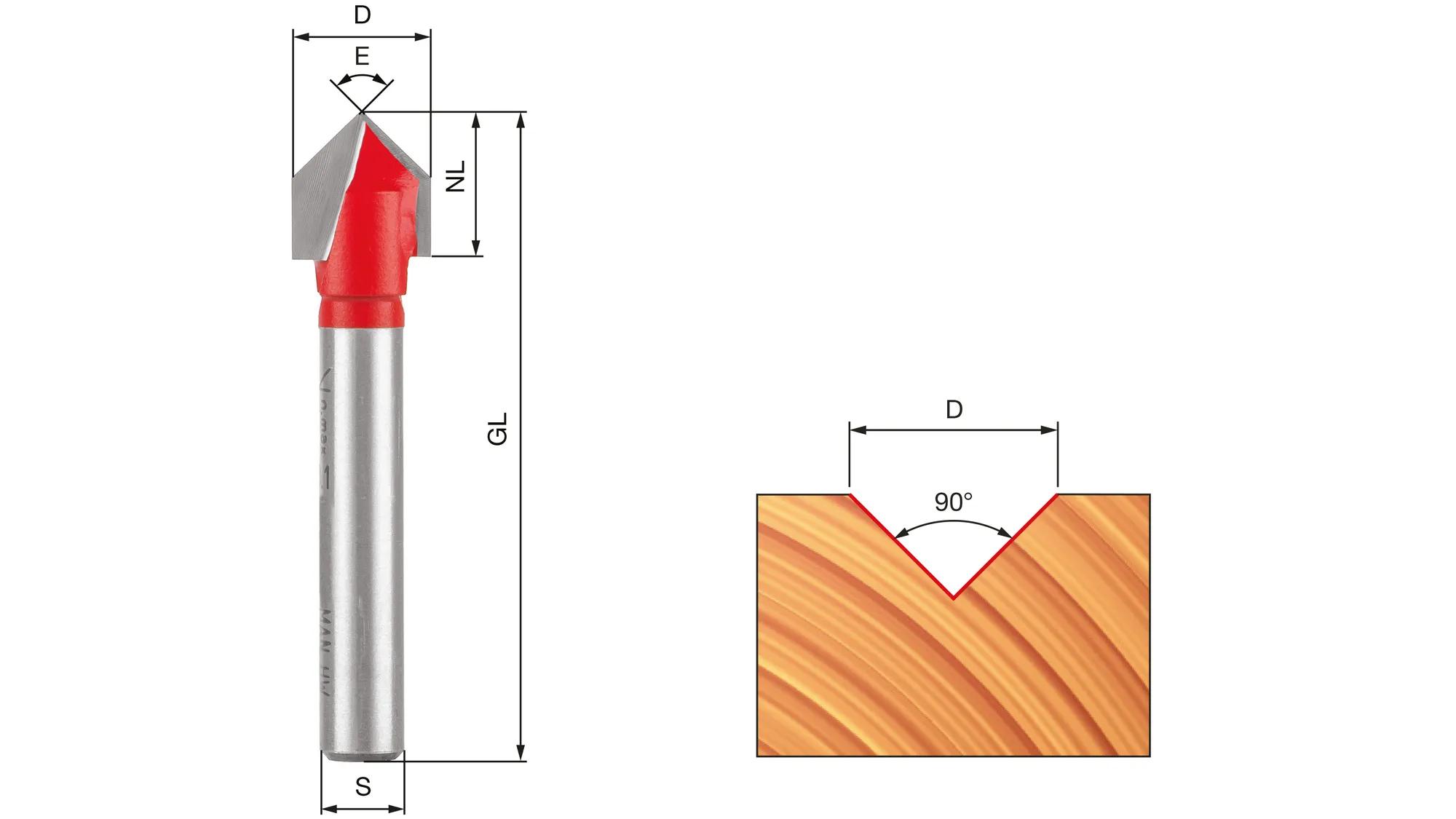

Technical Data

Diameter (D mm): 15,88

Cutting Length (h mm): 12,5

Overall Length (H mm): 56,5

Shank (A mm): 12

R1 Radius: -

R2 Radius: -

R3 Radius: -

Bearing (C mm): -

Teeth: 2

Angle (°): 90°

Max RPM 1/min: 24000

Properties & Advantages

Applications:
Perfect for V shaped grooves, signmaking, engraving and decorative details.

Machines:
Hand-held routers, table routers and CNC machines.

Materials:
Softwood, hardwood, plywood and wood based panels.

Bit Material - TiCo Carbide
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.

Perma-SHIELD Coating
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
