Bench drill Holzprofi Maker M1-BM4117T

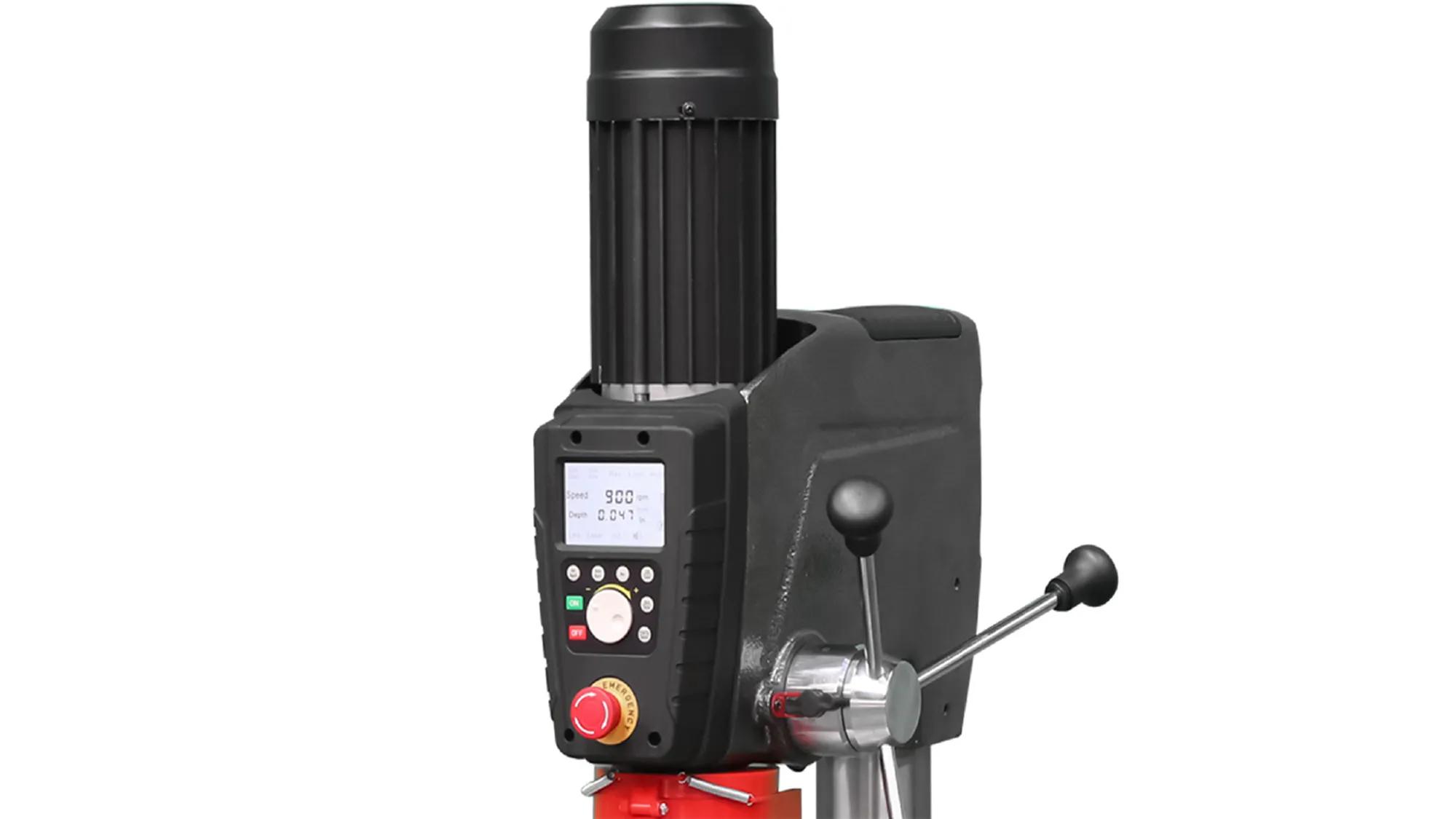

Holzprofi Maker special bench drill M1-BM4117T-Variotouchwith infinitely variable speed

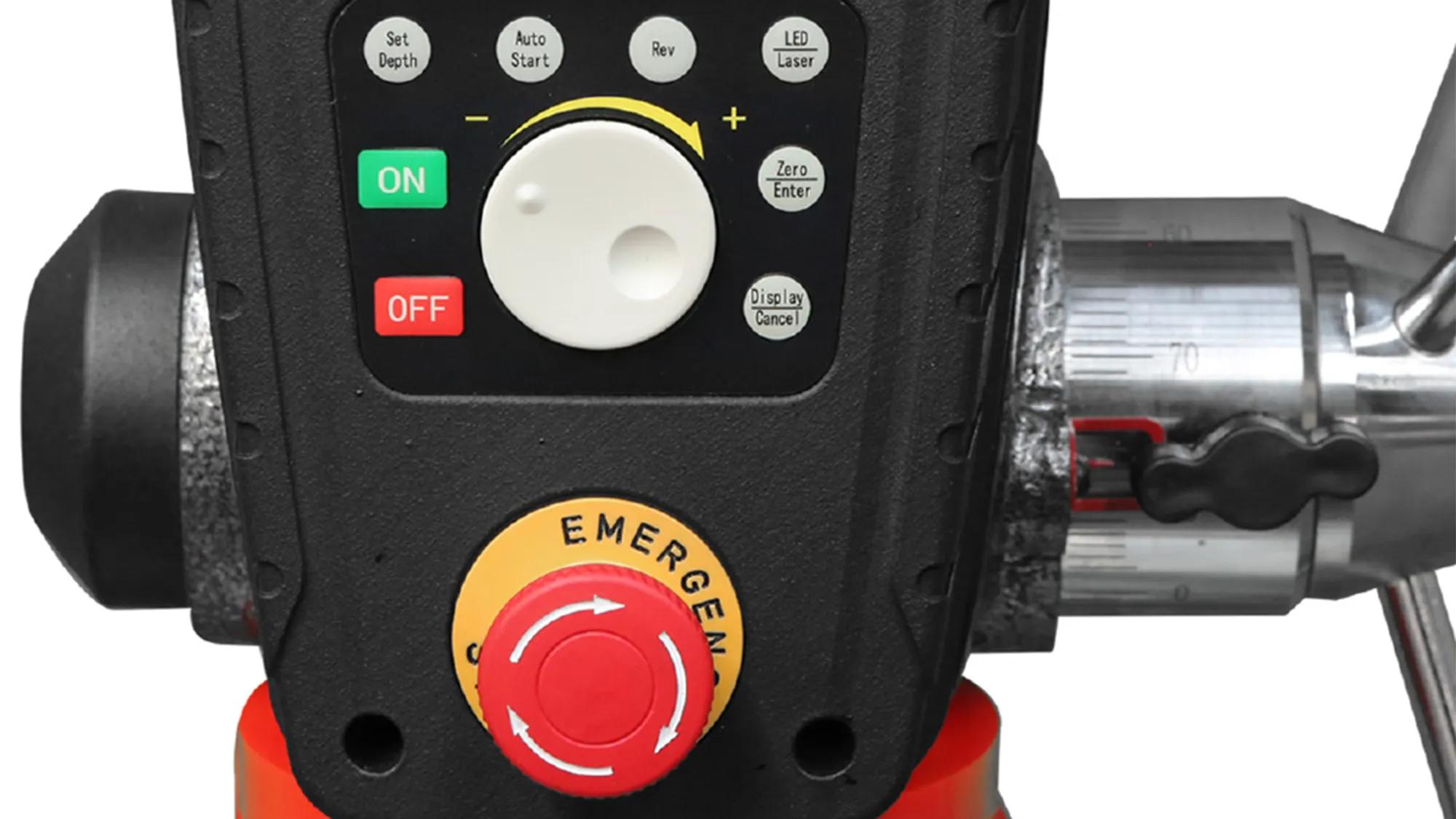

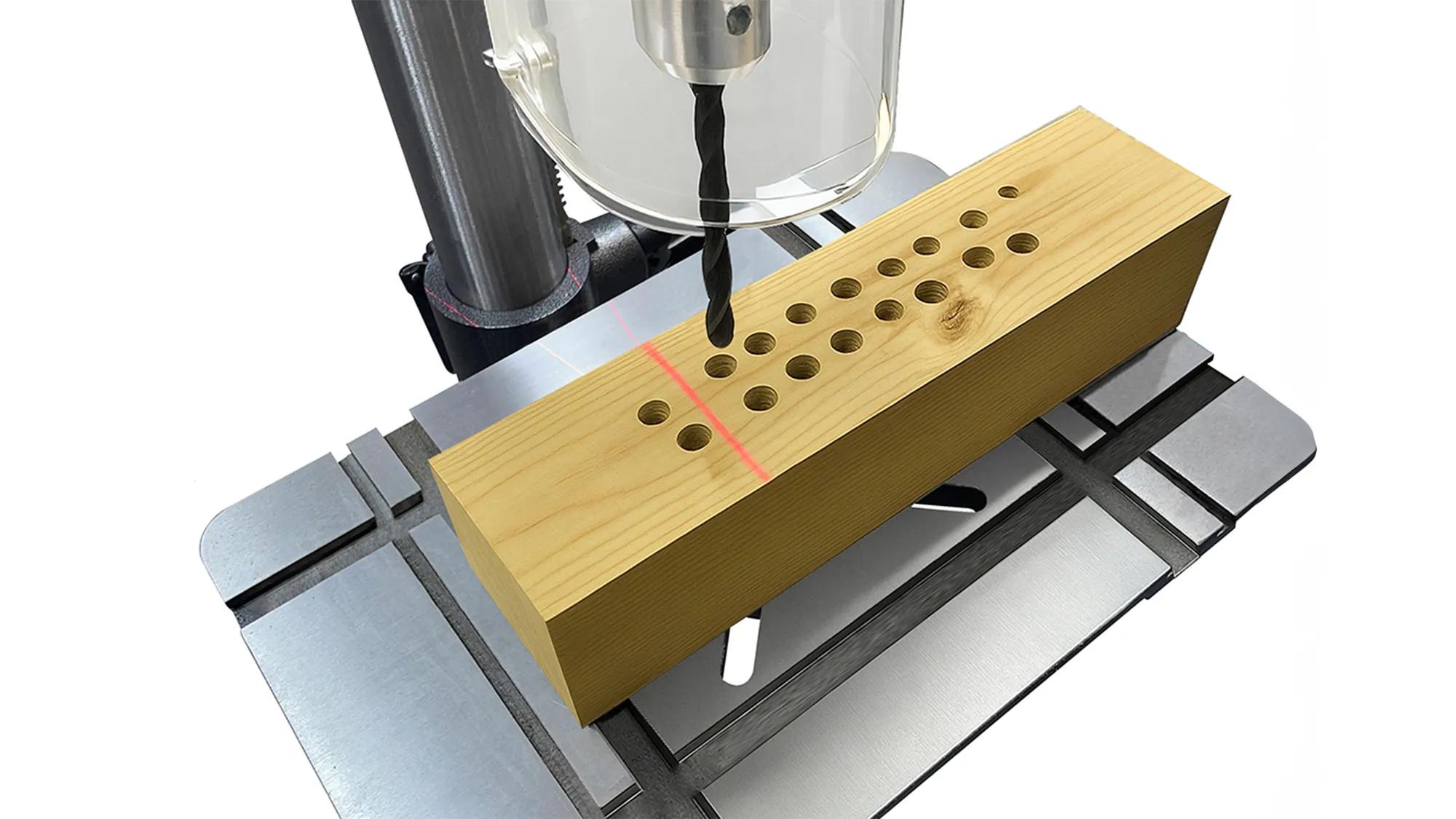

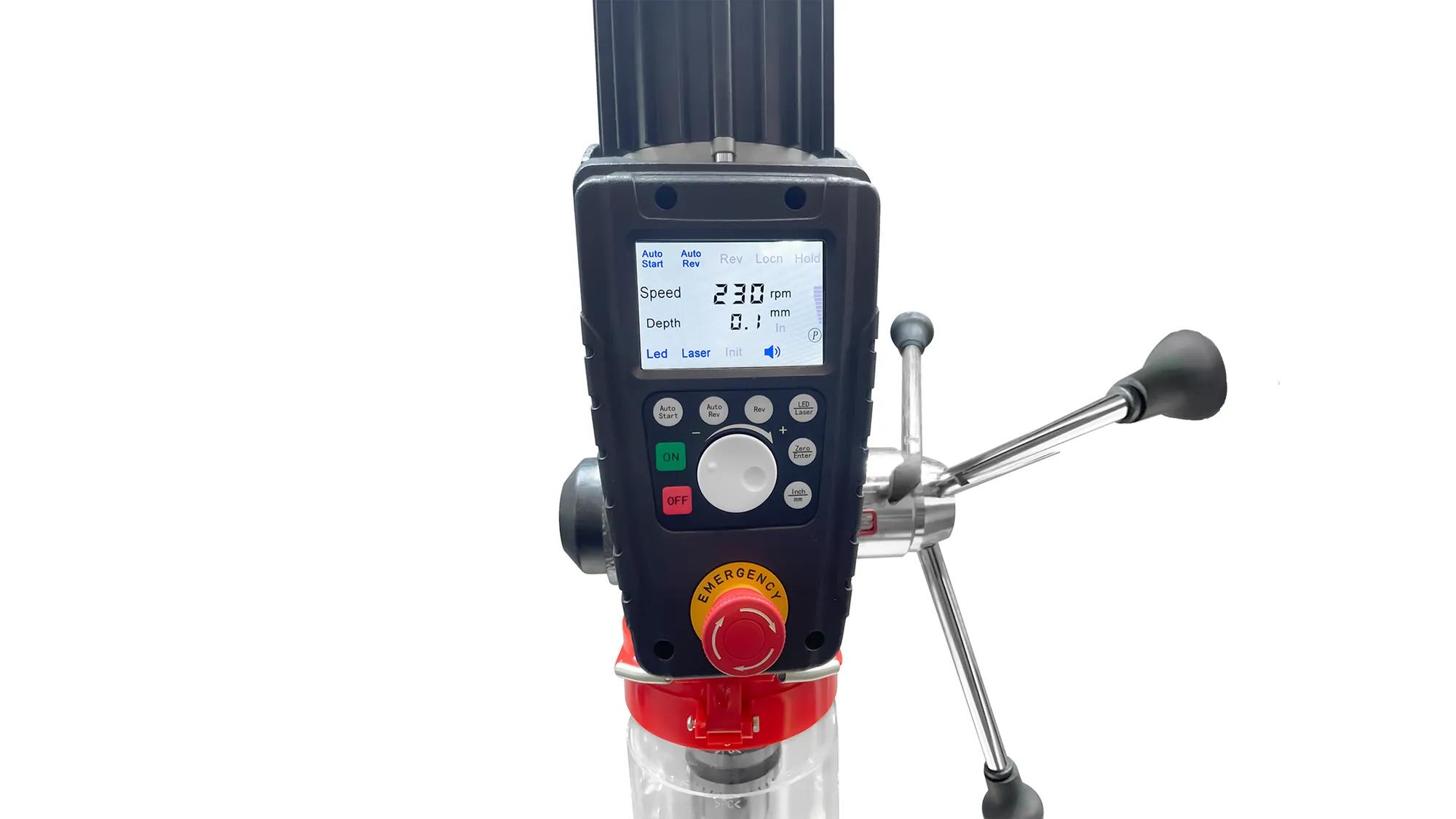

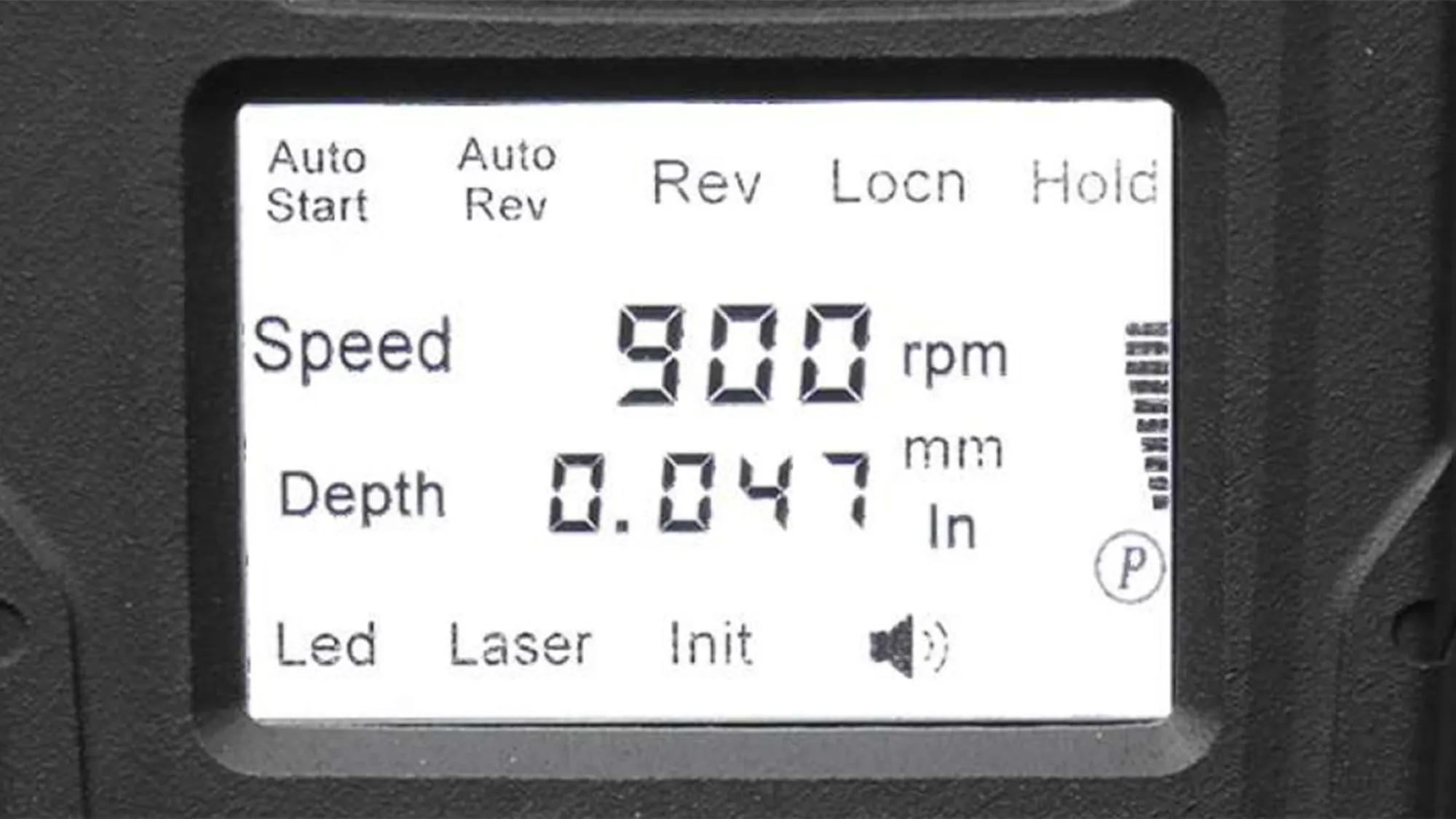

The brushless motor is directly controlled without belt drive, no loss of power! Electrical control with a combined chip and software control system. Touchscreen display, thread cutting device, automatic start and tamping function when operating the quill, right/left rotation, LED light and cross line laser.
With extra robust table - also suitable for vices.
Technical data
-
Motor power
1.6 kW (= 2 kW S6)
-
Motor voltage
230 Volt
-
Quill cone
MK 2
-
Quill stroke
120 mm
-
Drill chuck
3-16 mm
-
Speeds
150 - 3200 rpm
-
Column diameter
80 mm
-
Table dimensions
345 x 345 mm
-
Base dimensions
520 x 320 mm
-
Table tilt
° left/right
Features & benefits
- The brushless motor is directly controlled without belt drive, no loss of power!
- Touchscreen display
- Thread cutting device, automatic start and tamping function when operating the quill, right/left rotation

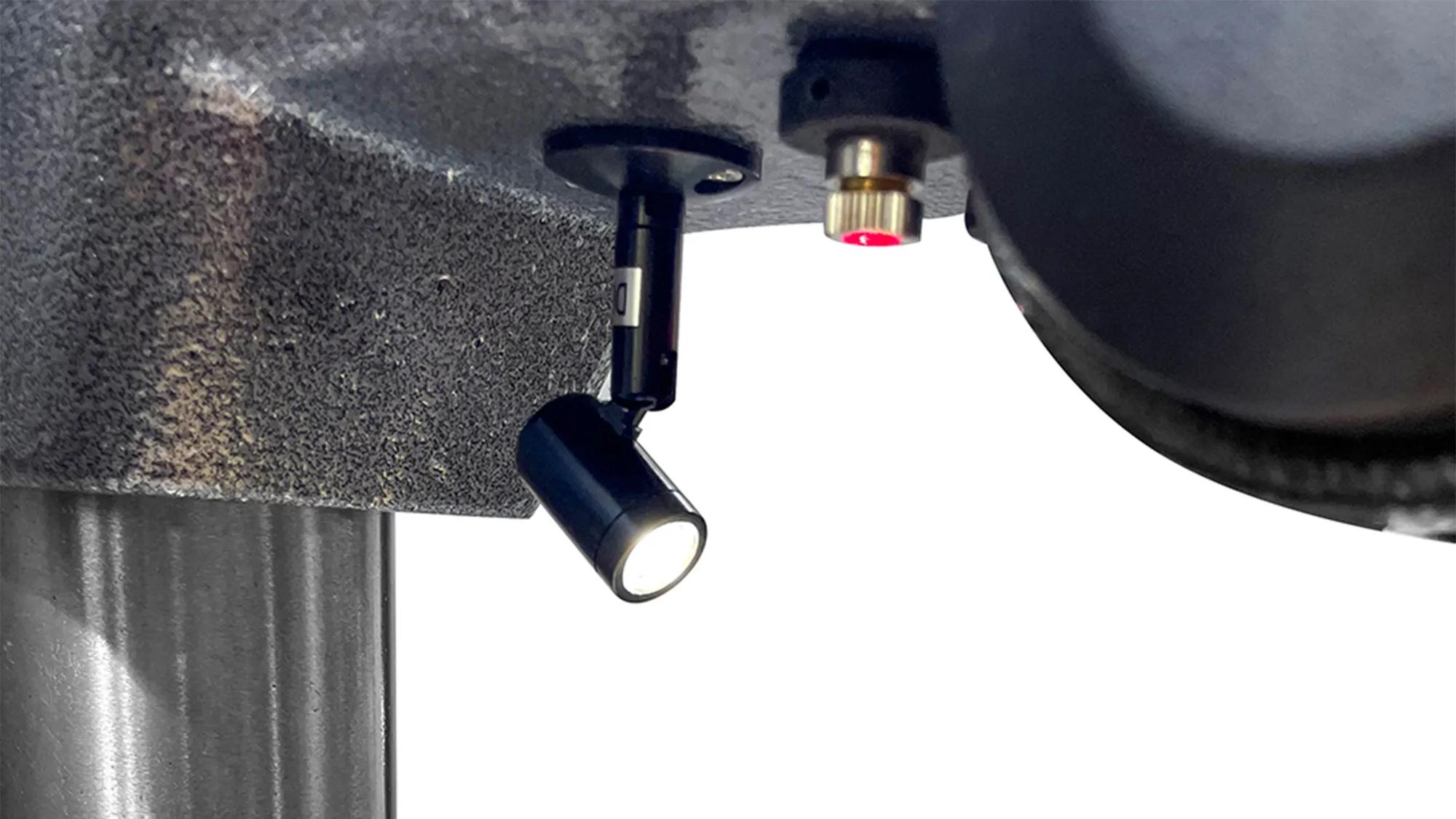

- With LED light and cross line laser.
- With extra robust table - also suitable for vices.
