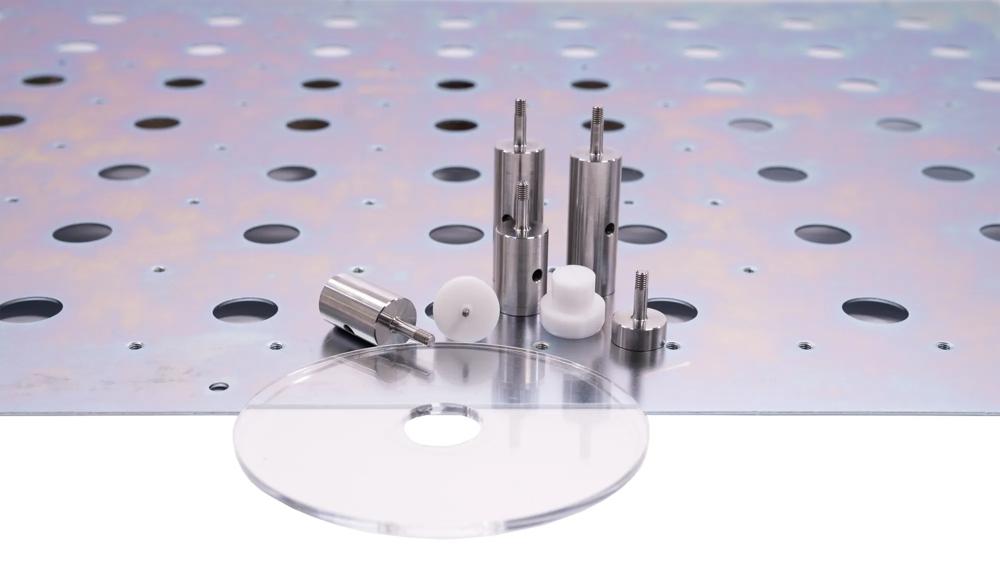

Vario-Master MFT Starter Set

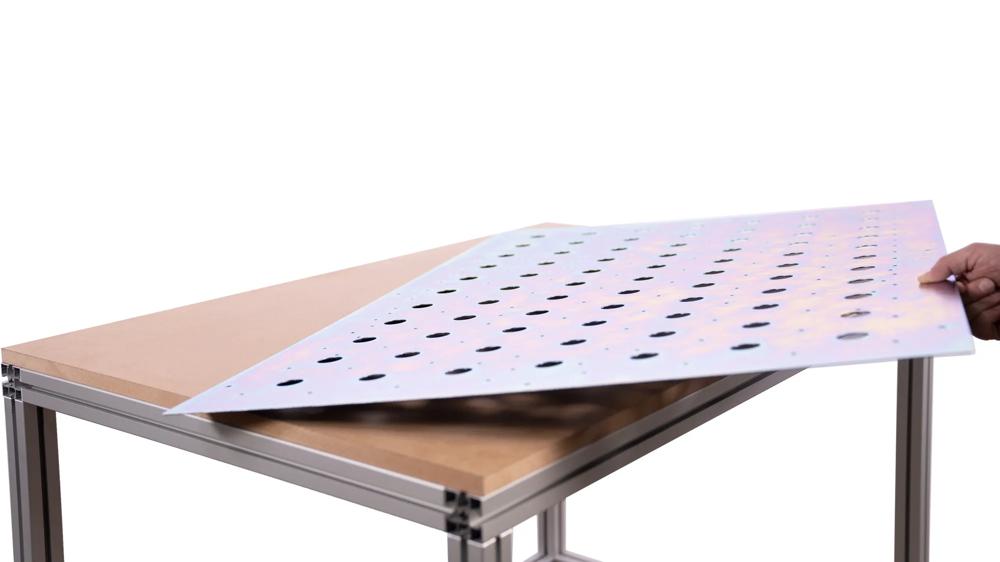

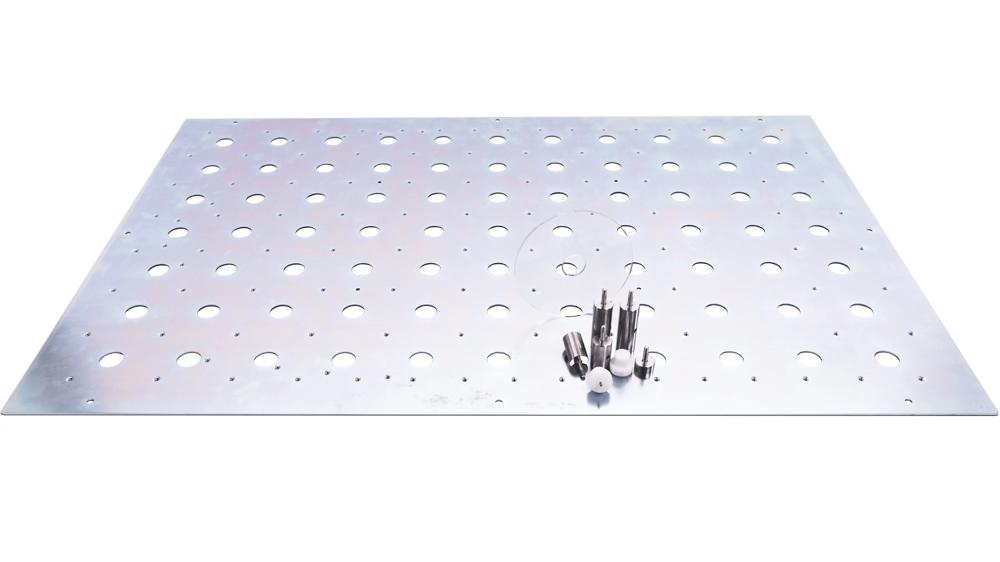

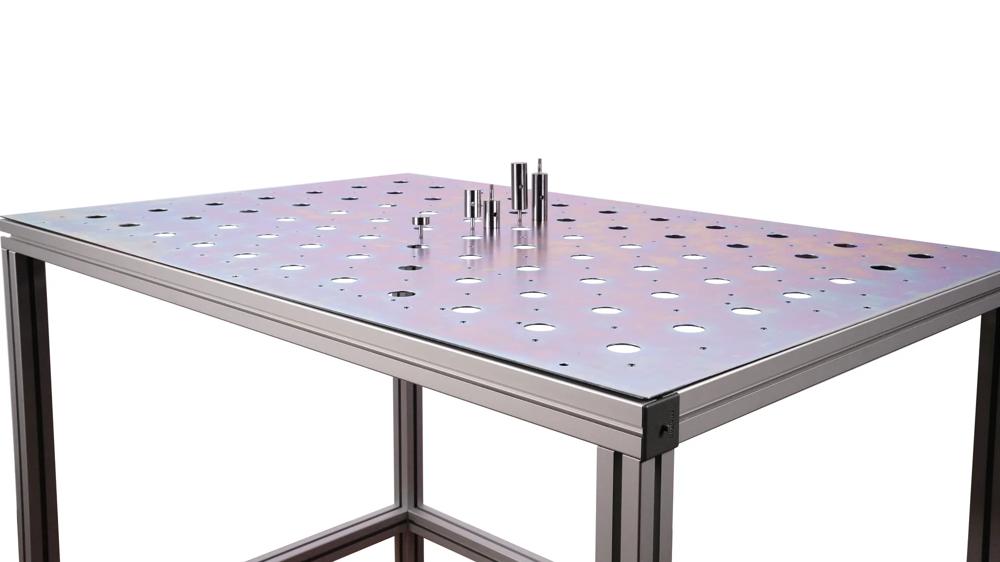

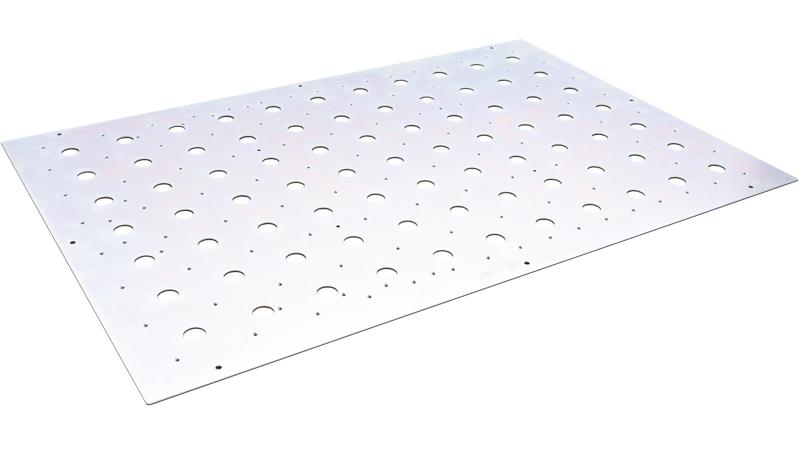

Vario-Master MFT template:

• Material template: galvanised steel | CNC-machined
• Dimensions of template: 1200 x 800 x 2 mm
• Thread Ø in template: M6
• Thread length in template: 4 mm
• Max. Machining width for 90° angle: approx. 1070 mm
• Max. machining width Machining width for angle 45°-89°: min. 601 mm
• Hole Ø of the grid: 30.2 mm
• Center Hole Spacing: 100mm

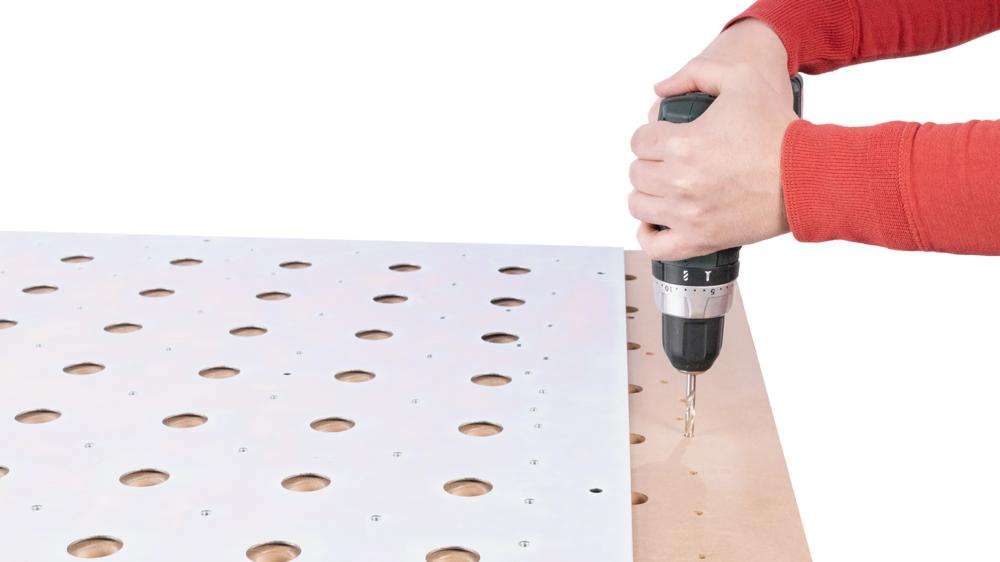

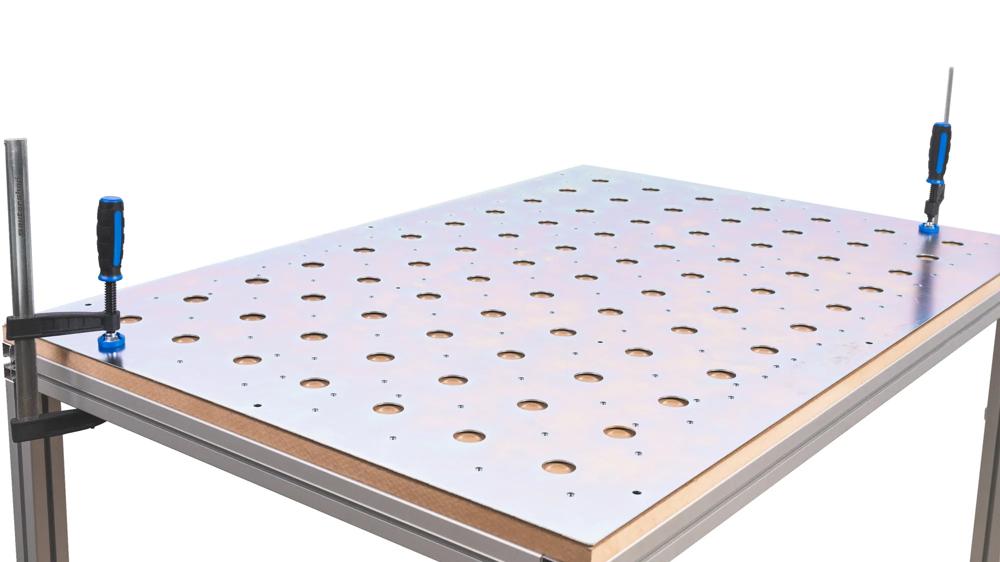

• Fastening of the template: 4 through holes for fastening to the worktop (e.g. MDF, Multiplex)
• Weight: 14 kg

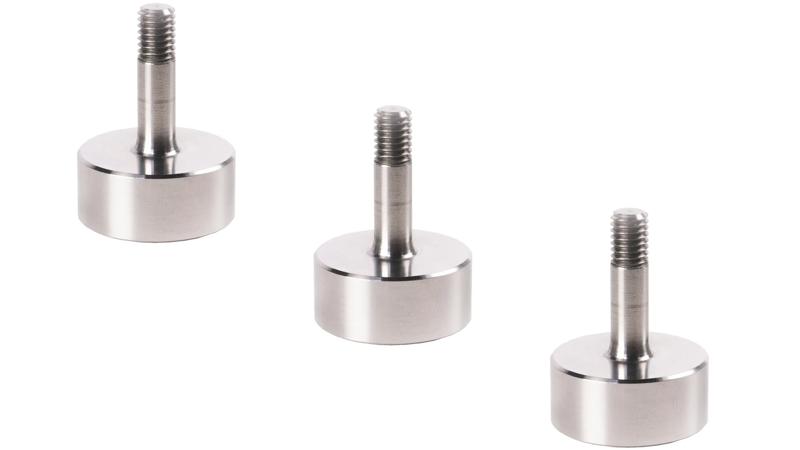

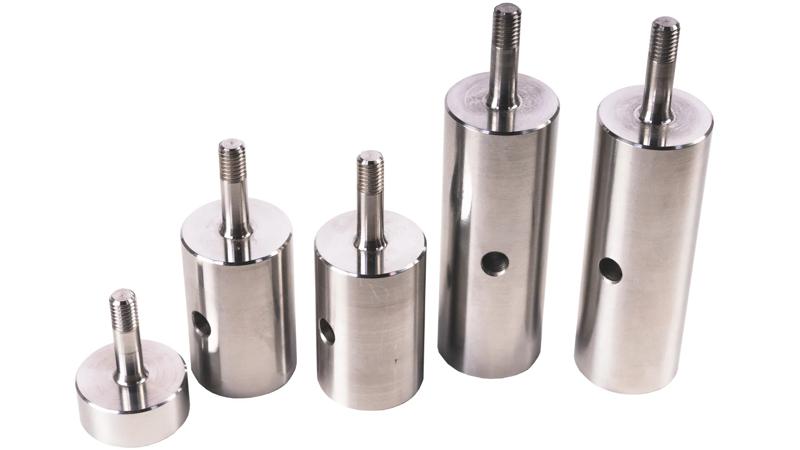

• Screw bench hook set 5 pieces:
• Material: magnetic stainless steel
• Height bench dog long: 70 mm
• Height bench dog short: 40 mm
• Height bench dog low: 11 mm
• Length of threaded pin: 22 mm (of which 8 mm thread length)
• Diameter of all bench dogs: Ø 25 mm
• Thread Ø: M6

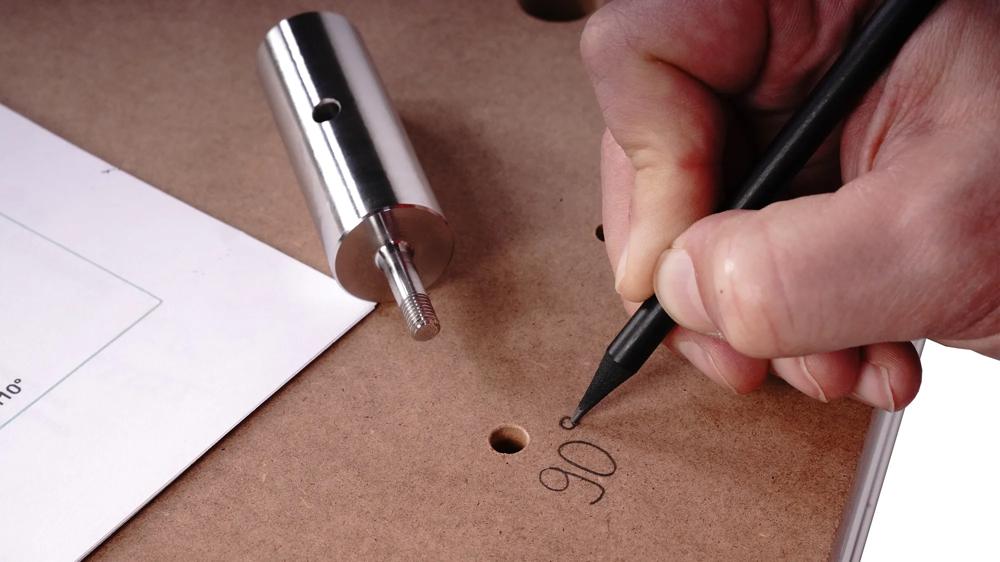

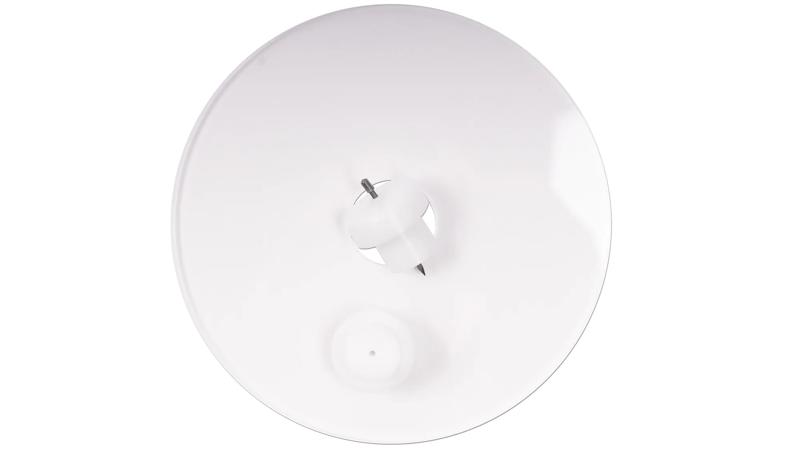

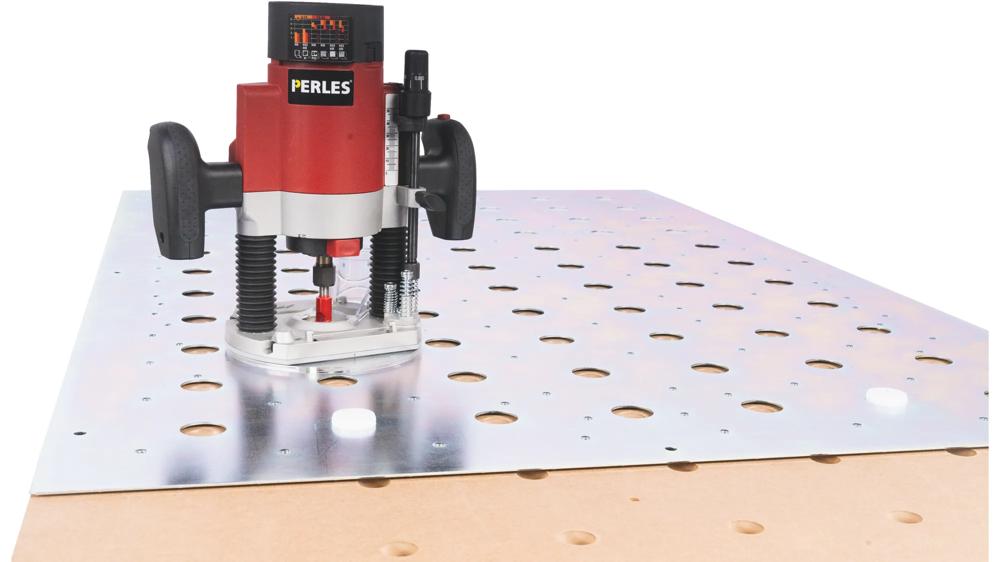

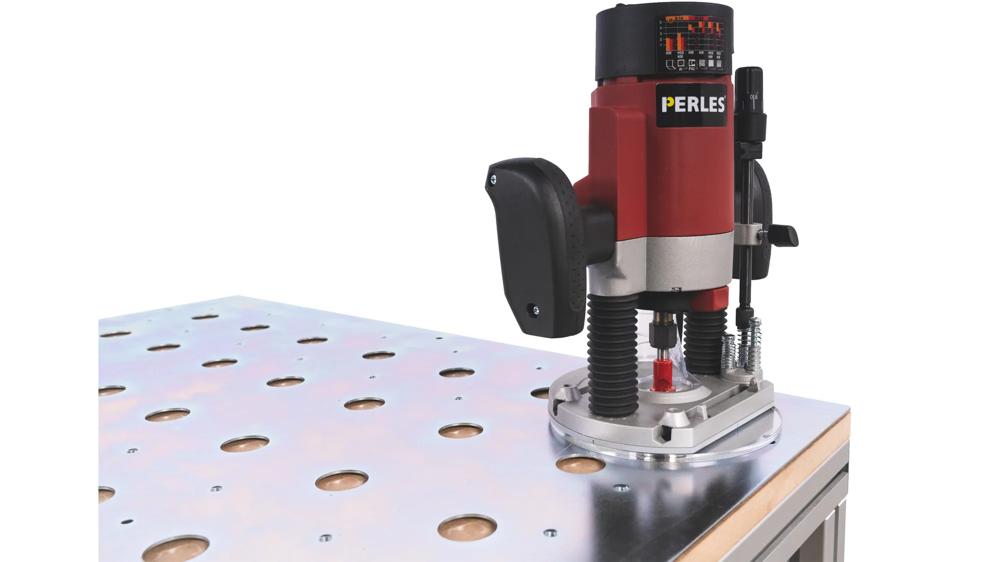

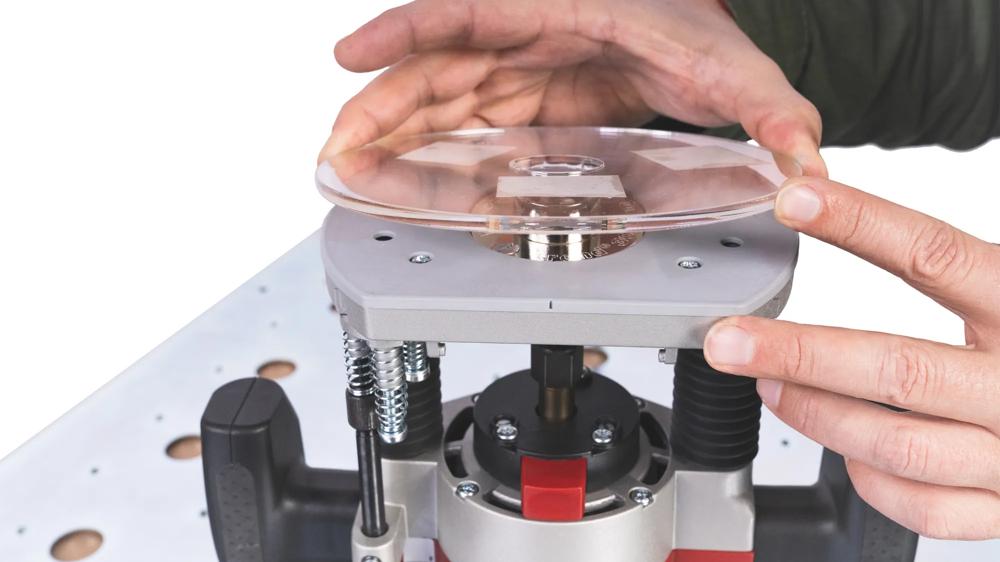

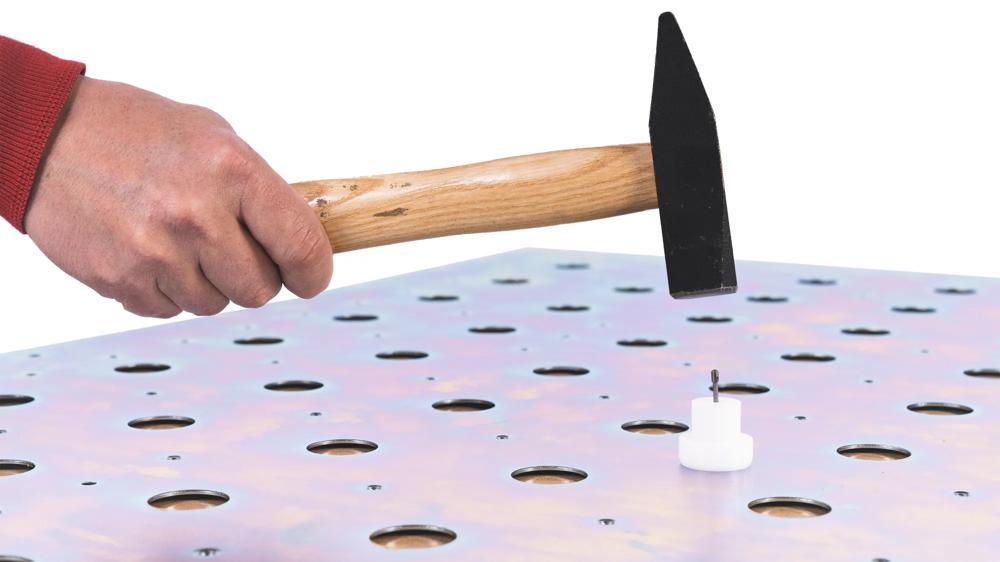

Marking and milling kit:

• Ø acrylic glass pane: 160 mm
• Ø centre hole acrylic glass pane: 30 mm
• Thickness of acrylic glass pane: 5 mm
• Ø plastic plugs: 20 and 30 mm
