Woodpeckers Flush Trim Base

Safe flush trimming with the router | Large support | Reduces tear-outs

Not available at the moment

139,90 €

incl. VAT / excl. shipping costs

Brand:Woodpeckers
Article no.:W-WPFTB
Weight:1.814kg

Woodpeckers Flush Trim Base

Flush trimming of solid wood mouldings and other overhangs is an excellent and safe process with this base from Woodpeckers.

Trimming wood edge banding is much easier with the Flush Trim Base.

You can use a hand plane, but that takes skill, time, and careful sharpening. A router with a flush trim bit is faster, but it’s hard to balance on the edge of a panel—and one small mistake can ruin your work.

The Flush Trim Base makes the job safer and easier.

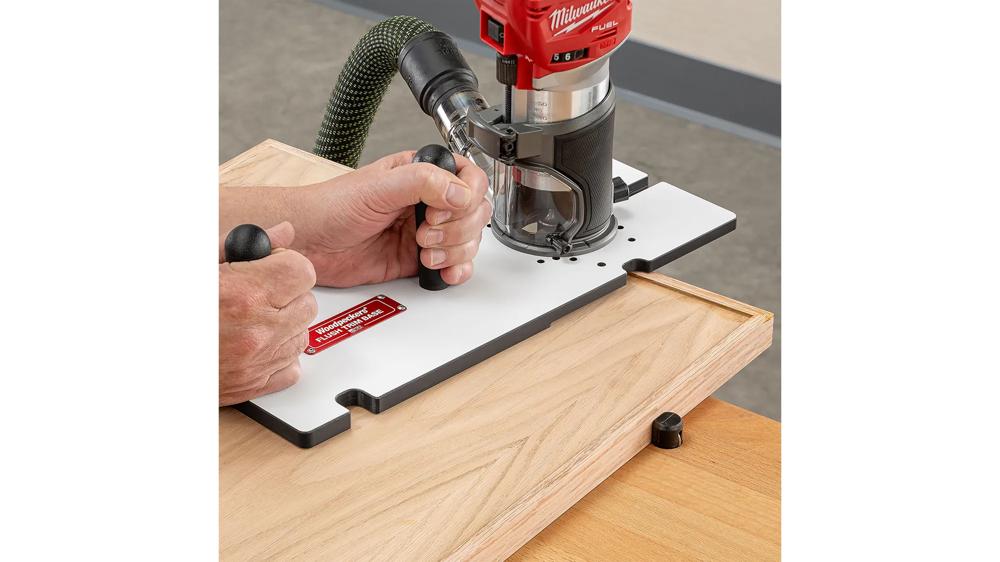

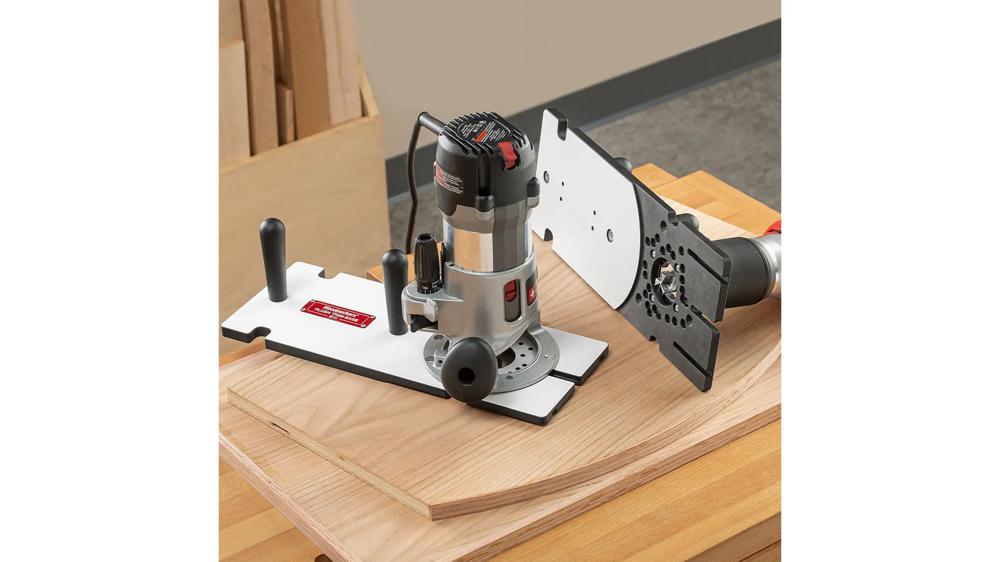

It’s made from a strong 150 mm x 380 mm solid phenolic plate. More than half of the base rests flat on top of your panel to keep the router steady. The area where the router mounts is lowered slightly, so it clears anything up to 3 mm above the panel surface. Just set your router bit to cut slightly above the plywood surface—less than a tenth of a millimetre—and you’re ready to trim.

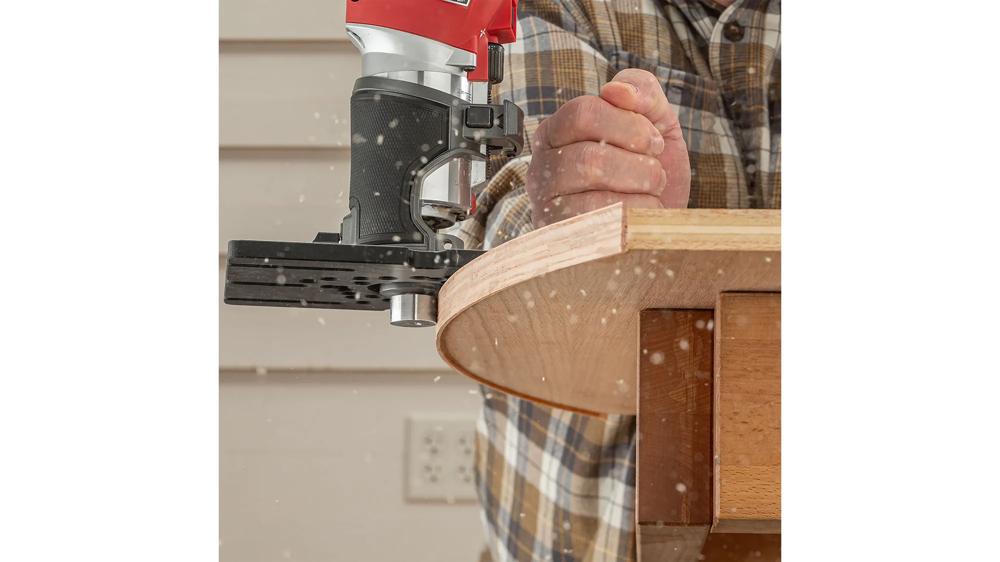

With the router standing straight up, there’s almost no chip-out. And with three ways to guide your cut, this tool makes trimming edge banding smooth, fast, and accurate.

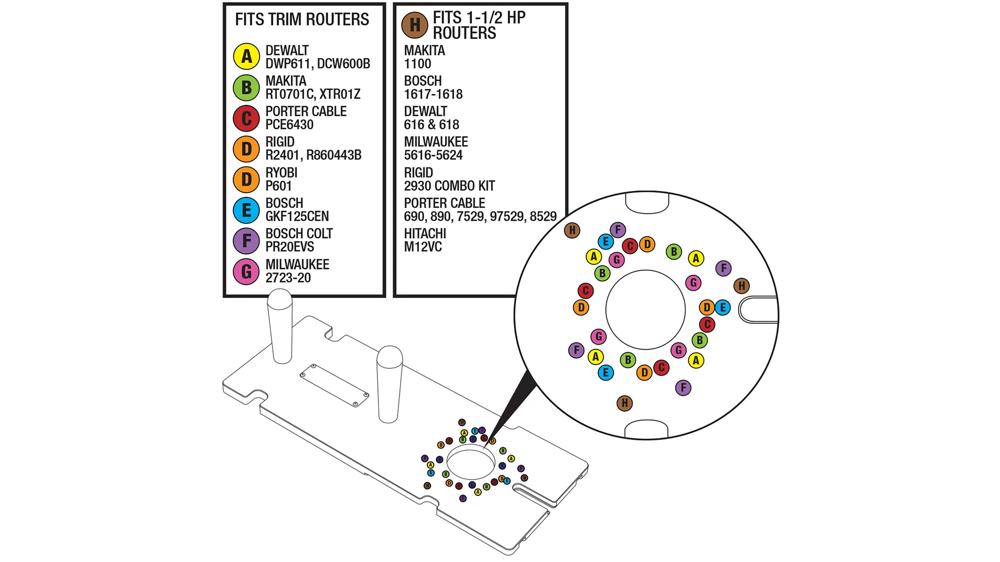

The base is pre-drilled to fit most popular cordless and corded trim routers.

Technical Data

Material: Phenolic resin, steel, plastic
Dimensions (L x W x H): 390 x 151 x 12.7 mm
Rip fence (L x H): 151 x 22 mm
Protrusion, max.: 4 mm
Compatible with:
- Makita RT0700, DRT50
- Festool OF1010
- Trend T1EPS
- DeWalt D2620
- Bosch GKF600
- Einhell TP-ET
- Milwaukee M18FTR
- Ryobi RTR18-0

Properties & Advantages

Reduces tears on glued joints by cutting against the carrier plate.
Safe guidance of the router thanks to large support surface.

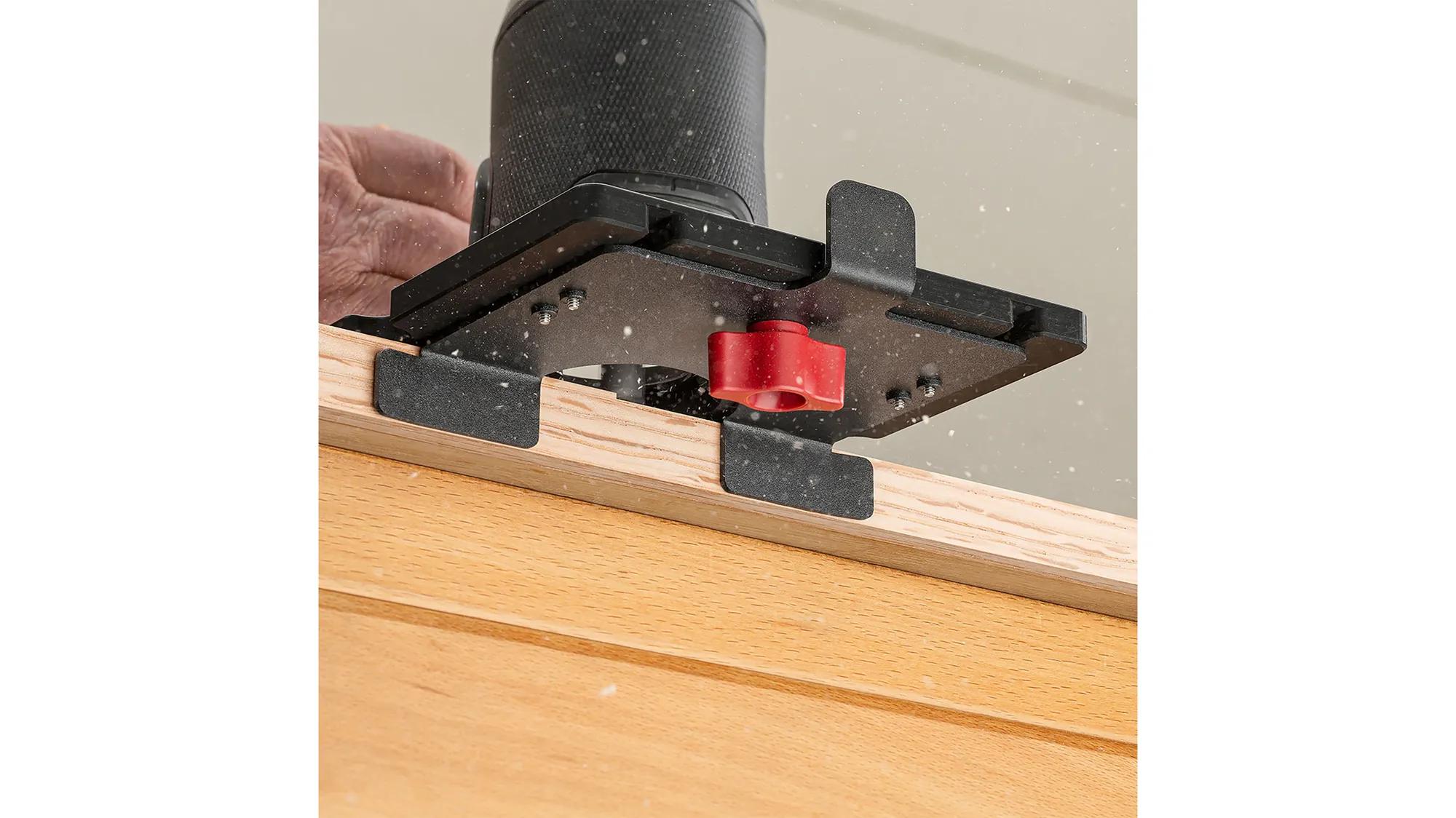

Even guidance on the reference edge thanks to parallel stop.

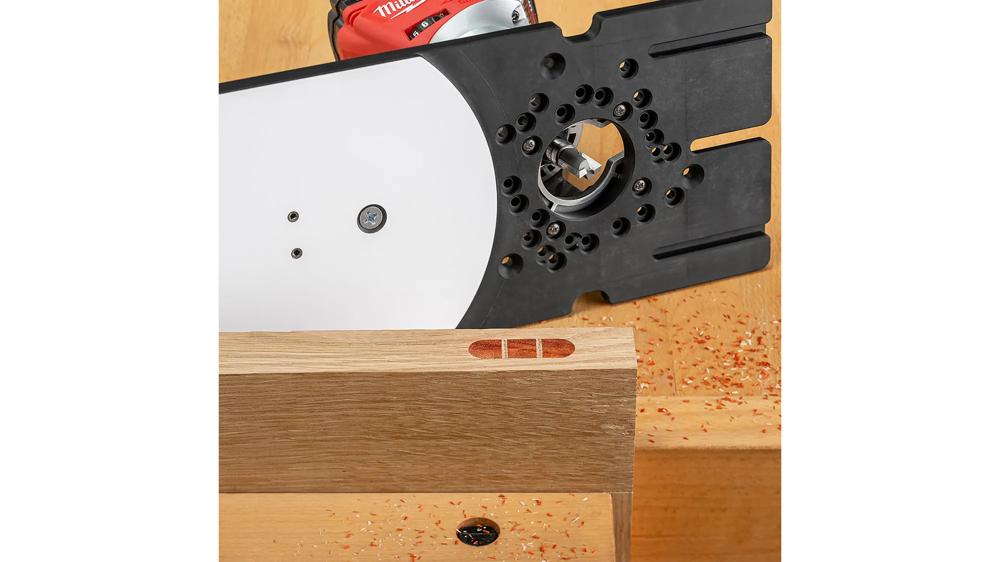

Cut-outs on the side indicate the router position.

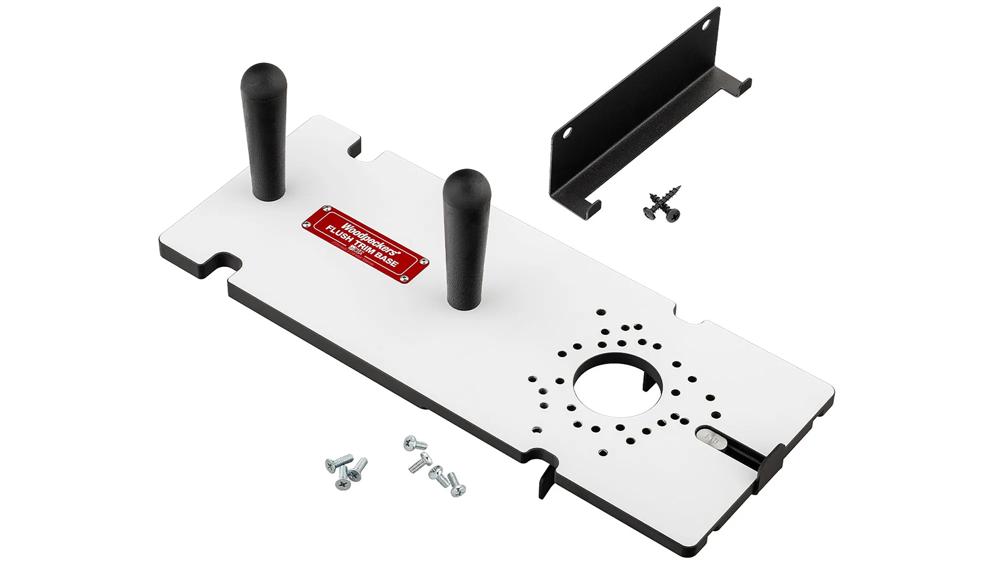

Two large handles ensure safe guidance at all times.

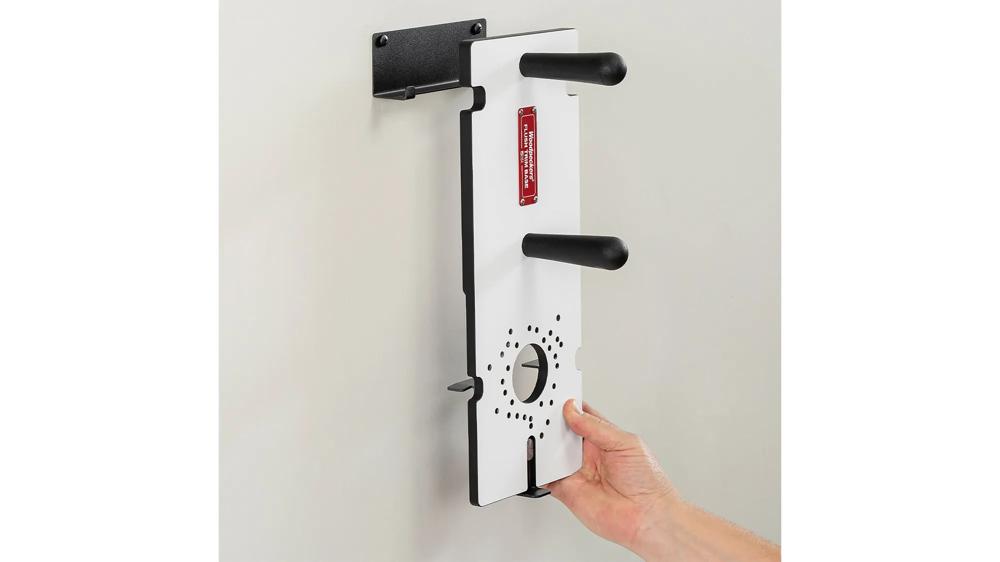

Practical RackIt wall bracket for quick access.
Made in Strongsville, Ohio, USA.
